Product no.: 7911

Microscope XE.5612

$ 343.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Euromex X series are very popular biological microscopes for secondary schools. The ergonomically stand with coaxial coarse and fine adjustment together with excellent optics and mechanics offers the mono and binocular models all the necessary comfort that the user can expect

  • Wide Field eyepiece(s) HWF 10x/18
  • The eyepieces of monocular models are equipped with a pointer
  • Mono- and binocular models, head 360° rotatable
  • Revolving nosepiece for 4 objectives
  • Achromatic DIN 4x 10x 20x S40x S60x and S100x-oil objectives
  • 120 x 120 mm stage with two object clamps or with integrated X-Y translation stage
  • Built-in specimen protection mechanism
  • Coaxial coarse and fine adjustment
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Specifications

Optics


Eyepiece
10 (Wide-angle eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable)
Lighting
Transmitted light
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)
Lamp type
LED (adjustable)
Power supply
built-in charger with NiMH battery
Lens type
Achromatic
Magnification
40, 100, 400

Capacity


brightfield
yes

Mechanics


Specimen stage
Specimen stage (120 x 120 mm)
Viewing posture (°)
45° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (coaxial)
Type of build
Monocular

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
yes
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
XE-Serie
Colour
black-white
Weight (g)
3600
Suitable from
12

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Area of application


Metallurgy
-
Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Dark field
-

Recommended accessories

Microscopy (2)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

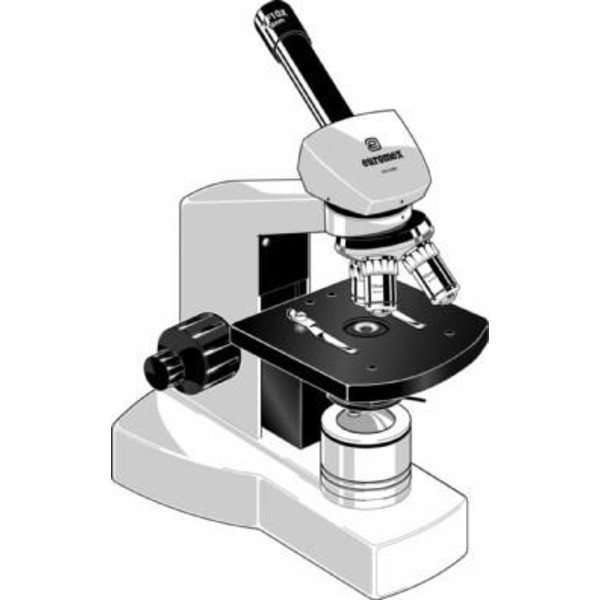

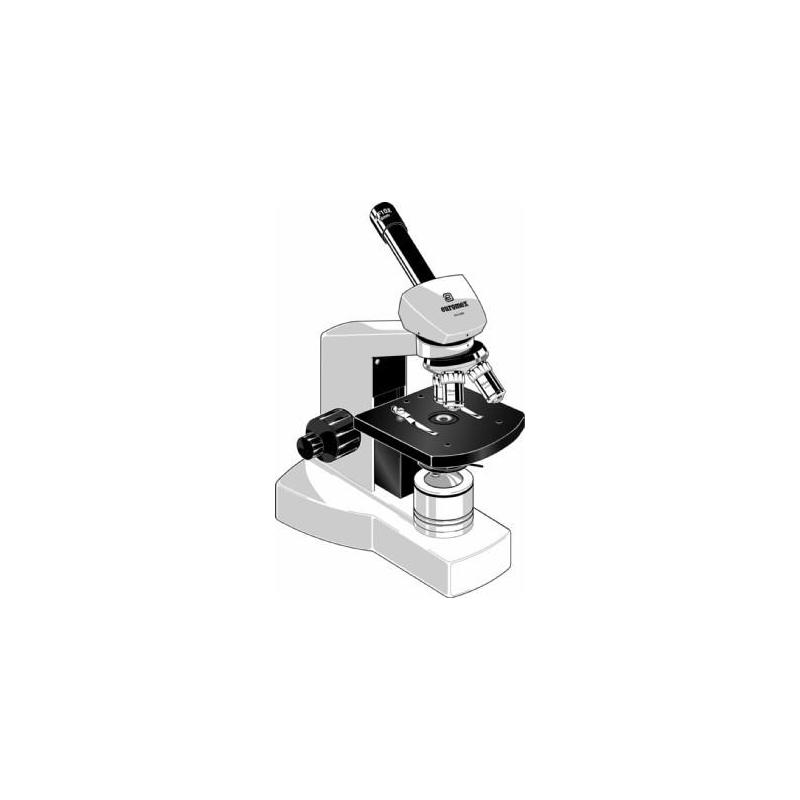

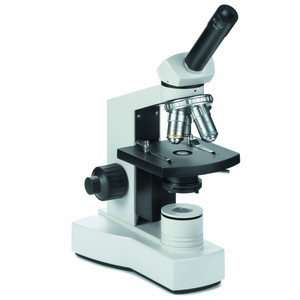

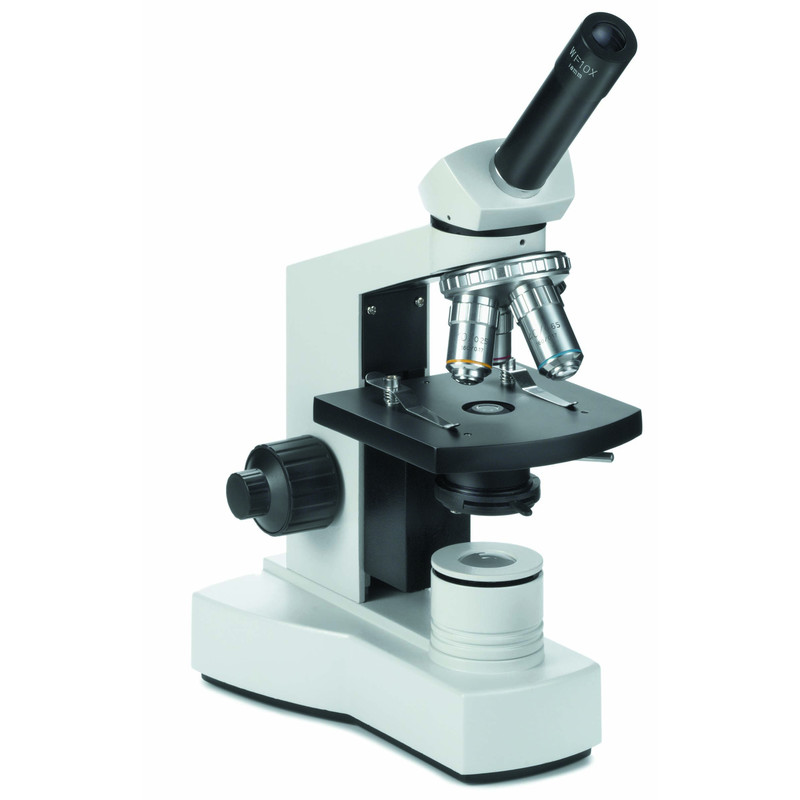

Euromex Microscope XE.5612
