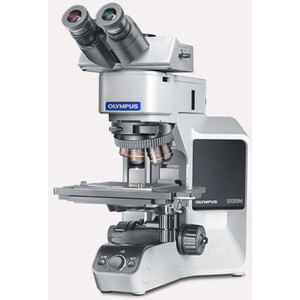

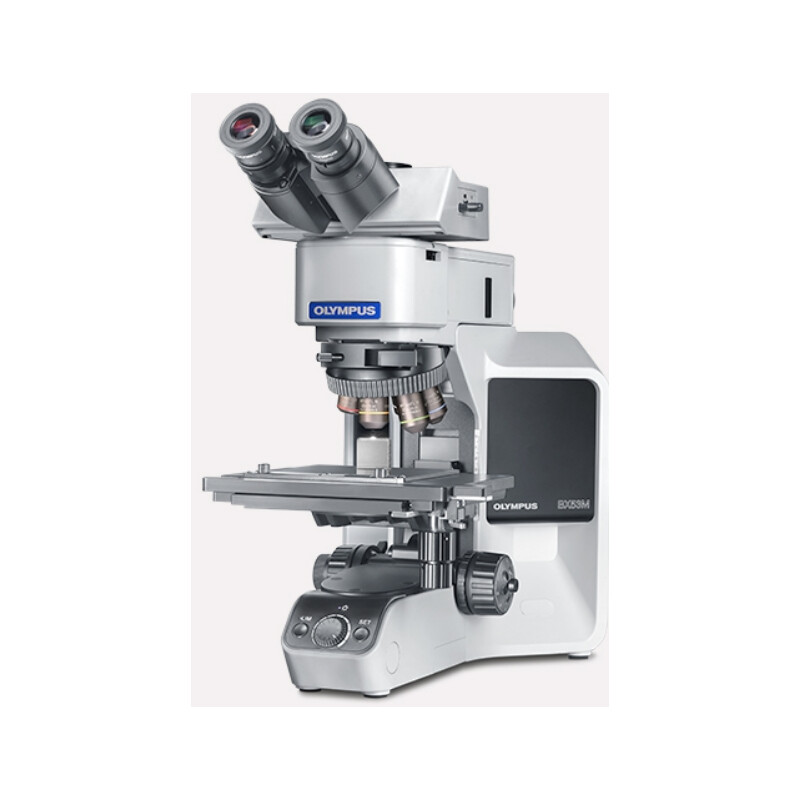

Microscope Olympus BX53-MET, HF, DF, trino, infinity, plan, Incident light, LED, Mix

Optical system: UIS2 optical system (infinitely corrected)

Focus    travel: 25 mm

Fine adjustment: 100 µm per revolution

Smallest subdivision: 1 µm With upper stop and torque adjustment for coarse adjustment

Max. height of object:  Incident light: 65 mm (without spacer), 105 mm (with BX3M-ARMAD) Incident light/transmitted light: 35 mm (without spacer), 75 mm (with BX3M-ARMAD)

Eyepieces: 10x/22

Lighting: Reflected light: White light LED, HF/DF/DIC/POL/MIX Illuminated field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock

Transmitted lightCoded, white light LED, HF/DF/DIC/POL/MIX illuminated field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock

Objective turret for bright field: 5-fold

Objective turret for HF, DF, MIX: 6-fold

Condenser large working distance

Table (X x Y) 76 mm × 52 mm

Objectives not included.

Specification

• Optical system: infinity corrected
• Tripod: reflected light
• Focus travel: 25 mm, 100 µm per revolution, smallest division: 1 µm, with upper stop and torque adjustment for coarse adjustment
• Max. height of object: 65 mm (without spacer), 105 mm (with spacer BX3M-ARMAD)
• Observation tube: Wide field of view (F.N,22), inverted: Binocular with camera tube
• Lighting: White light LED,HF/DF/DIC/POL/MIX
• Objective turret for bright field: 5-fold
• Eyepieces: 10x/22 diopter adjustment on one side
• Table (X x Y) 76 mm × 52 mm Coaxial table with left-hand drive with torque adjustment
• Weight: approx. 15.8 kg (microscope stand 7.4 kg)

Modules

• Tripods &mounts BX53MTRF-S-1-3
• Trinocular tube U-TR30-2-2
• Eyepiece WHN10X-1-8
• Eyepiece WHN10X-H-1-8
• Reflected light condenser BX3M-RLA-S
• Light source BX3M-LEDR
• Slider U-MIXR DF, Fluo, POL
• Cable U-MIXRCBL-1-2
• Objective turret U-5RE-2
• Cross table U-SVRM Right-hand drive
• Table insert plate U-MSSP
• Hand switch BX3M-HS
• ControlunitBX3M-CB-1-3
• CONNECTION CABLE 2x UYCP

The lenses can be ordered separately:

Select your preferred lenses from the accessories for this model: MPLFLN lenses
