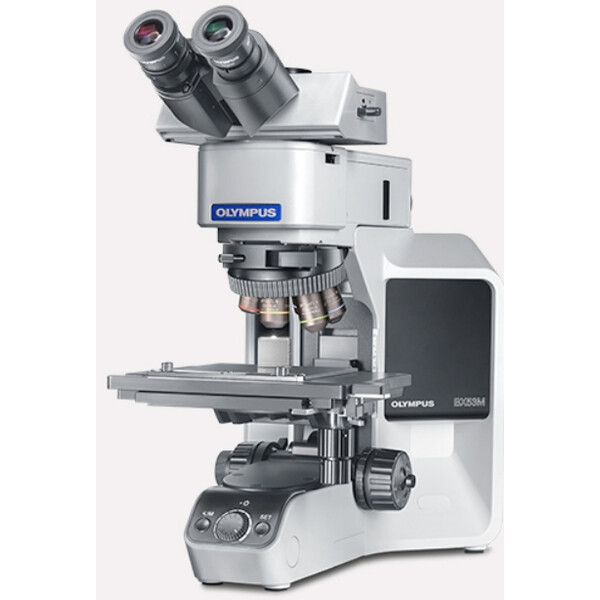

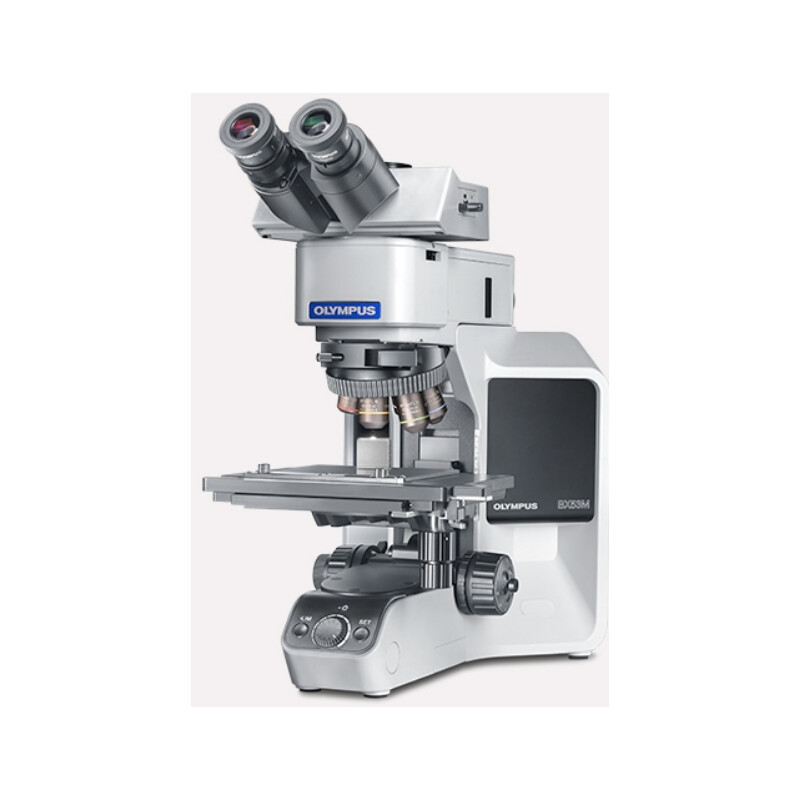

Microscope Olympus BX53-MET, HF, DF, trino, infinity, plan, Reflected/Transmitted light, LED, Mix

Specification

• Optical system: infinity corrected
• Tripod: reflected light
• Focus travel: 25 mm, 100 µm per revolution, smallest division: 1 µm, with upper stop and torque adjustment for coarse adjustment
• Max. height of object: 35 mm (without spacer), 75 mm (with spacer BX3M-ARMAD)
• Observation tube: Wide field of view (F.N,22), inverted: Binocular with camera tube
• Objective turret for bright field: 5-fold
• Eyepieces: 10x/22 diopter adjustment on one side
• Lighting: White light LED, HF/DF/DIC/POL/MIX Illuminated field diaphragm
• Incident light condenser: with aperture diaphragm with centring, HF/DF lock
• Table (X x Y) 76 mm × 52 mm Coaxial table with left-hand drive with torque adjustment
• Transmitted light condenser with large working distance

Weight approx. 18.3 kg (microscope stand 7.6 kg)

Modules

• Microscope tripod: BX53MTRF-S-1-3
• Trinocular tube: U-TR30-2-2
• Eyepiece: WHN10X-1-8
• Eyepiece: WHN10X-H-1-8
• Revolver: U-D5BDRE 5X Obj. Bright field and dark field
• Cross table, clockwise rotation: U-SVRM
• Table insert plate: U-MSSP
• Specimen holder: U-HRDT-4
• Reflected light condenser: BX3M-RLA-S Bright field and dark field, DIC, POL
• Light source, reflected light: BX3M-LEDR
• Abbe condenser: U-AC2-7
• Transmitted light source: BX3M-LEDT
• Slider: U-MIXR, DF, Fluo, POL
• Cable: U-MIXRCBL-1-2
• Hand switch: BX3M-HS
• Control unit: BX3M-CB-1-3
• CONNECTION CABLE: UYCP 2x
