Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Kern > OBE > Kern Microscope Trino Achromat 4/10/40, WF10x18, 3W LED, OBE 104
Product no.: 66311

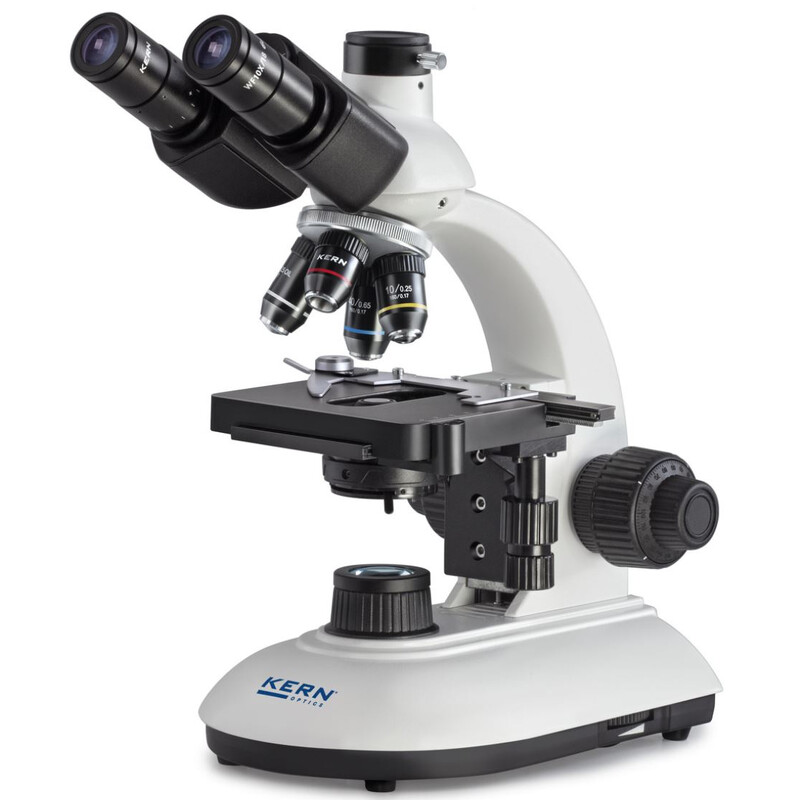

Microscope Trino Achromat 4/10/40, WF10x18, 3W LED, OBE 104

$ 830.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

  • The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
  • The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
  • The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
  • Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
  • A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
  • A C-mount adapter is required to connect a camera to the trinocular version
  • Also available in a set of 10

Scope of application

Training, haematology, sediment investigation, doctor's surgeries

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

  • Finite optical system (DIN)
  • 4-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation one-sided (for binocular and trinocular models)
  • Overall dimensions W×D×H 320×180×365 mm
  • Net weight approx. 4,988 kg

Specifications

Optics


Eyepiece
10x/18 (Widefield)
Optical system
DIN (160mm)
Lens type
Achromatic

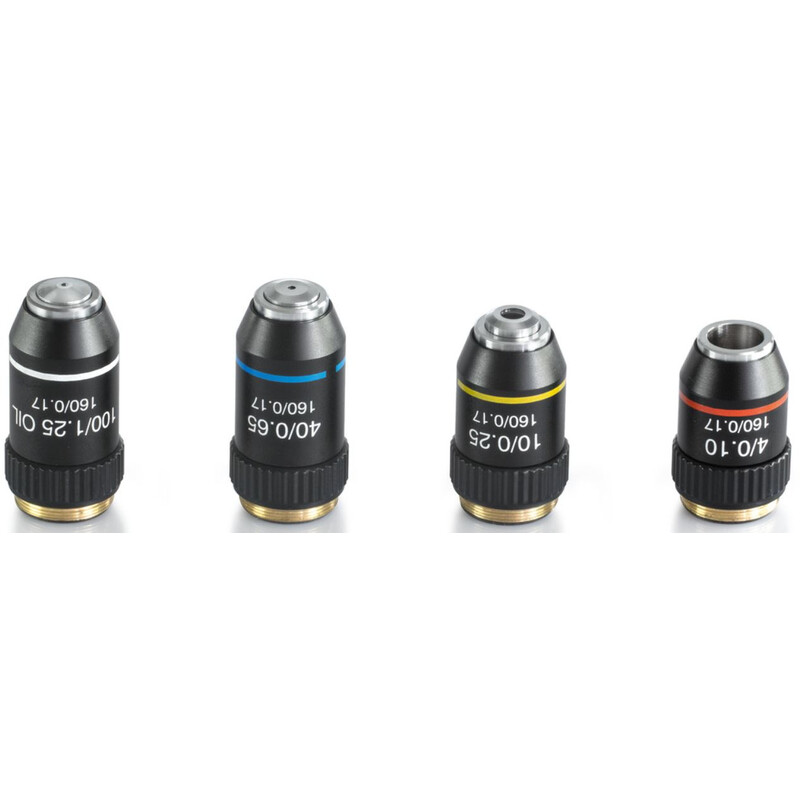

Objective 2
10×/0.25 W.D. 6.5 mm
Objective 3
40×/0.65 (spring-loaded) W.D. 0.47 mm
Magnification
40-400 (40, 100, 400)
Condensor
Abbe 1.25 N.A., focus adjustable, with iris diaphragm
Lamp type
LED (3W)
Power supply
EU-

Capacity


Brightness control
yes
brightfield
yes

Mechanics


Type of build
Trinocular
Viewing posture (°)
30 (30° angled eyepiece, 360° rotatable)
Focusing
Coarse and fine movement
Specimen stage
-

Special features


Rechargeable battery operation
-
Dust cover bag
yes
Filter holder
yes

General


Weight (g)
5500
Width (mm)
180
Length (mm)
320
Height (mm)
365
Series
OBE

Suitable for


Beginners
yes
Advanced
yes

Field of application


Education
yes
Medicine
yes

Area of application


school
yes
Secondary school
yes

Recommended accessories

Microscopy > Microscopy supplies (9)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.
