Home > Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Novex > B > Novex Microscope BMS 86.010

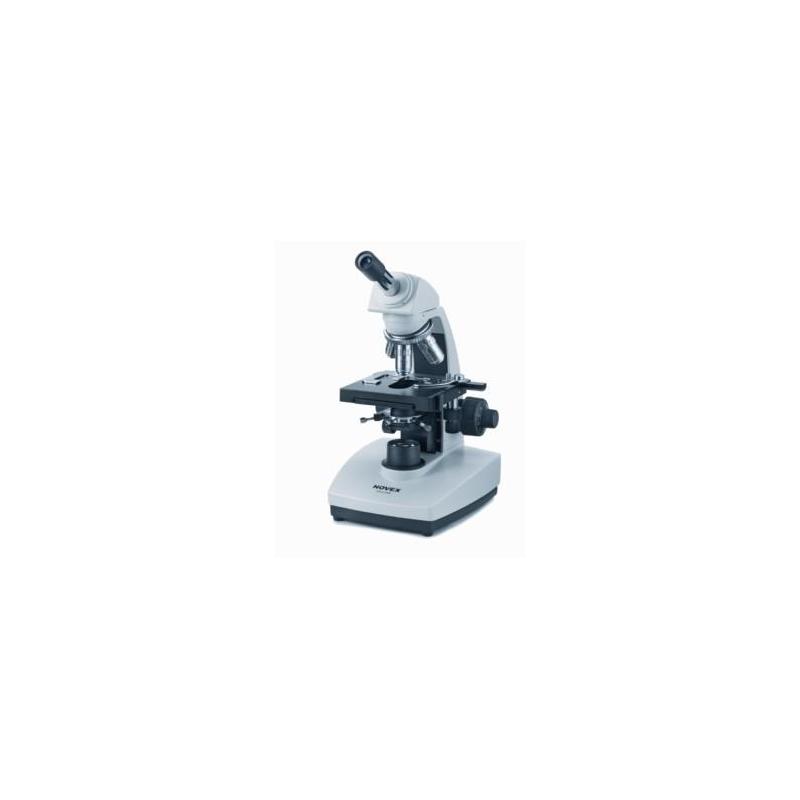

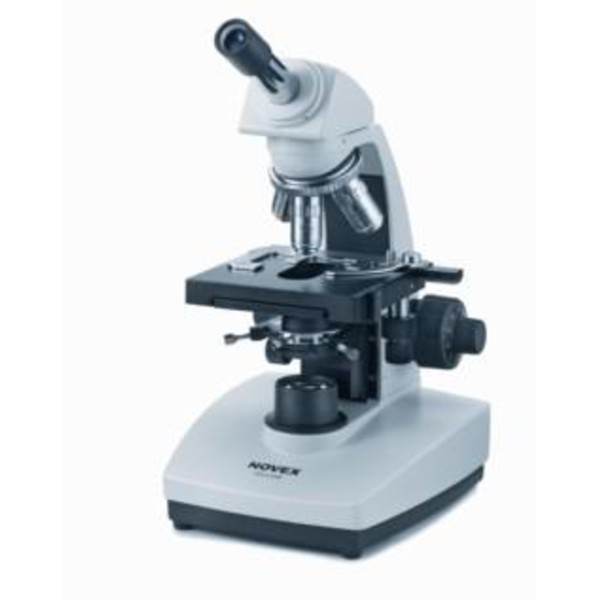

Novex Microscope BMS 86.010

Product no.: 9771
Manufacturer: Novex

$ 530.00

incl. VAT
plus shipping costs

too expensive?

ready for shipping in 3-5 weeks + lead time
Product description
Specifications
Customer reviews
Recommended accessories

Product description:

Novex B-series monocular microscope BMS for Bright field contrast

  • DIN widefield eyepiece WF10x/18
  • Monocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
    Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
  • Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
  • Semi-plan achromatic DIN-objectives SMP 4x N.A.0.10, SMP 10x N.A.0.25, SMP S40x N.A.0.65 and SMP S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
  • Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
  • Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
  • Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
  • Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case

  • Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer

Recommended accessories:


accessory details
