Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Optika > B-20 > Optika B-20, monocular microscope, 40 - 400x, LED
Product no.: 17176

B-20, monocular microscope, 40 - 400x, LED

RRP: $ 196.00 Our price:
$ 177.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

More about the series B-20...

ECOVISION Series:

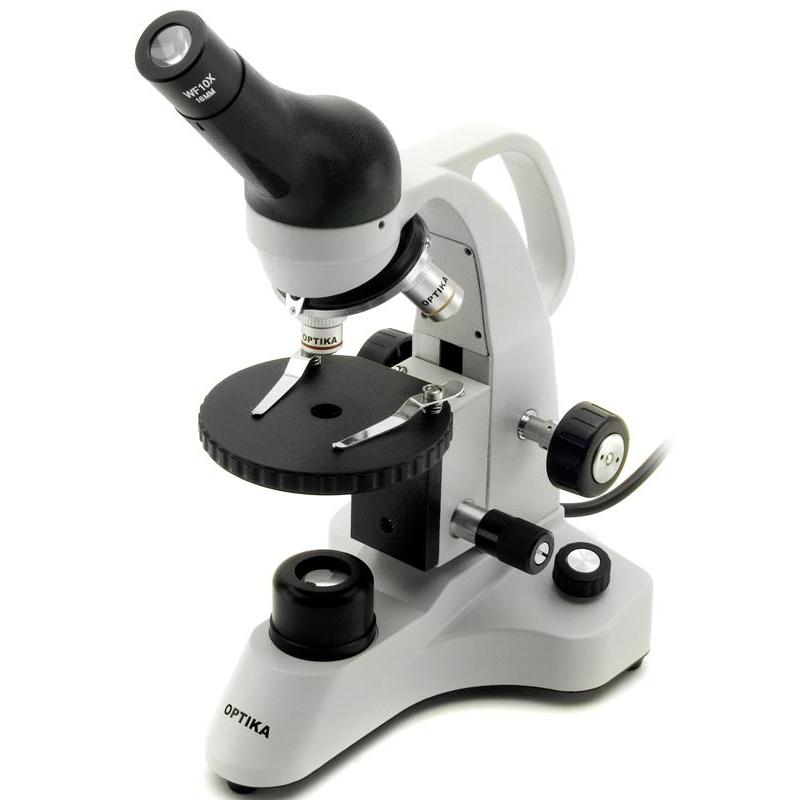

The B-20 monocular microscope 400x, LED

Head with eyepiece tube inclined at 45° rotating through 360°.
WF10x/16 wide field eyepiece, triple nosepiece revolver rotating in both directions with click locking at the objectives positions. 4x, 10x and 40x (telescopic) achromatic objectives.
Coarse and fine with different axis, with focus tension adjustment.
Movable round stage, 360° rotating; diameter: 90 mm, moving range 5 mm, slide clips. Illuminator white LED, non-rechargeable, with brightness control

Specifications

Optics

Lighting
Transmitted light
Lamp type
LED (adjustable)
Lens type
achromatic
Image scale
4, 10, 40
Eyepiece
10 (Widefield)
Condensor
-
Power supply
Power plug
Magnification
40, 100, 400

Capacity

brightfield
yes

Mechanics

Viewing posture (°)
45° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (on both sides)
Specimen stage
Specimen stage
Type of build
Monocular

Special features

Built-in digital camera
-
Filter holder
-
Luminous field diaphragm
-
Rechargeable battery operation
-
Dust cover bag
yes
Centering stage
yes

General

Colour
black/white
Length (mm)
305
Width (mm)
185
Height (mm)
38
Weight (g)
2800
Series
B-20

Field of application

Education
yes

Area of application

Phase contrast
-
Dark field
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
school
yes
show more...
