Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Optika > B-150 > Optika Microscope B-153, mono, DIN, achro, Kreutztisch, 40x-600x, LED1W
Product no.: 25399

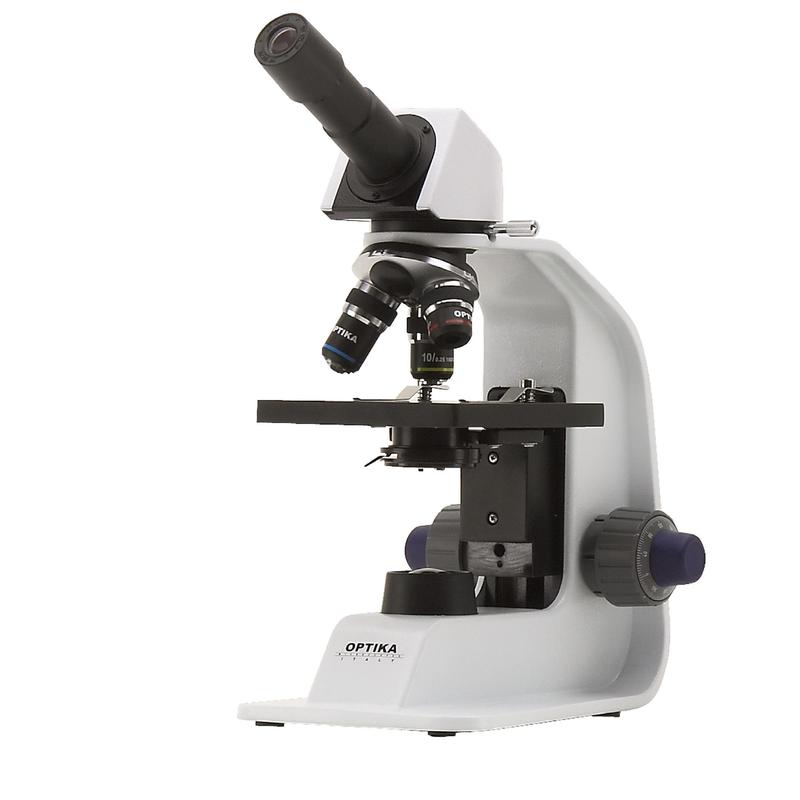

Microscope B-153, mono, DIN, achro, Kreutztisch, 40x-600x, LED1W

$ 399.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series B-150...

The B-150 series is designed to meet all the needs of an educational laboratory. These microscopes promise a smooth and successful introduction to microscopy.

The relationship between optical quality, mechanical reliability and low price guarantees them a place among the top microscopes in this field.

B-153

Observation mode: Brightfield.
Head: Monocular, 30° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:
– High Contrast Achromatic 4x/0.10, with anti-fungus treatment
– High Contrast Achromatic 10x/0.25, with anti-fungus treatment
– High Contrast Achromatic 40x/0.65, with anti-fungus treatment
– High Contrast Achromatic 60x/0.85, with anti-fungus treatment
Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED
Magnification
600
Lens type
Achromatic
Image scale
4,10,40,60
Eyepiece
10x/18 Weitfeld
Condensor
Abbe condenser, NA 1.25 with iris diaphragm
Power supply
Power plug

Capacity


brightfield
yes

Mechanics


Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement
Specimen stage
Specimen stage (125x116 mm)
Type of build
Monocular

Special features


Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
-
Luminous field diaphragm
yes
Dust cover bag
yes
Centering stage
yes

General


Length (mm)
350
Width (mm)
170
Height (mm)
210
Weight (g)
4000
Series
B-150
Colour
white

Field of application


Education
yes

Area of application


University
-
kids
yes
