Product no.: 19889

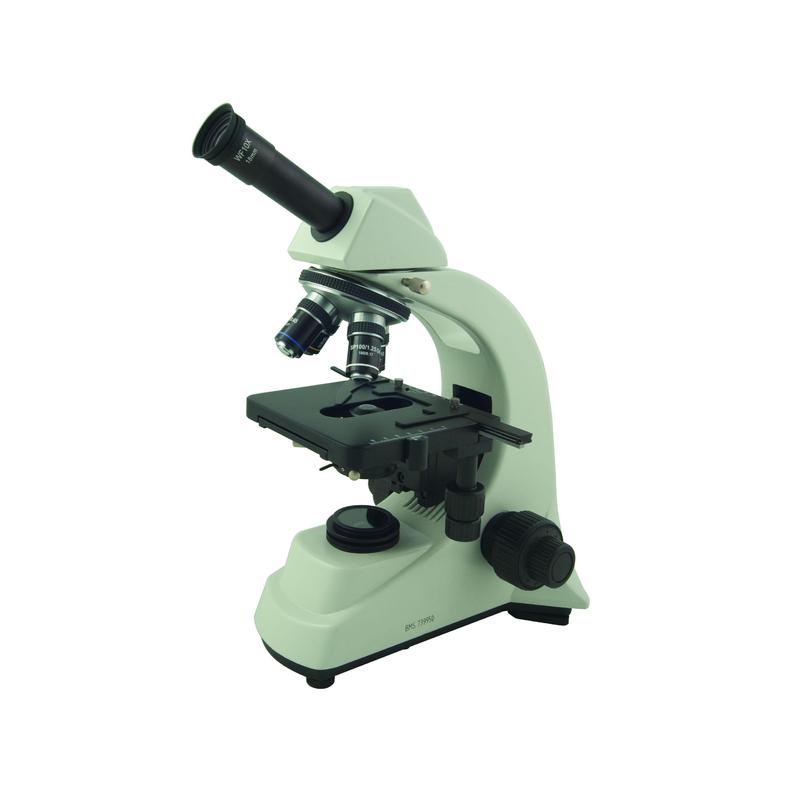

HPM 2500 monocular microscope

$ 379.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series HPM...

Microscope HPM 2500 monocular, manufactured here in Europe and mounted. In an unusual design with many advantages for a comfortable, fatigue-free working. The coaxial drive knobs are arranged sunken handily. The quality of the mechanical components and the Hervoragende processing are unique in this price range!
Scope of supply:

  • in polystyrene box with dust cover,
  • Insight: Monocular inclined 45 °, focusing: very low-lying coaxial coarse and fine focusing lenses: DIN,
  • achromatic 4x / 10x / 40x / 100x (Oil) 40 and 100x with slide protection
  • Nosepiece: 4-fachOkulare: 10x / 18mm widefield magnification from 20 to 1000 times with optimum accessories
  • Condenser: NA 1.25 Abbe height adjustable with iris diaphragm and filter holder stage,
  • large model 142x132 mm with integrated cross table lighting:
  • In foot built continuously variable low-voltage halogen lighting 20 W

Specifications

Optics


Lighting
Transmitted light
Lamp type
Halogen
Magnification
20 bis 1000fach
Lens type
Achromatic
Image scale
4,10, 40, 100
Eyepiece
10x/18mm Weitfeld
Condensor
1,25 Abbe

Mechanics


Viewing posture
30° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Cross table
Type of build
Monocular

Special features


Built-in digital camera
-
Filter holder
-
Luminous field diaphragm
-
Centering stage
-
Rechargeable battery operation
-
Dust cover bag
yes

General


Series
HPM

Field of application


Hobby - Amateur
yes
Education
yes

Area of application


Phase contrast
-
Dark field
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
school
yes

Product safety

Manufacturer: Windaus-Labortechnik GmbH, Bauhofstraße 9, 38678 Clausthal-Zellerfeld, DE, www.windaus.de
