Product no.: 19290

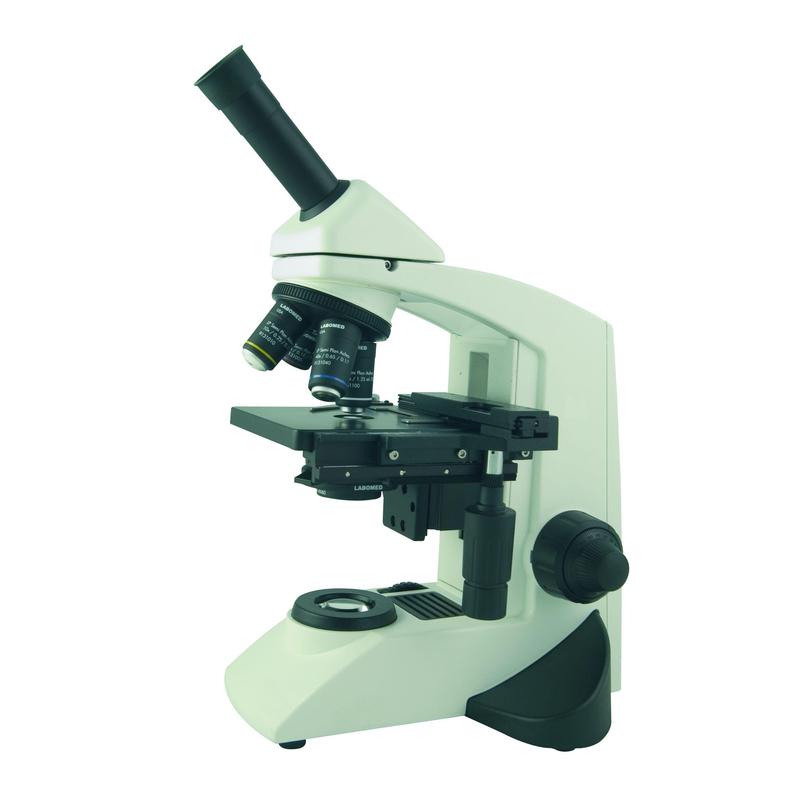

Microscope HPM CxL 211

$ 890.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The HPM CxL series LED

The new CxL microscope series replaces the HPM 500 series and comes from a production facility where high-quality laboratory microscopes are manufactured. The quality of the optics and the clean workmanship of the microscopes are reflected here.

The instruments have the following individual features:

A stable, ergonomic, all-metal stand with aball-bearing 4-position objective turretfor DIN optics with a 360° rotatable head with 45° inclined view.

For focusing, the instruments are equipped with coaxial knobs for coarse and fine adjustment, which are equipped with slip clutches.

The microscopes impress optically with four semi-plan achromatic lenses (4x, 10x, 40x, 100x (oil)), of which the 40x and 100x lenses are even protected against damage to the specimen, and 10x/18mm wide-field eyepieces. This allows a magnification range of 40x to 1000x.

The microscope stage is 135 mm long, 124 mm wide and equipped with an integrated, coaxial cross table.

A centring, height-adjustable Abbe condenser (N.A. 1.25) with aspherical lenses, iris diaphragm and filter holder, as well as powerful LED lighting with a 100,000-hour long life, perfectly round off the performance of the instruments. Built-in rechargeable batteries allow for cordless use.

The HPM CxL 211 has a monocular view.

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED
Magnification
1000 (10, 100, 400, 1000)
Lens type
Semi-planachromatic
Image scale
4, 10, 40, 100 (oil)
Eyepiece
10 (10X/18 mm wide field)
Condensor
Abbe (N.A. 1.25, centrable, height-adjustable with aspherical lenses)

Capacity


brightfield
yes

Mechanics


Viewing posture (°)
45° angled eyepiece, 360° rotatable
Focusing
Coarse and fine movement (coaxial, with sliding clutch)
Specimen stage
Cross table (Integrated, coaxial, 135 x 124 mm)
Type of build
Monocular

Special features


Built-in digital camera
-
Luminous field diaphragm
-
Centering stage
-
Rechargeable battery operation
-
Dust cover bag
-
Filter holder
yes

General


Suitable from
12
Colour
grey/black
Series
HPM CxL Serie

Field of application


Education
yes

Area of application


Interference contrast
-
Metallurgy
-

Product safety

Manufacturer: Windaus-Labortechnik GmbH, Bauhofstraße 9, 38678 Clausthal-Zellerfeld, DE, www.windaus.de
