CMEX-3/5/10/20 Pro
The high-speed USB 3 cameras with ImageFocus Alpha acquisition and analysis software are the perfect solution for today's educational, laboratory and industrial microscopy needs. The cameras are suitable for life science and materials science microscopes as well as stereo microscopes.

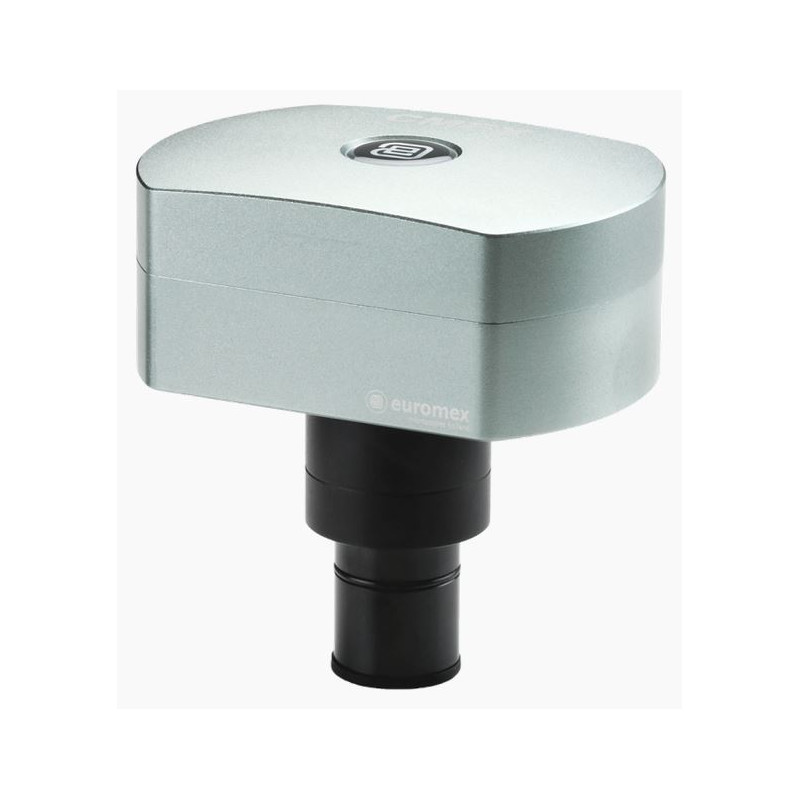

CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-20 Pro USB 3.0high-speed camera
The CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and Pro CMEX-20 cameras are equipped with relative 3.1 / 5.1 / 10 or 20 MP CMOS sensors with 12-bit greyscale conversion and 24-bit colour reproduction. These cameras are equipped with a USB 3 data interface, which enables fast frame rates. The ImageFocus Alpha software is also included in the scope of delivery.
In addition to capturing images and videos, the software allows measurements of still and live images and the addition of annotations to captured images. Compatible with Windows 10 and higher, 32 and 64 bit configurations. A 2.8 GHz 2 GB RAM computer and 17-inch monitor are recommended as minimum requirements. A Mac OS version is available.
TECHNICAL DATA CMEX-20 (DC.20000-Pro)
Sensor:
CMOS 1/1.8 inch
Pixel:
5120 x 3840 Pixels, 20 MP
Pixel size:
1.4 μm x 1.4 μm
Colour filter:
RGB
Connection:
c-mount 0.75x
Max fps:
@ 5120 x 3840 Pixels-20 f/s depending on camera parameters and exposure
@ 2560 x 1920 pixels-45 fps depending on camera parameters and exposure
(Frame rates were determined under optimal conditions)
Exposure:
Automatic/manual
White balance:
automatic/manual
Signal-to-noise ratio:
60 dB
Dynamic range (dB):
39
Sensitivity V/lux-sec:
8.4 ke−/lux.sec
Interface:
USB 3.0
Operation:
0 - 50° C, 30-80 % humidity
Storage temperature:
-20 to 60°C
power pack:
5V via PC USB port
Housing:
Integrated CNC aluminium alloy
Supplied with:

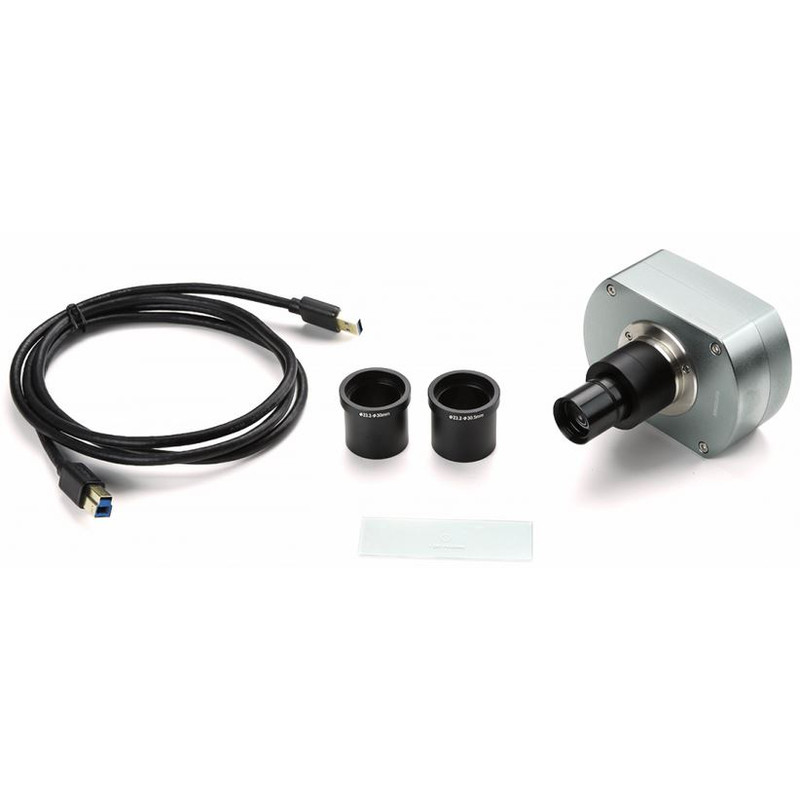

The scope of delivery includes a 0.75x objective with c-mount, a USB 3.0 cable, a 30 and 30.5 mm adaptor for stereo microscopes, and a 76 x 24 mm calibration glass 1 mm/100. All components are packed in a sturdy cardboard box.
software
ImageFocus Alpha version and measurement software for Windows 10 and higher (32- and 64-bit configurations).
A Mac OS version is available
Operating system
Compatible with Intel Core 2, 2.8 GHz or higher, 2 GB, USB 3 high speed
Product number:
DC.20000-Pro
