Mountings & accessories > Mountings > Equatorial with GoTo > Losmandy > GM8 > Losmandy Mount GM811G Gemini 2 GoTo HD-Tripod
Product no.: 58689

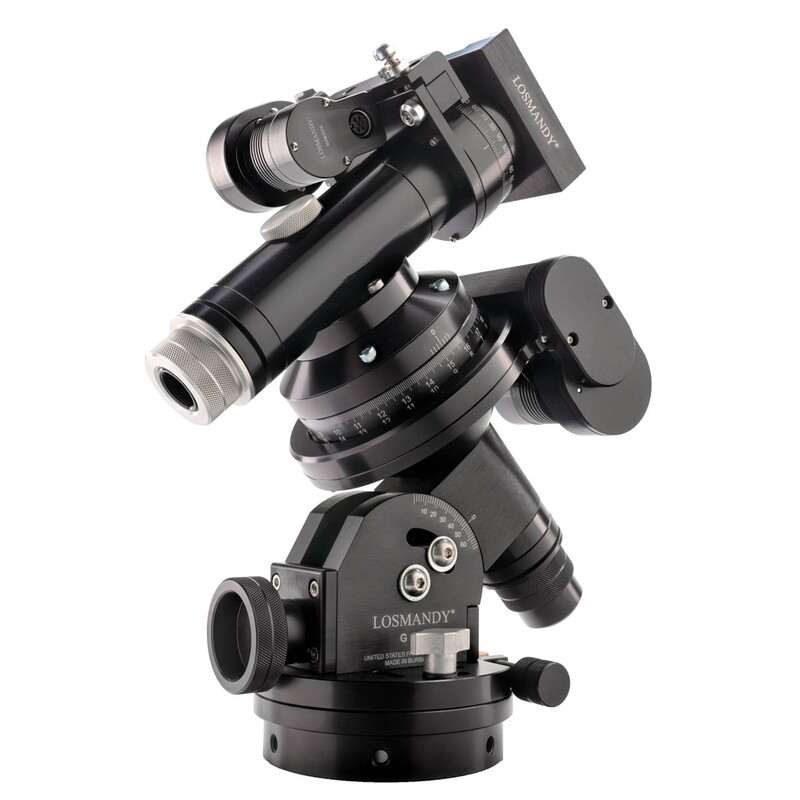

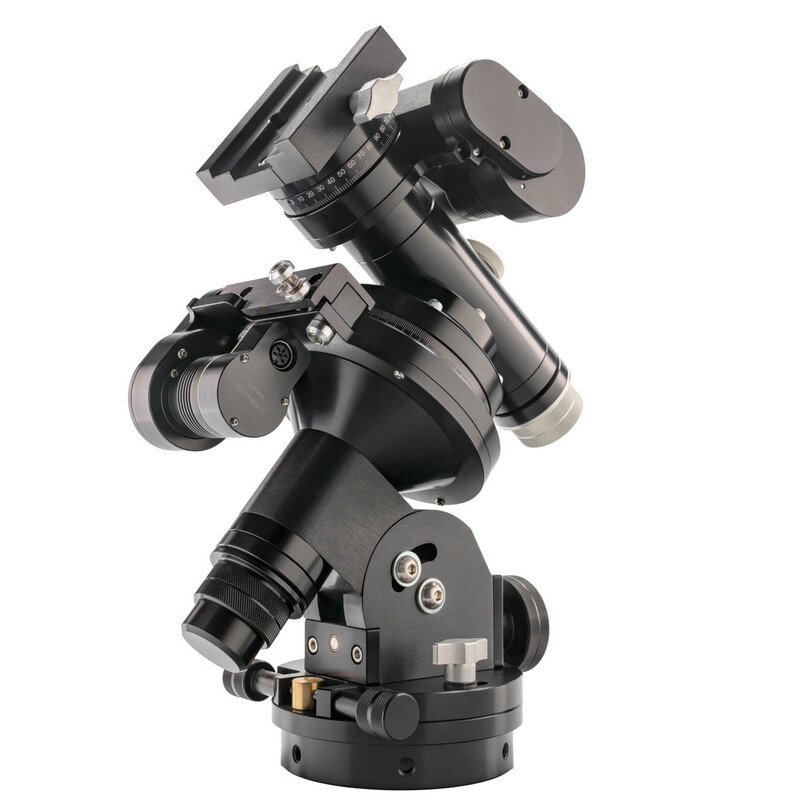

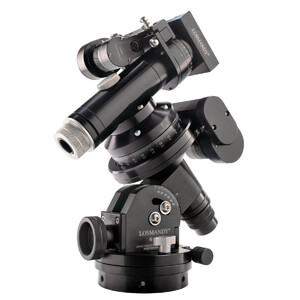

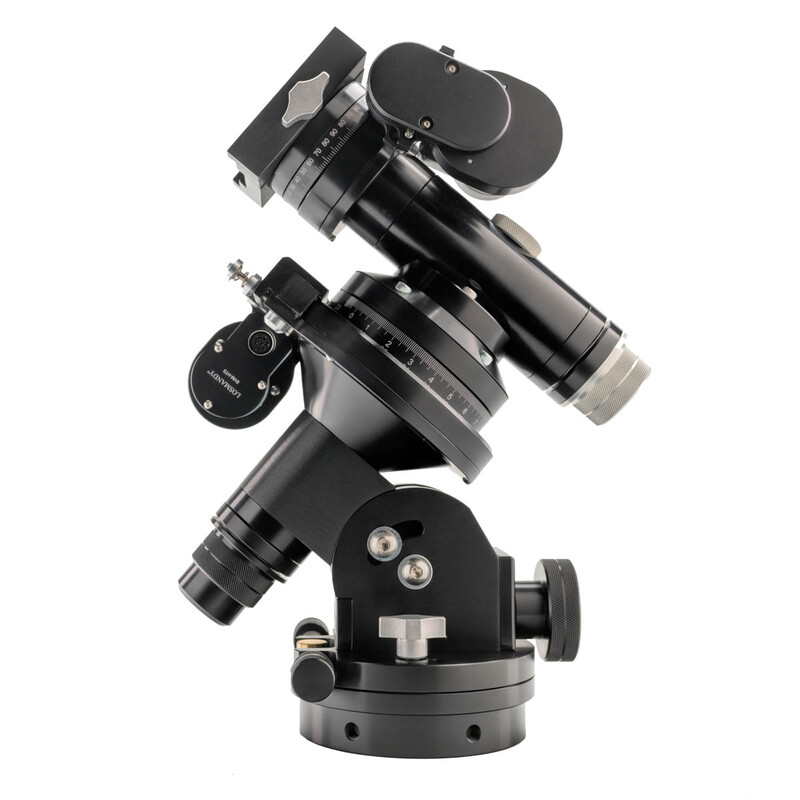

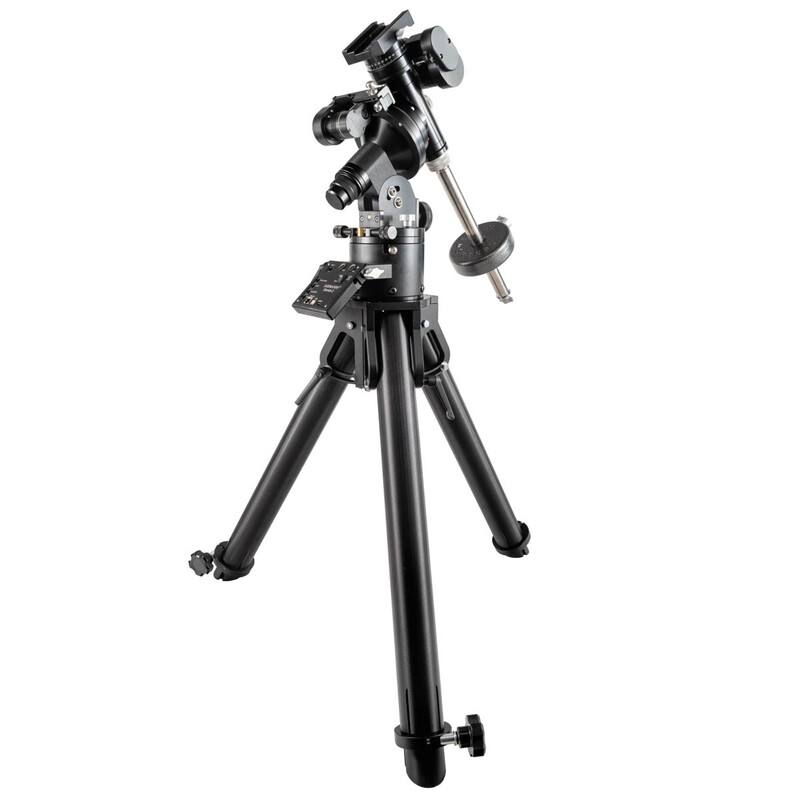

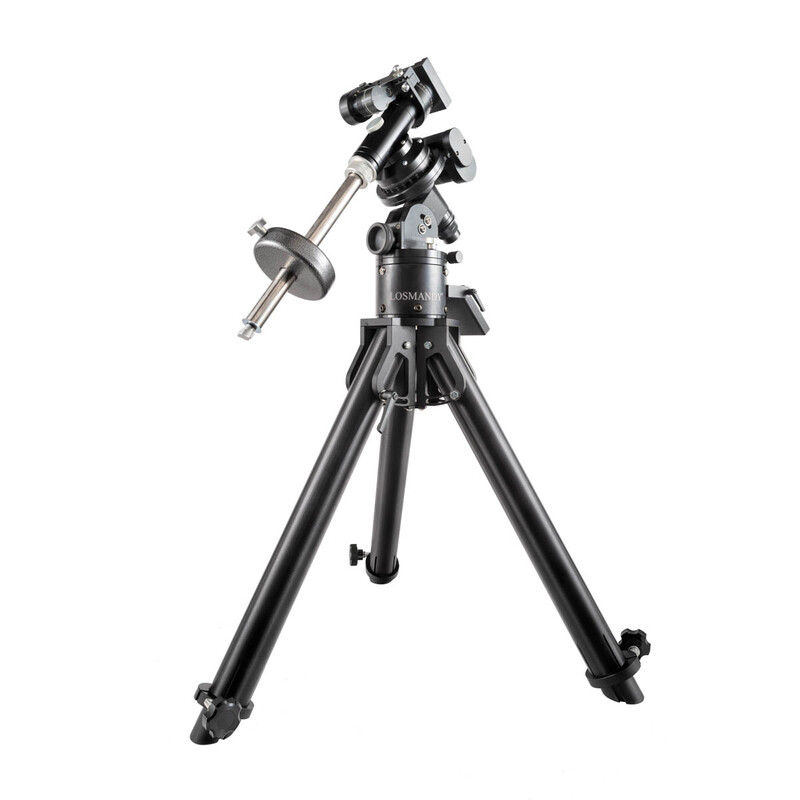

Mount GM811G Gemini 2 GoTo HD-Tripod

RRP: $ 6,100.00 Our price:
$ 5,500.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

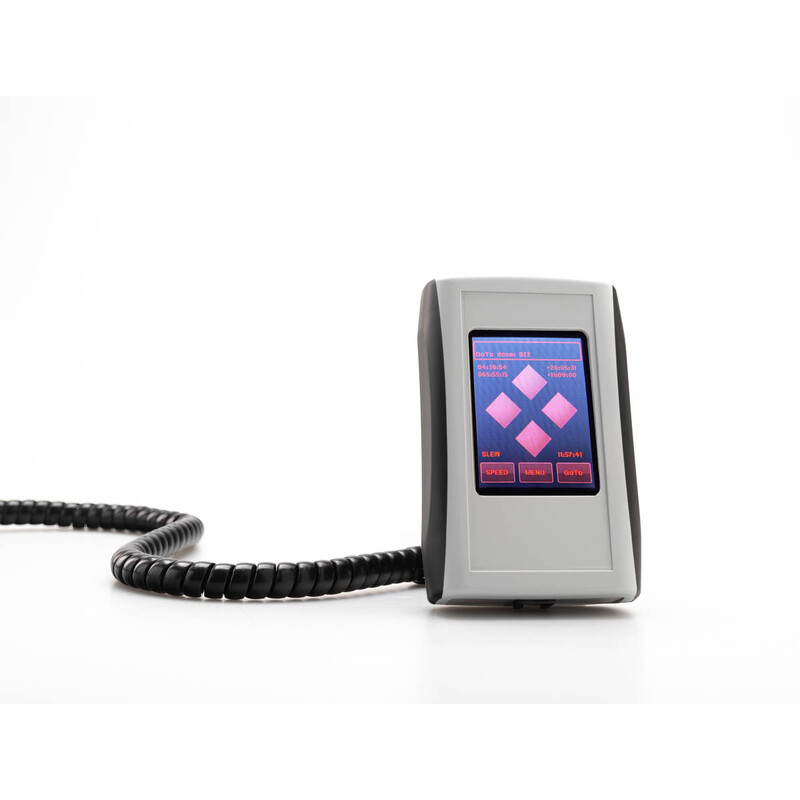

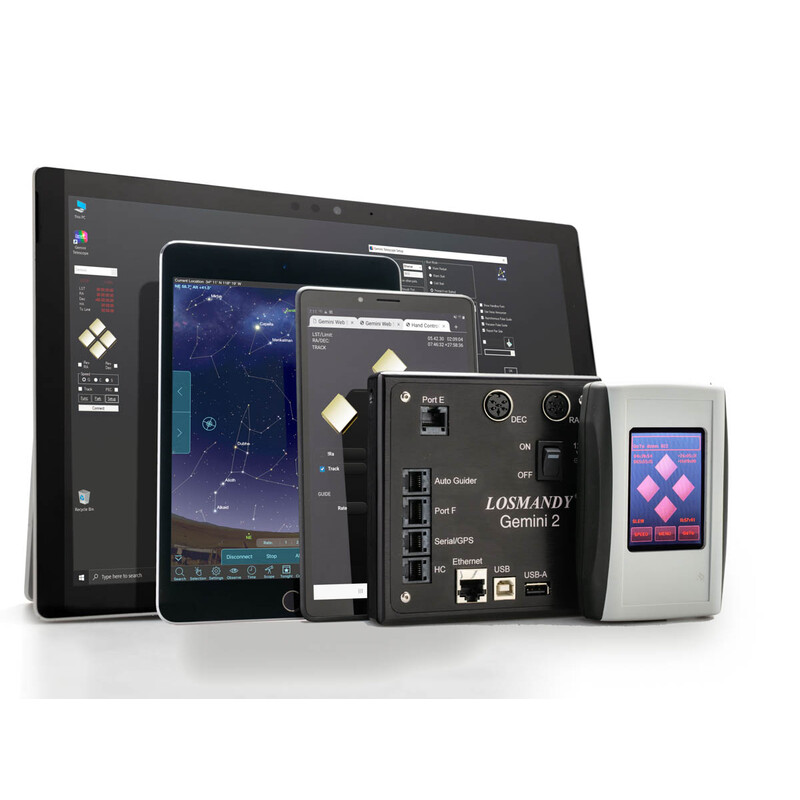

The mount is equipped with the GoTo system Gemini 2:

  • Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk

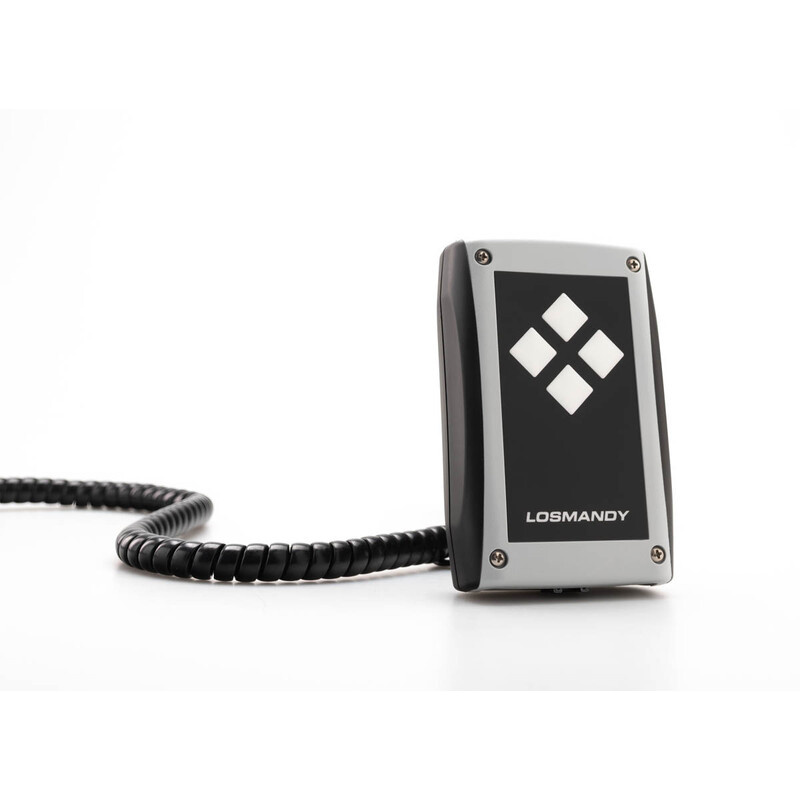

  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
  • Selectable GOTO, Slewing, Centering and Guiding Rate
  • Stand-alone system. No PC required!
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
  • Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
  • English, French, Spanish & German displays
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Auto switch tracking rates
  • Search function
  • Identify function
  • Polar Align Assist, Polar Axis Correction
  • User define limit stops
  • Permanent Dec Backlash compensation
  • Electronic Balance Graph
  • Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
  • Synchronize function
  • Coordinate input
  • Bookmark set for your favorite objects

Our expert comment:

The Gemini 2 computer now includes "Level 6".

(Jan Stroeher)

Specifications

Capacity


Max. additional load capacity (kg)
22
Power supply
12-18
Power consumption in open circuit (mA)
500
Worm gear teeth (DEC) (piece)
180
Worm gear teeth (RA) (piece)
360
Axle bearings
Needle
Material of worm wheel
Aluminium
Material of worm gear
Brass
DEC worm gear diameter (mm)
71
RA worm gear diameter (mm)
143
Weight mount head only (kg)
12
Counterweight(s) (piece)
1
Diameter of counterweight bar (mm)
32
Mounting saddle
Losmandy & Vixen

Special features


PEC correction
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Polar axis scale
yes

Equipment


Tripod <p>
Tripod
Pole finder
no

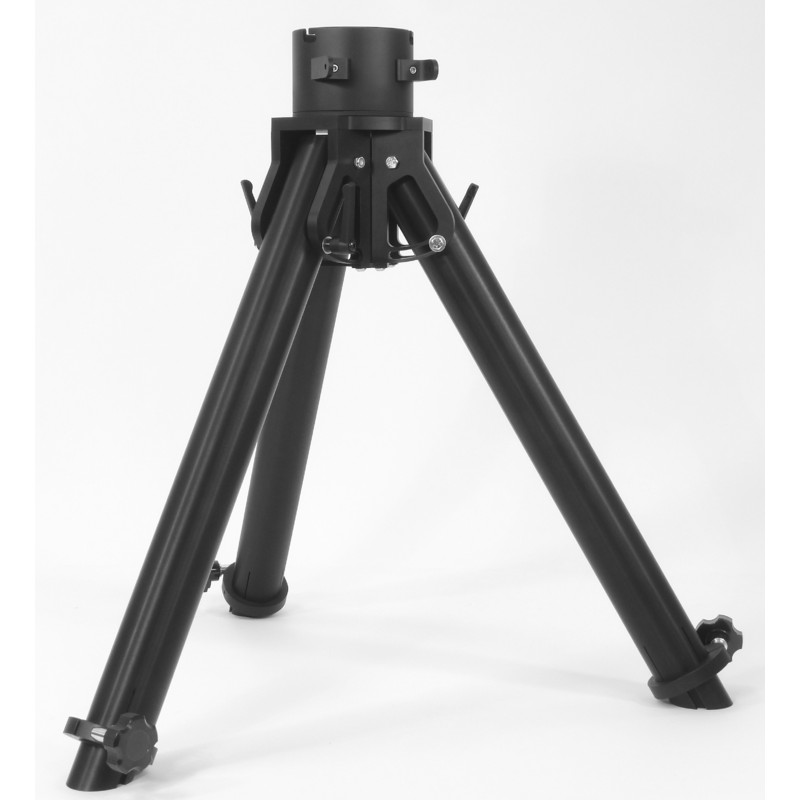

Tripod


Tripod material
Steel
Max. tripod height (cm)
122
Tripod weight (kg)
16
Min. tripod height (cm)
84

General


Total weight (kg)
33
Series
GM8
Type
Mount
Type of build
Equatorial

GoTo control


Database
40.000
GoTo Language
English, German, French, Spanish
Hand Controller
Gemini 2
Interfaces
Autoguider, USB

Recommended accessories

Telescope accessories (1)
Power pack

Losmandy Gemini System Power Supply

$ 183.00*
Mountings & accessories > Tripods & Mounts (3)
Tripod

Berlebach Sky tripod for Losmandy G8/G11

$ 2,000.00*
Mountings & accessories > Counterweights (3)
Counterweight

Losmandy Counterweight 3.5 kg weight for GM-8, G-9 and G-11 mounts

$ 118.00*
Mountings & accessories > Other (4)

Losmandy Clutch linings for GM8 and GM9 mounts

$ 29.90*
Astronomy (1)

Losmandy Garmin GPS module for Gemini 2 Goto mount

$ 248.00*

*All prices include VAT plus shipping costs.

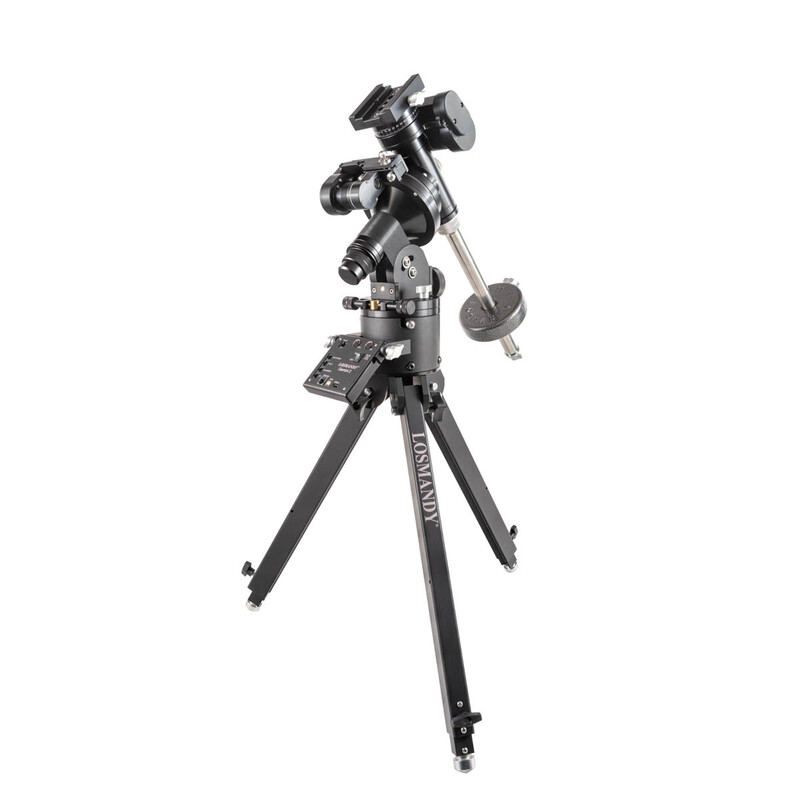

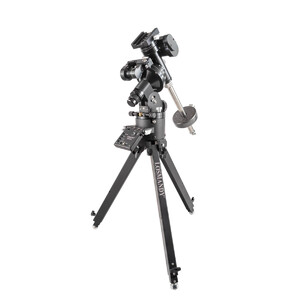

Losmandy Mount GM811G Gemini 2 GoTo HD-Tripod

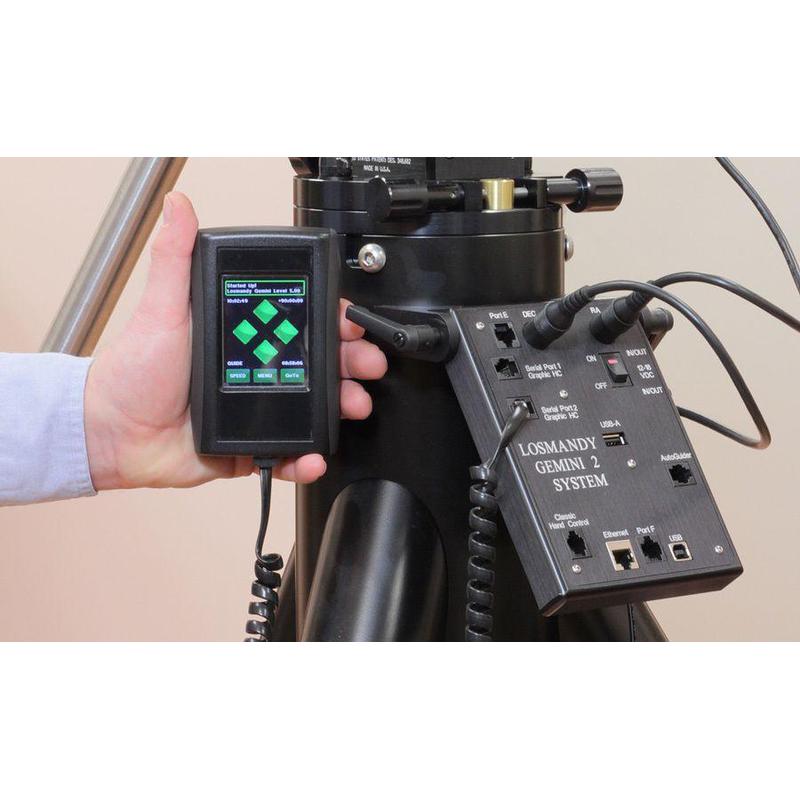

Controller

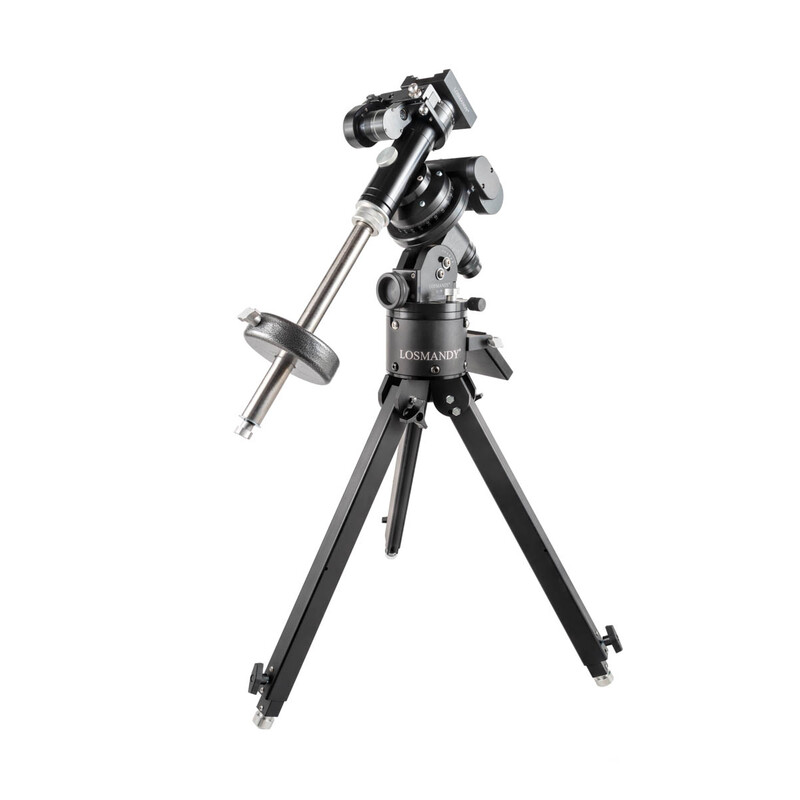

Losmandy Mount GM811G Gemini 2 GoTo HD-Tripod
