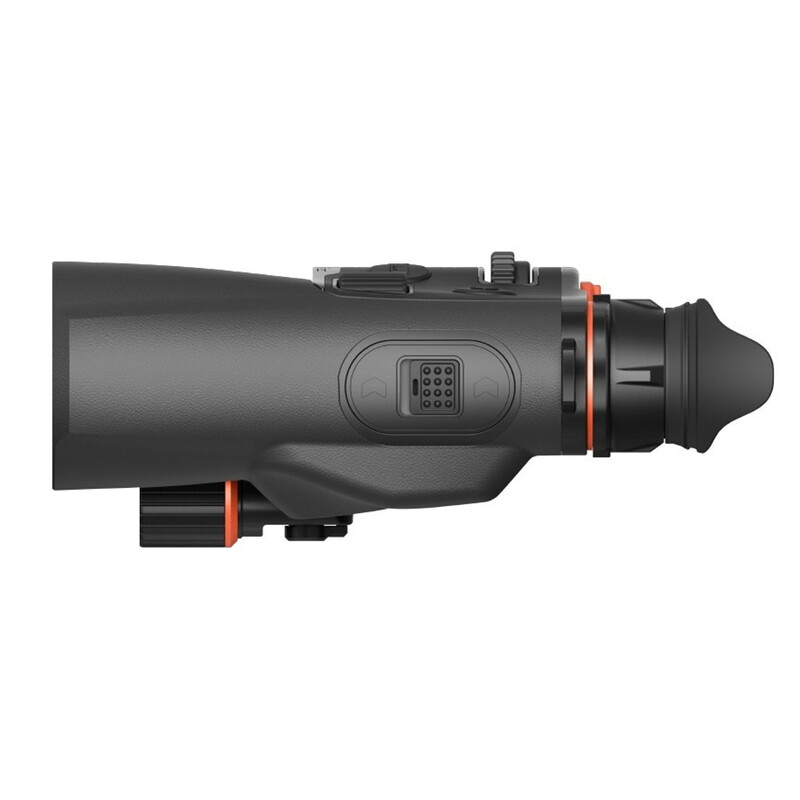

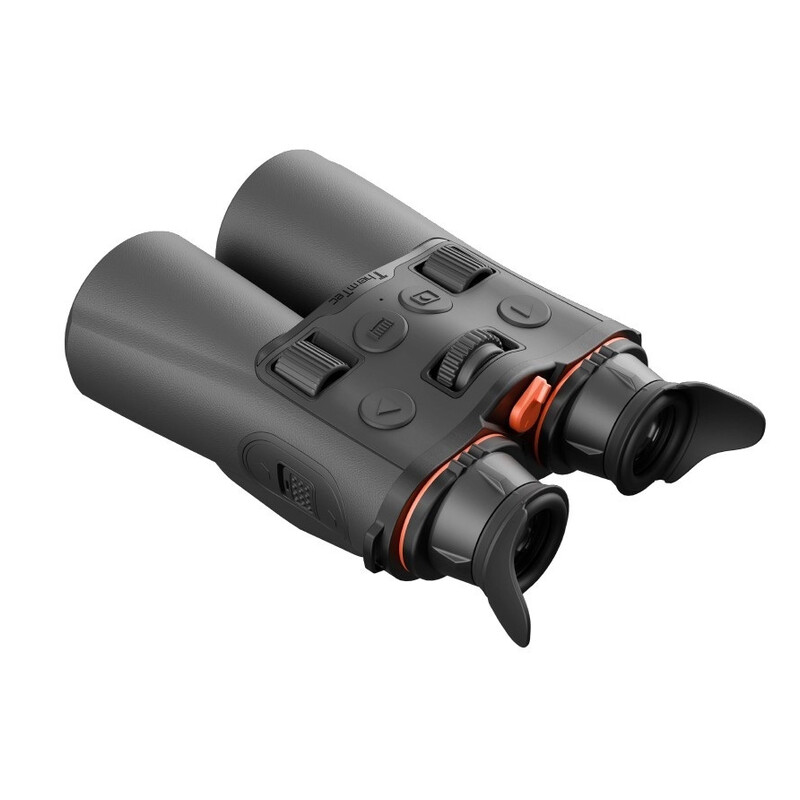

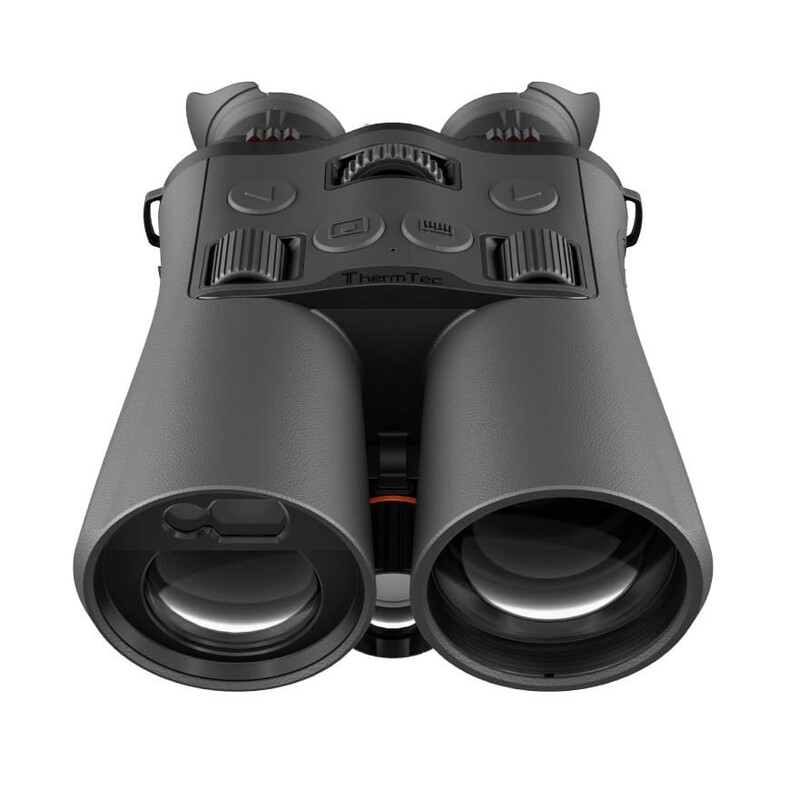

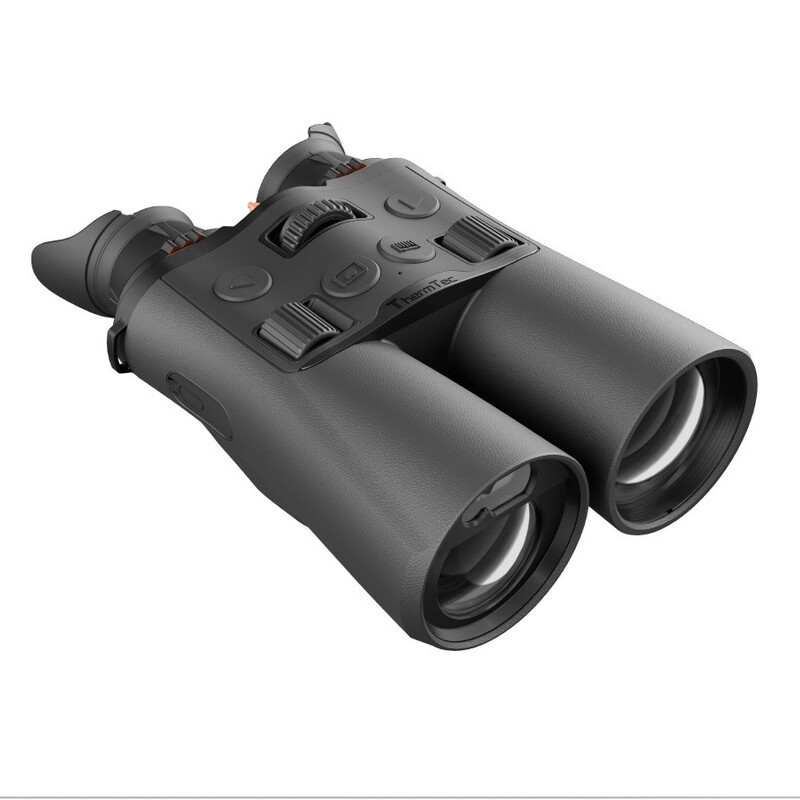

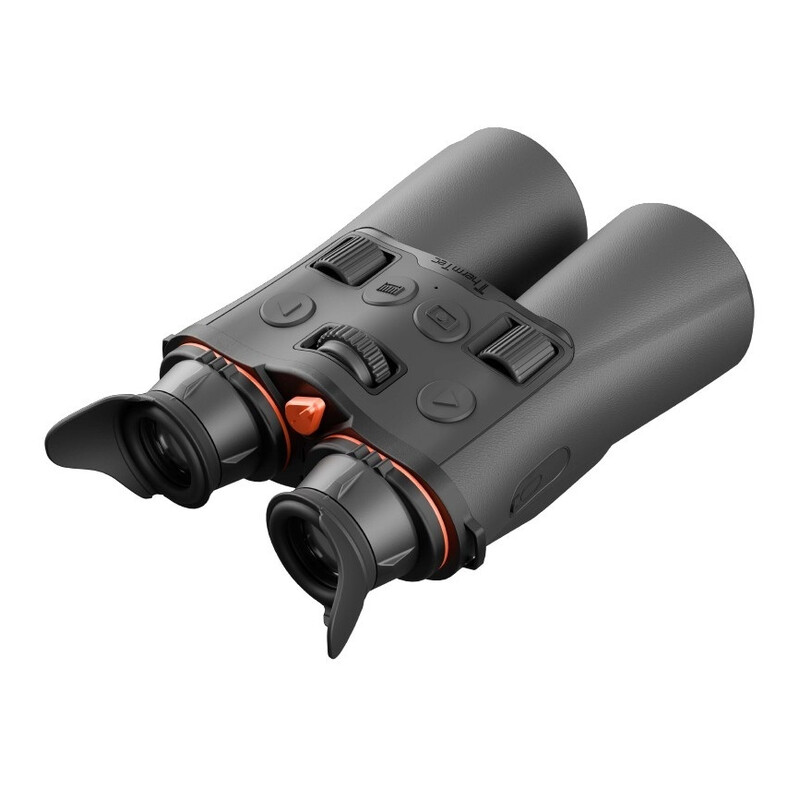

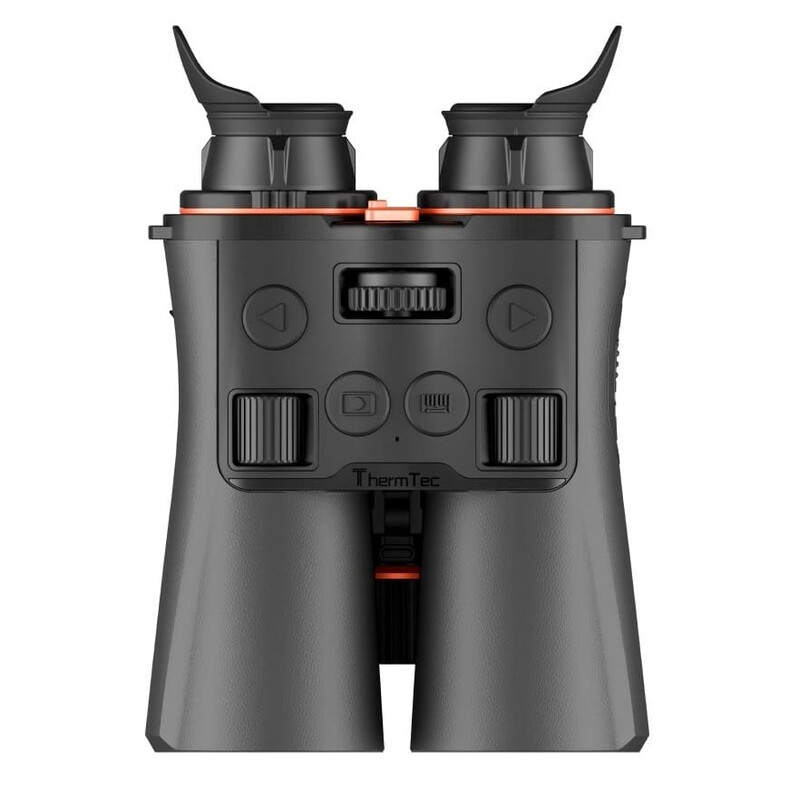

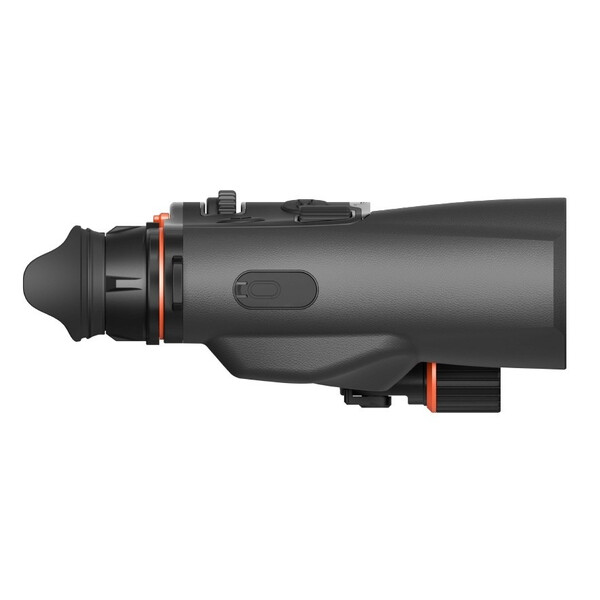

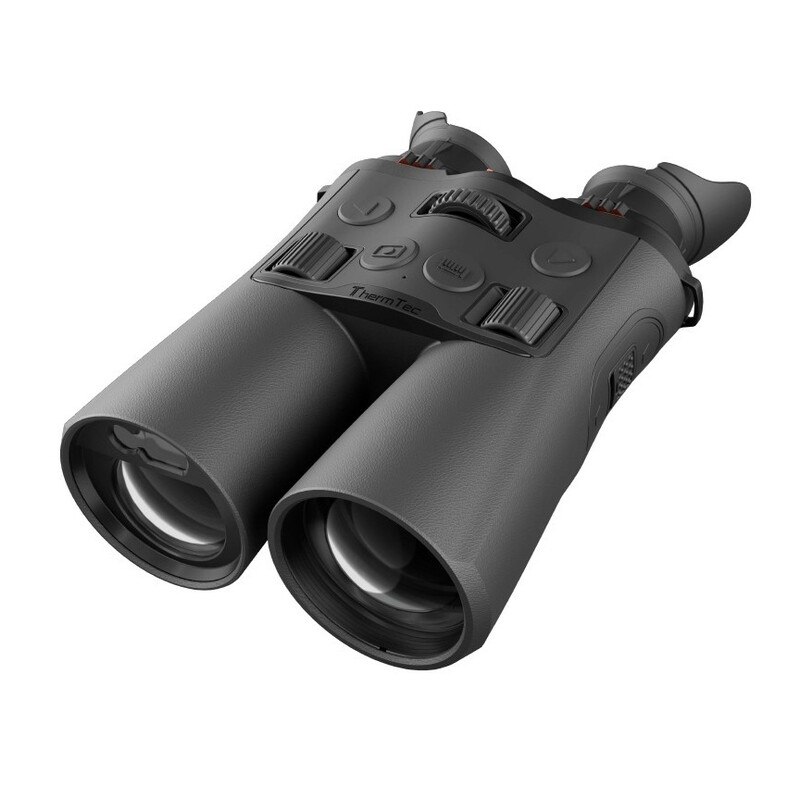

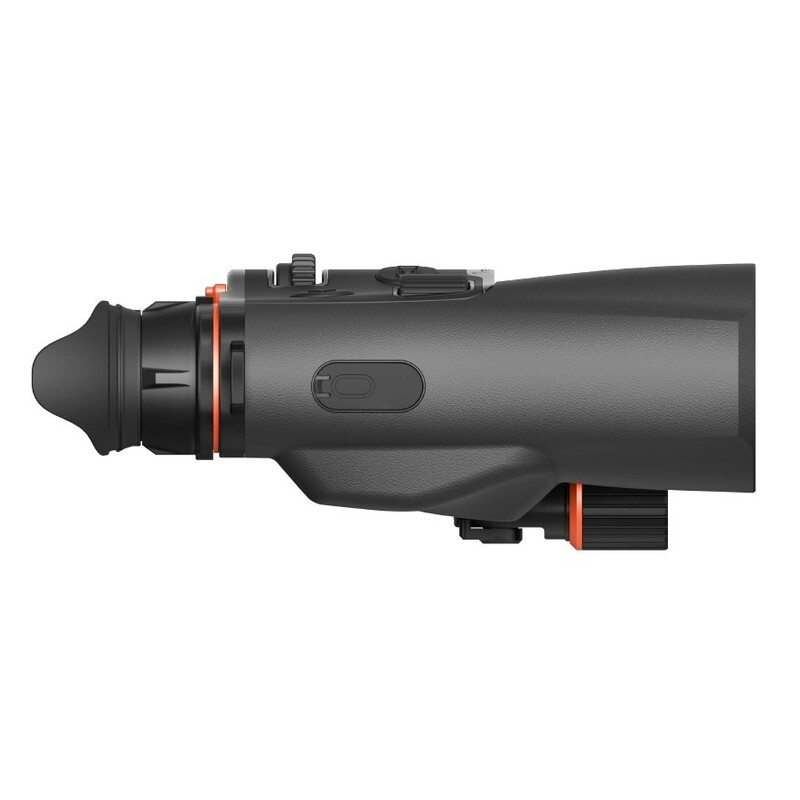

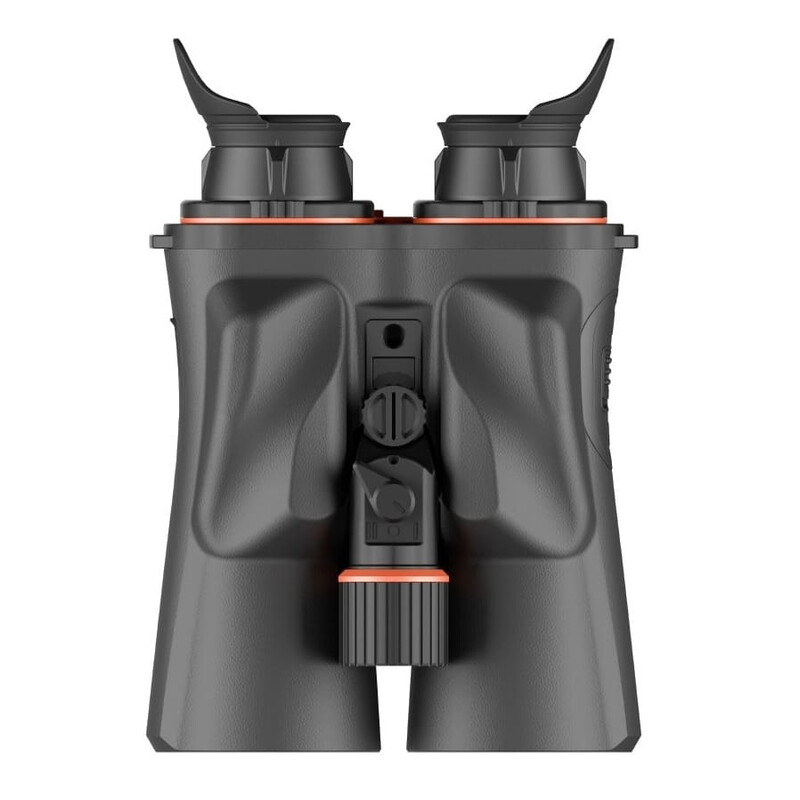

Night vision device Ventus 635L

$ 3,630.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
Product questions?
advice for Nature Observation

Product description

ThermTec Ventus 635L

The Ventus 635L combines a high sensitivity thermal sensor with NETD <15 mK and a 12 megapixel CMOS sensor, supported by switchable 850 nm and 940 nm IR illumination, to deliver clear and consistent imaging across day and night.

ThermTec AI Calibration enhances image stability and clarity for smooth viewing in changing environments. Its balanced magnification and up to 1800 m detection range enable efficient scanning, while seamless mode switching and ergonomic control ensure stable, comfortable observation during extended use.

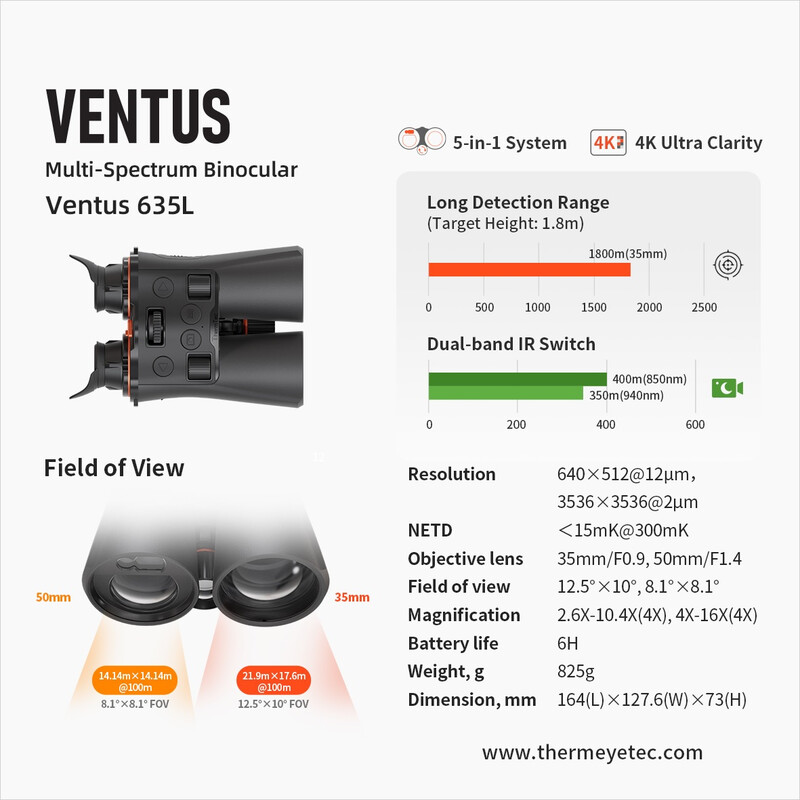

Specifications

Capacity

Type of build
Binocular (two objectives)
Technology
Fusion
Magnification
4,0
Enlargement (thermal)
2,6
Zoom (digital)
4
objective
50mm f:1,4
Lens (thermal)
35mm f:0,9
Sensor type Thermal
VOx
Resolution Sensor Thermal (Pixel)
640x512
Pixel size
12
temperature resolution (mK)
< 15
Image cycle rate (Hz)
50
Resolution Sensor Digital (Pixel)
3536x3536
Maximum operating distance (m)
1800
Display type
AMOLED
Display resolution (Pixel)
1600x1200
Image display
Different versions
infrared lighting wavelength (nm)
850 + 940
Diopter compensation
+/- 5
Battery durability (h)
6

Special features

Infrared illuminator
yes
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
1/4
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
Laser rangefinder (1000m)

Field of view

True field of view (°)
T: 12,5x10,0 / D: 8,1x8,1
Field of view at 100 m (m)
T: 21,9m / D 14,2m

Area of application

Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General

Colour
black
Length (mm)
164
Width (mm)
128
Height (mm)
73
Weight (g)
825
Series
Ventus

Miscellaneous

Battery type
18650
