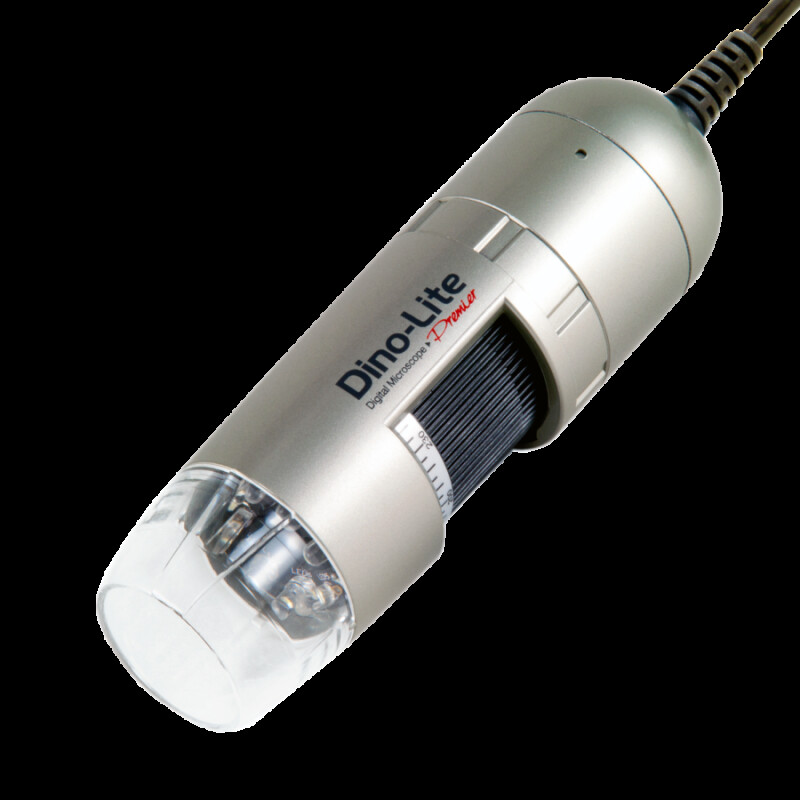

Product information "AM3111 USB Microscope"
The excellent Google reviews for the individual Dino-Lite USB handheld microscopes speak for themselves in terms of quality. Paul Wu, the founder of Dino-Lite, also stands for this.
Special features:
- Calibration function
- Measurement
You can take measurements with the microscope. The software allows you to perform the corresponding functions quickly and easily. With the measuring function, you can determine lines, angles, radii and circles. In addition, the measurement results and the corresponding image can be exported to Excel with a click of the mouse. This quickly creates a comprehensive measurement report.
Perfect measurement results thanks to calibration Calibrating the microscope is an important step in ensuring accurate measurements. The microscope can be calibrated quickly and easily using the calibration standard provided. The DinoCapture software guides you through the necessary steps to ensure reliable calibration.

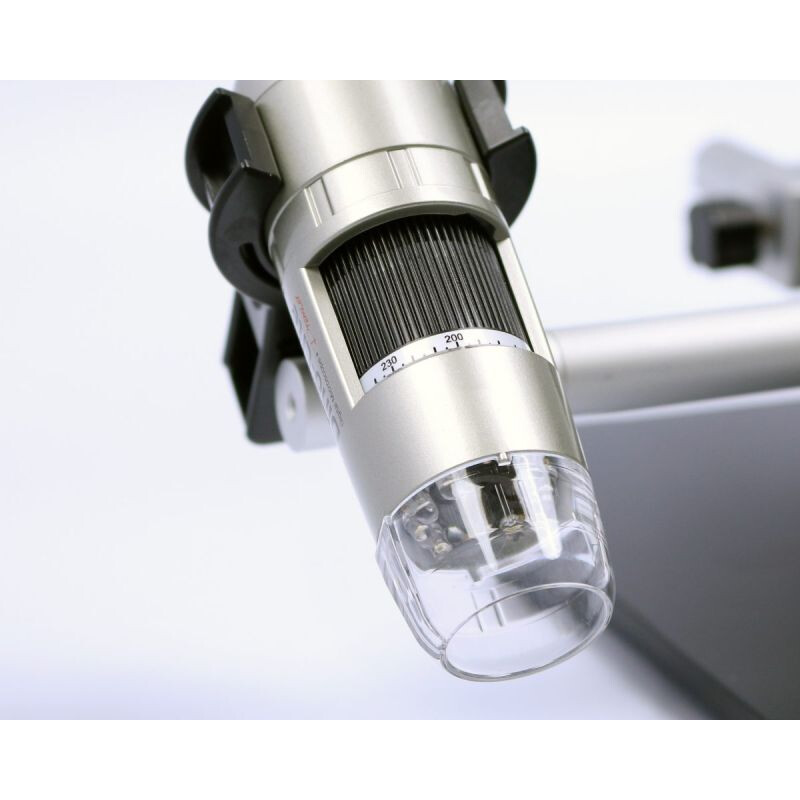

Expert tip: When using your USB handheld microscope in combination with a tripod, start by setting the desired magnification. Then adjust the height of the microscope to achieve the best image more quickly.
Low-shadow and uniform illumination
Eight high-performance white LEDs guarantee uniform, shadow-free illumination of the sample parts. Even the finest structures are visible with high contrast – ideal for precise inspection and documentation tasks in laboratory and manufacturing environments.
With a plastic housing, the Dino-Lite AM3111 offers high stability and durability.
Specifications
- Item number: AM3111
- Brand: Dino-Lite
- Dino-Lite series: Dino-Lite Basic
Values for USB microscope:
- Magnification: 20~50x/200x
- Number of LEDs: 8
- Resolution: 1.3 megapixels
- Connection: USB 2.0
- Cable length: ~1.8m
- Resolution in pixels: 1280x1024
Special
- Housing material: plastic
- Lighting: white
- Calibration function
- Measurement function
- Magnification lock
- Microtouch
- Working distance: standard
- Standards: CE, FCC
- Country of origin: Taiwan
- Manufacturer: AnMo Electronics Corporation; 17F-1, No. 97, Sec. 4, Chongxin Road, Sanchong Dist., New Taipei City 241513, Taiwan; Tel:+886-2-29749126; E-Mail:[email protected]
AnMo Electronics - the manufacturer of Dino-Lite microscopes
AnMo Electronics Corporation has been a leader in the field of image digitisation since 2000. The focus is therefore on the design and development of digital microscopes in Taiwan. Over the years, the Dino-Lite series of USB handheld microscopes and the Dino-Eye series of microscope eyepieces have been further developed and expanded to provide our customers with better service and to establish important markets on five different continents through our extensive distribution network. Through the combination of technologies, our products have been widely used in various fields of industry, biomedicine, education, agriculture and forensics for inspection, quality control, production, research and documentation. In addition, Dino-Lite microscopes are aimed at hobbyists. For over two decades, AnMo has strived to create outstanding value through its products and services. One of our core principles is to achieve excellence through innovation and improvement while presenting long-term plans and strategies. The desire to be a leading and trusted supplier of high-quality digital microscopes has always been our key principle.
