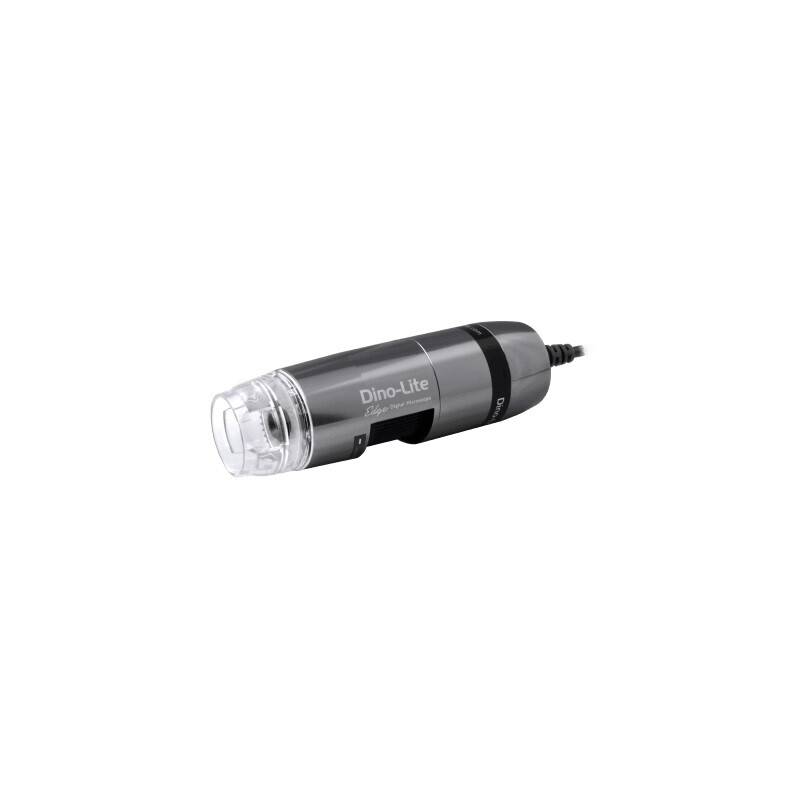

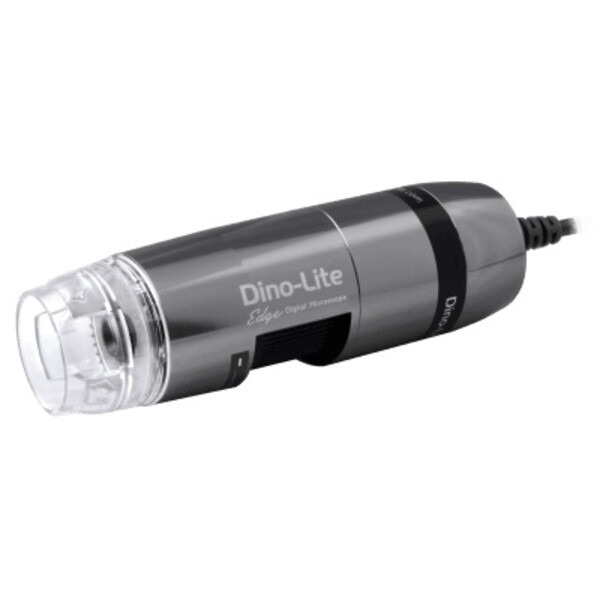

AM7515MT1A
The AM7515MT1A is a 5-megapixel microscope from the Dino-Lite Edge series with a magnification range of 70-140x and built-in coaxial illumination. When using Flexible LED Control (FLC), this model can switch between bright field illumination and coaxial illumination or mix the two illumination types.

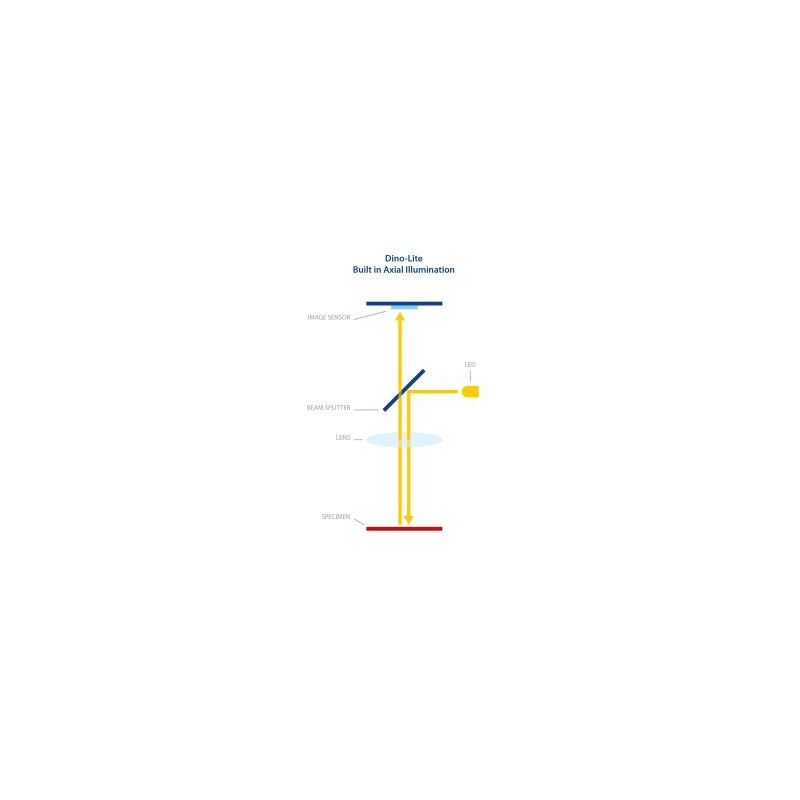

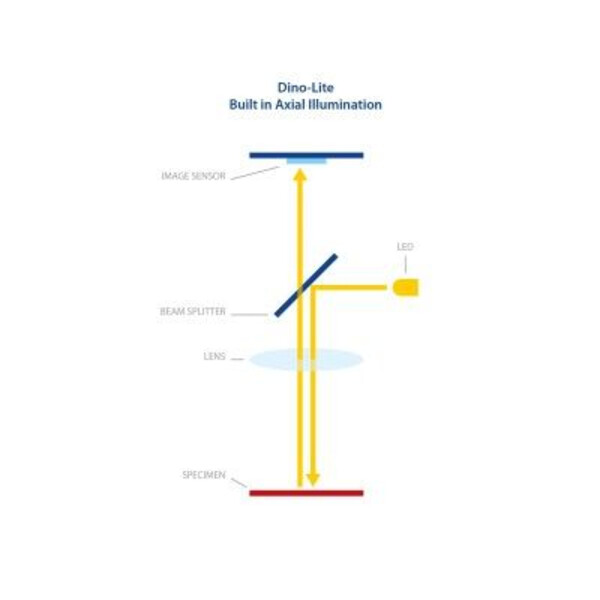

The coaxial illumination technology reveals details that are difficult to see under normal lighting conditions. The AM7515MT1A includes the Automated Magnification Reading (AMR) feature, which automatically detects the magnification and displays it in the included Dino-Lite software. These unique features make the Dino-Lite AM7515MT1A a great inspection tool for material analysis, electronics inspection or similar applications requiring coaxial illumination, flexibility and mobility. The Dino-Lite AM7515MT1A is bundled with the user-friendly DinoCapture 2.0 software for Windows.
For this model, it includes features such as automatic magnification reading:
• Automated Magnification Reading (AMR)
• Flexible LED Control (FLC)
• calibration
• Measurement
• Image capture and annotation
• And recording of videos.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes, N3C-D
- Emission filter: No
- Polariser: No
Optics
- Magnification: 70-140x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30fps (max 20fps video recording)
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 140 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC), Coaxial illumination
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box
