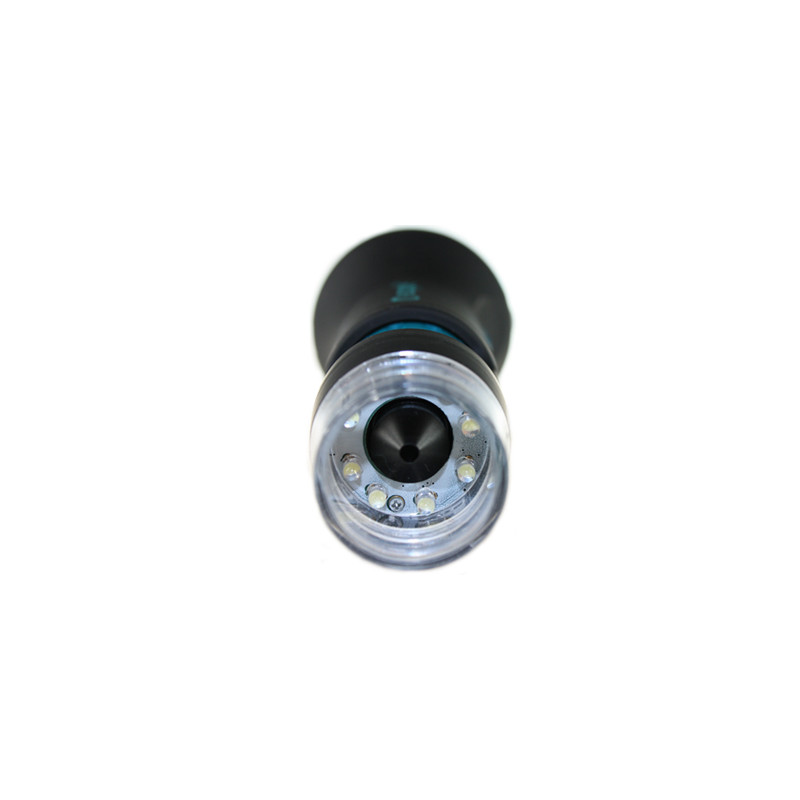

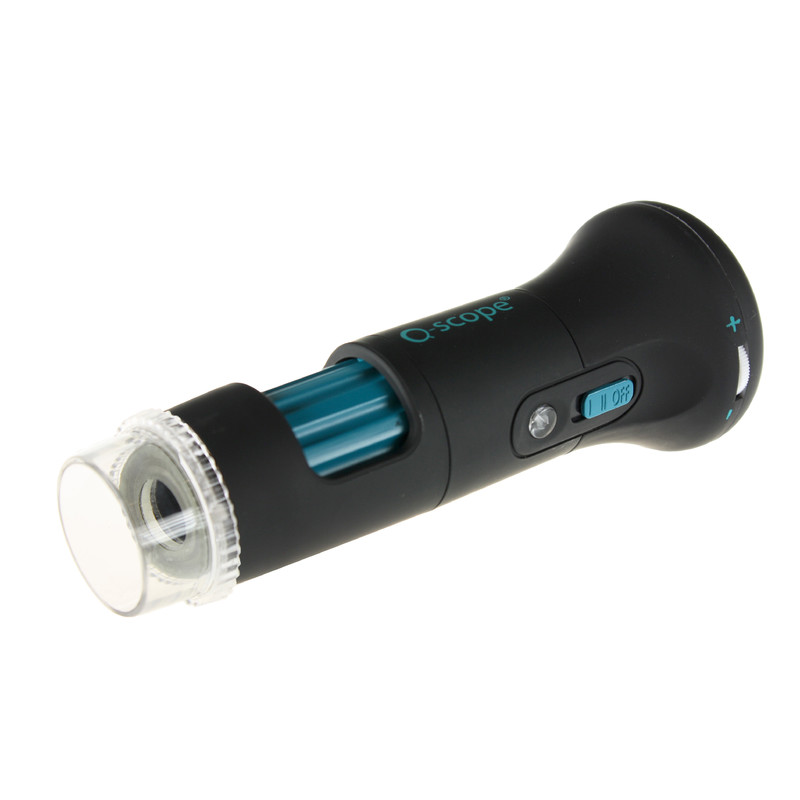

WI-FI MODEL QS.13100-W

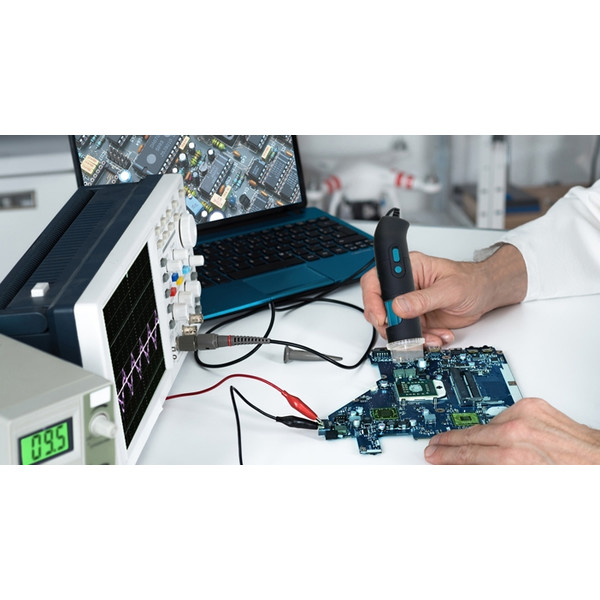

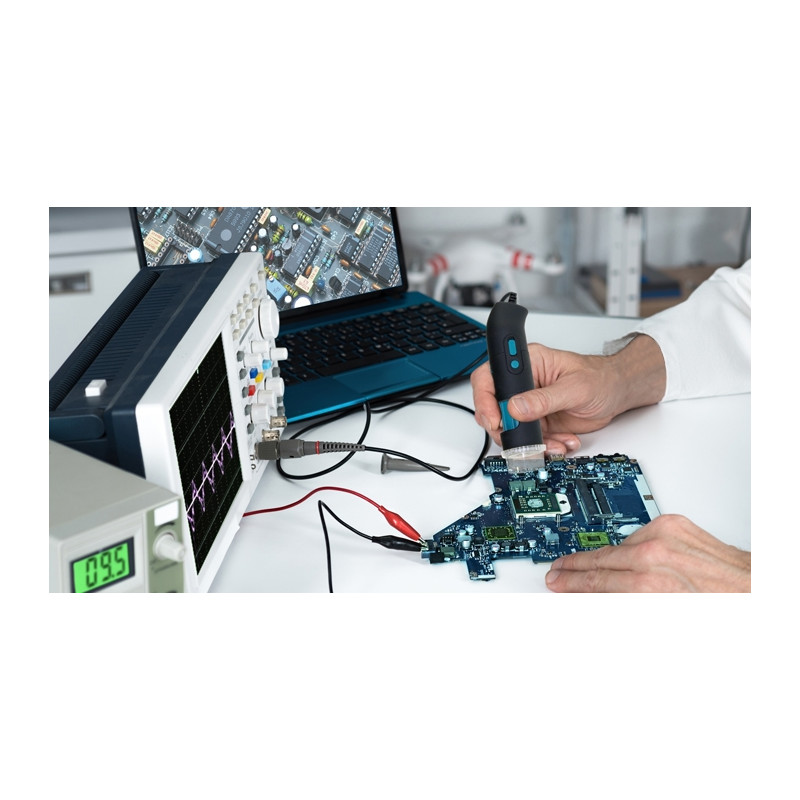

The Q-scope product range of digital microscopes offer the best solution for a broad range of applications like industrial quality control, medical & life sciences, forensics, science & education, art restoration and many other fields.
Use our Android and IOS apps to connect the Wi-Fi Q-scope to tablet computers and mobile phones. Get connected through USB to your Windows or Mac computer. Observe and analyse your captured or live images with our powerful user-friendly (free of charge) software and share them instantly.
Specifications
Model
- Product number QS.13100-W
- Connection Wi-Fi / USB 2.0
- Apps Android and IOS
Optics
- Magnification Wi-Fi 10-25x and 100x
- Magnification USB 10-25x and 200x
- Zoom Yes, distance controlled
- Working distance Standard
- Lens type High grade optical glass with multi-layer anti-reflection coating
- Focus range Manual focus from 10 to 500 mm
- Polarizer Yes
Sensor
- Sensor type CMOS
- Size 1.3 megapixel
- Resolution 1280x960, 1024x768, 640x480
- Max. frame rate 25 fps
Features

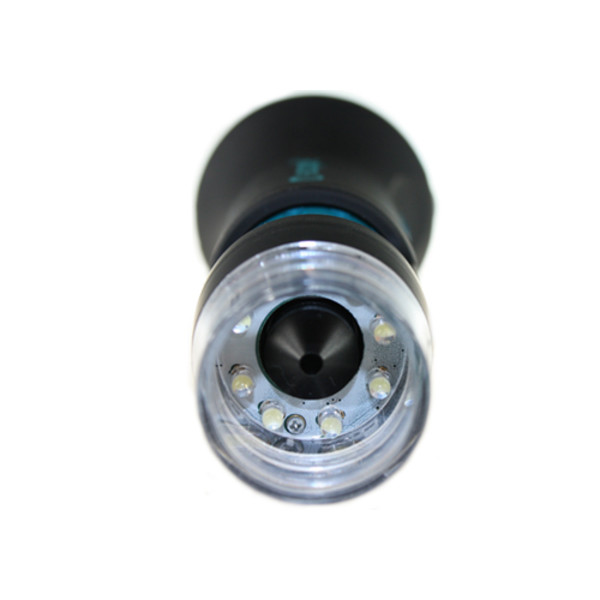

- Illumination 8 white power LEDs
- Software Q-focus analysis software with measurement and annotation functions
Body
- Dimensions (d) 38/53 x (l) 140 mm
- Weight 135 grams
