Binoculars > Instruments > APM > APM-Bino > APM Binoculars 22x70mm 45° ED APO 1,25"
Product no.: 53072

Binoculars 22x70mm 45° ED APO 1,25"

$ 2,140.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series APM-Bino...

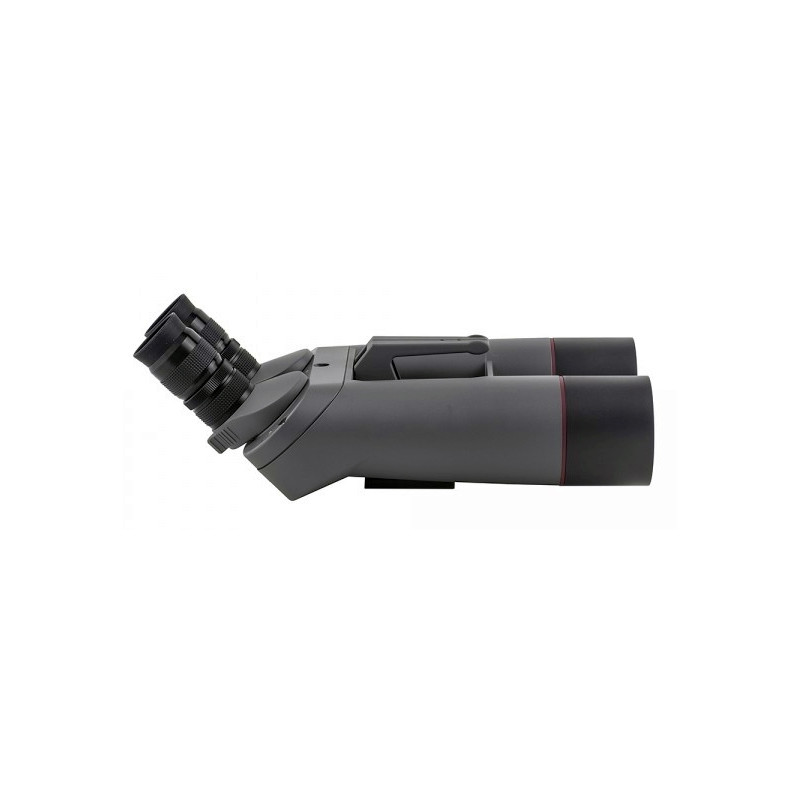

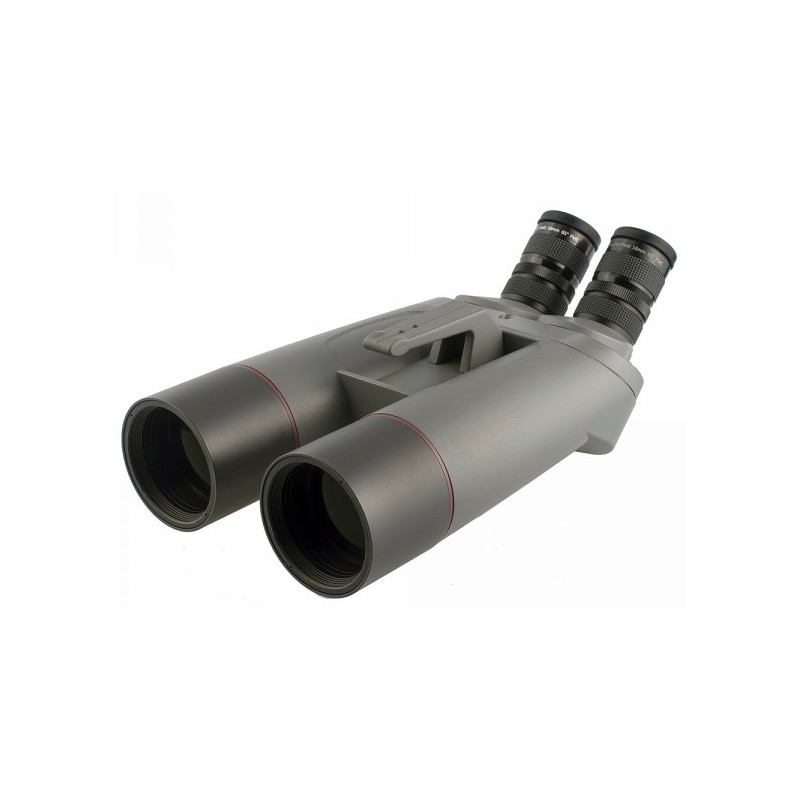

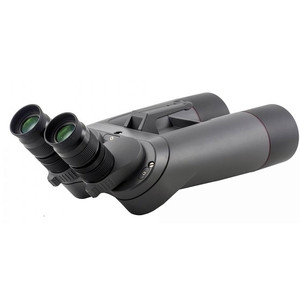

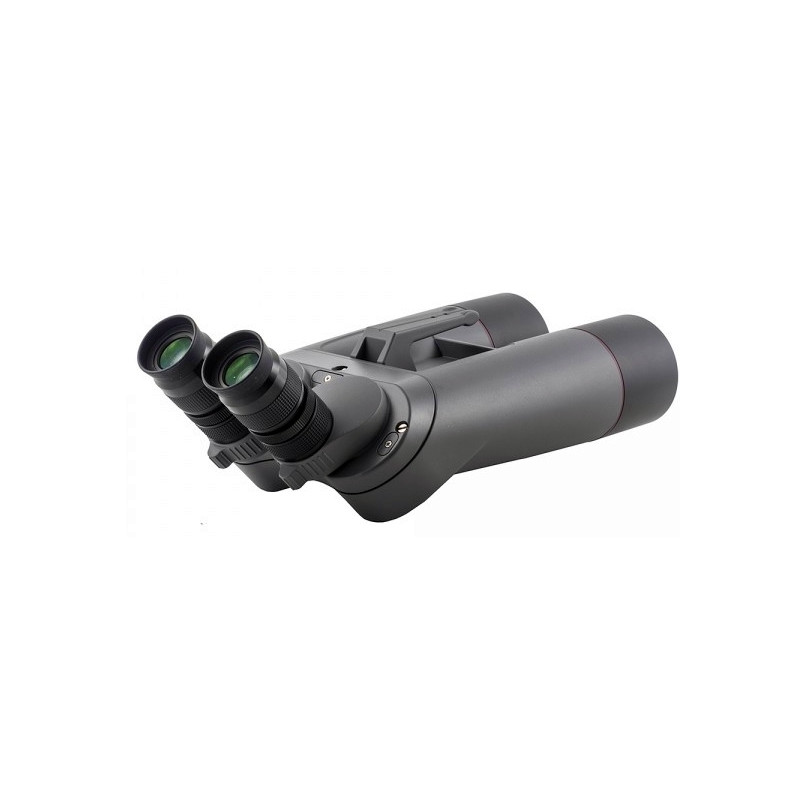

APM 70 mm 90° ED-Apo Binocular with 1.25" Eyepiece Holder
This spherical excellently corrected 3-element ED APO binocular offers an extremely high contrast. In the basic equipment we have included 1 set 18mm eyepieces. The focal position was chosen so that Tele Vue Delos, Nagler, panoptic, and the Docter 12.5 mm UWA eyepiece can be focused. Sliding dew shields with front cover plate, a carrying handle with sighting device, a photo tripod adapter with 3/8" thread connection, and 2 eyepieces with 22fold magnification are included. To keep the weight to a minimum, the binoculars housing is made of magnesium.

Delivery contents

  • Binocular 70 mm 90° with 4 covers

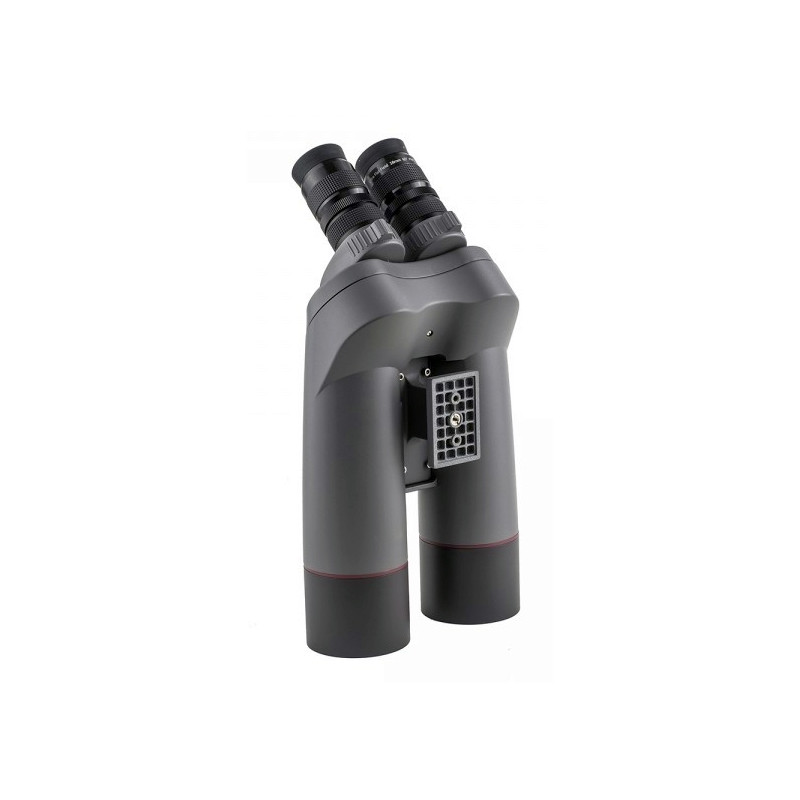

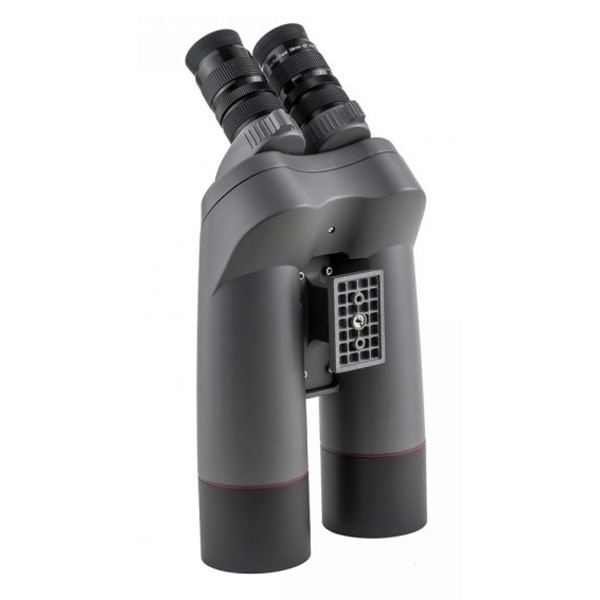

  • Photo Tripod Adapter with 1/4 inch Photo Thread
  • Transporting Handle
  • 1 Set 18 mm Ultra Flat Field Eyepieces = 22x magnification
  • waterproof and nitrogen purged

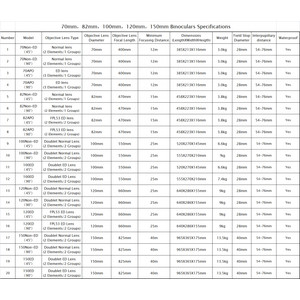

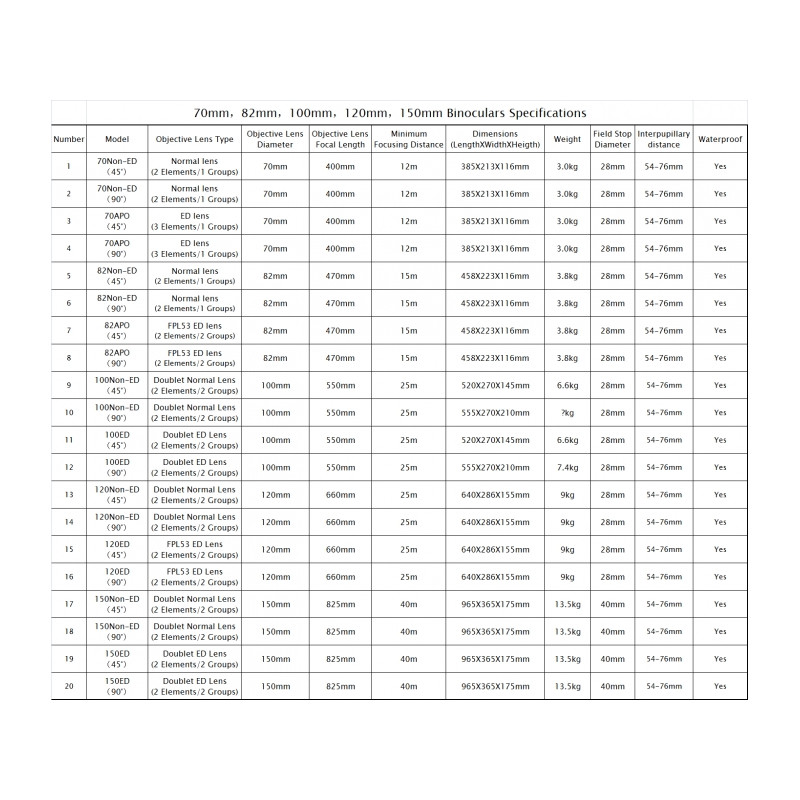

Specifications

Capacity


Type of build
Porro prisms
Magnification
22
Front lens diameter (mm)
70
Exit pupil (mm)
3,2
Eyepiece cups
folding
Diopter-adjustment side
on both sides (Single eyepiece focusing)
Interpupillar distance (mm)
54-76
Lens coating
fully, multiple
Focusing system
Single focusing

Special features


Zoom function
-
Eyepieces for spectacle wearers
yes
Image stabilizer
-
Compass
-
Rangefinder
-
Splash-proof
yes
Watertight
no
Protection bag
yes
Threaded tripod connector
Tripod connector on underside
Lens cover
yes
eyepiece cap
yes
ED
yes

Field of view


True field of view (°)
max. 4,0 (Eyepiece-dependent)
Close focus limit (m)
12
Light intensity
10,1
Twilight factor
39,2

General


Surface material
-
Colour
black/grey
Length (mm)
385
Width (mm)
213
Height (mm)
116
Weight (g)
3000
Series
APM-Bino

Area of application


Astronomy
middle
Bird watching
not recommended
Hunting
not recommended
Travel and sports
not recommended
Sailing
not recommended
Theatre
not recommended

Recommended accessories

Binoculars > Accessories (5)

APM Hard case with Foam for 70mm Binocular

$ 316.00*
Photo Tripods (1)
Aluminium tripod

Omegon Titania 600 tripod kit

$ 119.00*
Outdoor (1)

K+R TRAMP hiking compass

$ 19.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon SPUDZ microfaser cleaning cloth

$ 14.90*

*All prices include VAT plus shipping costs.

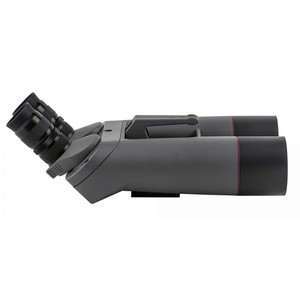

APM Binoculars 22x70mm 45° ED APO 1,25"

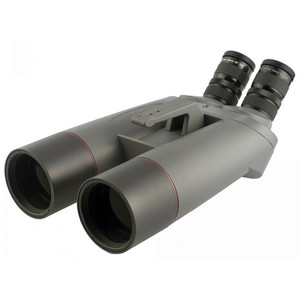

APM Binoculars 22x70mm 45° ED APO 1,25"
