Product description:

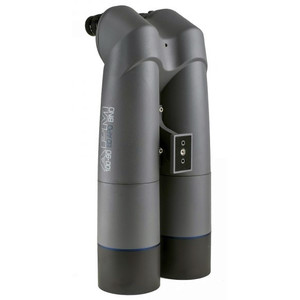

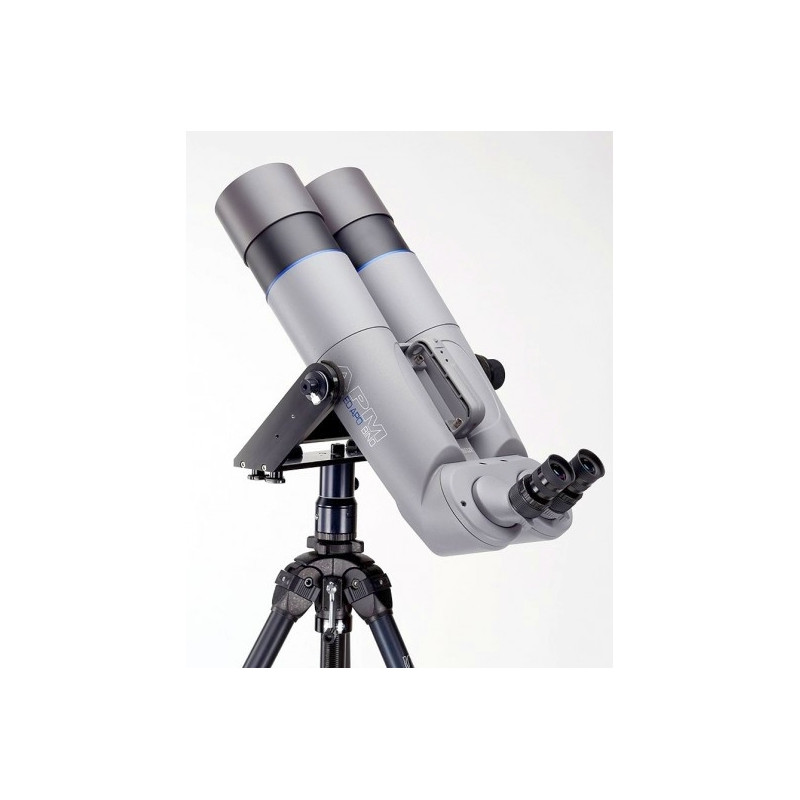

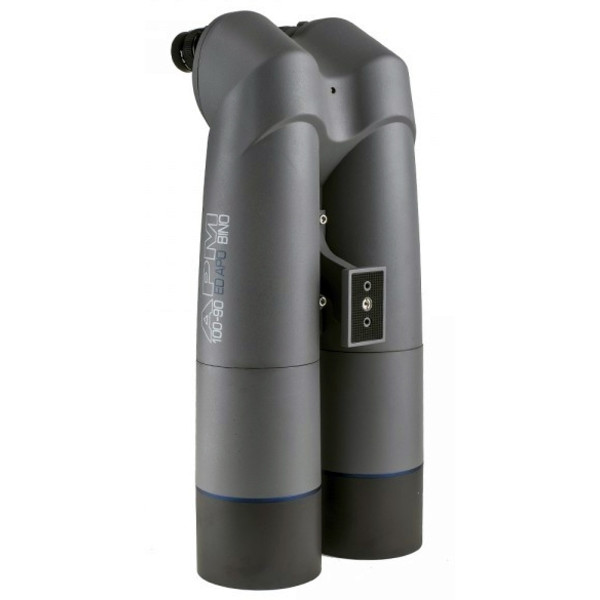

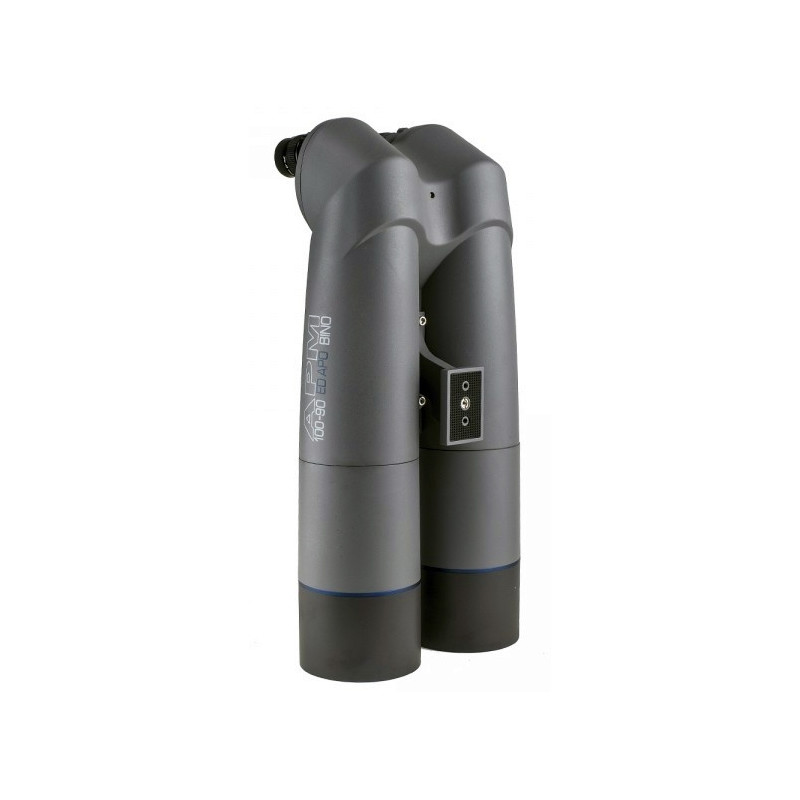

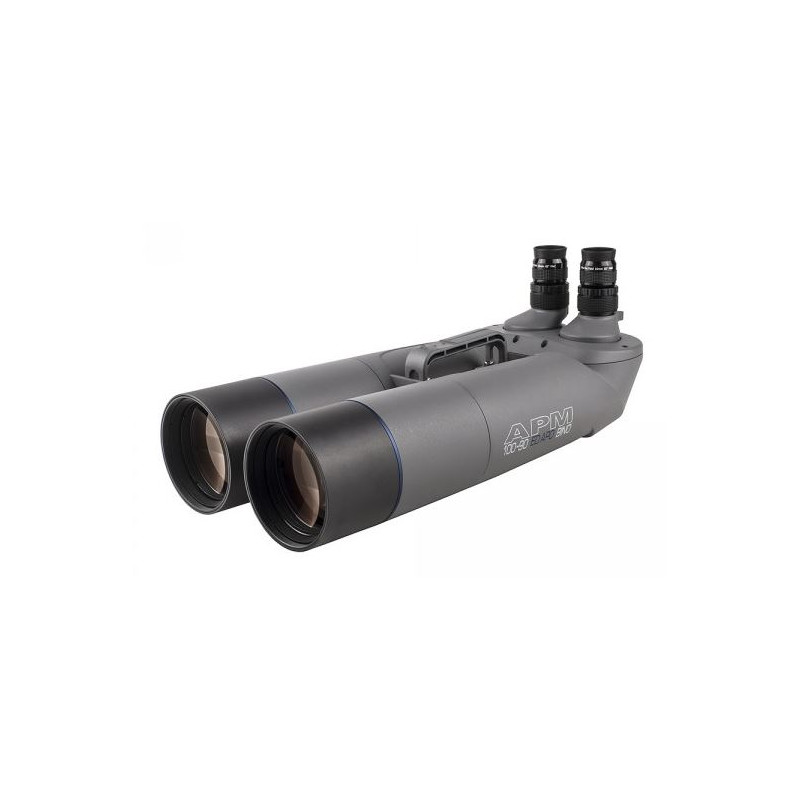

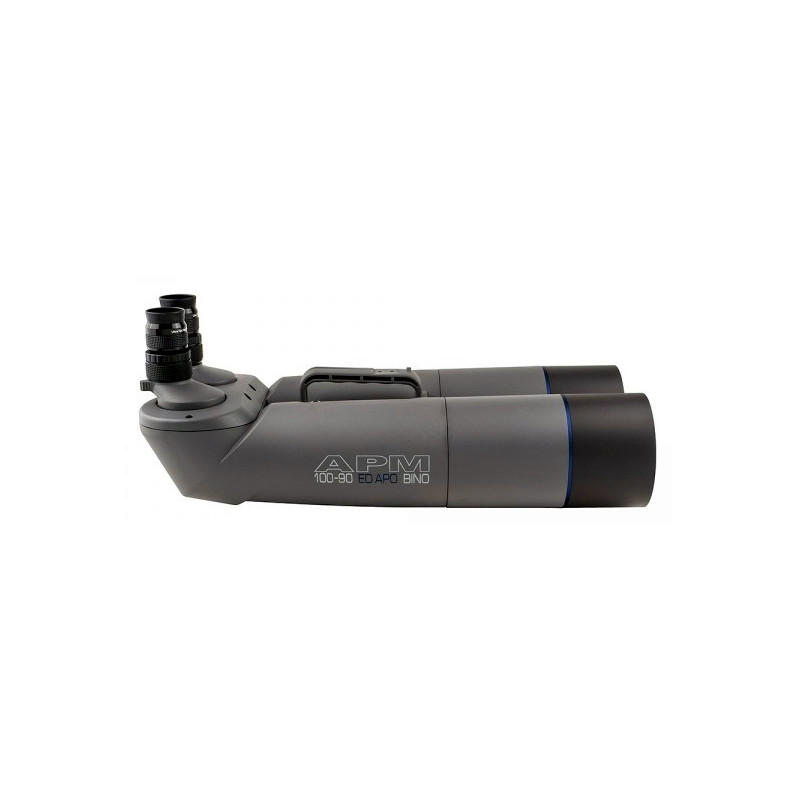

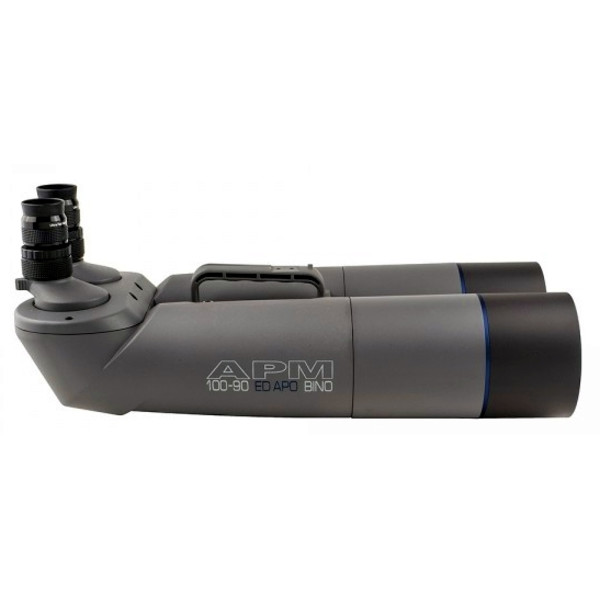

APM 100 mm 90° ED-Apo Binocular with 1.25" Eyepiece Holder
This spherical excellently corrected 2-element ED APO binocular offers an extremely high contrast. In the basic equipment we have included 1 set 18mm eyepieces. The focal position was chosen so that Tele Vue Delos, Nagler, panoptic, and the Docter 12.5 mm UWA eyepiece can be focused. Sliding dew shields with front cover plate, a carrying handle with sighting device, a photo tripod adapter with 3/8 "thread connection, and 2 eyepieces with 29fold magnification are integrated. To keep the weight to a minimum, the binoculars housing is made of magnesium.

Technical Details:

Weight without Eyepieces, including Tripod Adapter 16.4 lb
Clear aperture without on-axis vignetting 100 mm
Interpupillary distance from 54 mm to 75 mm
Lightweight Magnesium Body
Length ca. 555 mm
Width 270 mm
Height 210 mm
Dew Shield OD 124 mm
Dew Shield ID 120 mm
2 Element Air spaced ED Apochromat (ED=FK61 Glass)
Focal length 550 mm
Max FOV 2.8 degree
Field of View Diameter 25mm
Waterproof and Nitrogen purged
All optical surfaces are fully broadband multicoated
Clear aperture 23 mm at the eyepiece Side
1.25" Helical Focuser with Brass compression Ring
Foto Tripod Adapter with 3/8 Inch Thread (Adapter to 1/4 Inch)
Transporting Handle with Target Visor
4 Dust Covers
Extendable Dew Shields

Delivery contents

Binocular 100 mm 90° with 4 Covers
Photo Tripod Adapter with 1/4 Inch Photo Thread
Transporting Handle
1 Set 18 mm Ultra Flat Field Eyepieces = 30.5 x Power
alignment certificate

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Capacity Capacity X Performance data enables binoculars to be compared with one another. Click to read more...
Type of build Type of build X Describes the internal structure of a pair of binoculars, thereby further subdividing the different types. Click to read more...	Porro prisms Porro prisms X A classic binoculars design, in which the objective lenses are slightly further apart than the eyepieces. Click to read more...
Magnification Magnification X The first number in the binoculars’ model number represents the magnification. It specifies how much larger an object appears compared to when viewed with the naked eye. Click to read more...	29
Front lens diameter (mm) Front lens diameter X The second specification in the binoculars’ model number is the front lens diameter. The larger it is, the more light the binoculars collect. Click to read more...	100
Exit pupil (mm) Exit pupil X Relates to the beam of light emitted by the eyepiece. The exit pupil is closely associated with the brightness of a pair of binoculars. Click to read more...	3,4
Eyepiece cups Eyepiece cups X The eyecups are located on the eyepieces and protect they eyes from stray light. Click to read more...	folding
Diopter-adjustment side	on both sides (Single eyepiece focusing)
Interpupillar distance (mm) Interpupillary distance X The interpupillary distance indicates how far the eyepieces or tubes can be pushed together or pulled apart. This is an important indication, since each person has a different interpupillary distance. Click to read more...	54-75
Glass material Glass material X A distinction is made between different glass materials. Through the use of special types of glass, the optical image can be optimized. Click to read more...	ED
Lens coating Lens coating X Coatings on optical surfaces have the job of minimising annoying reflections. In this way light transmission and contrast is increased. Click to read more...	fully, multiple
Focusing system Focusing system X Binoculars are focused by focusing on the object, or rather the eyes of the observer. Click to read more...	Single focusing
Special features Special features X Binoculars can be equipped with additional functions such as an image stabilizer or a zoom. Click to read more...
Zoom function Zoom function X The binoculars’ magnification may be variably adjusted using either a lever or a scroll-wheel. Click to read more...	-
Eyepieces for spectacle wearers Eyepieces for spectacle wearers X These eyepieces have a relatively large eye relief. It is possible to wear spectacles while observing and still benefit from a comfortable viewing position. Click to read more...	yes
Image stabilizer Image stabilizer X Compensates for the natural trembling of the hands. The picture is so stable, as if you were observing using a tripod. Click to read more...	-
Compass Compass X On these models, the compass display is usually shown in a small part of the field of view. A distinction is made between digital and manual versions. Click to read more...	-
Rangefinder Rangefinder X An automatic or manual feature for measuring distances. Click to read more...	-
Splash-proof Splash-proof X These binoculars may only be exposed to moderate moisture or light drops of water. Click to read more...	yes
Watertight Watertight X Watertight optics are equipped with special seals and are gas-purged. This is usually with nitrogen or argon gas. Since these gases are heavier than air, they cannot escape. Click to read more...	no
Protection bag	-
Threaded tripod connector Threaded tripod connector X A 1/4" thread for connection to a photographic tripod. Most binoculars require an additional tripod adapter. Click to read more...	Tripod connector on underside
Lens cover	yes
eyepiece cap	yes
Field of view Field of view X Information about the field of view enables binoculars to be more easily compared with one another. Click to read more...
True field of view (°) True field of view X The angular field of view visible with the binoculars. Click to read more...	max. 2,8
Close focus limit (m) Close focus limit X The shortest distance which can still be seen sharply through binoculars. Click to read more...	25
Light intensity Light intensity X The geometric light intensity is a theoretical value. It is an indication of the expected brightness of the image. Click to read more...	11,9
Twilight factor Twilight factor X Used to compare binoculars’ performance in low light conditions. The higher the number, the more suitable it is for twilight. However, the value should always be considered in connection with the exit pupil. Click to read more...	53,9
General
Surface material Surface material X Binoculars are usually equipped with a sleeve that protects the binoculars and makes them easier to grip. Click to read more...	-
Colour	gray
Length (mm)	555
Width (mm)	270
Height (mm)	210
Weight (g)	7450
Series	APM-Bino APM-Bino X Large binoculars with interchangeable eyepieces. Click to read more...
Area of application Area of application X The areas of application help you to choose the right binoculars for your purpose. Click to read more...
Astronomy Astronomy X You are fascinated by the stars, but don't want to set up telescope right now? You can immerse yourself in the world of astronomy using many binoculars. Click to read more...	good
Bird watching Bird watching X Blackbird, thrush, finch or starling? Binoculars helps to spot and identify the bird. Click to read more...	not recommended
Hunting Hunting X Do you want to stay in the hide until dusk, or do you prefer to stalk game? We have the right binoculars for you! Click to read more...	not recommended
Travel and sports	not recommended
Sailing Sailing X Even the sailors of old used binoculars to orient themselves on the high seas. In some cases, modern binoculars even offer a built-in compass and a reticle for estimating distances. Click to read more...	not recommended
Theatre Theatre X Whether it's serious opera, a romantic operetta, folk theatre or a musical; with opera glasses or small binoculars, you'll be part of the action. Click to read more...	not recommended
