Product no.: 9335

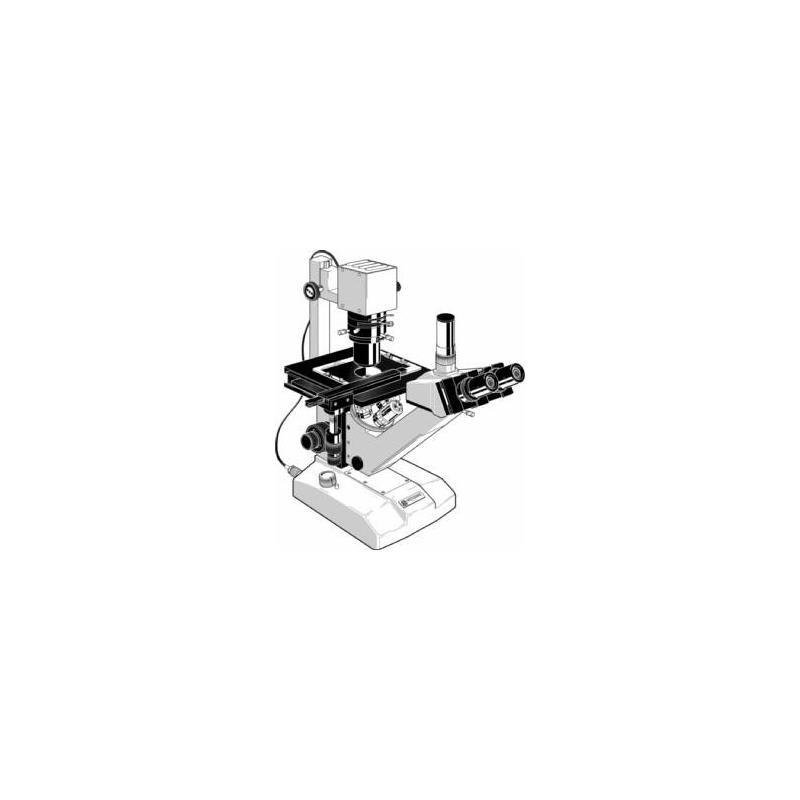

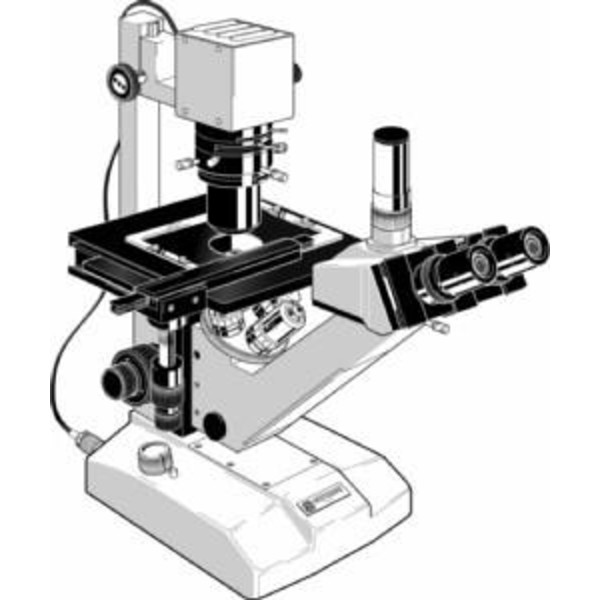

Microscope FE.2935, inverse

$ 6,700.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Euromex microscopes of the F-series are routine and research microscopes, which are used in high schools, science and in biological, medical and industrial laboratories. The inverted microscopes in this range are suitable for studies of cell cultures and Hydrobiology. The microscopes provide a brilliant, flat image. The big eye lenses of the eyepieces suitable for eyeglass wearers and guarantee a relaxed observation.

The FE.2935

This microscope is equipped with two condensers: N.Apertur 00:30 and 12:55

This model is supplied with a KHWF DIN eyepieces with 10 times magnification and 1 Semiplan lens with 4-fold and 2 with plan phase objectives 10x and 40x magnification. The 40X lens has a resilient version the product to protect against damage. Thus, a 400-fold magnification is a maximum possible.

The third vertical tube is suitable for the connection of photo and video cameras. When the phototube is turned on, is 80% of the light through the phototube. The remaining 20% ​​to the eyepieces.

Specifications

Optics


Magnification
400 (40, 100, 200, 400)
Eyepiece
10 (HWF eyepiece)
Condensor
2 Kondensoren ({N.A. 0,30 and N.A. 0,55})
Lighting
Incident light and transmitted light
Lamp type
Halogen (6V/30W, continuously adjustable, centerable, Köhler illumination)
Lens type
Infinity Type Semi-Plan Achromatic
Power supply
Power plug

Mechanics


Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
Trinocular
Specimen stage
Cross table (112 x 72 mm on specimen stage: 180 x 200 mm, removable)
Viewing posture
30° angled eyepiece, rotatable head

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
F-Serie
Colour
black-white
Weight (g)
12700
Suitable from
16

Suitable for


Beginners
-
Advanced
-
Pros
yes

Area of application


Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
Dark field
-

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
