Microscopy > Microscopes > Inverted microscopes > Motic > AE31E > Motic Inverted microscope AE31E bino, infinity, 40x-400x, phase, Hal, 100W
Product no.: 67734

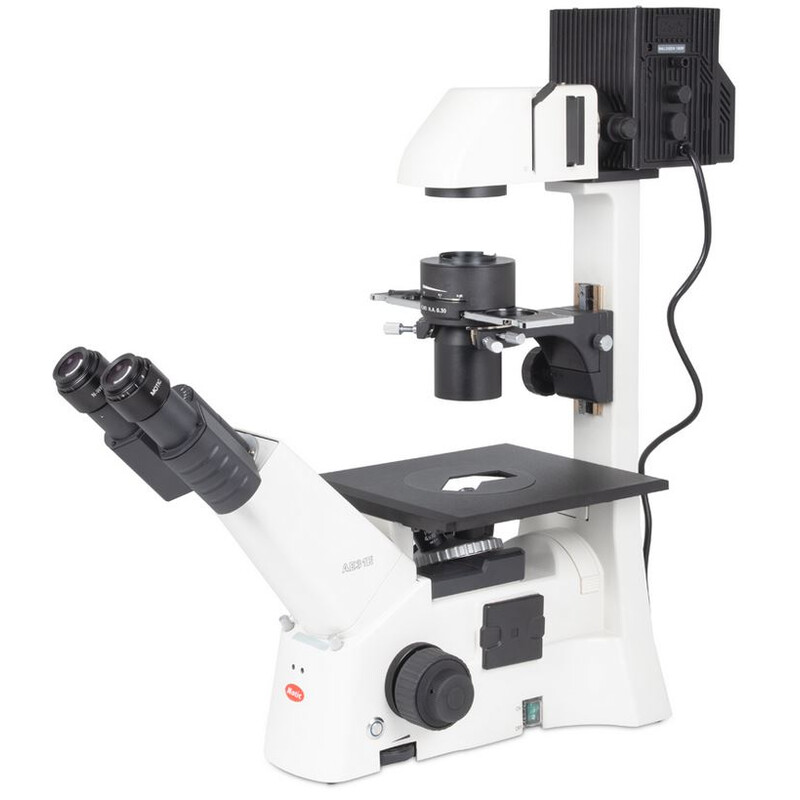

Inverted microscope AE31E bino, infinity, 40x-400x, phase, Hal, 100W

$ 5,500.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series AE31E...

AE31E BINOCULAR (100W)

  • Observation tube Binocular head, Siedentopf type, 360º swiveling
  • Optical system: Colour Corrected Infinity Optical System (CCIS®)
  • Inclination 45º inclined
  • Interpupillary distance 48-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield WF10X/22mm with diopter adjustment
  • Nosepiece Left side facing quintuple
  • Objective classification CCIS® Plan Achromatic
  • Objectives

4X/0.10, WD 12.6mm

10X/0.25 WD 4.1mm phase

20X/0.30 WD 4.7mm, LWD, phase

40X/0.50 WD 3.0mm, LWD phase

  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Inverted
  • Stage Plain stage with metal and glass stage inserts
  • Stage size 200x239mm
  • Condenser Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2µm
  • Focusing stroke 10mm
  • Free working distance Working distance without condenser 231mm
  • Transmitted illumination Koehler Quartz halogen 12V/100W with intensity control
  • Illumination features Auto-OFF and Light Memory function
  • Transformer External
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. blue, green interference and ground glass filters
  5. phase ring Ph1
  6. centering telescope
  7. centering keys
  8. spare fuse

  • Dimensions LxWxH 629x200x595mm
  • Net weight 13.2kg

Specifications

Optics


Magnification
400
Eyepiece
10x/22
Lens type
Plan, achromatic
Condensor
ELWD condenser (N.A. 0.30 WD 72mm) with aperture stop and filter holder
Lighting
Transmitted light
Lamp type
Halogen (12V/100W)
Objective 1
4x/0.10 w.d.12.6mm
Objective 2
10x/0.25 w.d.4.1mm phase
Objective 3
20x/0.30 w.d. 4.7mm LWD, phase
Objective 4
40x/0.50 w.d.3.0mm LWD, phase

Capacity


Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes
Phase contrast
yes
Contrast methods
Phase contrast

Mechanics


Type of build
binocular
Viewing posture (°)
45
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
5

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Weight (g)
13200
Height (mm)
595
Length (mm)
629
Width (mm)
200
Series
AE31E

Field of application


Medicine
yes
Education
yes

Area of application


Cell culture
yes
University
yes
Phase contrast
yes

Miscellaneous


supplier product number
1100100200584
