Microscopy > Microscopes > Digital microscopes > Inverted microscopes > ZEISS > Primovert > ZEISS inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP
Product no.: 61800

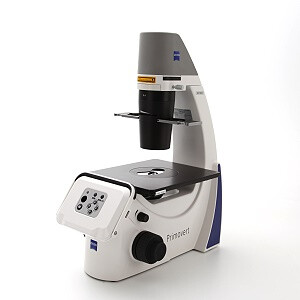

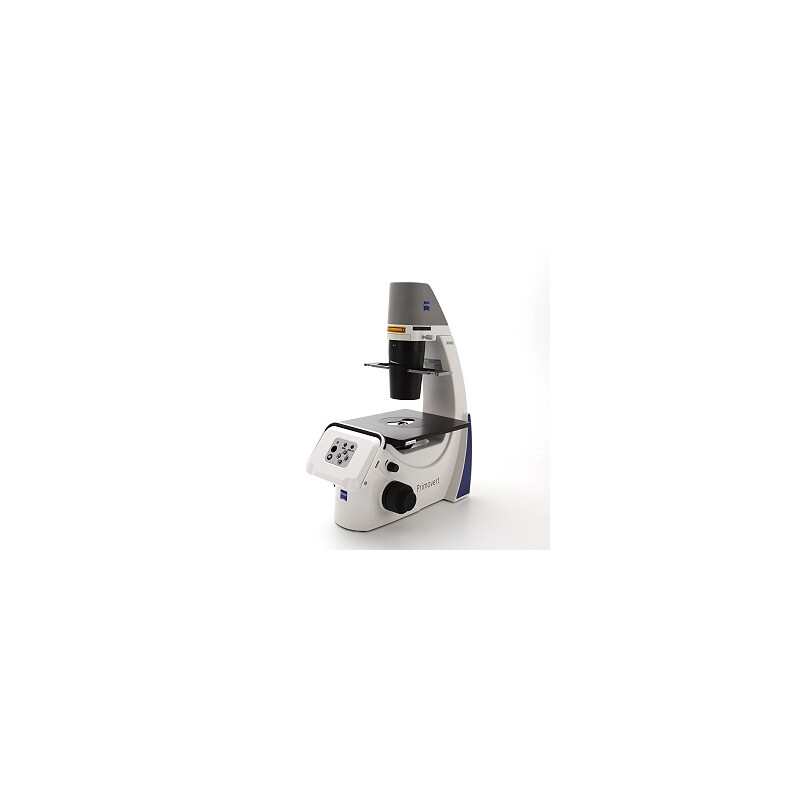

inverted microscope Primovert HDcam Ph0, Ph1, Ph2, 40-400x, Ph1, Cond 0.4, Cam 5MP

$ 9,200.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Examine and evaluate your living cells – quickly and easily

Primovert is specially designed for the examination of cell cultures. This inverted microscope combines efficiency with high optical performance. Primovert is compact and can be used directly in your cleanroom workbench. Quickly and efficiently examine unstained cells in phase contrast and GFP-labelled cells in fluorescence contrast. The inverted microscope is perfect for cancer and gene research. With Primovert HDcam and the Labscope imaging app for the iPad, you can observe and discuss cells with your colleagues regardless of the sterile workplace.

Highlights:

  • Switch from phase contrast to fluorescence contrast when examining unstained and GFP-labelled cells.
  • The inverted microscope can be easily integrated into your clean bench, allowing you to work directly in the sterile environment.

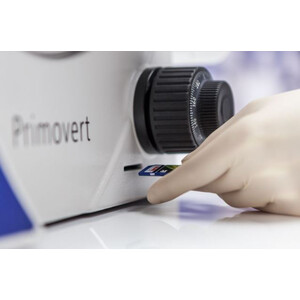

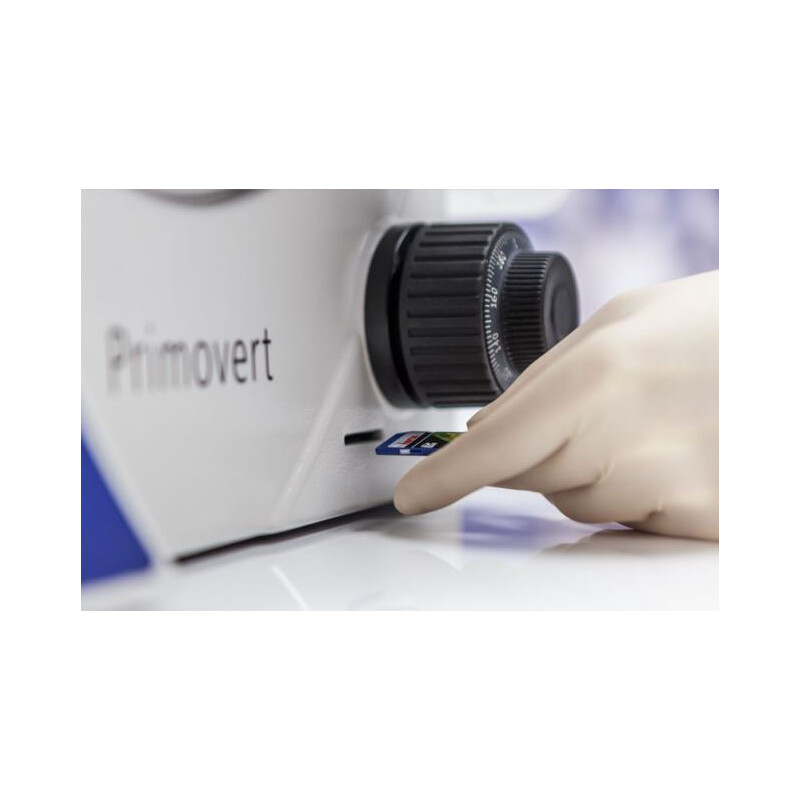

  • Your Primovert is ready to use immediately. Reactivate the microscope in standby mode by pressing the button on the table.
  • Primovert automatically switches to walk-away mode after 15 minutes of inactivity. This saves energy and extends the service life of the light source.

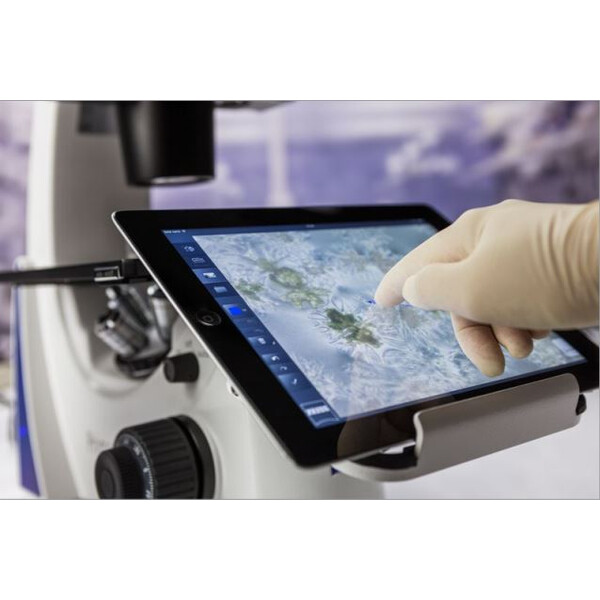

  • Primovert HDcam has an integrated camera. With your iPad and the free Labscope imaging app, you can discuss the monitor image with your team. Take microscope images, create and comment on reports, and share them conveniently via Wi-Fi.

Primovert HDcam

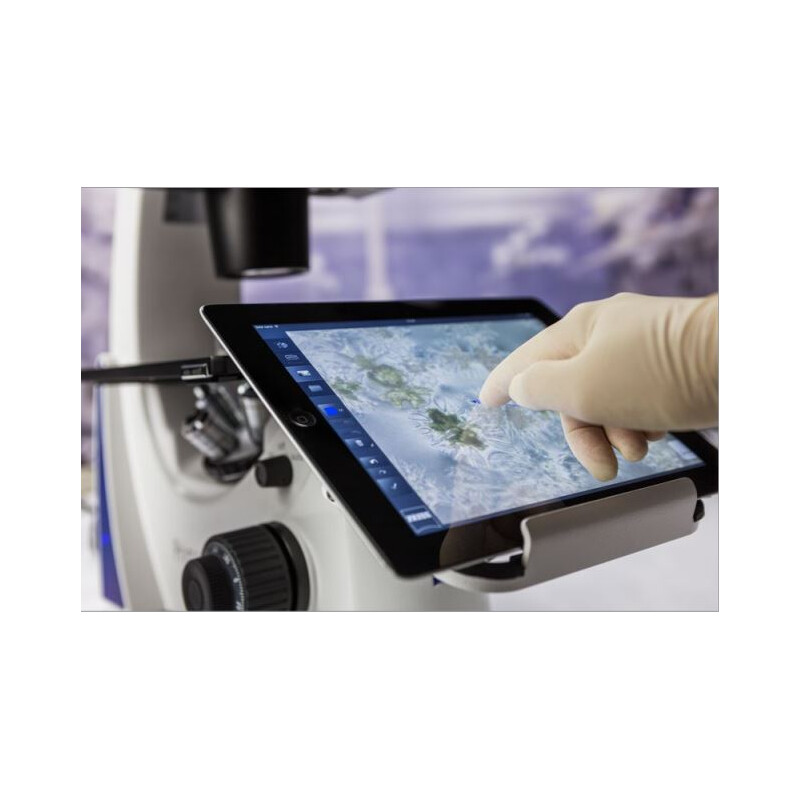

Primovert HDcam is your solution for image acquisition and documentation. The camera is already integrated into the stand – no need for further adjustments and camera settings. In combination with your iPad and the Imaging App Labscope you share, discuss and explain your observations with colleagues – independent from the location of your microscope. Profit from a fast live display – also on multiple iPads over WiFi. Acquire images and videos, make annotations and documentations – and easily share these data.

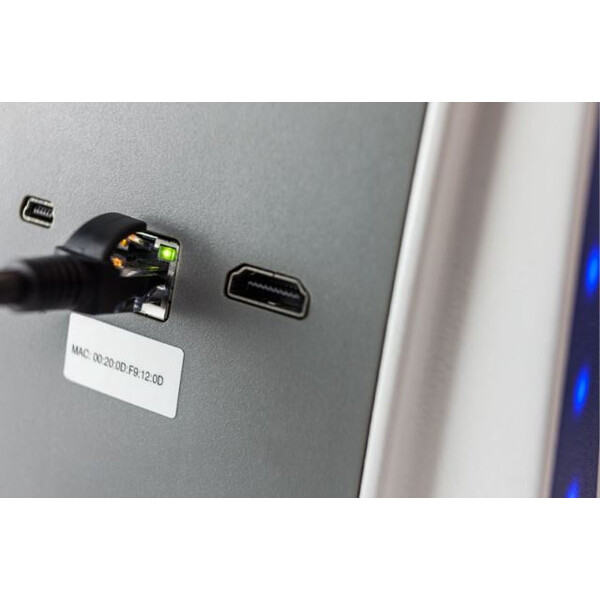

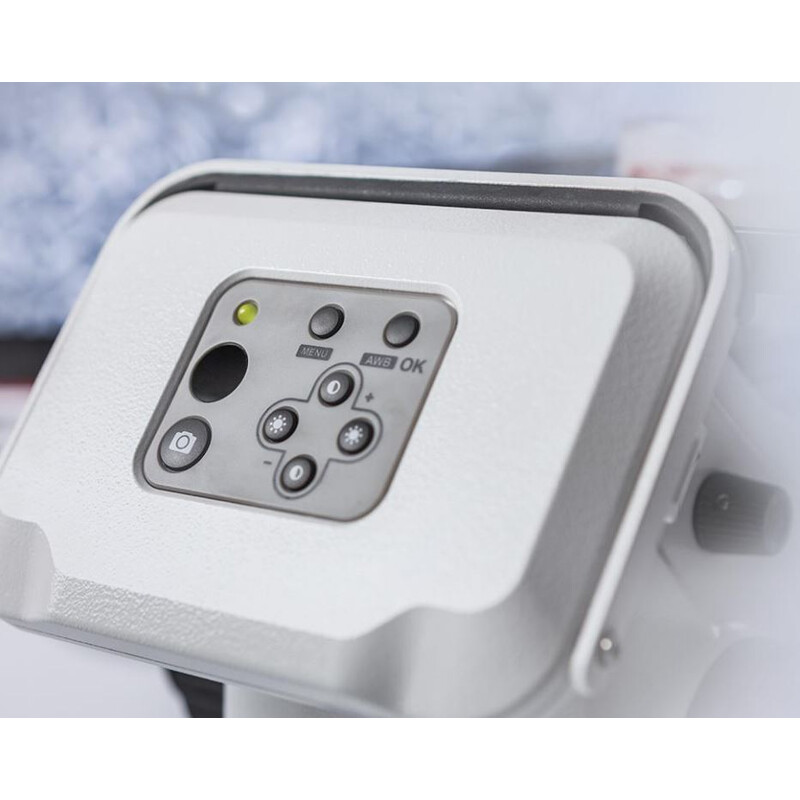

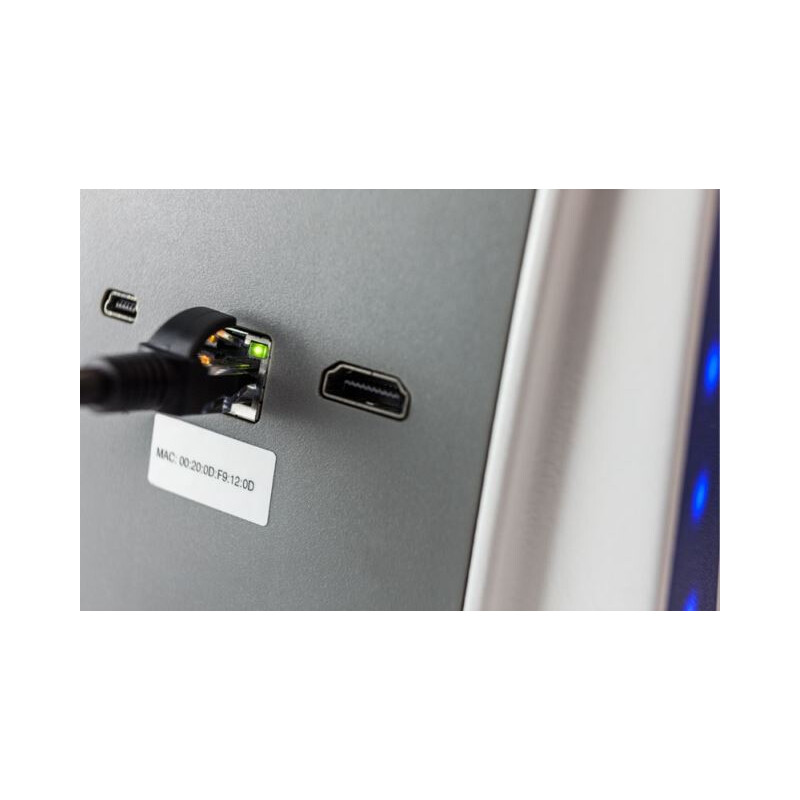

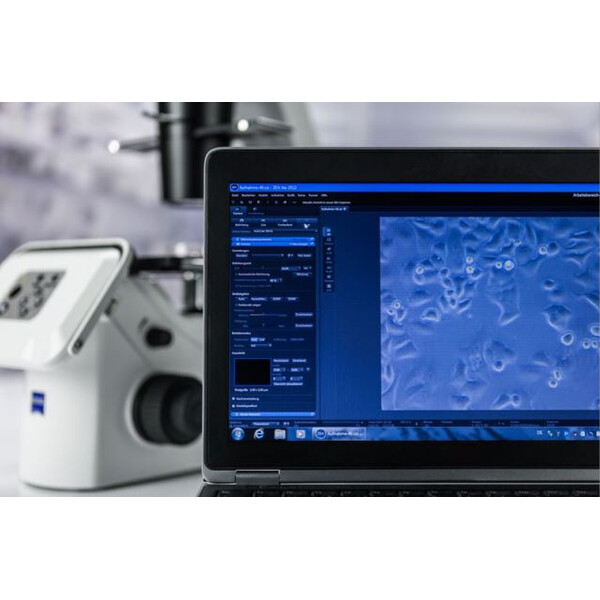

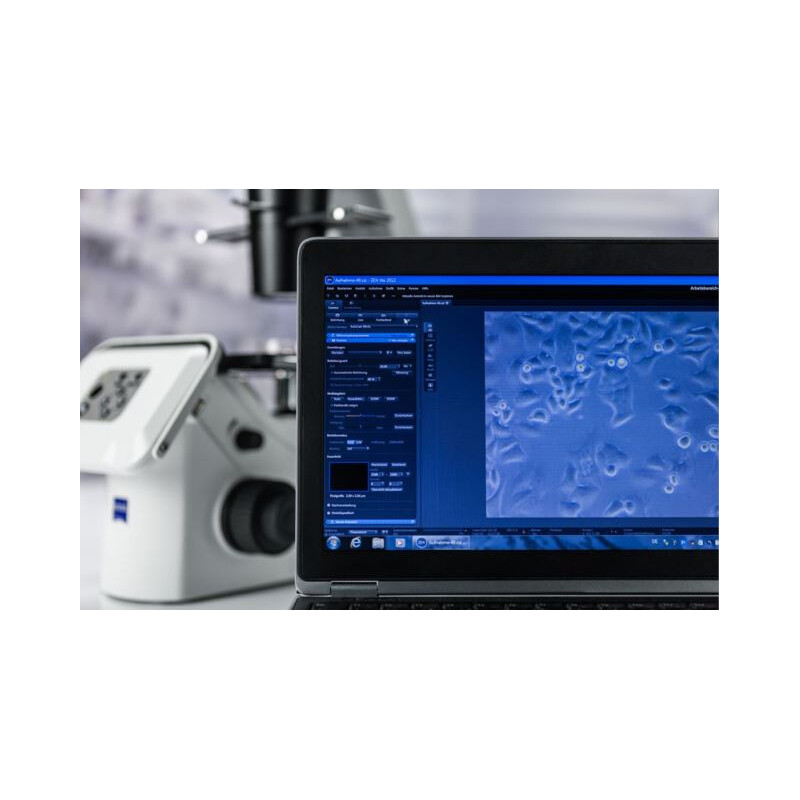

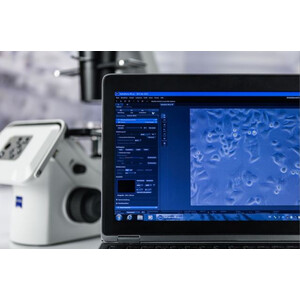

Or use Primovert HDcam without iPad: you control your camera and acquisition settings directly at the stand. Various interfaces of the integrated camera let you easily transfer data directly to your PC with imaging software ZEN lite. Or use the interfaces to connect a monitor or projector.

Specifications

Optics


Image scale
40-400
Condensor
0.3 w.D. 72 mm
Lens type
Plan, achromatic (infinity corrected)
Eyepiece
PL 10x/20
Power supply
100-240 V
Magnification
40-400 (4,10,20,40)
Lighting
Transmitted light
Objective 1
4x/0,10 Ph0, w.d. 12.0mm
Objective 2
10x/0,25 Ph1 w.d. 4.4 mm
Objective 3
20x/ 0,3 Ph1 w.d. 4.6 mm
Objective 4
40x/0,5 Ph2 w.d. 2.7 mm
infinity corrected
yes
Lamp type
LED

Capacity


Brightness control
adjustable
Temperature of color (K)
7000
Transmitted light
yes
Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Type of build
Digital
Viewing posture (°)
45° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
4
Working distance (mm)
72

Special features


Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

Camera


Resolution Photograph (Pixel)
2560 x 1920
Colour camera
yes
LCD screen
-
Peltier cooling
no
Pixel size
2.2 x 2.2
Megapixel
5MP
sensor
CMOS

General


Colour
white / blue
Weight (g)
11000
Width (mm)
261
Length (mm)
550
Height (mm)
494
Series
Primovert

Field of application


Medicine
yes
Biology
yes
Education
yes

Area of application


University
yes
Naturopathy
yes
Central laboratories
yes
Marine Biology
yes
Microbiology
yes
Technical training
yes

Miscellaneous


supplier product number
491207-0004-000
