Telescopes > Meade > LX90 > Meade Telescope ACF-SC 254/2540 10" UHTC LX90 GoTo
Product no.: 12920

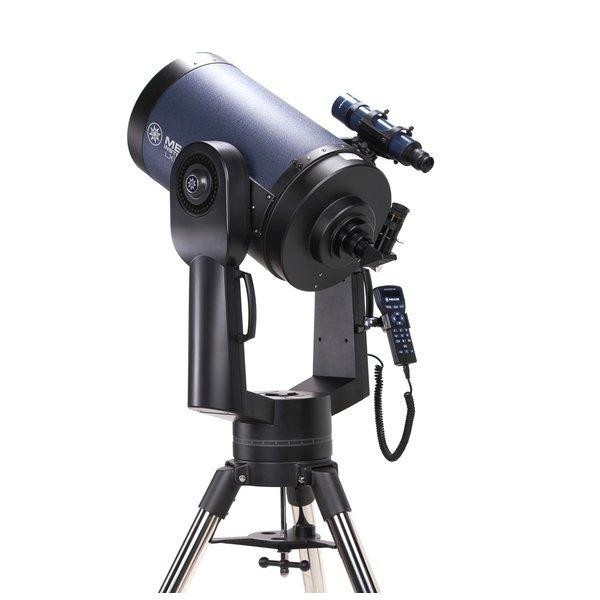

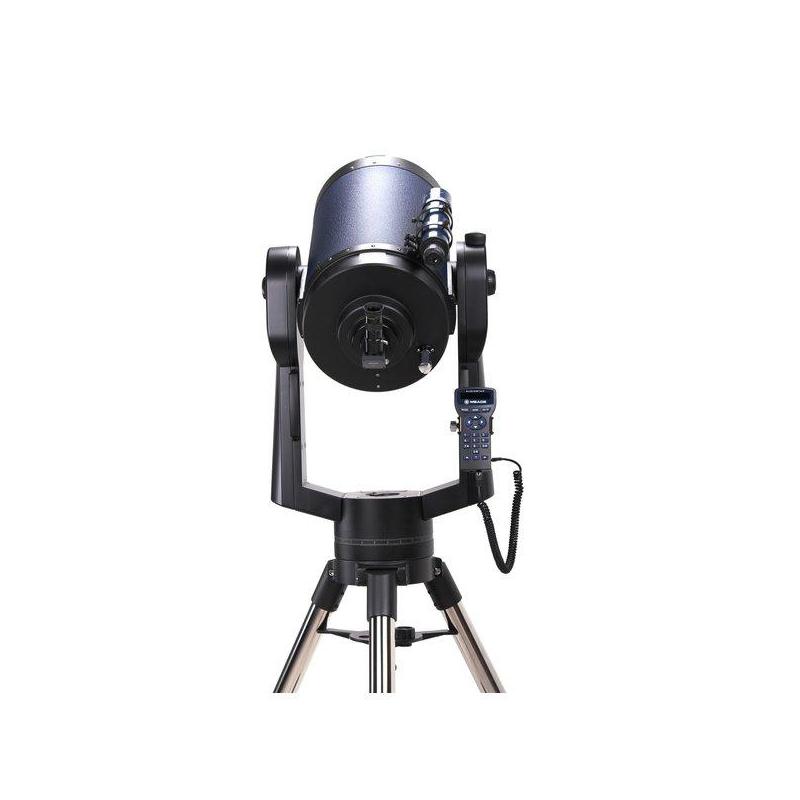

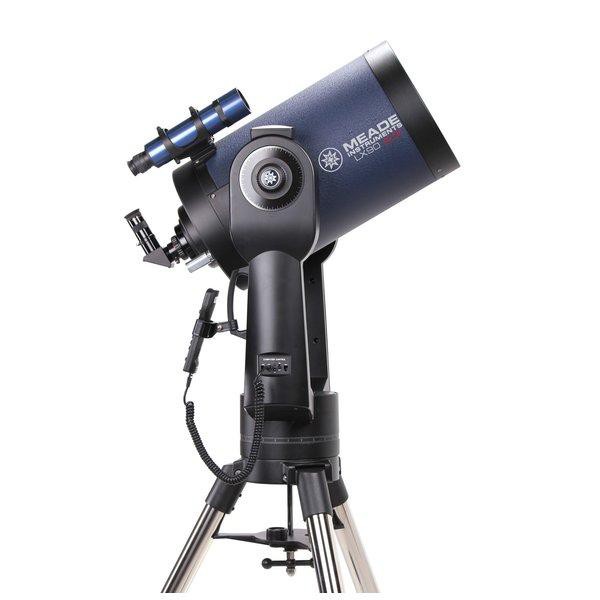

Telescope ACF-SC 254/2540 10" UHTC LX90 GoTo

$ 2,840.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series LX90...

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

The Meade LX90 mount:

Observing the starry sky is now even easier: The new Meade LX90 mount requires no previous knowledge of the night sky and needs no complicated alignment procedure. Simple set it up and off you go! The built-in electronic compass and alignment sensor make operating the LX90 very straightforward and the new red dot finder means you don't lose sight of the big picture. All you have to do is to confirm a pre-positioned reference star suggested by the mount. The mount works on the same principle as large professional observatories and already has the positioning data for over 30,000 celestial objects, including comets, asteroids and artificial satellites, in the AutoStar hand box supplied. All of these objects can be slewed to quickly, precisely, quietly, and reliably. The computer-optimized double fork mount means very high stability, whatever the orientation of the OTA, and is also extremely light weight. The proven, height-adjustable Meade tripod ensures an almost vibration-free setup: an important aspect, which contributes significantly to the overall performance of the system.

Included with in delivery:

  • AutoStar hand box with software
  • GoTo function with 30,223 objects
  • built-in battery compartment

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
254
Focal length (mm)
2540
Aperture ratio
10
Resolving capacity
0,45
Limit value (mag)
13,8
Light gathering capacity
1320
Max. useful magnification
510

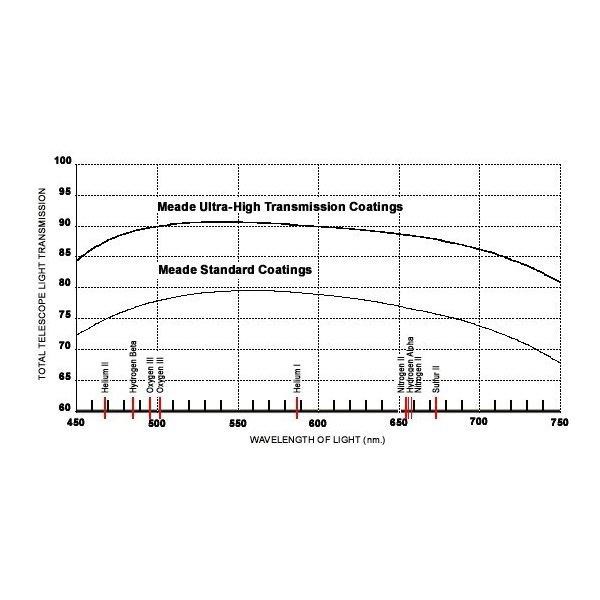

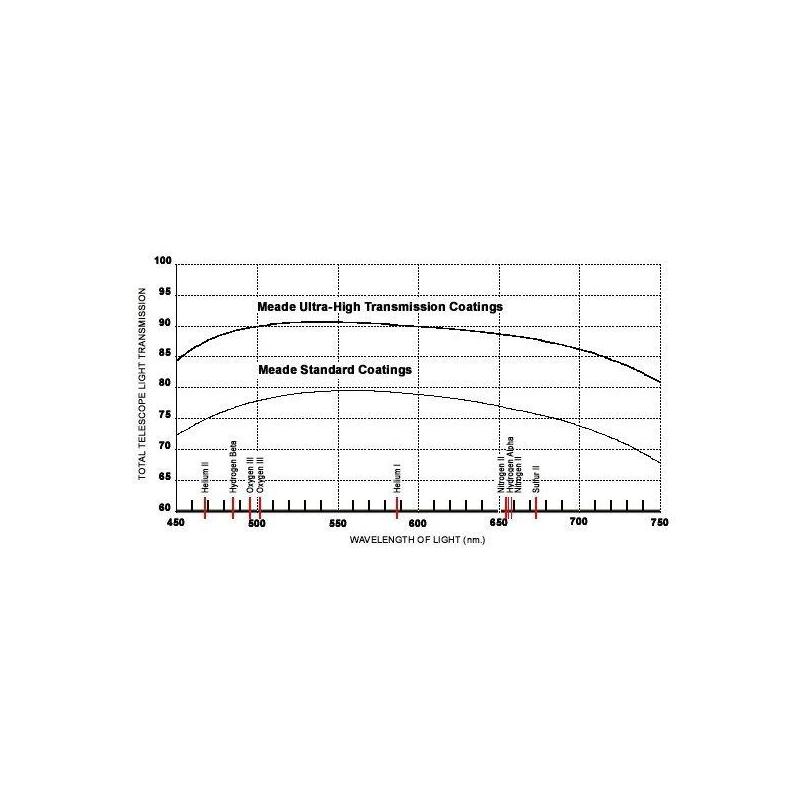

Coating
UHTC

Reflector


Correction plate - Material
Float glass
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass

Eyepiece holder


Type of build
SC thread
Connection ( to eyepiece)
2

Mount


Mounting type
Azimuthal
GoTo control
yes
Type of build
LX90
Tracking speed
128 - 64 - 16 - 8 - 2 - 1
Tracking speed
6,5 - 3 - 1,5
Power supply
12
Power consumption (mA)
1200
Tracking
yes

GoTo control


Database
30.223
Software
AutoStar #497
Precision
3
GPS
yes
Alignment method
AutoAlign, 2-star
GoTo Language
German

Tripod


Type
Tripod
Height (cm)
76-112
Material
Steel

Included accessories


1.25'' eyepieces
26mm
Finder scope
8x50
Deviating optics
1.25", 90° star diagonal
Software
AutostarSuite

General


Series
LX90
Special recommendation
yes
Total weight (kg)
32

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

recommended for


Beginners
yes
Advanced
yes
Experienced amateurs
yes

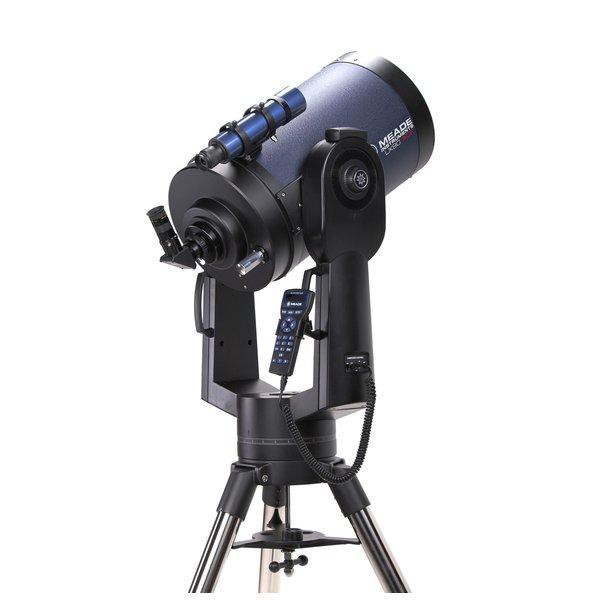

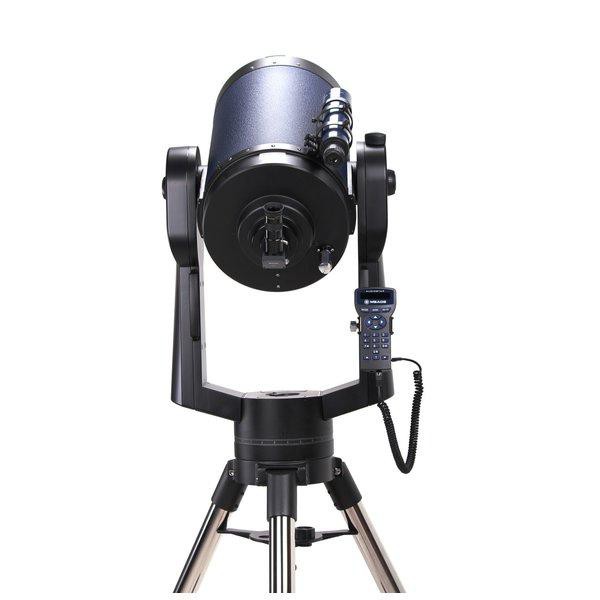

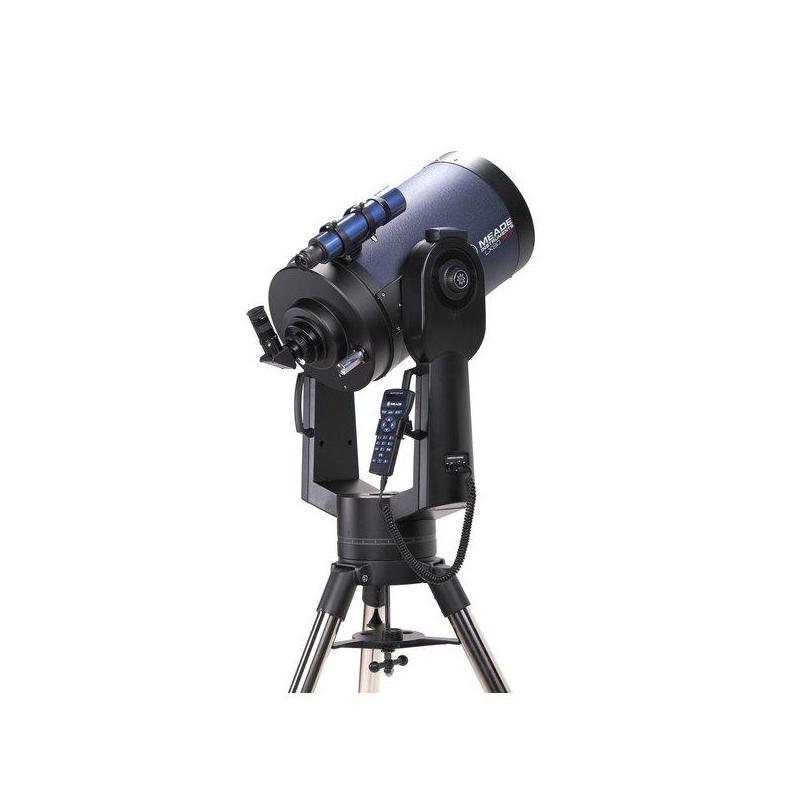

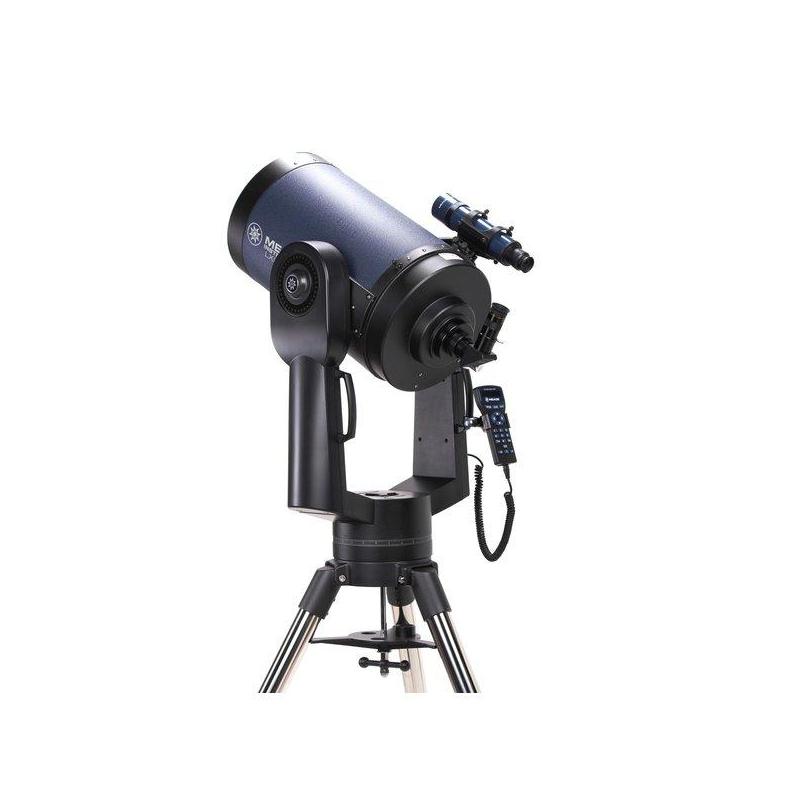

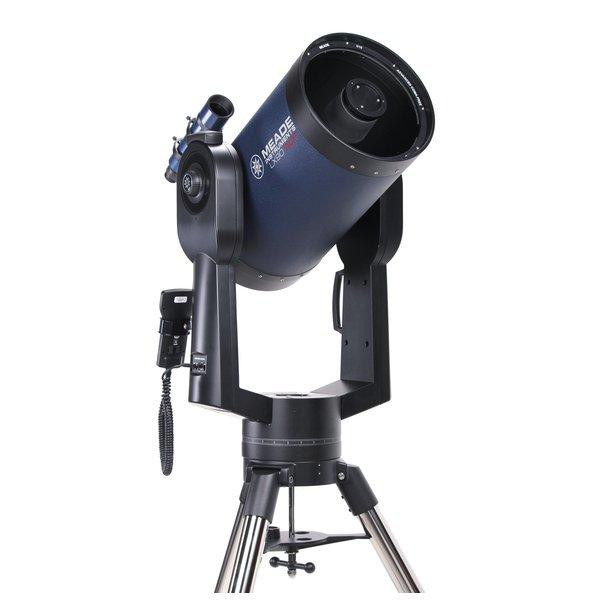

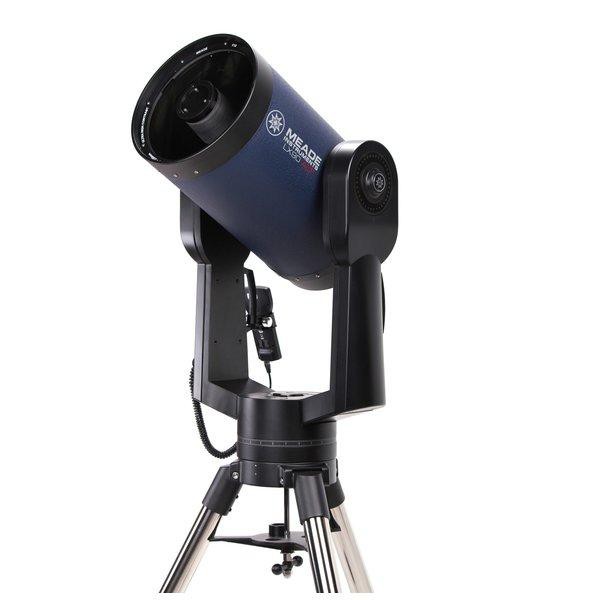

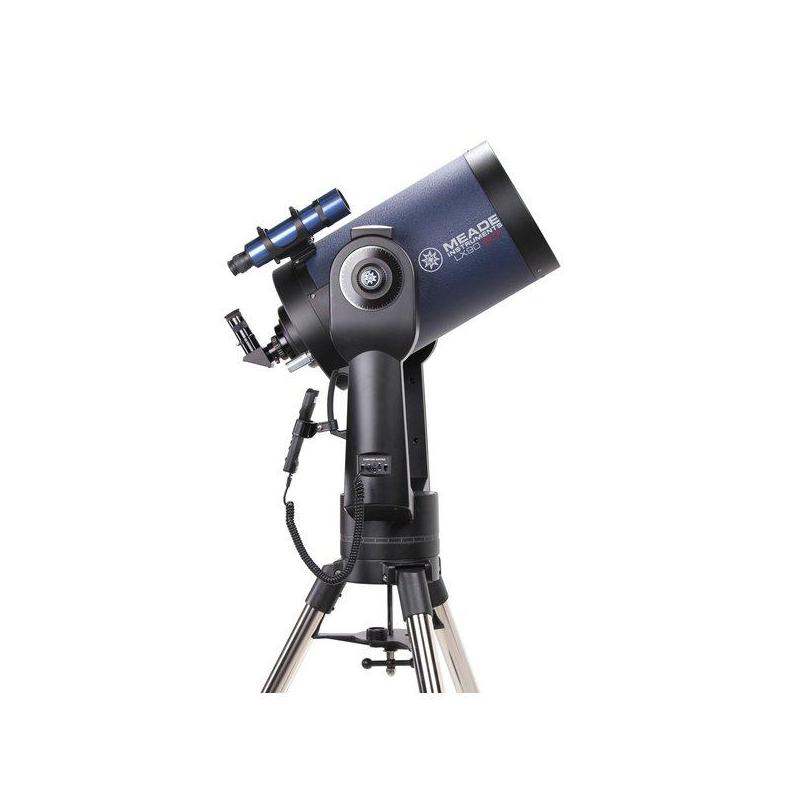

Meade Telescope ACF-SC 254/2540 10" UHTC LX90 GoTo
