Microscopy > Microscopes > Upright microscopes > Phase contrast microscopes > Euromex > Oxion > Euromex OX.3045 trinocular microscope, phase contrast
Product no.: 44129

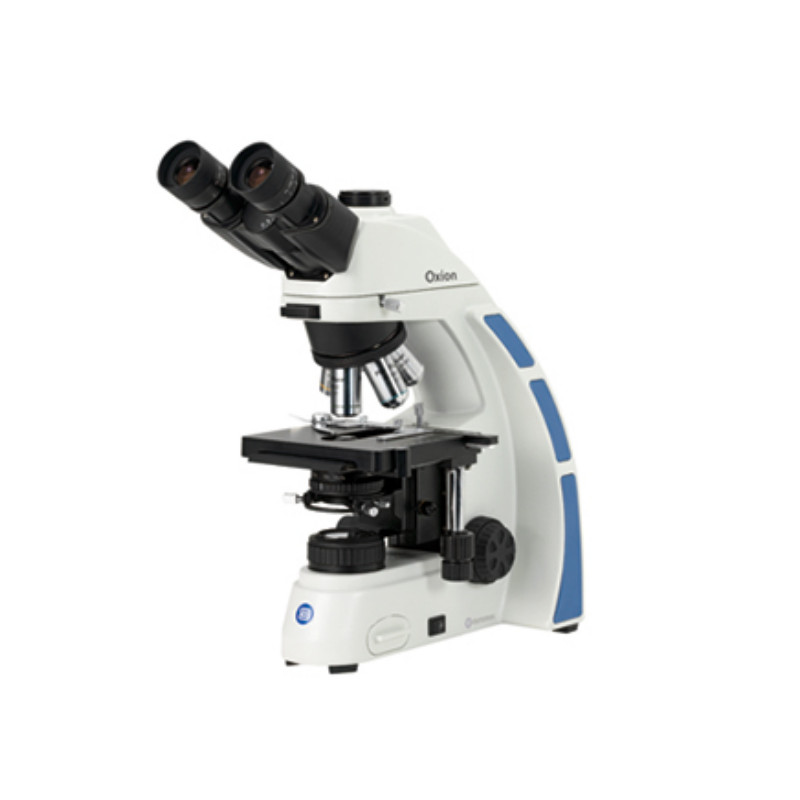

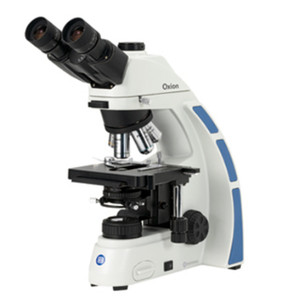

OX.3045 trinocular microscope, phase contrast

$ 2,820.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Oxion...

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

  • Wide Field eyepieces HWF 10x / 22
  • Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
  • Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
  • Binocular withor without photo port
  • Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
  • Zernike phase and bright field disc condenser with 4 phase rings
  • Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
  • Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
  • Large stage with ball beared XY translation stage with optional heating elements and temperature controller
  • Adjustable 3 Watt LED illumination
  • 100 Watt mercury vapor lamp for fluorescence
  • Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Specifications

Optics


Image scale
100-1000 (10 (N.A. 0.25), 20 (N.A. 0.40), 40 (N.A. 0.65 with slide contact protection), 100 (N.A. 1.25 oil immersion with slide contact protection))
Condensor
Abbe 1.25 N.A., focus adjustable, with iris diaphragm
Lamp type
LED
Lens type
Phase contrast
Eyepiece
10/22
Power supply
85-240 V
Magnification
100-1000
Lighting
Transmitted light
infinity corrected
yes
Optical system
infinity

Capacity


Brightness control
adjustable
Lamp type
LED
Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Working distance (mm)
45
Type of build
Trinocular
Viewing posture (°)
Siedentopf head, adjustable by 30° in the vertical axis. For 80/20 trinocular tube. Interpupillary distance adjustable from 50-75 mm.
Focusing
Coarse and fine movement
Specimen stage
Cross table

Special features


Centering stage
-
Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Colour
white / blue
Weight (g)
10000
Height (mm)
397
Length (mm)
294
Series
Oxion

Contrast methods


Phase contrast
yes

Area of application


Phase contrast
yes
Veterinary medicine
yes
Pathology and histopathology
yes
Forensic science
yes
