Microscopy > Microscopes > Upright microscopes > Phase contrast microscopes > Novex > B > Novex Microscope BTPPH 86.391
Product no.: 9793

Microscope BTPPH 86.391

$ 1,850.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

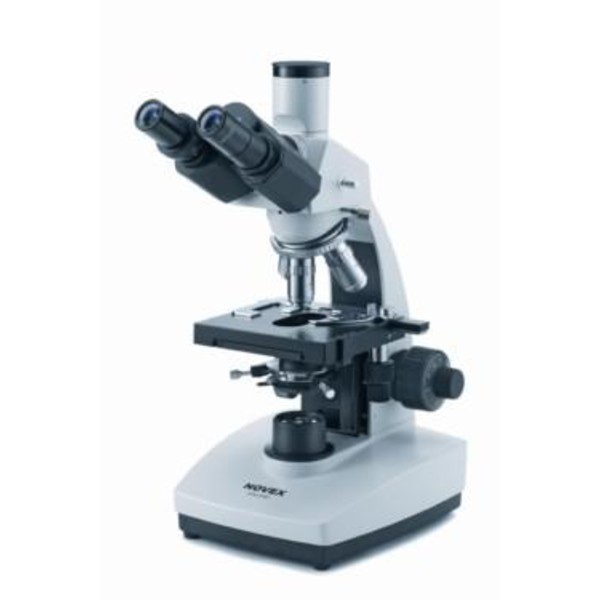

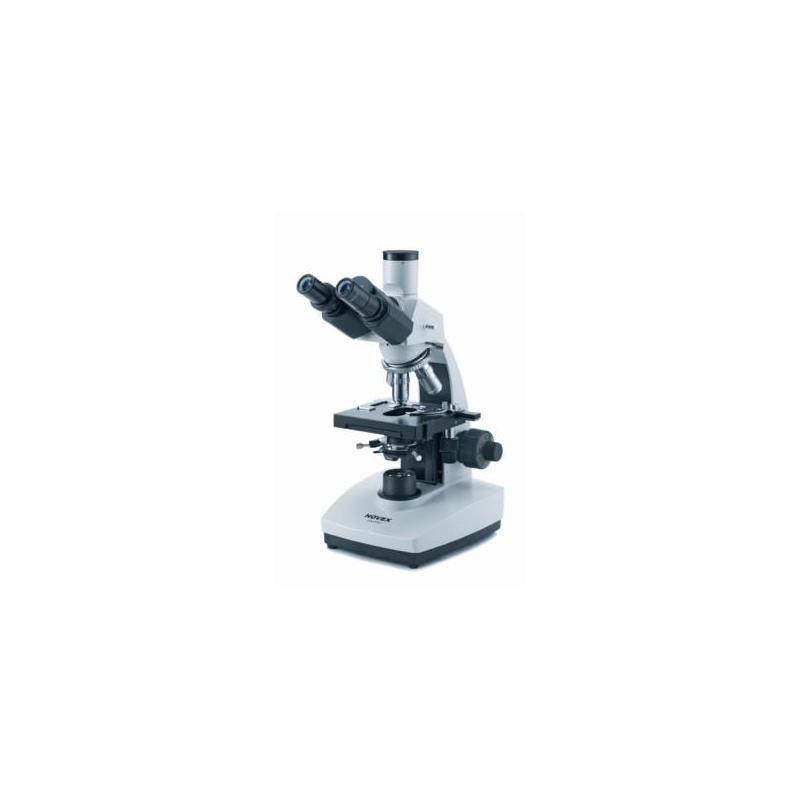

Novex B-series trinocular microscope BTPPH for phase contrast

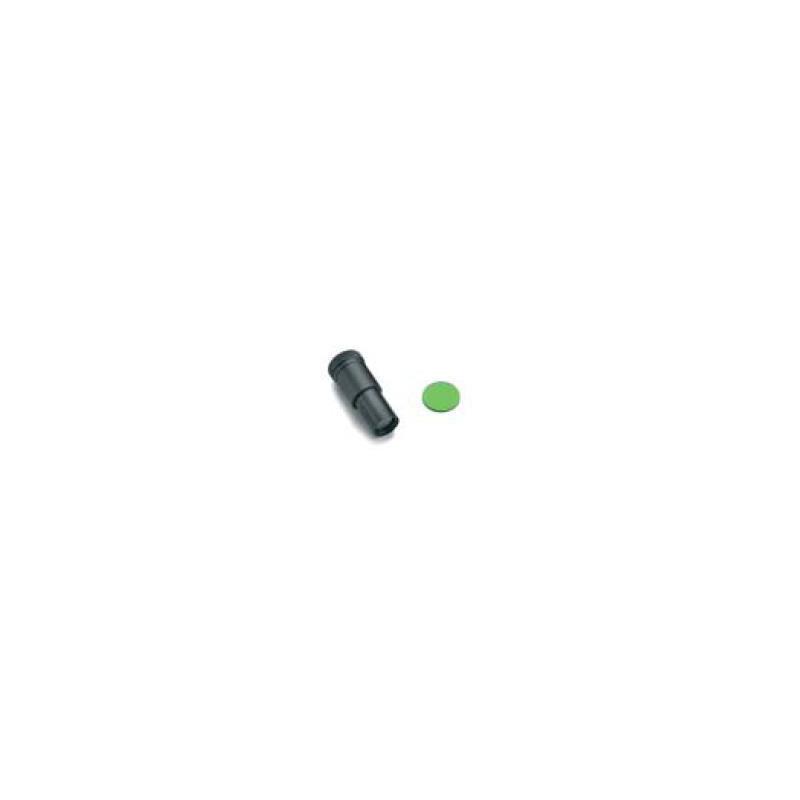

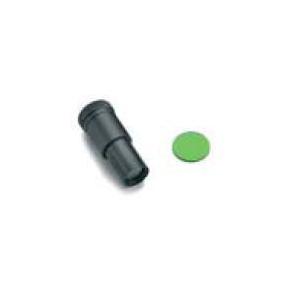

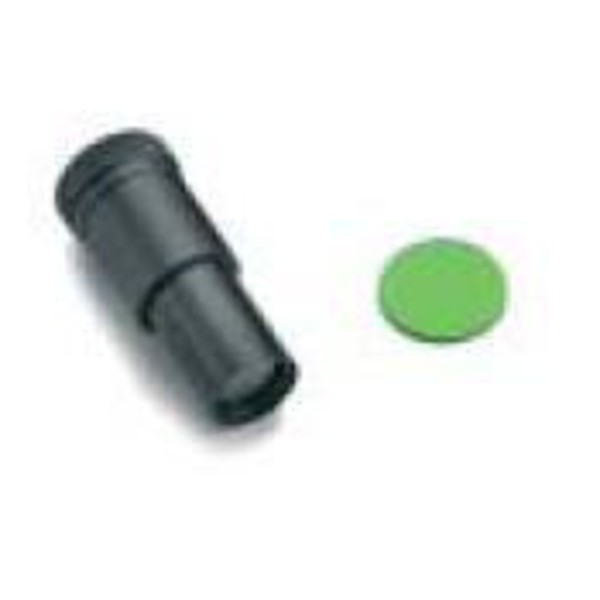

  • DIN widefield eyepiece WF10x/18
  • Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
    Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
  • Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
  • Plan phase DIN-objectives PLPH 10x /N.A.0.25, PLPH 20x/ N.A.0.40, PLPH S40x/ N.A.0.65 and PLPH S100x/ N.A.1.25 oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
  • Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer.
    Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
  • Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
  • Zernike Phase condenser, medium dark. N.A. 1.25 with rotating disc and 4 phase rings and aperture for bright field. In centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
  • Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case

  • Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer

Specifications

Optics


Magnification
1000 (50, 100, 500, 1000)
Eyepiece
10 (Wide-angle eyepiece)
Condensor
Abbe
Lighting
Transmitted light
Lens type
Achromatic Plan Phase contrast
Lamp type
Halogen (6V/20W, continuously adjustable)
Image scale
10 (N.A. 0.25), 20 (N.A. 0.40), 40 (N.A. 0.65 with slide contact protection), 100 (N.A. 1.25 oil immersion with slide contact protection)
Power supply
Power plug
Optical system
DIN (160mm)

Capacity


Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Type of build
Trinocular
Specimen stage
Cross table (75 x 35 mm, on stage: 120 x 135 mm, with double vernier scale, 0.1 mm division)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (coaxial)

Special features


Centering stage
-
Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
B
Colour
black-white
Weight (g)
6800
Suitable from
16

Suitable for


Beginners
-
Advanced
-
Pros
yes

Contrast methods


Phase contrast
yes

Area of application


Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
Dark field
-
Phase contrast
yes
Veterinary medicine
yes
Pathology and histopathology
yes
Forensic science
yes
