Please note that this product desciption was translated by a computer. For more information please contact our english speaking customer service.
The Observatories column P200 is designed with its pyramid shape at high load carrying capacity.
At the top of the pyramid has a cross section which corresponds to a circular pipe with 200mm diameter, hence their name. In the lower part, where the active forces are the largest, has grown in the execution of similar diameter 1000mm already on 400mm. The stiffness follows the third power of the diameter; is on 400mm diameter had grown so for example a steel pipe diameter of 180mm and 10mm wall thickness already superior by a factor of 3 to 4!

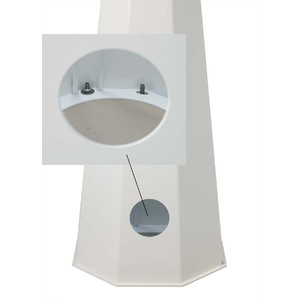

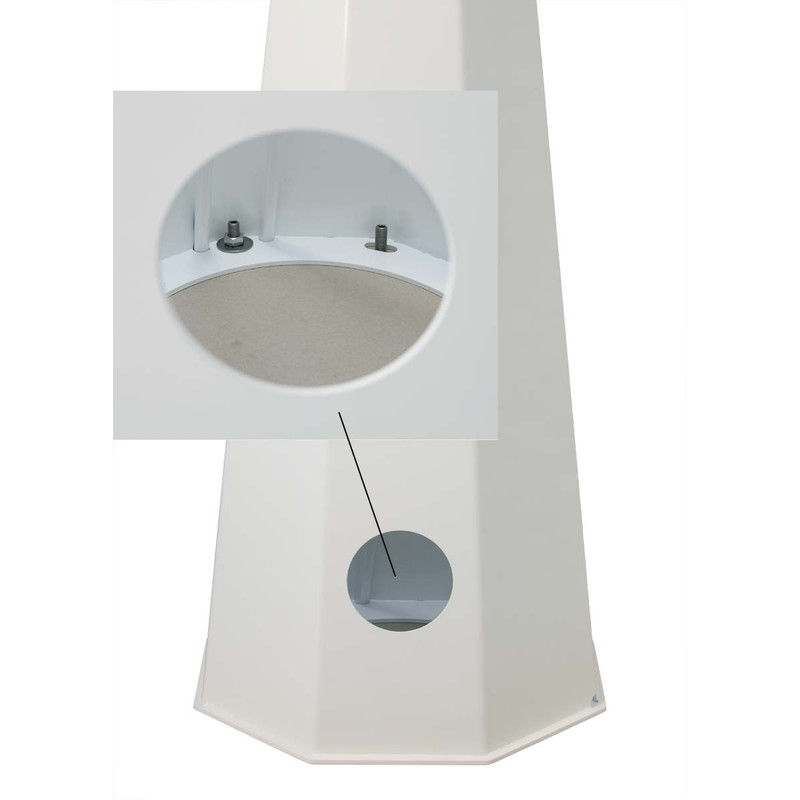

Any stationary column reaches its theoretical rigidity only with ideal floor anchoring. This fact is rarely given due attention and it is with a screw also not very easy to reach. The pyramid shape with its large surface area and the matching anchor sets provide optimum solutions for this issue Euro-EMC offers two different anchoring phrases.:

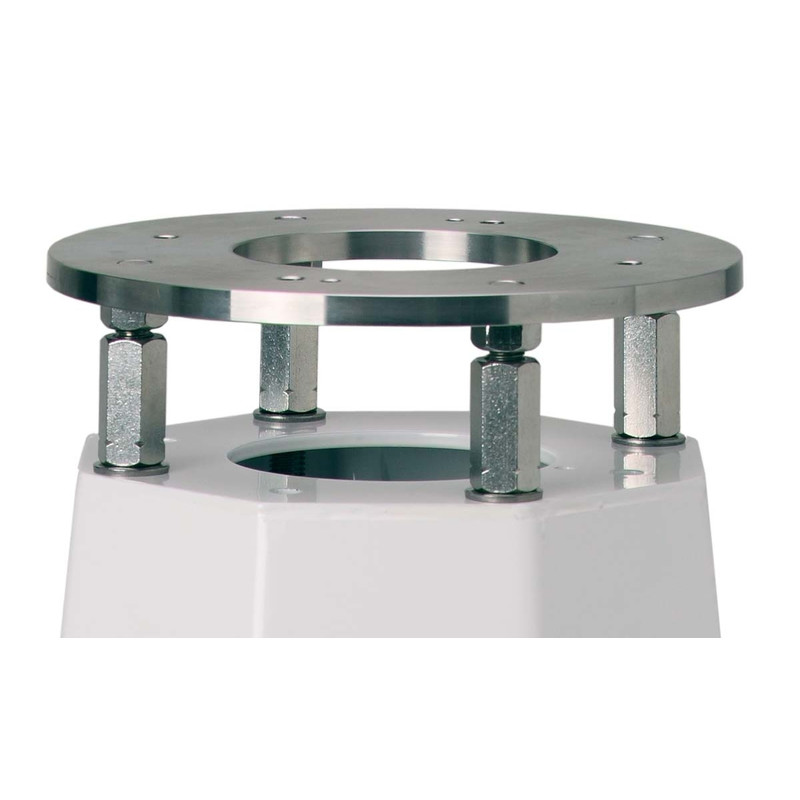

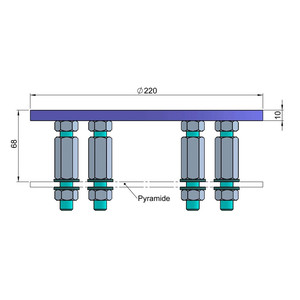

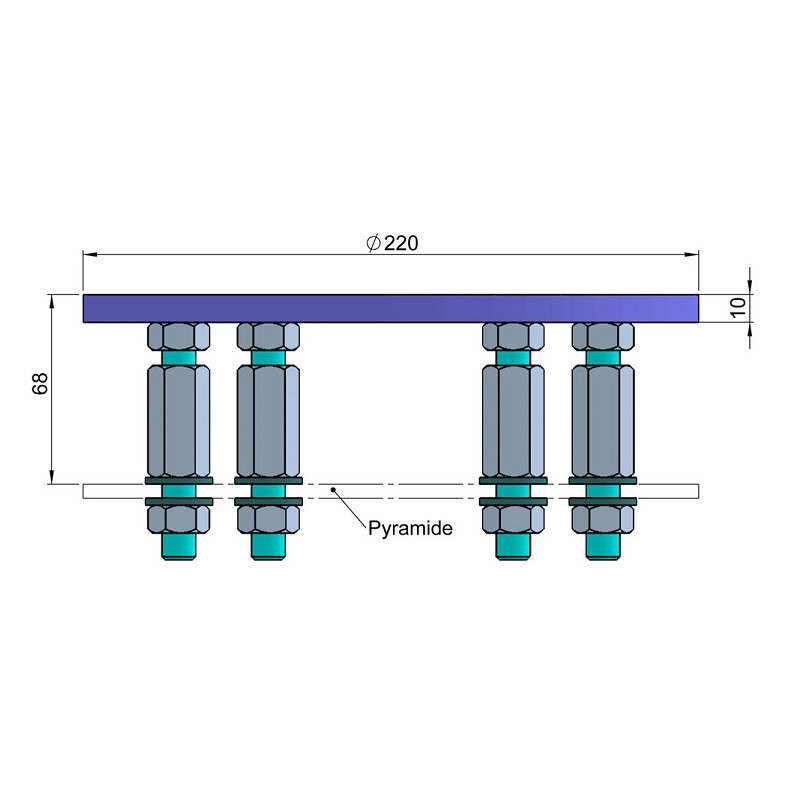

The Observatories column P200 is made up of the two assemblies "Pyramid" and "Pyramid Head". On the pyramid head you can then attach the matching to your mount adapter. For the Observatories column P200 same adapter can be used as for the column stand S130 of euro EMC
