Microscopy > Microscopes > Upright microscopes > Polarising microscopes > Euromex > M-Serie > Euromex Microscope ME.2890

Product no.: 9256

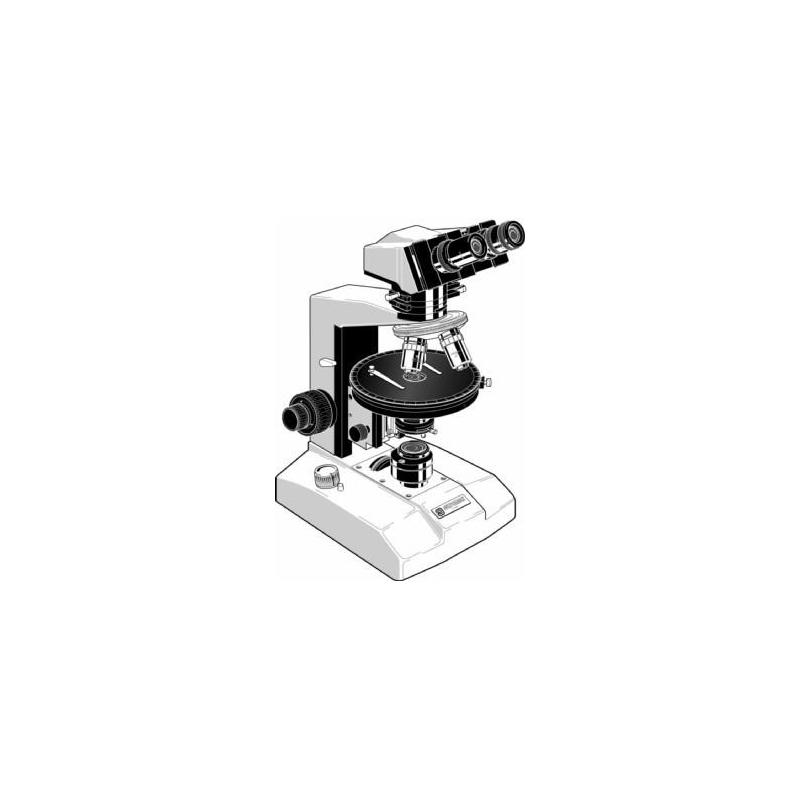

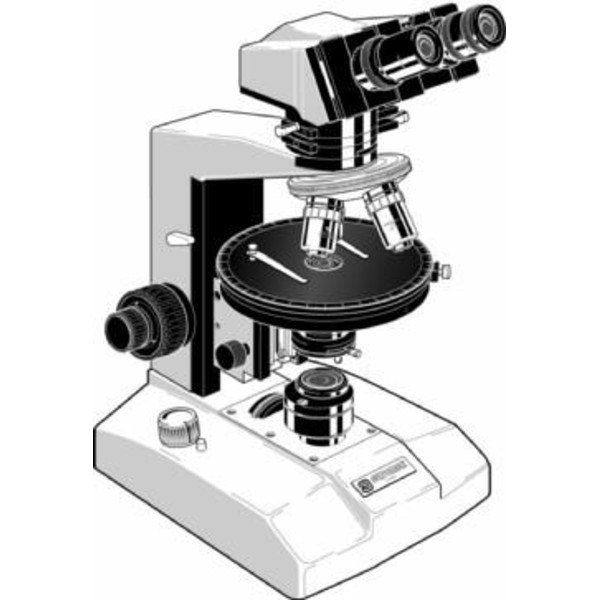

Microscope ME.2890

Name: Euromex Microscope ME.2890
Brand: Euromex
Price: 9700 USD

$ 9,700.00 incl. VAT plus shipping costs

too expensive?

long-term
Product not available anymore + lead time

Product questions?

advice for Microscopy

Product description

The 'material' microscope is nearly identical to the biological microscopes but have a few differences like specific objectives, both incident and translucent illumination, polarisation and copensation filters to examine materials (metal, plastics, minerals, asbestos, glass, wood, chemicals). There are specific metallurgic and polarisation microscopes but also microscopes specially designed for asbestos research

Specifications

Optics

Eyepiece

Condensor

Abbe (N.A. 1.25, height adjustable)

Lighting

Incident light and transmitted light

Lamp type

Halogen (6V/20W, continuously adjustable, Köhler illumination)

Lens type

Semi-Plan Achromatic

Image scale

4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)

Power supply

Power plug

Magnification

40, 100, 400

Mechanics

Focusing

Coarse and fine movement (coaxial, with 0.0025 mm division)

Type of build

binocular

Specimen stage

Centering stage (Ø 150 mm, rotatable 360°, ball-bearing mounted. Vernier scale 0.1 mm division)

Viewing posture

30° oblique viewing, 360° rotating head

Special features

Built-in digital camera

Rechargeable battery operation

Filter holder

yes

Luminous field diaphragm

yes

Dust cover bag

yes

Centering stage

yes

General

Series

M-Serie

Colour

black-white

Weight (g)

10800

Suitable from

Suitable for

Beginners

Advanced

Pros

yes

Area of application

Interference contrast

Phase contrast

Fluorescence

Metallurgy

Dark field

Polarization

yes

Mineralogy

yes

show less...
