Microscopy > Microscopy accessories > Lighting > Ring lights > SCHOTT > EasyLED > SCHOTT EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply
Product no.: 49565

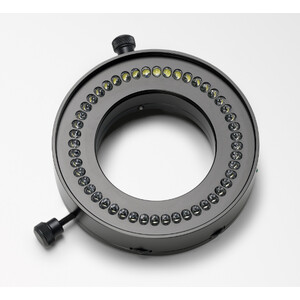

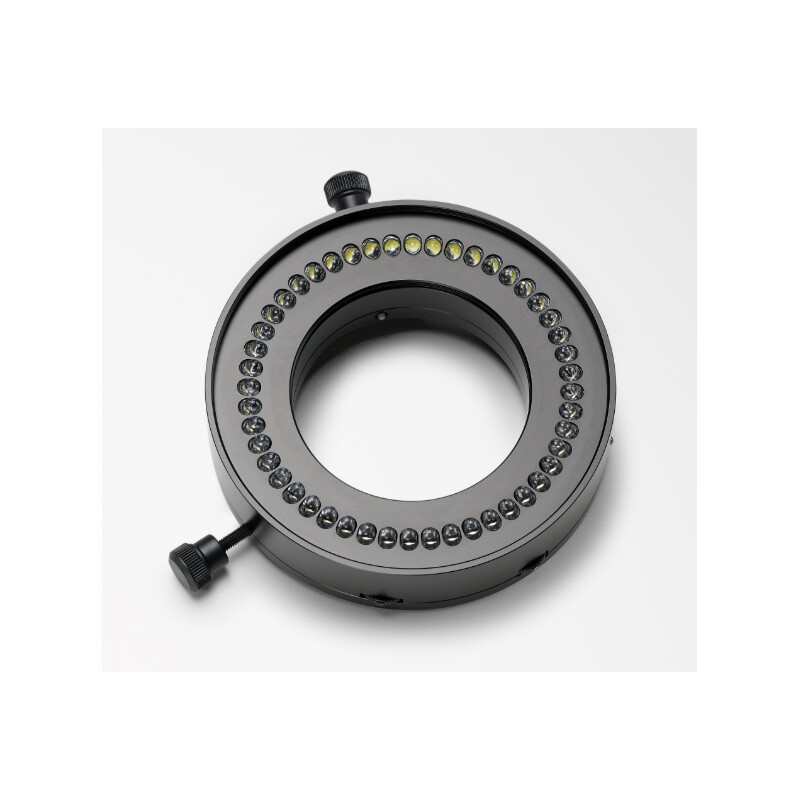

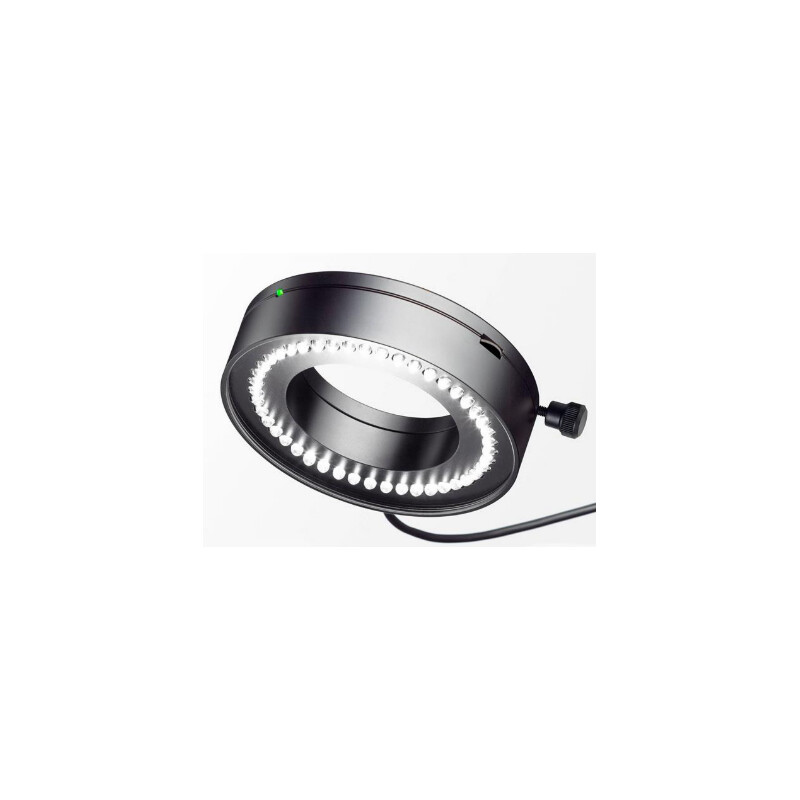

EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply

$ 780.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 30.03.2024!

Product description

EasyLED Systems

Ergonomic and compact illumination systems for stereo microscopy and macroscopy

Using the most current technologies, the EasyLED product line integrated high brightness LEDs with controller electronics into the head of the illuminator. This integration combines easy, ergonomic operation with outstanding price performance ratio.

Due to neutral white LEDs (5600 K), images of excellent color fidelity can be achieved.

Robust metal housings and well designed heat sinks make maximum brightness and long lifetime of 50,000 hours possible.

Features

  • No separate controller box for ringlight and backlight. Compact controller box for single and double spotlight.
  • Ringlight Plus version available with basic segment features and segment rotation. Easy and intuitive operation via integrated “jog dial” wheel.
  • Ergonomic operating (not necessary to remove eyes from the eyepieces).
  • Continuous dimming from 0 to 100%.
  • All devices are separately dimmable.
  • Wide input range power supply (100 - 240 V).
  • World wide plug (clip system).
  • Low costs for high quality and functionality.
  • Manufactured in the EU.

Ringlight Plus

  • 48 high brightness LEDs
  • color temperature 5,600 K
  • easy adaption on various microscope objectives (Ø 66 mm/adaptors available)
  • integrated controller for continuous dimming (0 – 100%) and separate on/off switch
  • basic segment features and segment rotation
  • integrated “jog dial” wheel for easy and intuitive operation
  • wide range of working distance: 50 – 130 mm
  • maximum illuminance: 140 klx (at 65 mm working distance)

Specifications

Capacity


Power supply
12 V
Lamp type
140lm (LED)

Mechanics


Working distance (mm)
50-130
Segmented
yes
Lens diameter (mm)
65

General


Height (mm)
61
Length (mm)
24
Width (mm)
47
Diameter (mm)
66
Series
EasyLED

Recommended accessories

Microscopy > Microscopy accessories (4)

SCHOTT Protection window f. ring light

$ 348.00*

*All prices include VAT plus shipping costs.

SCHOTT EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply

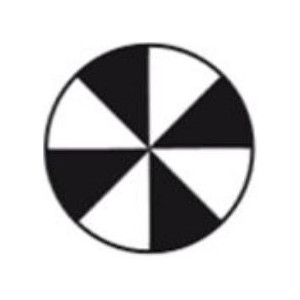

Segments controllable in different preset modes for optimum contrasting

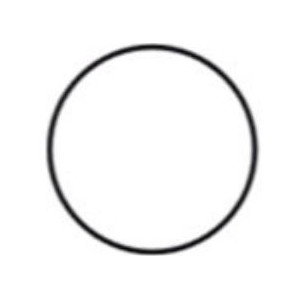

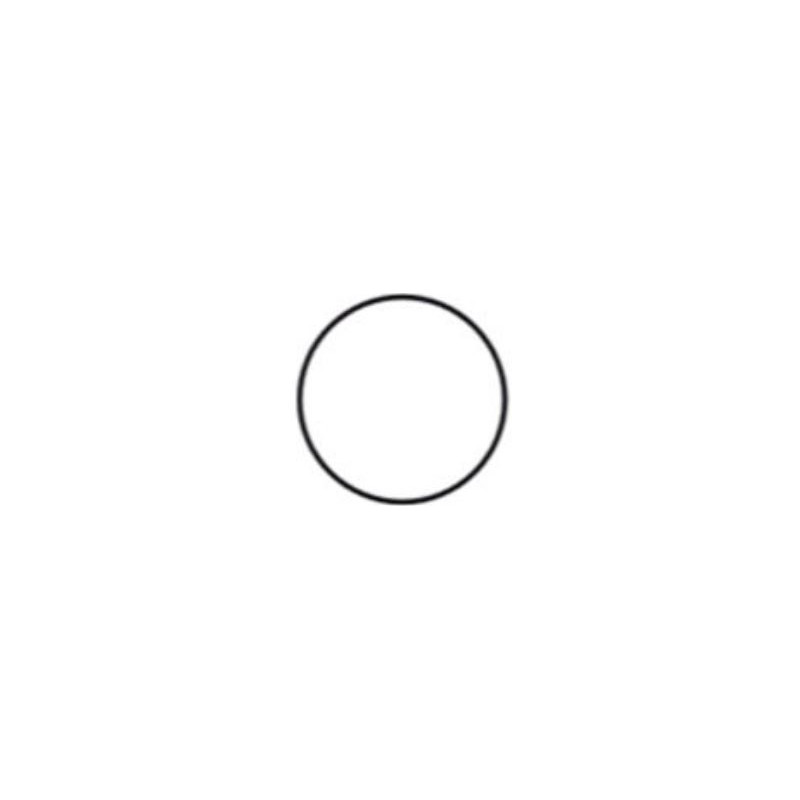

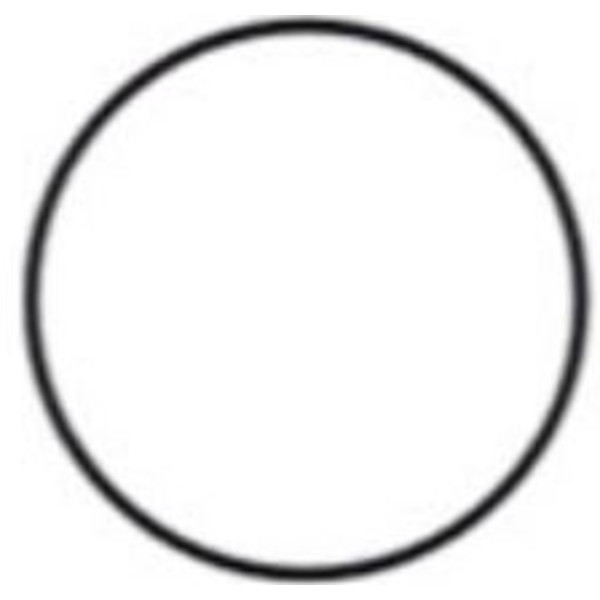

full

SCHOTT EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply

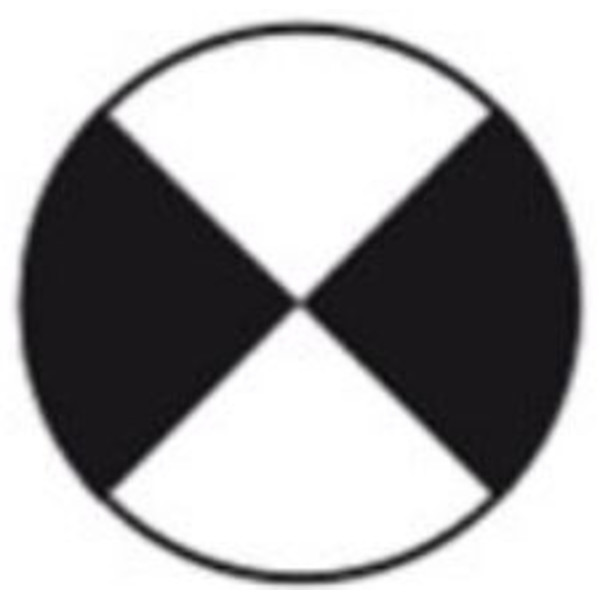

half
SCHOTT EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply

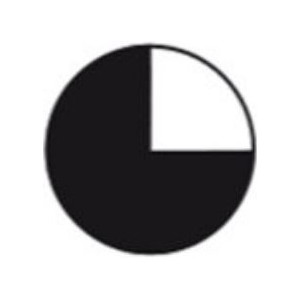

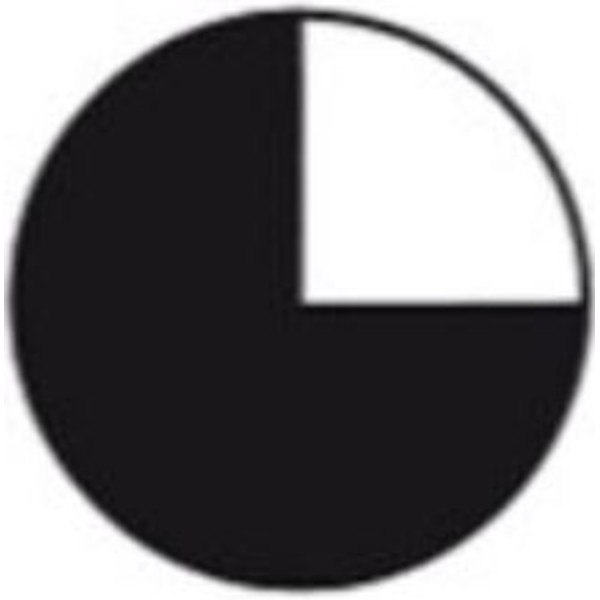

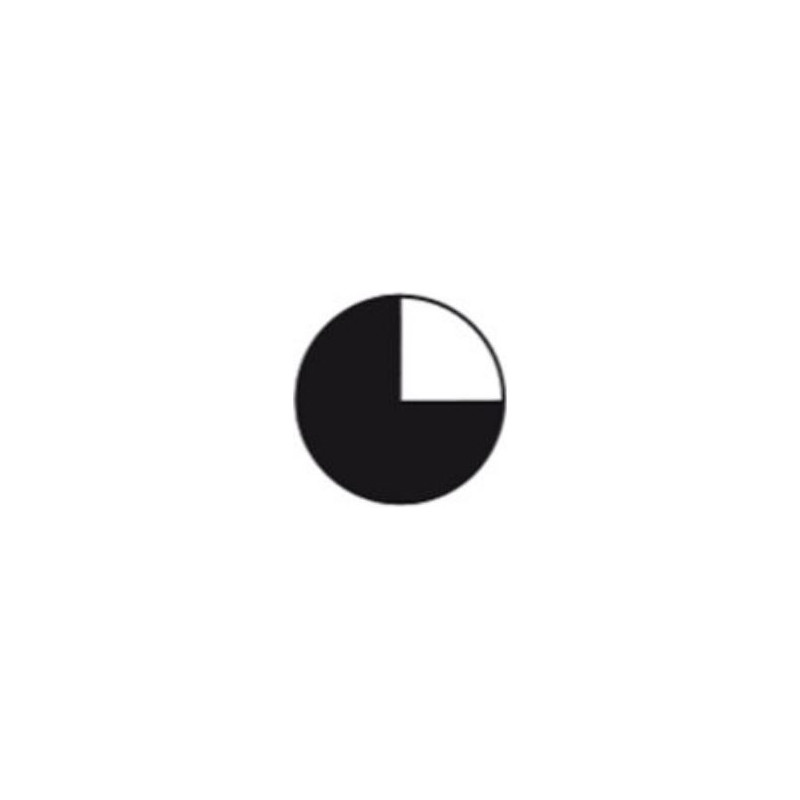

quarter
SCHOTT EasyLED Ring light system, (RL) Ø i=66mm, segment rotation incl. power supply

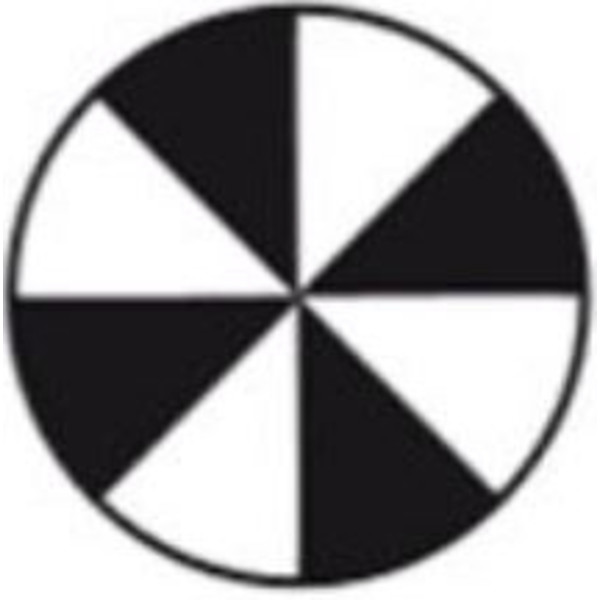

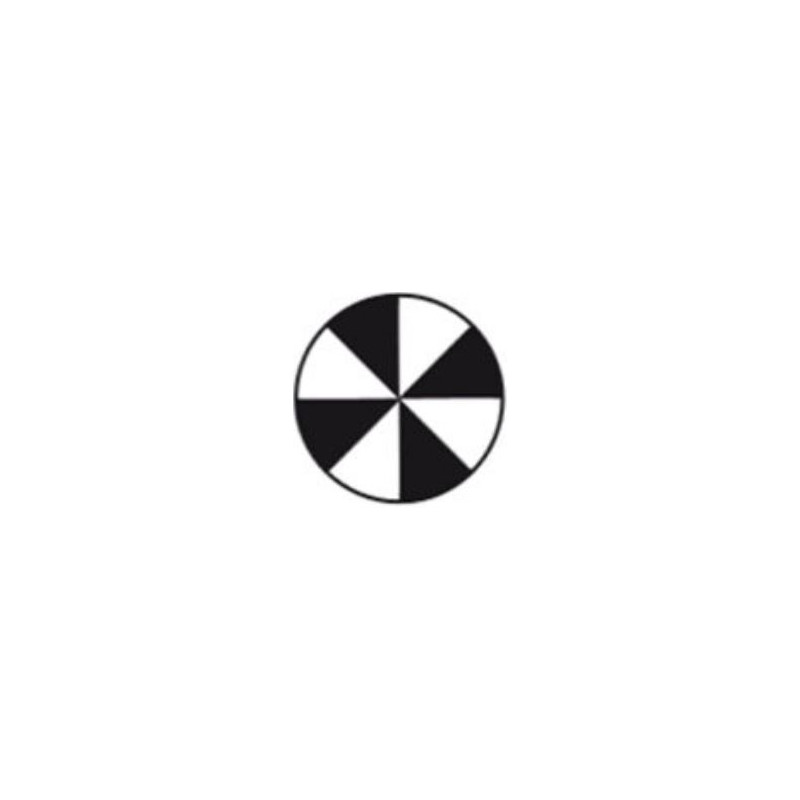

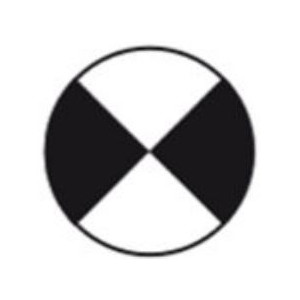

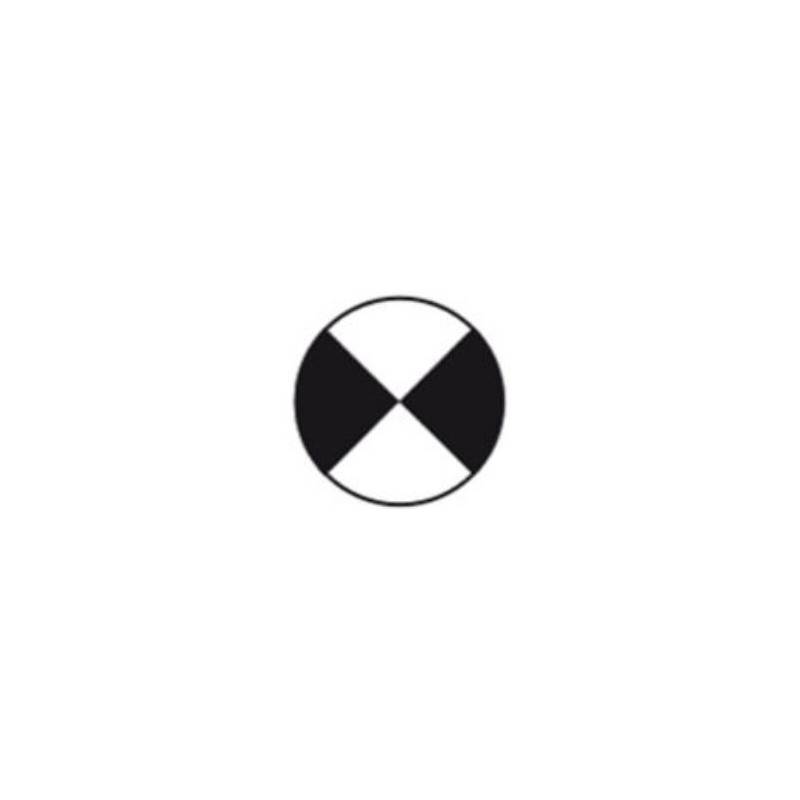

dual
