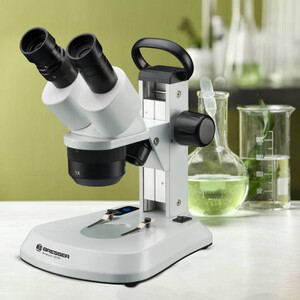

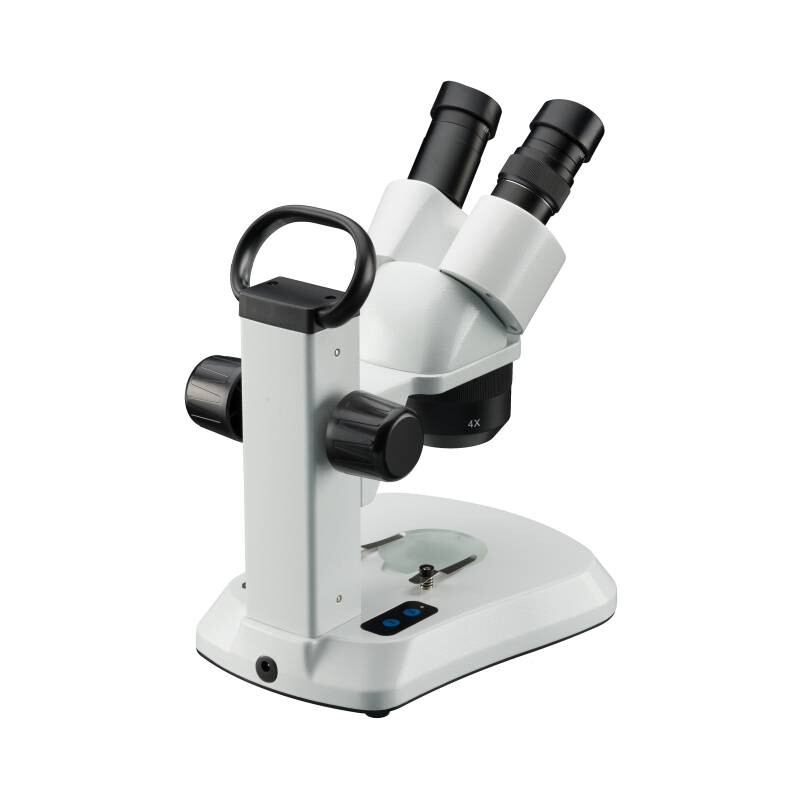

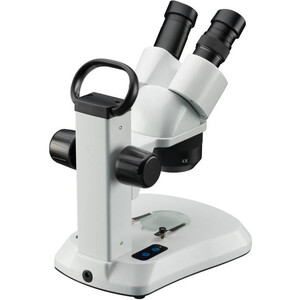

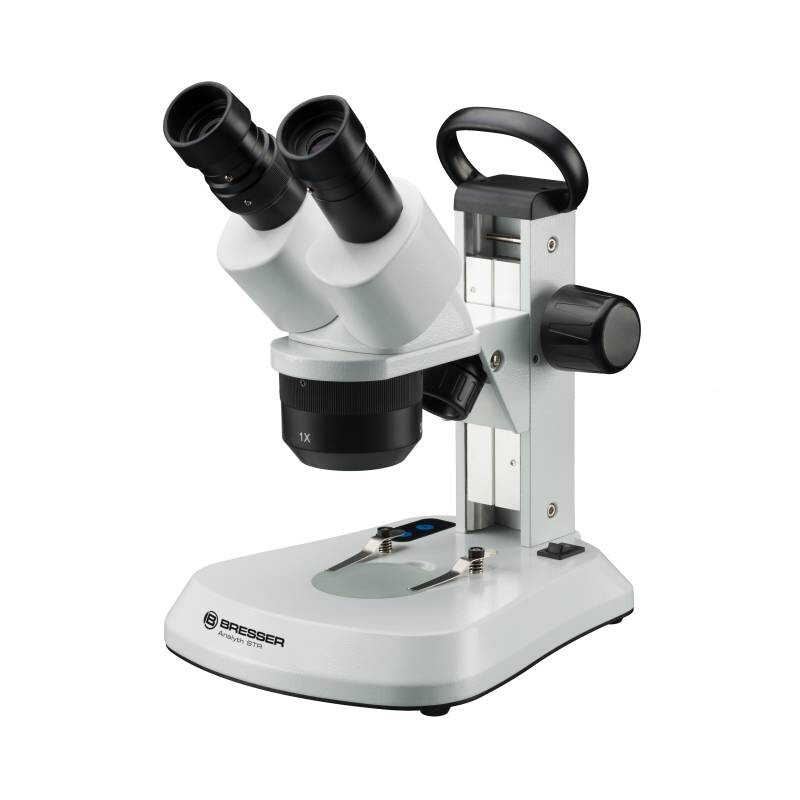

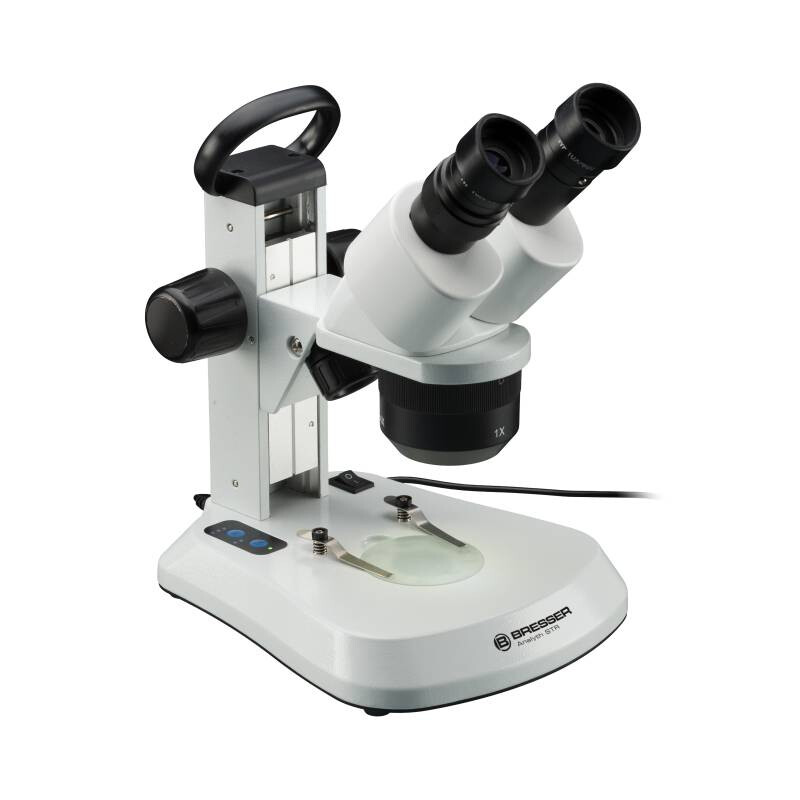

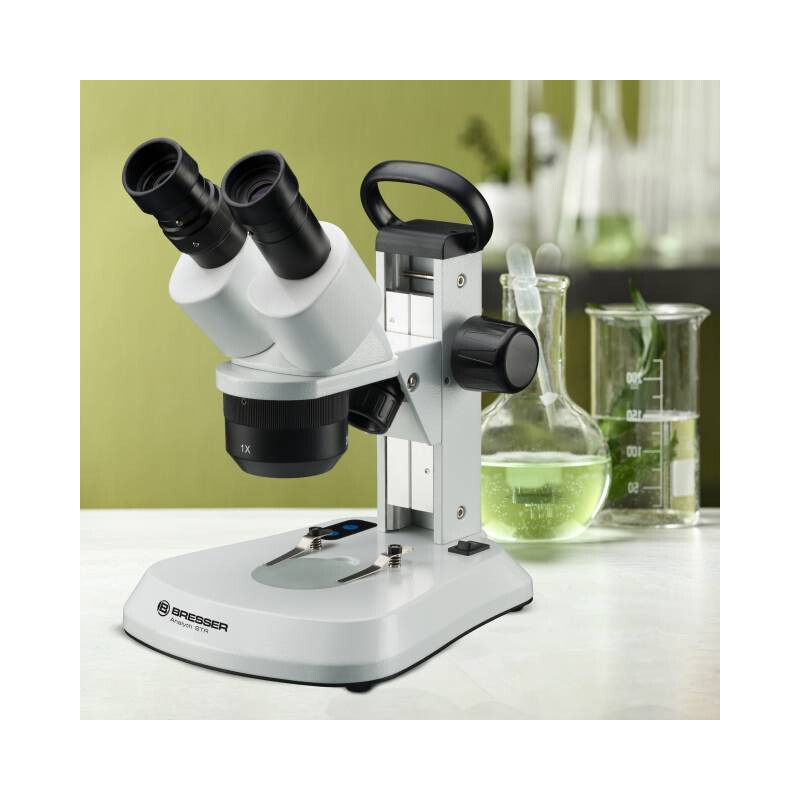

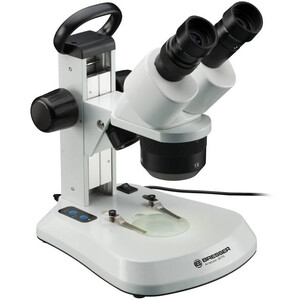

Bresser Analyth STR
The Analyth STR has 3 different lens magnifications, which can be easily changed by turning the lens. This allows the magnifications 10x, 20x and 40x to be changed directly. The stereo design shows structured objects particularly vividly and three-dimensionally. The low, 10x initial magnification is particularly suitable for working with children. This allows objects up to 20 mm in size to be viewed in their entirety. The Analyth STR is therefore particularly versatile. It is suitable for insects, plants, minerals and much more, and can be used for hobby, school and professional applications. The stereo microscope can be used for quality control, in horticulture and agriculture, for hydrology and much more.
The eye relief and diopter adjustment are individually adjustable. The eyepieces have a large field of view of 20 mm. They are equipped with removable rubber eyecups and are secured against removal.
The microscope can be powered either by the power pack or by 3 batteries (not included). This makes it mobile, for example for use outdoors in the garden or on an excursion.
MICROSCOPE FEATURES
- Microscope with 3 pairs of lenses, lens magnifications 10x; 20x; 40x
- Wide-field eyepieces with eyepiece cups and 20 mm field of view
- Bright, economical LED lighting, angle adjustable
- Lighting for reflected and transmitted light can be switched separately
- Dimmer via membrane keys with status display
- Two object plates (black/white or matt glass) with specimen clips

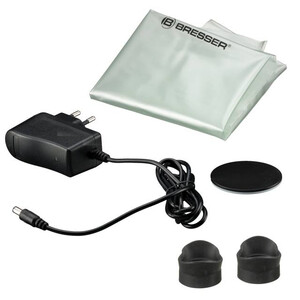

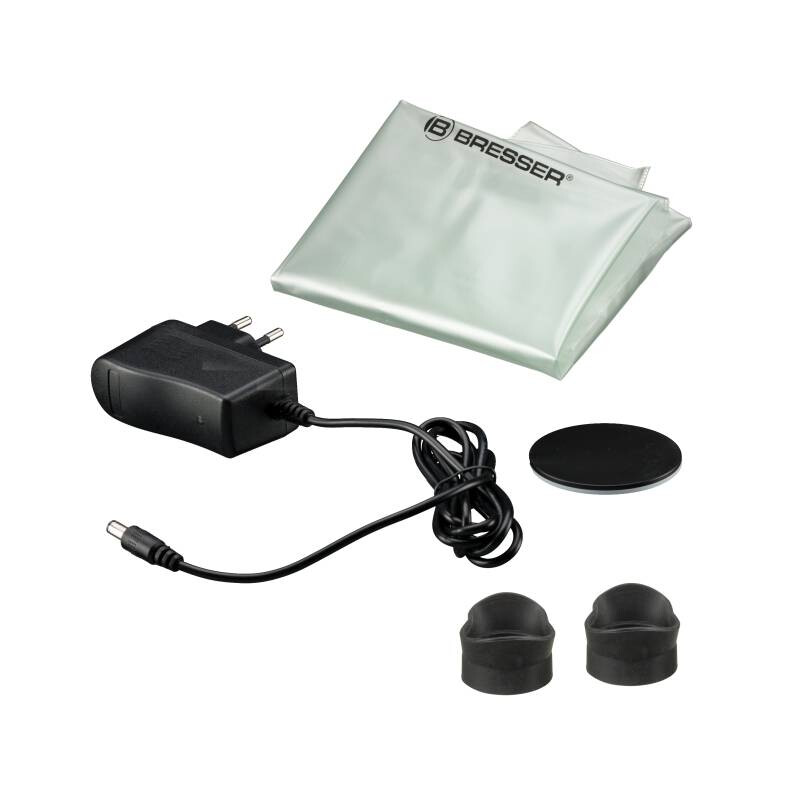

SCOPE OF DELIVERY
- Microscope with 3 magnifications, 10x; 20x; 40x
- Metal stand with LED lighting, power supply and battery compartment
- 2 eyepieces with rubber eyecups
- Glass object plate

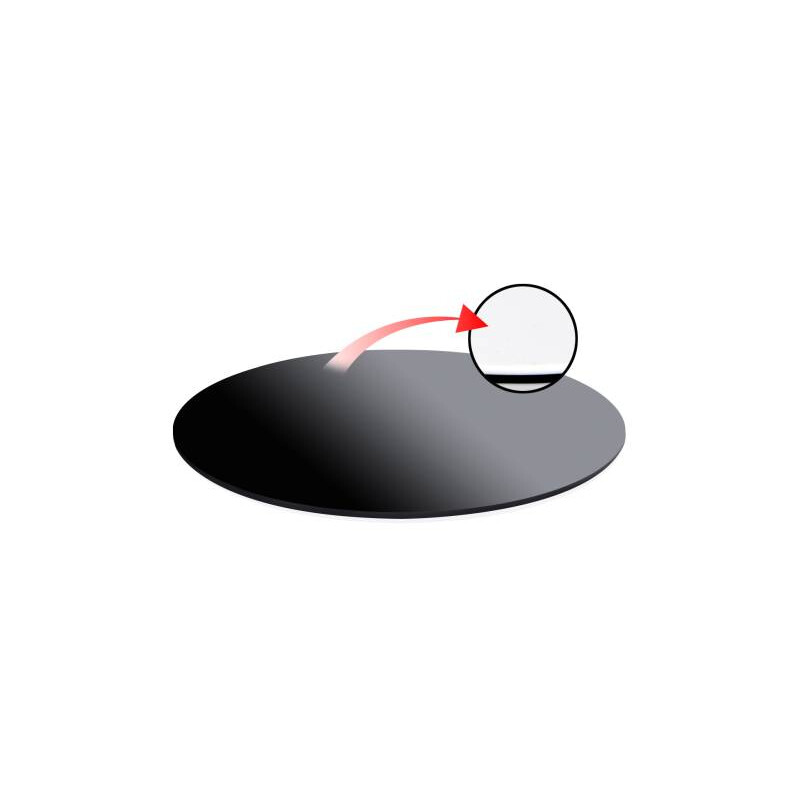

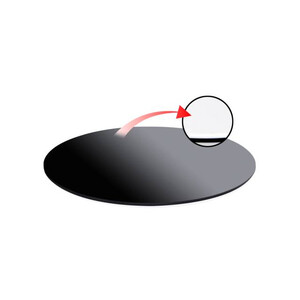

- Plastic object plate (black/white)
- dust cover
- Instruction manual
TECHNICAL DATA
- APPLICATION: Biology Botany Entomology Mineralogy Teaching
- TARGET GROUP: Beginners Advanced users Professional users
- PRODUCT FAMILY: Reflected and transmitted light microscope
OPTICAL FEATURES
- Optical design: Stereo
- Diopter adjustment: yes
ELECTRONICS, HARDWARE & SOFTWARE
- Lighting: reflected/transmitted light
- Dimmer: Illumination dimmer and switch for reflected and transmitted light
GENERAL TECHNICAL DATA
- Colour: white
- Transportability: good
- Eyepiece cups: rubber eyepiece cups, fixed
- Viewing: Binocular
- Minimum interpupillary distance: 50 mm
- Maximum interpupillary distance: 77 mm
- Max. object height: 50 mm
- Working distance (approx., mm): 50
- Cross table type: No cross table
- Microscope stage equipment: 2 interchangeable object plates
Power supply included. Battery operation optional; batteries not included.
