StereoBlue
The StereoBlue stereo microscopes are available in versions with switchable 2x magnification and zoom from 0.7x to 4.5x.
They are ideal for educational applications, ambitious home users and many routine applications in industry.
- Dual magnification 1x/3x or 2x/4x
- Zoom stereo version 0.7x to 4.5x
- Ergonomic design, tube, 360° rotatable, 45° inclined
- Available with rack and pinion or pillar stands
- 3 W LED lighting for incident light and transmitted light, separately adjustable
- Ergonomic carrying handle

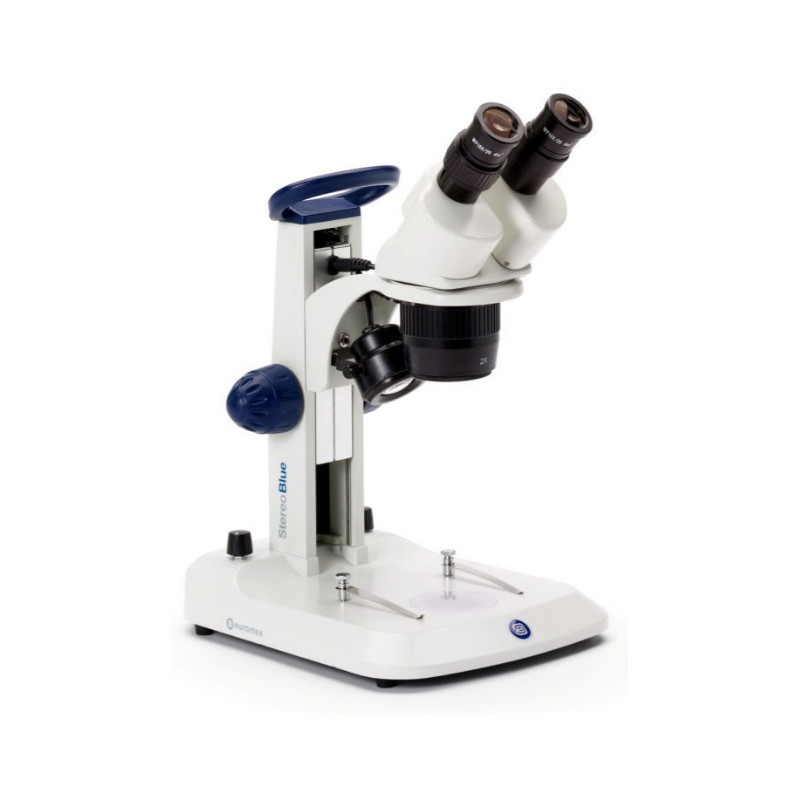

Euromex StereoBlue SB.1402, 2/4 stereo microscope
Stereoblue SB.1402-P
Specification:
Eyepieces
- Pair WF 10x/20 mm eyepieces
Head
- Binocular or Trinocular 45° inclined tubes
- Two diopter adjustments Interpupillary distance adjustable between 55 mm and 75 mm. All optical parts are anti-fungus treated Dual magnification objectives Nosepiece with dual 2x/4x revolving object ives
- Magnifications 20x/40x
- Field of views 10 mm/5.0 mm
- Working distance 100 mm
Zoom objective
- Zoom Stereo 0.7x to 4.5x parafocal objective
- Magnification from 7x to 45x
- Field of views 28.5 mm to 4.4 mm
- Working distance 100 mm
Stand
- Pillar stand
- Ergonomically designed base with 2 object clamps
- Alloy metal cast, hardened off-white coated
Focusing adjustment
- Coarse adjustment with tension control
Illumination
- The 3 W transmitted and incident LEDs illuminators
- can be used simultaneously
- Both light intensities can be adjusted separately
