NexiusZoom EVO series
Technical
- Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
- Head: Binocular or trinocular head with 45° oblique view, interpupillary distance adjustable from 54 mm to 75 mm
- Objectives: Zoom from 1:8.4 objectives with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
- Ancillary lens: 0.5x / 0.75x / 1.5x and 2.0x optional
- Tripod: Ergonomically designed column or fixed arm stand with LED lighting and two object clamps or ergonomically designed overhanging stand with single or double arm with coarse adjustment, without lighting.
- Material: Metal alloy, white lacquered
- Optical parts are treated against fungi

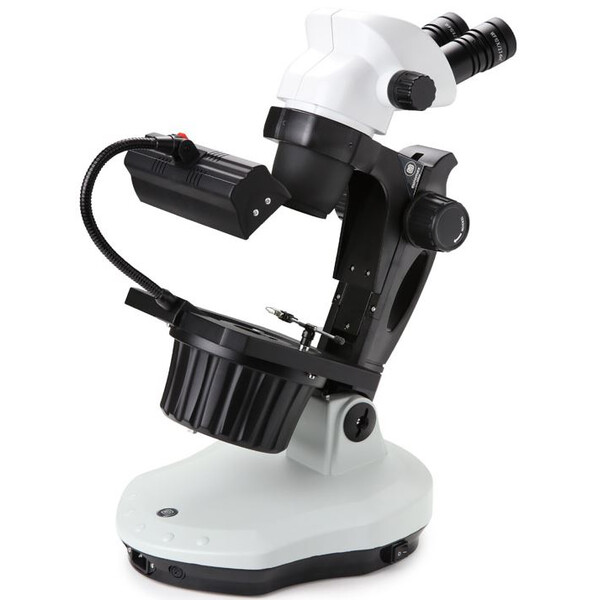

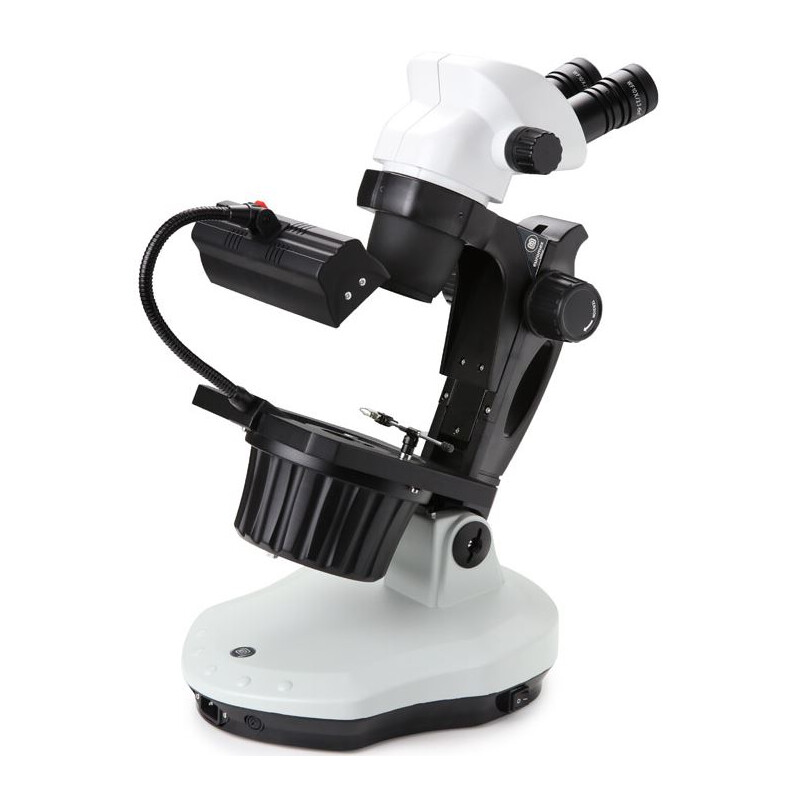

NZ.1702-GEML, NexiusZoom, 6.5x to 55x, gemology, 30W 6V halogen transmitted, 1W LED incident illumination, bino
Head: Binocular
Objective: 0.65-5.5
Eyepieces: 10x/23
Incident light: 1 W LED
Transmitted light: 30 W halogen
Working distance 110 (mm)
