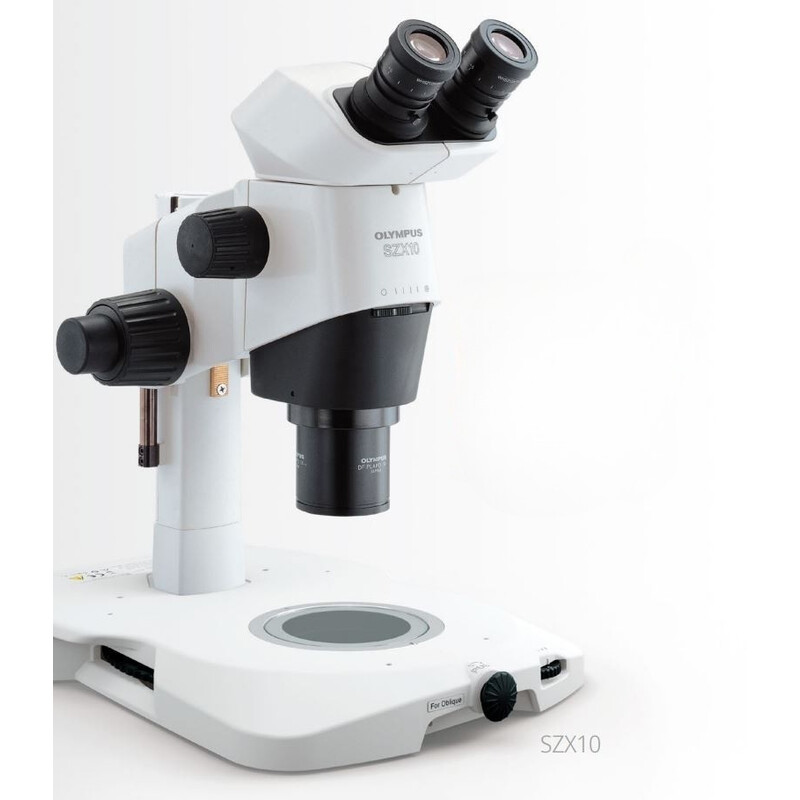

SZX10 stereo microscope – cost-effective with accurate image reproduction
The SZX10 stereo microscope offers cost-effective performance for routine examinations, fault analysis and quality control. It is designed for dark field and polarisation microscopy and offers an NA of 0.2, a zoom factor of 10:1 and a Galilei optical system to minimise distortion. Experience a natural view of your sample thanks to excellent stereoscopic depth and precise colour reproduction.
Flexible stereo microscope with large zoom range
The SZX10 has been designed to provide a completely natural view of the sample with excellent stereoscopic depth and colour reproduction. The DFPlan series combines high NA resolution and ease of use with a distortion-free optical design for exceptionally flat imaging. It includes a 2X objective lens with an NA of 0.2 for high-resolution images with 600 line pairs per mm.
High zoom factor of 10:1
The SZX10 offers a magnification range between 6.3x and 63x with a 1x objective lens and a maximum magnification of 123x with a 2X objective lens. The versatility of the 10:1 zoom ratio makes it a good choice for life science applications that require a low-magnification macro view for sample preparation and manipulation, as well as a sharp, high-magnification view for accurate observation of cell structures.
In quality control, inspectors can use this large zoom factor to first view the entire sample, such as a printed circuit board, and quickly locate relevant areas. They can then zoom in to check solder joints or micro-breaks on components – all with a continuous zoom.
Additional optional benefits:
- Works with a wide range of high-performance lenses
- Versatile contrast and observation methods
- Simple fluorescence microscopy
- Versatile illumination solutions
Components included:
- N1977200 SZX2-ZB10 zoom body
- 033714 SZX-BI30 Binocular tube
- N1198000 WHSZ10X-H eyepiece (2x)
- N1200500 DFPLAPO1X-4 Objective
- N1978900 SZX2-FOF Focus unit

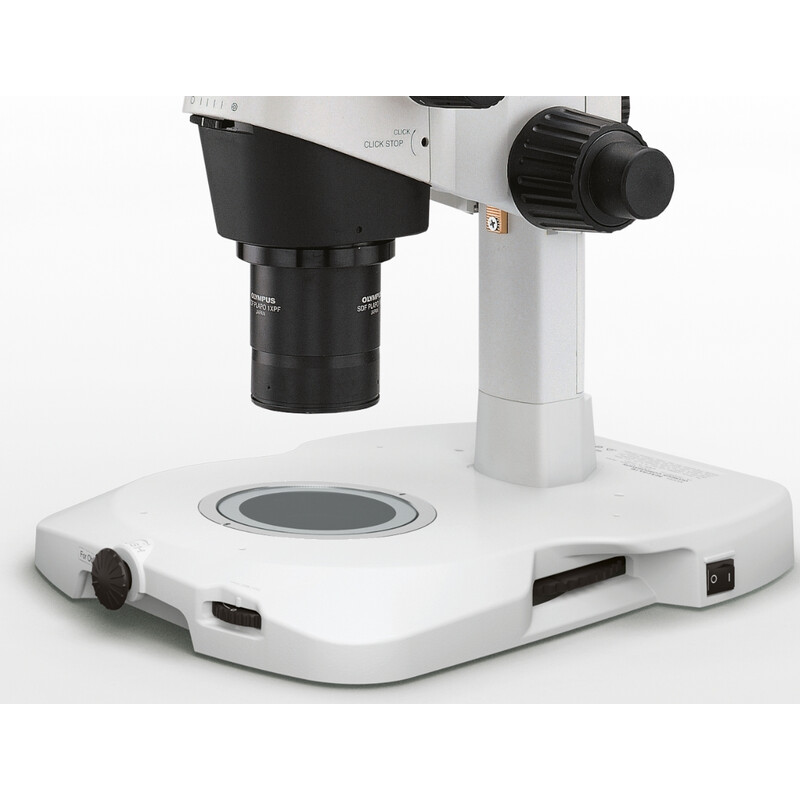

- N5733700 SZX2-ILLTQ LED base 4 pos
- N5732800 SZX2-CBF HF Standard Insert
- N5733200 SZX2-COB Oblique standard insert
- 035425 UYCP CONNECTION CABLE
- N2659700 U-ACAD4515-1-5 Power supply
- 035440 BO61 DUST PROTECTION COVER
