Hund Wiloskop, the Stereo-Zoom-Microscope for Industry and Biology
Features
The new trinocular stereo-zoom-microscopy head is the core of the Wiloskop system. A number of application-specifi c stands, illumination systems and documentation devices provide the proper system combination for a large variety of applications.
Main Features
- Magnification up to 180x
- Large field of view of 22 mm (with standard eyepieces)
- Homogenous illumination by large-area incident and transmitted light LED’s
- Large application spectrum in industry and biology
Application Areas
- Industrial production and quality control
- Mineralogical investigations
- Preparation of biological samples

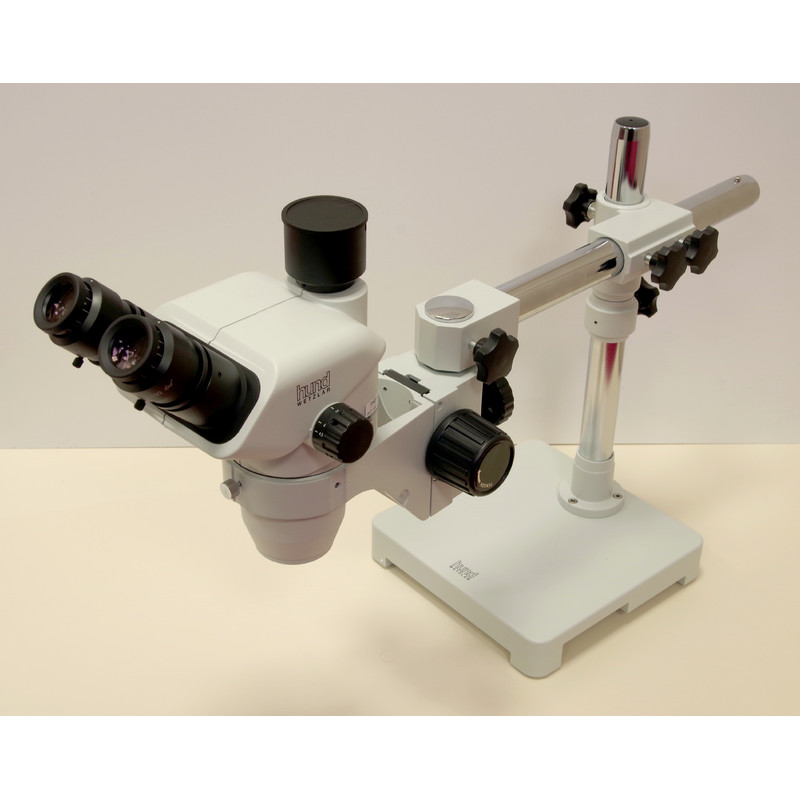

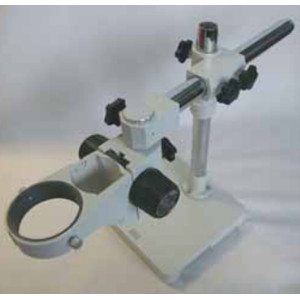

Stereo microscope Wiloskop - F Zoom with tripod ST - S
- without lighting
- Trinocular zoom body
- Greenough system

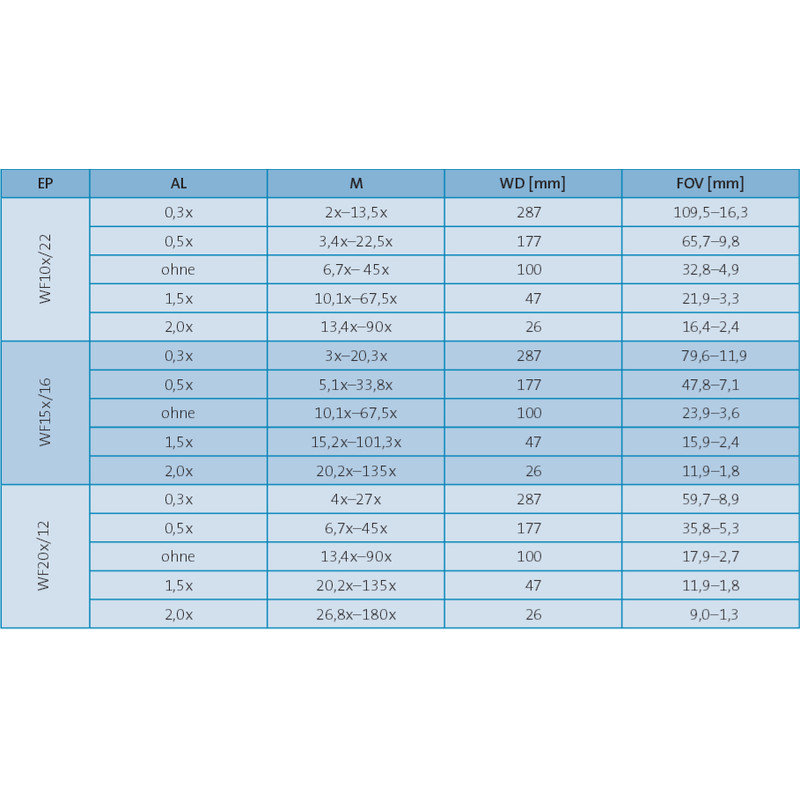

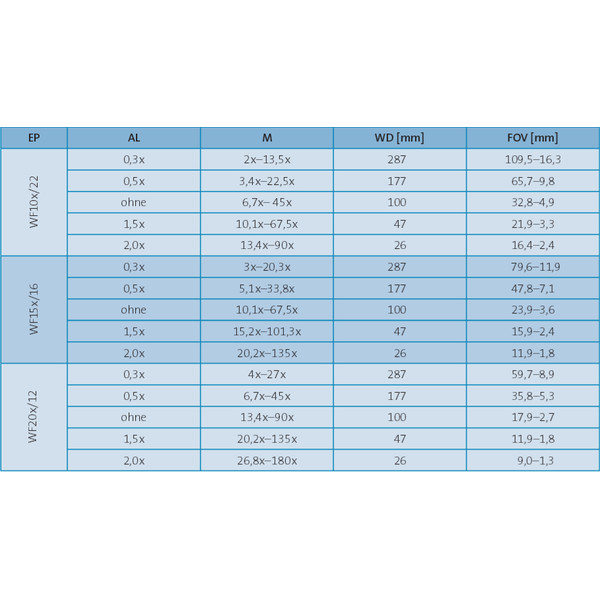

- Magnification range: 6.7x - 45x, with eyepieces WF 10 x / 22
- Diopter adjustment: individually on both eyepiece sockets

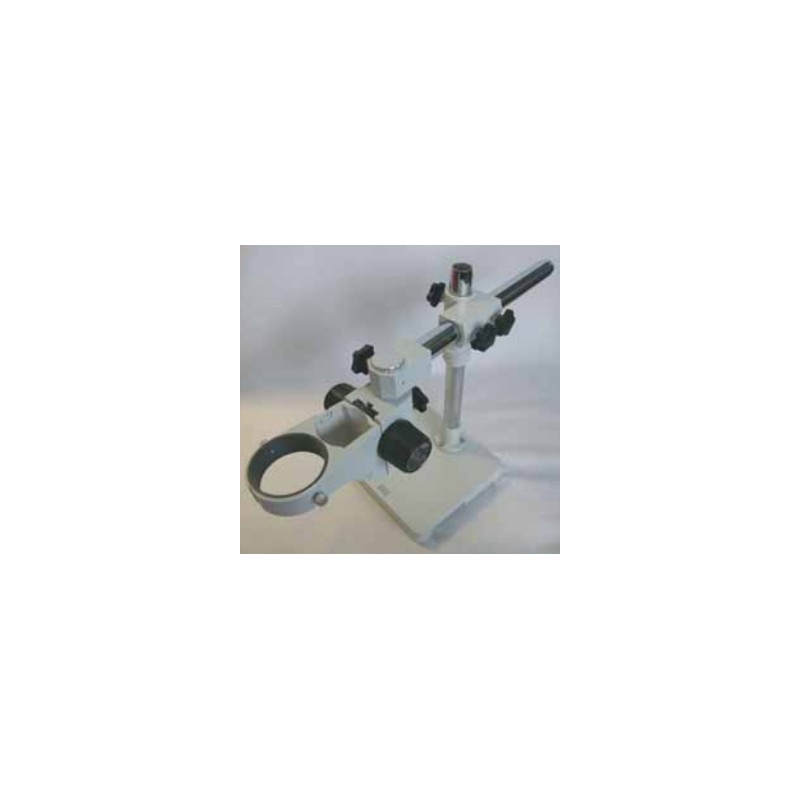

- Tripod pad: Heavy cast tripod pad with simple overhanging arm
- Focusing mechanism: Double-sided focusing mechanism with lock
- Lighting / contrast method: Lighting via external light sources
