Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Motic > GM > Motic Stereo zoom microscope GM-161, trino, fluo, 7.5-45x, wd 110mm
Product no.: 66097

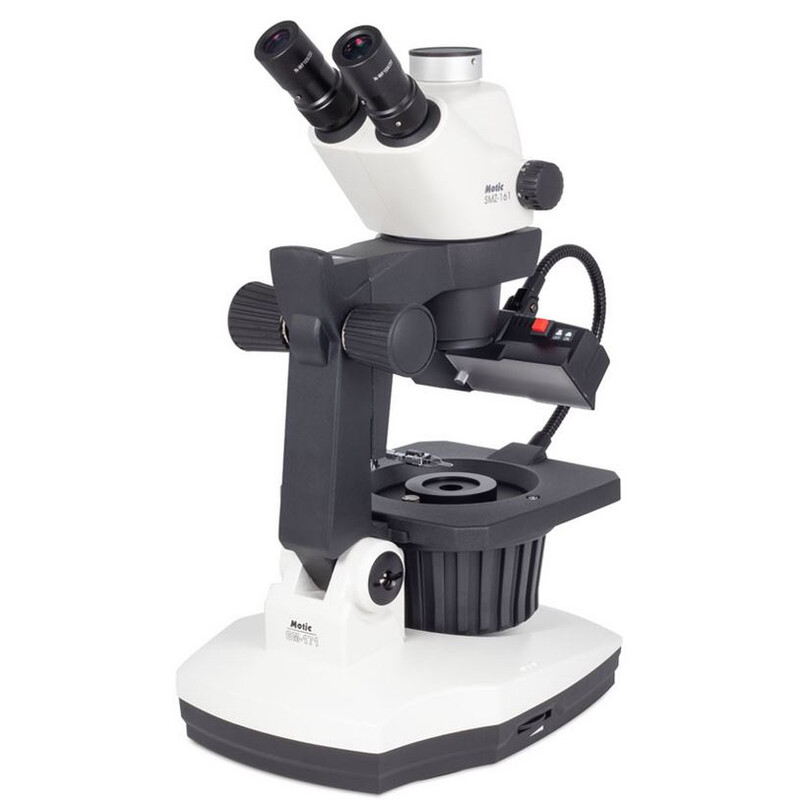

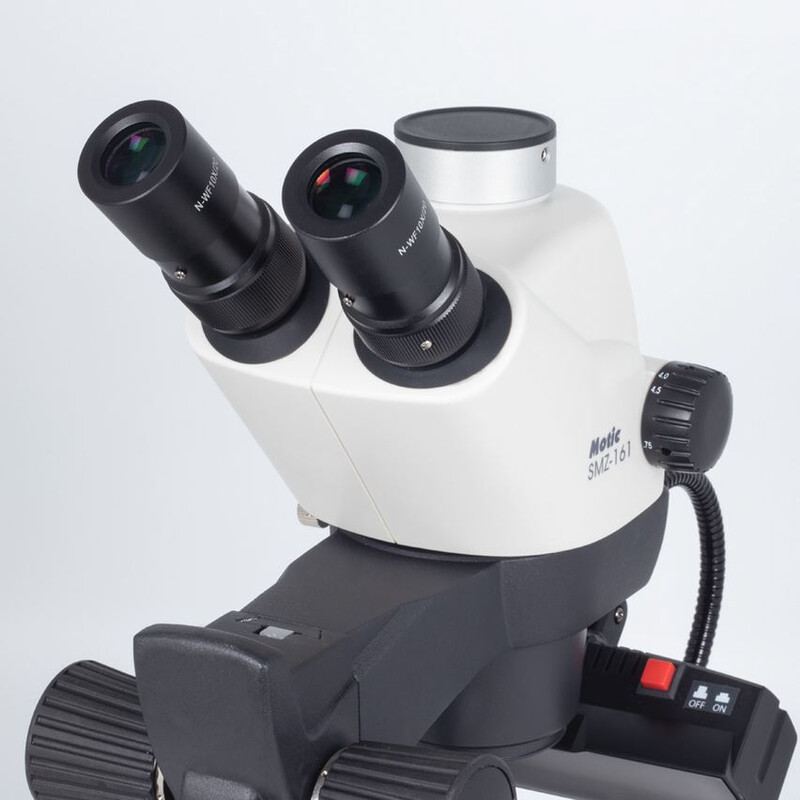

Stereo zoom microscope GM-161, trino, fluo, 7.5-45x, wd 110mm

$ 2,910.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

GM-161, trinocular

Optical system Greenough

Inclination 45º inclined

Interpupillary distance 50-75mm

Diopter adjustment On both tubes, +/- 5 diopter

Eyepieces Widefield WF10X/20mm

Objectives system Zoom, ratio 6:1

Objectives 0.75X~4.5X

Working distance 110mm

Stand type 360º rotary base

Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm

Head holder For Ø76mm head

Focus mechanism Coarse focusing system with tension adjustment

Focusing stroke 125mm

Incident illumination Fluorescent 7W with Gooseneck adjustable

Transmitted illumination Quartz Halogen 6V/30W with intensity control

Illumination features Darkfield illuminator

Transformer Internal

Power supply 100-240V (CE)

Accessories included

  • dust cover
  • stainless steel
  • wire stone holder
  • aluminium carrying case

Dimensions LxWxH 391x236x500mm

Base 306x236mm

Column/Arm Height 268mm, 45º tilting arm

Net weight 8.2kg

Specifications

Optics


Magnification
50
Eyepiece
10
Lighting
Incident light and transmitted light
Lamp type
Halogen
Power supply
100-240V, VDE plug (CE) mains adaptor
Optical system
Greenough

Capacity


Brightness control
yes

Mechanics


Type of build
Trinocular
Focusing
Coarse movement
Viewing posture (°)
35° viewing angle, 360° rotatable
Specimen stage
Specimen stage
Working distance (mm)
110

Special features


Centering stage
-
Dust cover bag
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Series
GM

Field of application


Industry
yes

Area of application


Mineralogy
yes
Dark field
yes
Microbiology
yes
