IS
Discover how inspections can be extremely easy and quick with OPTIKA! Forget about looking into the eyepieces: go for convenient, cost effective & extremely flexible solutions. The digital microscopy camera technology allows you to observe smalls object and to document your work, enabling also
multiple viewers at the same time and thereby greatly improves collaboration.Ergonomy plays an important role in inspections, and OPTIKA range is considering this aspect to increase the efficiency and eliminate strains. Know more about the comprehensive OPTIKA range: suitable in a variety of quality control processes

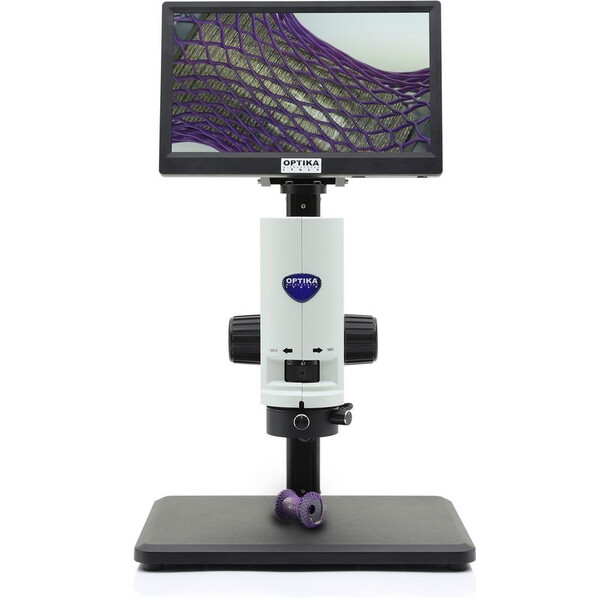

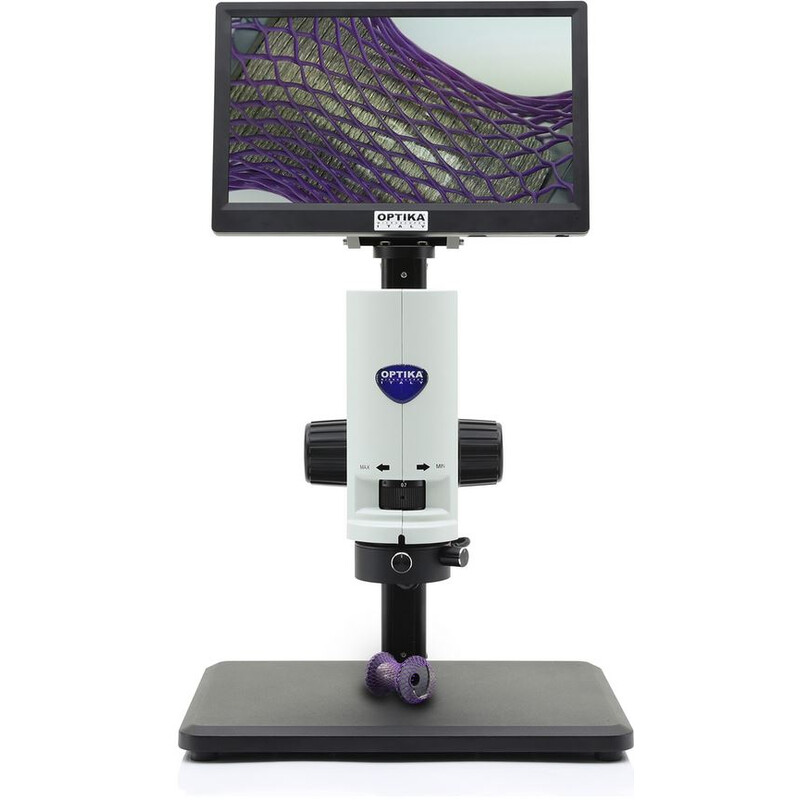

Specification IS-01
Observation mode: Brightfield, incident light.
Stand: Base dimensions: 320x260mm. Vertical column with precision rack
Rack range: 225mm.
Camera: 1/3” CMOS 4MP HDR Camera.
Objective: Zoom objective, 0.7x – 5.0x with click stops.
Auxiliary Lenses:
– 0.5x (185mm working distance)
– 1.0x (105mm working distance)
– 1.4x (110mm working distance).
Screen: 11.5” Full HD HDMI LCD Screen.
Connections:
– HDMI video output
– USB 2.0 for mouse connection
– mini USB
– Sd Card port for image/video storing.
Illumination:
Double LED Ring with separate brightness control.
Accessories (Included):
1.5m USB cable, Wireless Mouse, 8GB SD card,
30 cm HDMI cable and Power supply.
