Stemi 305
Your all-in-one instrument. With integrated lighting and documentation.
Stemi 305 is your compact Greenough stereo microscope with 5:1 zoom for biology education, laboratories and industrial production environments. See your samples as they are: three-dimensional and with sharp contrasts, without sample preparation. Benefit from an easy-to-use microscope that includes everything: long-life LED lighting for reflected and transmitted light, and extensive documentation options. Choose between the conventional phototube for access to all ZEISS microscope cameras and the integrated 1.2 megapixel WiFi camera, which allows you to connect multiple microscopes and share your images via WiFi.
More about the Stemi 305 microscope series...

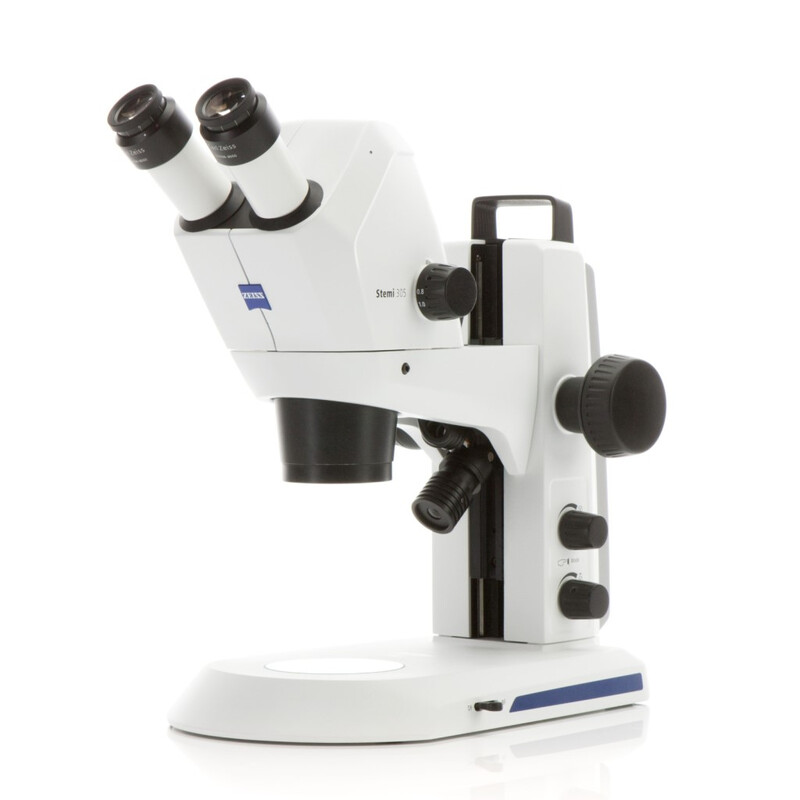

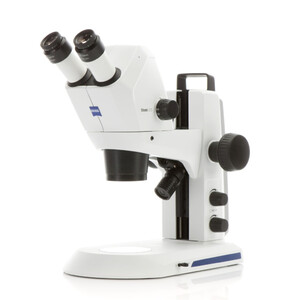

stereo microscope Stemi 305 cam W with tripod K EDU and spot lamp K LED
Microscope body Stemi 305 cam W
- Greenough system
- Integrated HD IP Wi-Fi camera with 4 MP in the left channel
- Manual, double-sided zoom 5:1 (0.8x…4.0x)
- Fixed zoom detent positions 0.8x-1x-2x-3x-4x
- Free working distance 110 mm
- Viewing angle 45° with adjustable eye relief 55...75 mm
- Eyepiece mount 30 mm with maximum field of view 23 mm
- Mount D=76 mm for Stemi carrier/carrier S
- Interface D=66 mm for lights
- M52 thread for attachment optics or polariser
- Integrated, nearly vertical LED lighting (IVI) (controllable via K EDU/LAB/MAT tripods & mounts, M LED tripod, K LED controller)
Also included:
- Eyepieces 10x/23 Br. foc.
- RJ12 spiral cable
Camera specification:
- Sensor type: CMOS colour
- Sensor size: 5.44 mm x 3.07 mm, equivalent to 1/3"
- Resolution: 2560 (H) x 1440 (V) = 4 megapixels
- Pixel size: 2.0 x 2.0 µm - Single frame: 2560 x 1440 pixels
- IP live stream: 1280 x 720 Pixel or 1920 x 1080 Pixel
- Live frame rates: up to 30 fps
- Dynamic range: > 80 dB
- Signal-to-noise ratio: > 50 dB
- Interface: RJ45 Ethernet socket
- Interface: Wi-Fi (IEEE 802.11b/g/n, 2.4 GHz, 802.11a/n/ac, 5 GHz)
- Wi-Fi range: 5-15 m, depending on line of sight and other Wi-Fi/Bluetooth devices in the vicinity
- Operating modes: - Wi-Fi operating modes (via integrated Wi-Fi module) a) "WLAN access point" mode (default) b) "Connect to existing WLAN" mode - Ethernet operating modes (via the integrated RJ45 Ethernet interface) a) "Connect to LAN network" mode (default) b) "Direct 1:1 LAN connection" mode
Tripod K EDU
- Tripod base W190xD310xH35 mm
- Working surface W160xD195 mm
- Interfaces d=84 mm for tables and d=45 mm for DL polariser
- Column 250 mm with drive and handle, stroke range 145 mm
- Stemi holder d=76 mm, load capacity 5 kg, adjustable friction

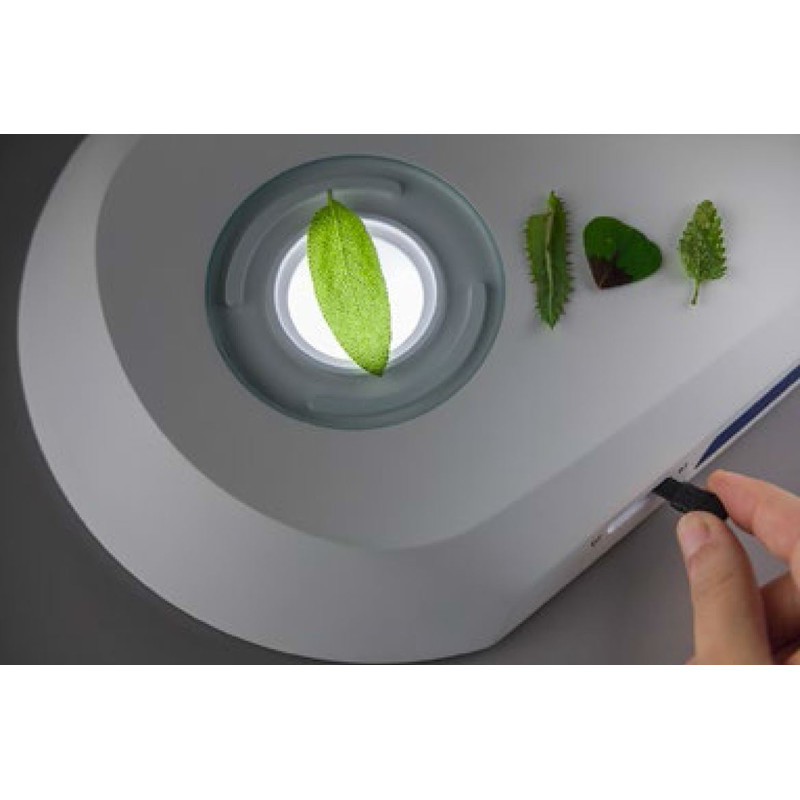

- Integrated LED transmitted light bright field/dark field, switchable
- 2x sockets for IVI and K LED light
- Separate AL/DL controls for on/off/dimming
- Built-in power supply 12V DC 24W/100...240V AC/50...60Hz
- Glass plate D=84x5 mm
- Country-specific power cord EURO C7
- dust cover

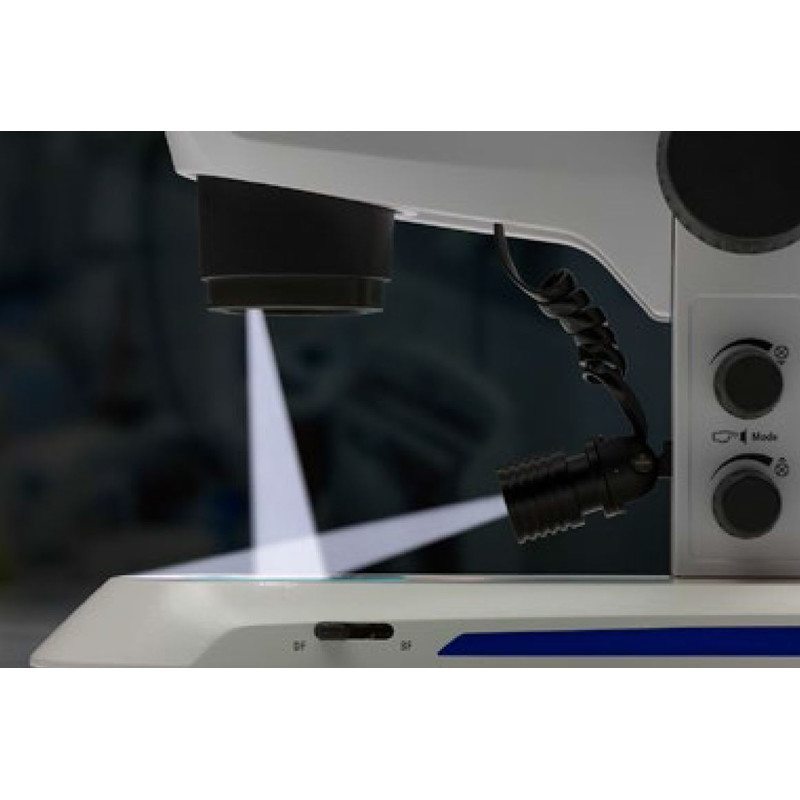

Spot Illuminator K LED
- Single spot for brightfield and darkfield epi-illumination
- Thread M24x0.5 for polarizer
- Height adjustable, inclinable, zoomable
- For stands K EDU/LAB/MAT or stand M LED
