ZEISS 355 Industry
Segmentable ring light for quick inspections
- Binocular with ESD
- Integrated, almost vertical lighting
- Segmentable LED ring light for shadow-free ring illumination and oblique light segment illumination: semicircle, quarter circle, two spots
- Rotating illumination segments
- ESD properties: antistatic materials for the entire microscope and ESD interface on the tripod
- ECO mode for easy switching to standby mode and back
- Type C input and output
- Optional: Polarisation equipment for ring light illumination

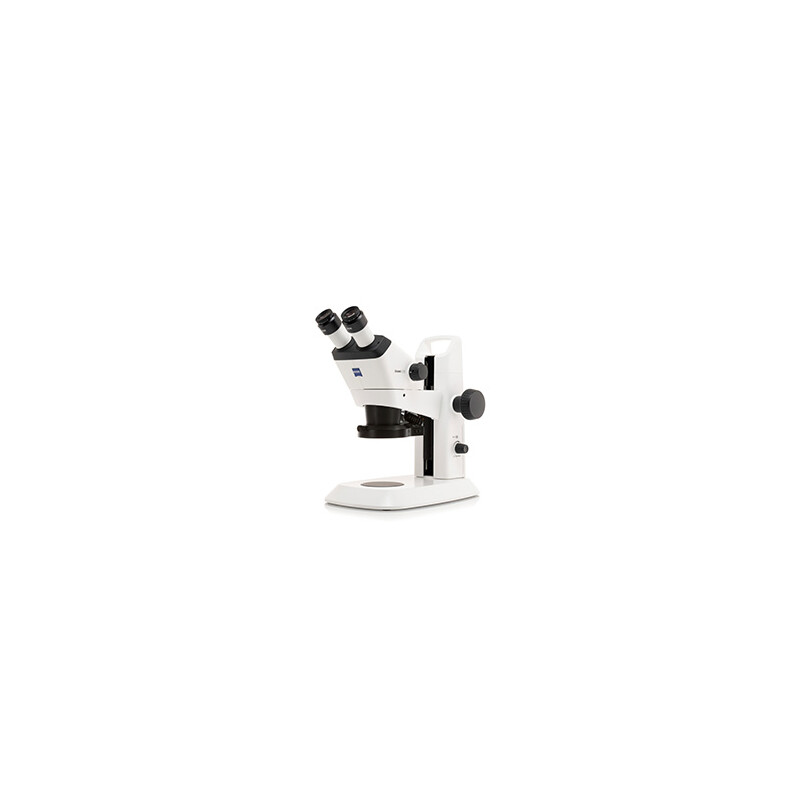

Microscope set Stemi 355 Mat (item no.: 435066-9510-000)
Microscope body Stemi 355 ESD
- Greenough system
- ESD protection function: antistatic surface
- Manual, double-sided zoom 5.5:1 (0.72x...4.0x)
- Fixed zoom detent positions 0.72x-1x-2x-3x-4x
- Free working distance 110 mm
- Viewing angle 45° with adjustable eye relief 55...75 mm
- Eyepiece mount 30 mm with maximum field of view 23 mm
- Mount D=76 mm for Stemi carrier/carrier S
- Interface D=66 mm for lights
- M52 thread for attachment optics or polariser
- Integrated, nearly vertical LED lighting (IVI) for tripods & mounts C Edu/Lab/Mat, Stative L LED, Controller C
- Also included: - Eyepieces 10x/23 Br. foc. - Spiral cable RJ12
Tripod C Mat
- Stand base T331xW204xH35 mm
- Working surface W209xD160 mm
- Interface d=84 mm for tables
- Column 303 mm with drive and handle, stroke range 145 mm
- Stemi mount d=76 mm, load capacity 7 kg, adjustable friction
- 2x socket for IVI and C LED light
- AL control element for on/off/dimming
- Switch to ECO mode
- 2x USB-C connections for power input and output
- ESD protection function: antistatic surface, grounding socket
- Built-in power supply 12V DC 24W/100...240V AC/50...60Hz
- Also included: - Plastic plate b/w D=84x5 mm - Dust cover
Ring light C LED segmentable
- 48 LEDs in 2 rows, inclined
- FWD 50...300 mm, socket d=66 mm
- Separate controls for segmentation and rotation
- 4 modes: full circle, half circle, quarter circle or 2 opposite quarter circles
- Manual rotation in 90° increments or continuous rotation
- M68x0.75 thread for diffuser and polarisation filter set HPRL
- For tripods & mounts C Edu/Lab/Mat, tripod L LED or controller C
Eyepiece cups (item no.: 444802-9000-000)
- Foldable eyecup with light protection
- to minimise disruptive light incidence -
- collapsible, can be used with glasses
