Product description:

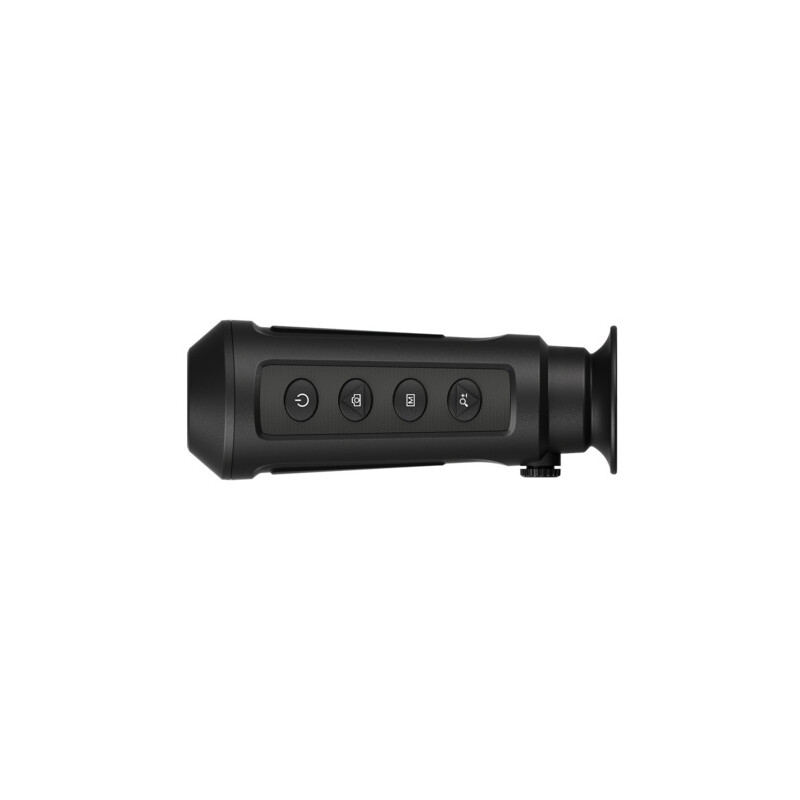

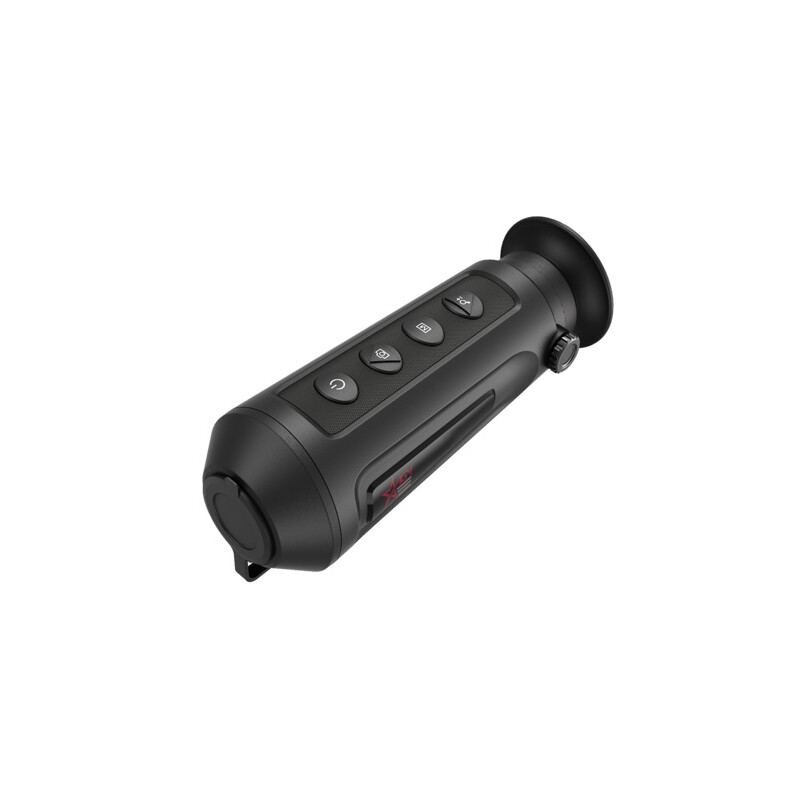

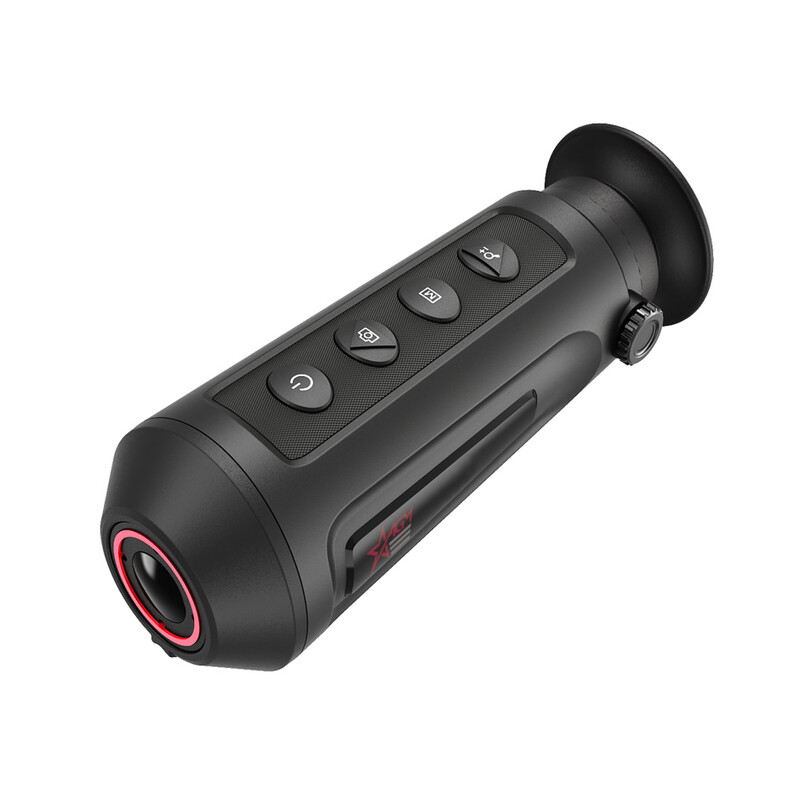

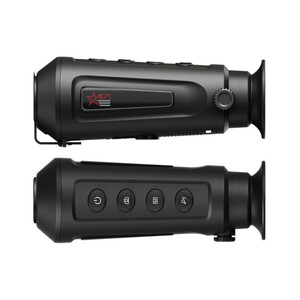

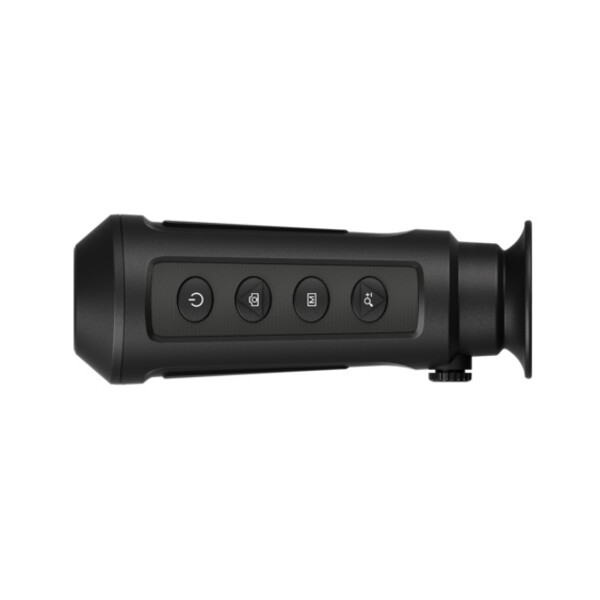

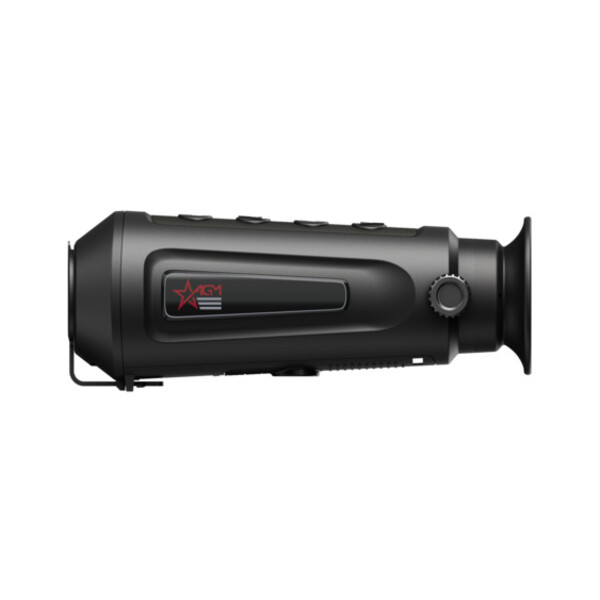

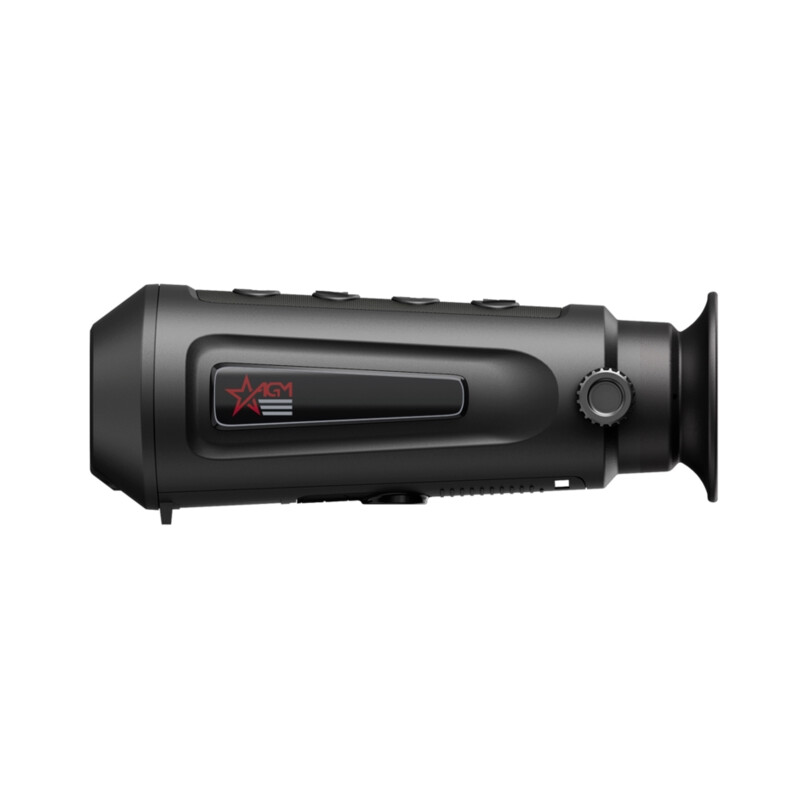

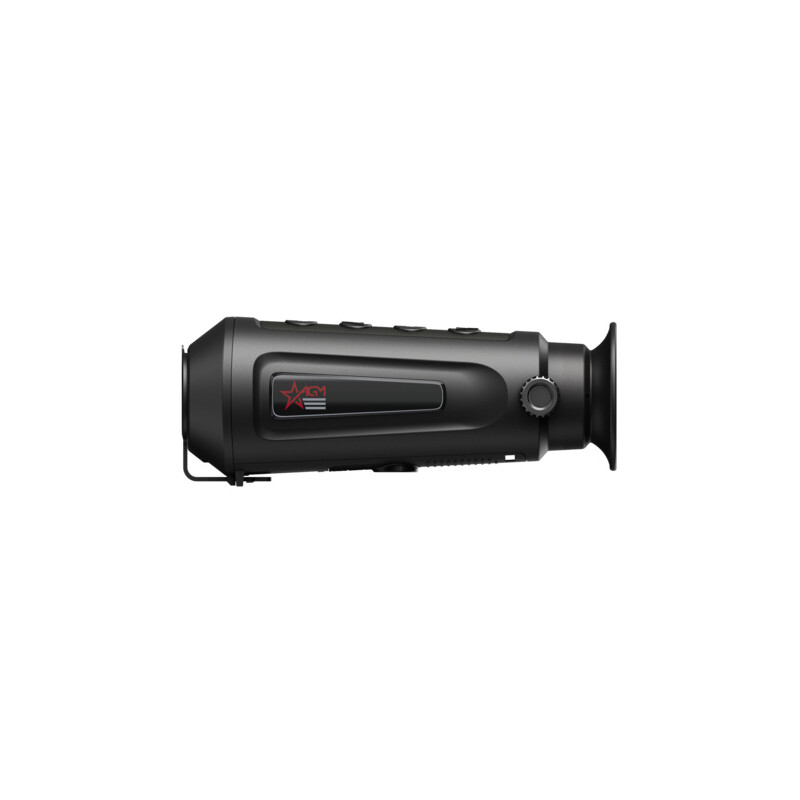

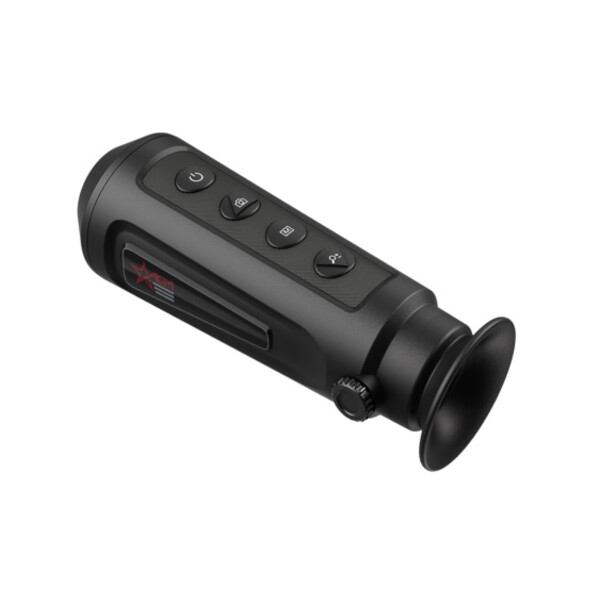

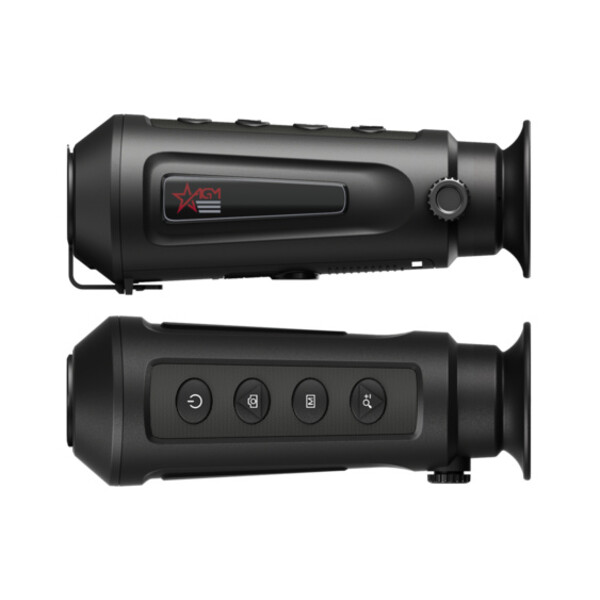

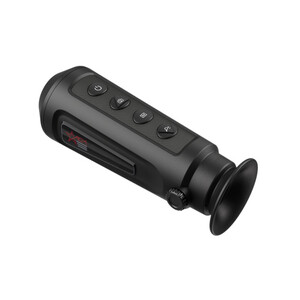

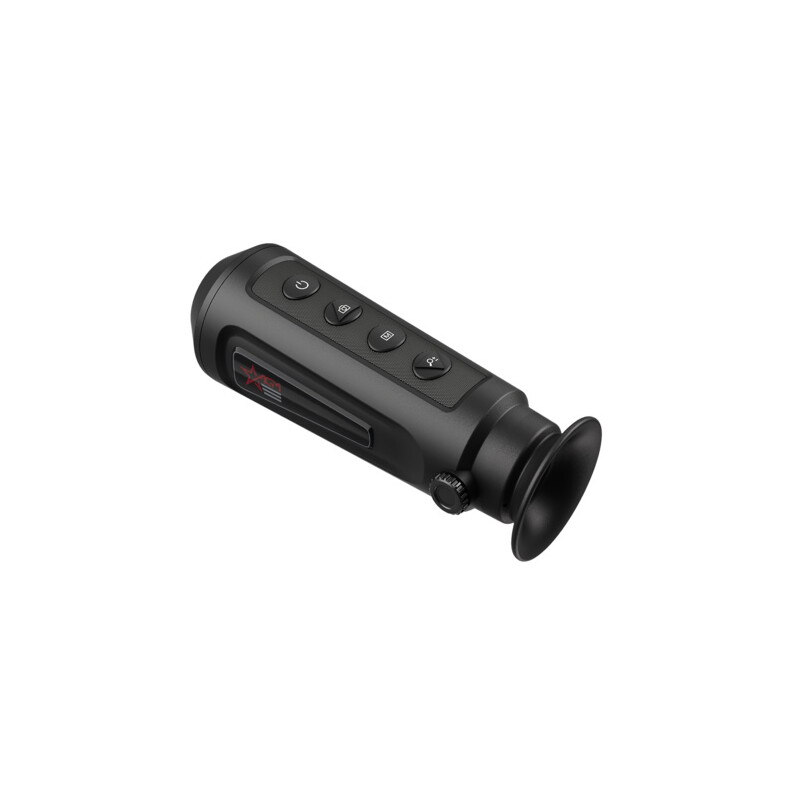

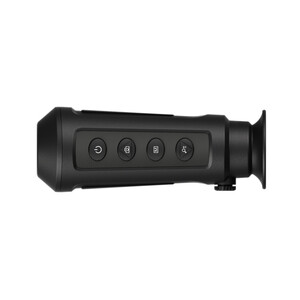

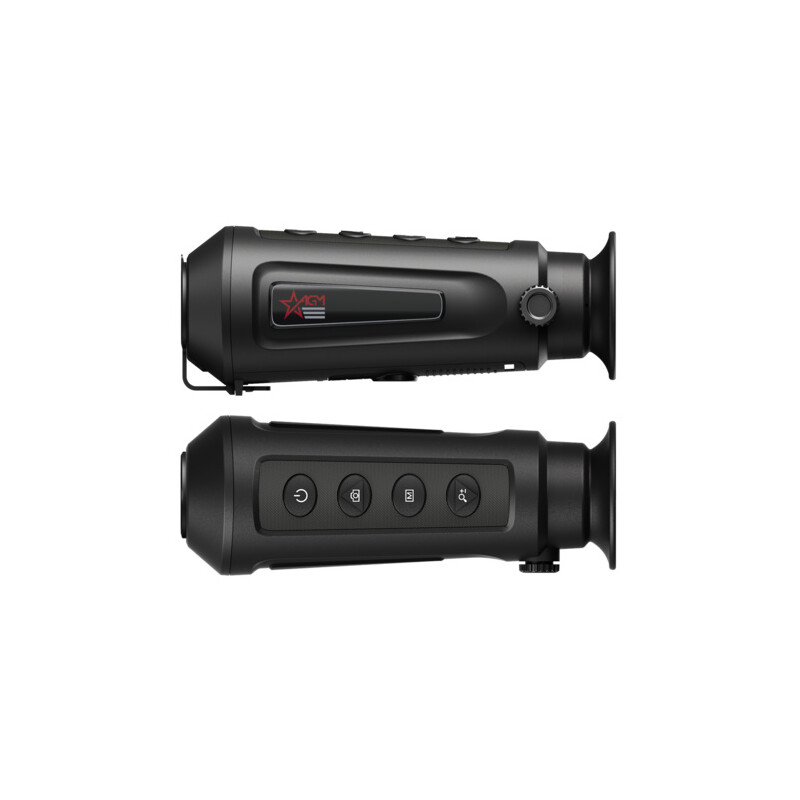

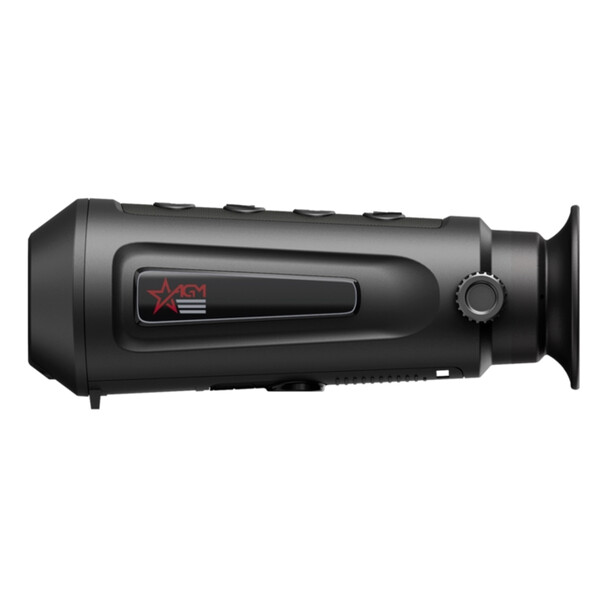

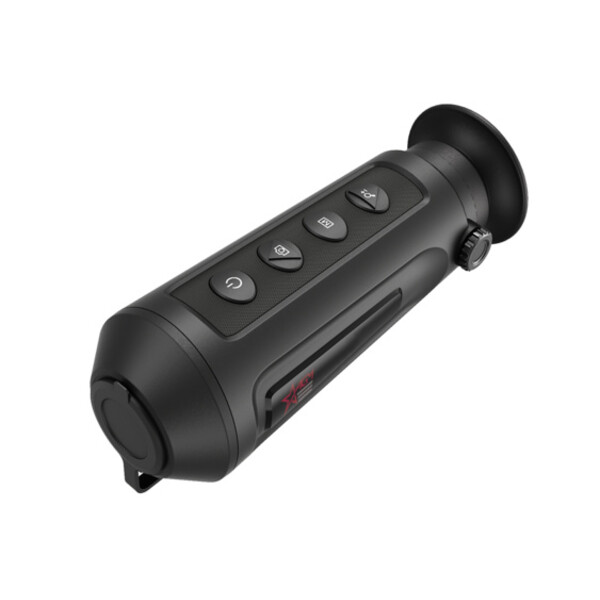

AGM ASP-Micro TM-160 Thermal Imaging Monocular

The ASP-Micro observational thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It offers you functions such as observation, hot spot target tracking, distance measurement and WLAN hotspot. The monocular is ideal for hiking, travelling and hunting, but also for law enforcement, and search and rescue.

Features:

Distance Measurement: having marked the top and bottom of the target and entered the target height, the device measures the distance.
Hot Spot Mark: the device detects and marks the hot spot with the highest temperature.
Mode Switch: switch between four colour settings and distance measurement.
Internal Memory: the built-in memory module (8GB) supports image and video recording.
Digital Zoom: the device has a digital zoom with 1x, 2x and 4x magnification.
WiFi: you can use an app to apply settings on your camera as well as to save pictures and videos.

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Capacity Performance X Performance data enables night vision devices to be compared with one another. Click to read more...
Type of build Type of build X Indicates whether it is a: 1. Binocular - for both eyes 2. Monocular - for one eye Click to read more...	Monocular
Generation Generation X Describes the different technologies. Click to read more...	Thermal imaging camera Thermal camera X You create an image from the heat signature of an object. This can be displayed in different colour modes. This technology allows you to use these devices even in complete darkness, and a picture can be produced even in fog or rain. Click to read more...
Magnification Magnification X The first number in the model number represents the magnification. It specifies how much larger an object appears compared to when viewed with the naked eye. Click to read more...	1
Front lens diameter (mm) Front lens diameter X The second specification in a night vision device’s model number is the front lens diameter. The larger it is, the more light the night vision device collects. Click to read more...	6,2
Maximum operating distance (m) Maximum range X The range up to which the night vision device can be used in low-light conditions. Click to read more...	182
Detection distance (m)	46
Sensor resolution (Pixel)	160x120
Image display Image display X Depending on the model, there are different options to display the image. Click to read more...	Different versions
Image cycle rate (Hz)	50
Battery durability (h)	7
Display resolution (Pixel)	720x540
Zoom (digital)	1; 2; 4
Special features Special features X Night vision devices can be equipped with additional functions. Click to read more...
Digital imaging	yes
Video connection Video output X For transfer to a TV device or a grabber. Click to read more...	yes
Overexposure protection Overexposure protection X Protects the night vision device from bright light accidentally entering the optics. Click to read more...	yes
Day-night-system	yes
Threaded tripod connector Threaded tripod connector X This allows the device to be mounted onto a standard photographic tripod with a 1/4" camera screw. Click to read more...	yes
Field of view Field of view X Field of view data enable night vision devices to be compared with one another. Click to read more...
True field of view (°) True field of view X The angular field of view visible with the night vision device. Click to read more...	15,61x11,74
Area of application
Object protection & observation	yes
Hunting & and nature observation	yes
Navigation & Fishing	yes
Cave exploration & Camping	yes
General
Colour	black
Length (mm)	161
Width (mm)	61
Height (mm)	57
Weight (g)	270
Series	ASP
