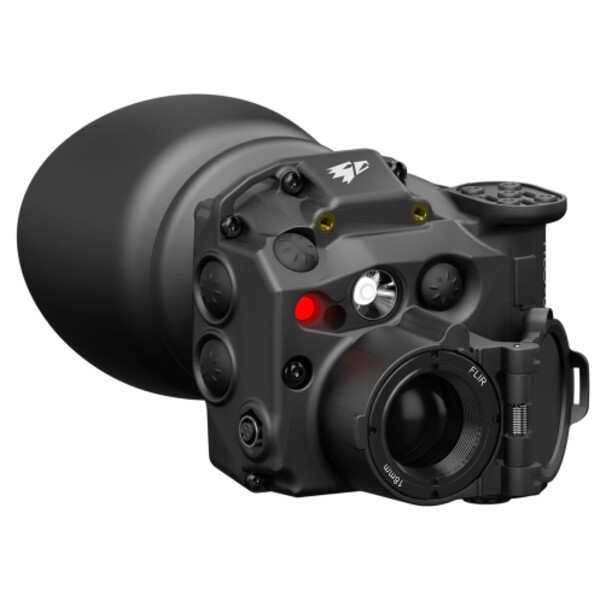

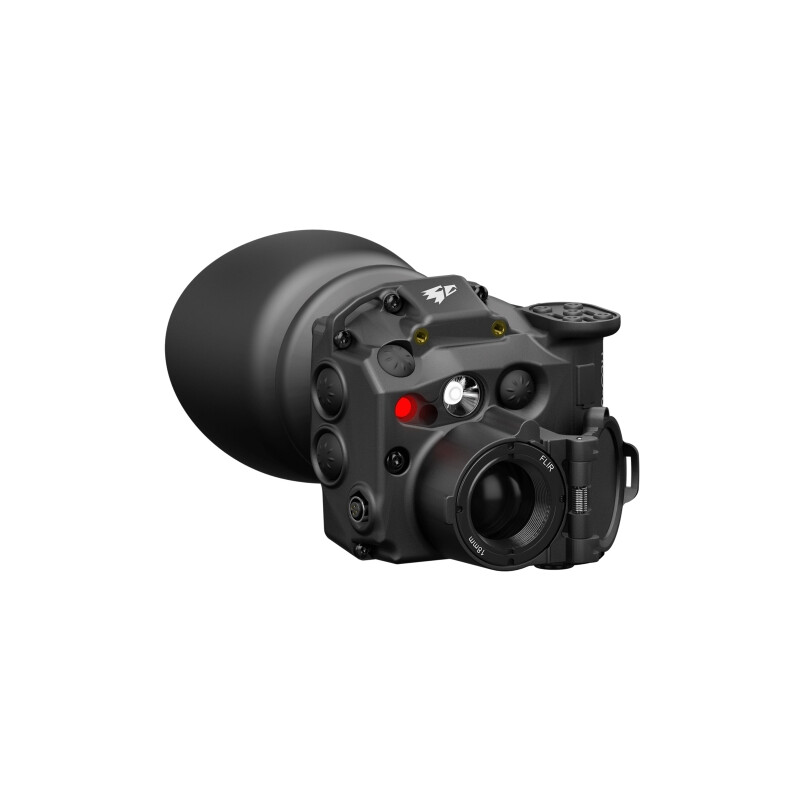

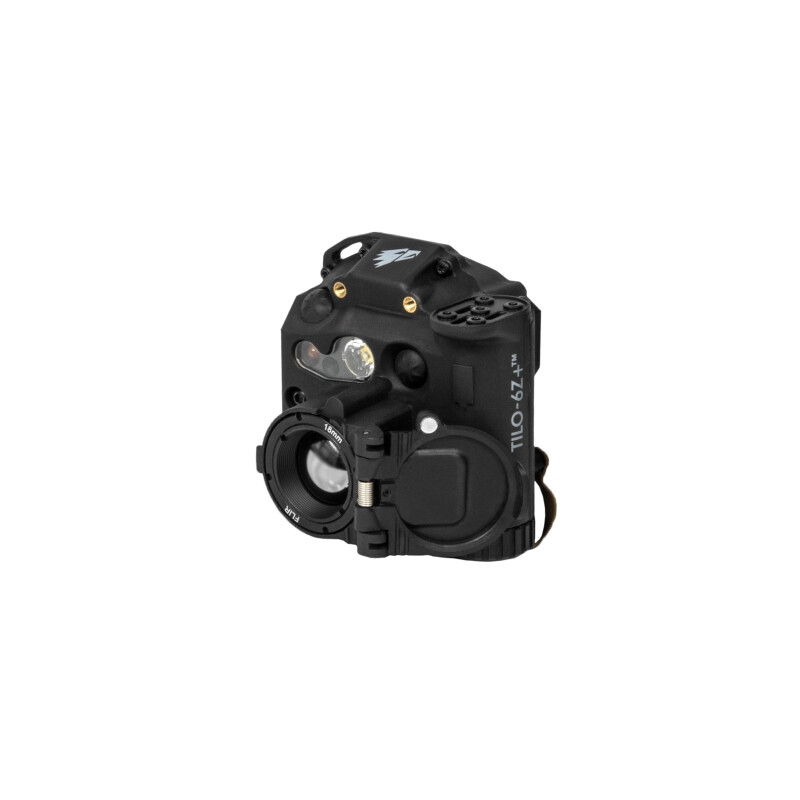

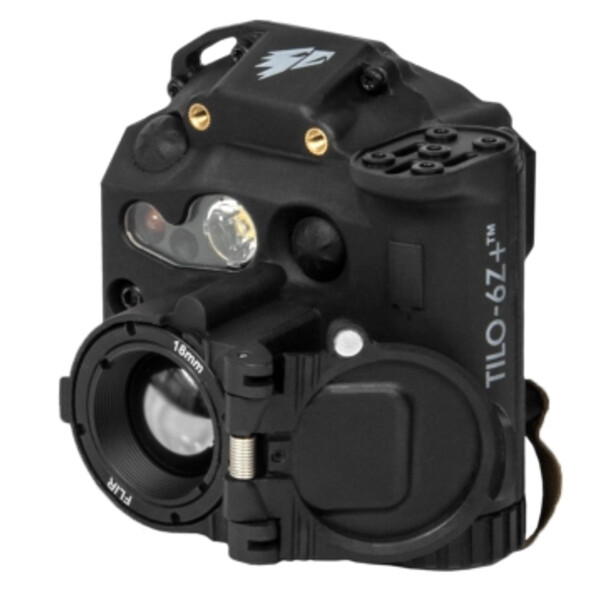

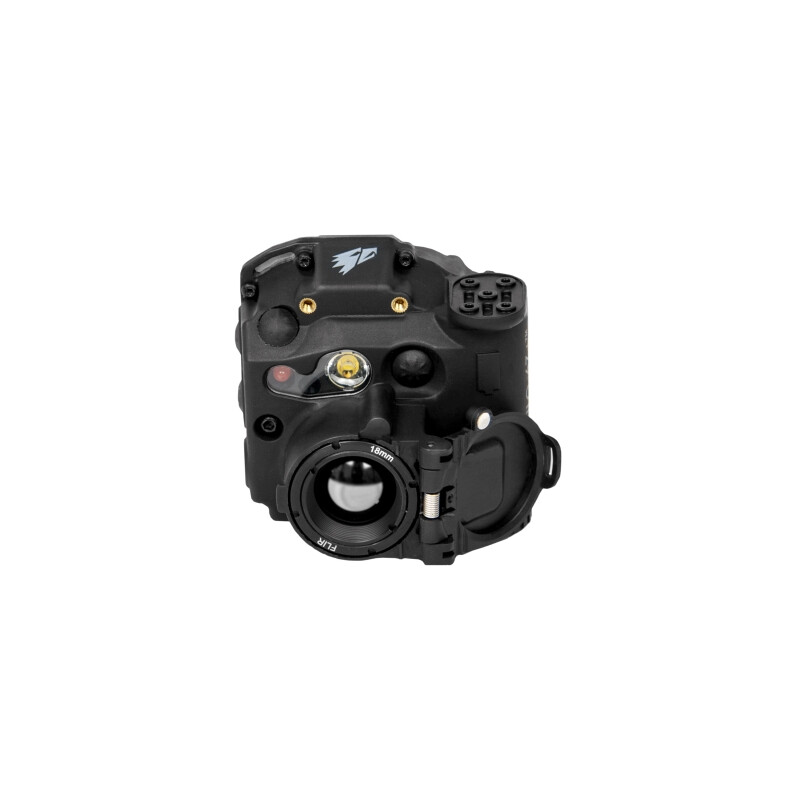

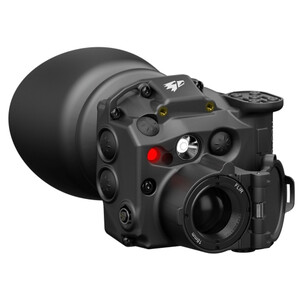

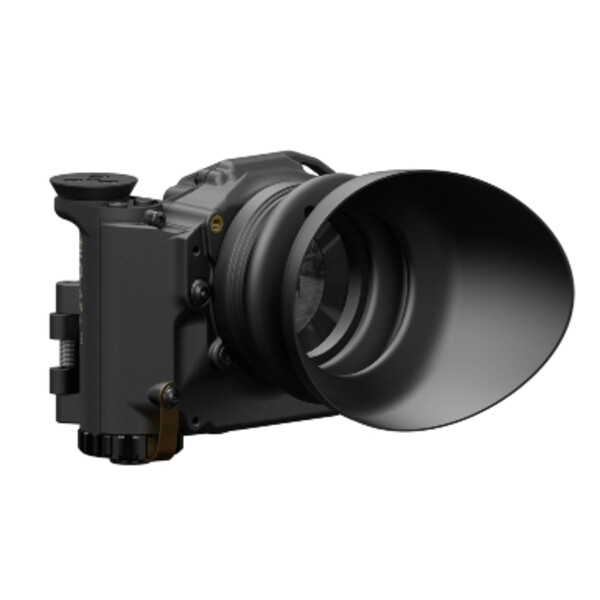

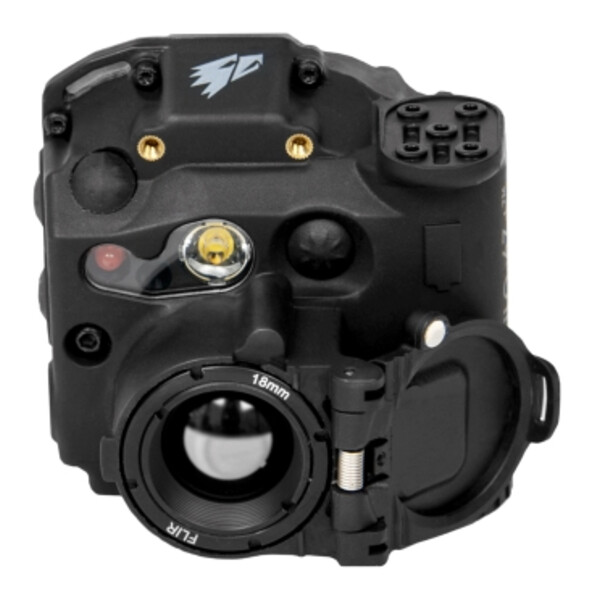

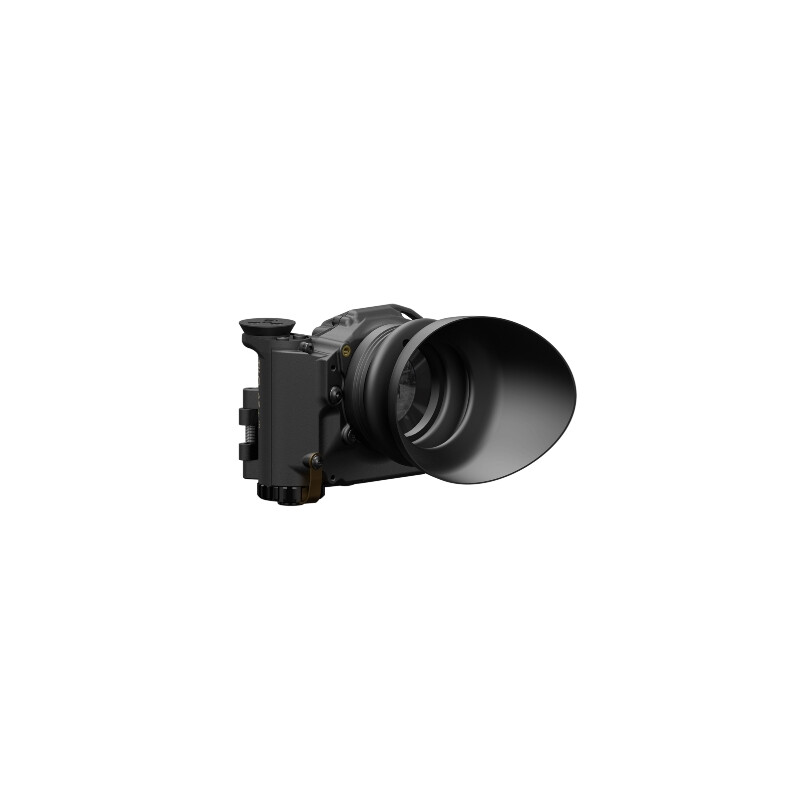

TILO-6Z+™

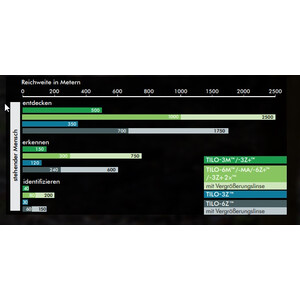

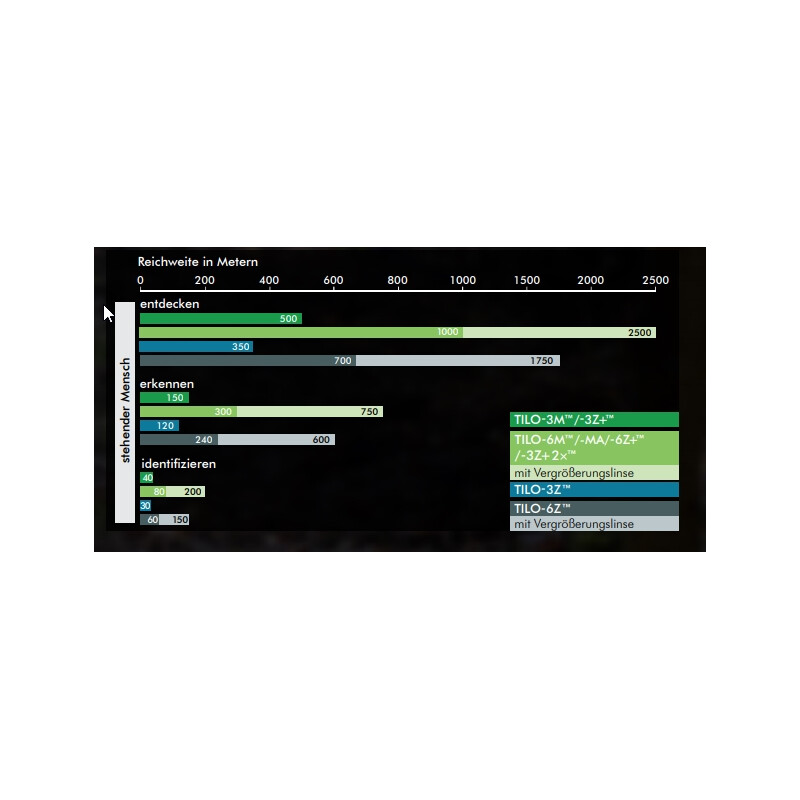

The TILO-6Z+™ is our new flagship in the field of thermal imaging. With its 640x512 pixel sensor resolution, its range is double that of the TILO-3Z+™ and its thermal resolution of <40mK leaves nothing to be desired in the Z+.
Technical data:
- 640x512 pixel 60Hz sensor resolution microbolometer
- <40mK thermal resolution
- Operation: -30° to +60°C / Storage -40° to +80°C
- Water protection: IP68
- Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
- Video output: PAL/NTSC
- FOV: horizontal 24° / vertical 19°
- Length: 58mm
- Width: 64mm
- Height: 67mm
- Weight: approx. 128g without accessories
- Screen resolution: 873×500 pixels
- Casing: polyamide, cold fracture resistant, reinforced with tubes
- Eyepiece lens cover made from sapphire glass
- Colour: black
Includes:
TILO-6Z+™, waterproof carry case, battery extension, CR123 battery, eye cups, cleaning cloth, small hand strap, quick start guide, manual
The purchase, possession and operation of this device is permitted in Germany! The fitting to riflescopes or weapons is only permitted with the approval of the local weapons authorities in Germany!
Pay attention to the legal regulations in your country!
Legal notice
Check the local legal regulations to see if the fitting to weapons is permitted in the location of use. The fitting to a weapon is always the sole responsibility of the user.
Legal notice
Before attaching to weapons, check whether this is permitted in the area in the local legal regulations. The user is always solely responsible for the attachment of a weapon.
Note the legal regulations in your country!
