Product no.: 44527

Thermal imaging camera Prometheus 3x Monocular 336-9

$ 4,600.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

The Armasight Prometheus is the latest and most technologically advanced family of thermal imaging devices in monocular design on the market today.

The Prometheus product range is based on the latest FLIR Tau 2 VOx microbolometer core technology. In this product range the models are distinguished by their resolution and the image cycle rate (Hertz). In addition, the models have different focal lengths and front lens diameters. The Prometheus is non-cooled and can be operated by day or night.

Thermal imaging technology enables objects to be distinguished through snow, dust, smoke, fog or mist. Since the thermal imaging technology functions without IR emitters, you are almost completely invisible when observing animals or humans.

Features

  • Easy and intuitive user interface
  • Fast start-up time
  • The user can choose between NTSC or PAL formats
  • Waterproof, CNC machined aviation aluminum alloy

Comes including a pouch, lens cap, battery, instruction manual and warranty documents

The scope of delivery often does not includes batteries or, if included, only low-quality batteries. These cannot be replaced under warranty. To avoid being disappointed the very first time you use the equipment, we recommend you order suitable batteries at the same time you order the equipment. Especially for equipment that is used outdoors, we recommend the use of high quality brand-name batteries. Lithium batteries are to be preferred, as these lose hardly any of their charge during prolonged storage and also do not lose performance in cold temperatures.

You can find these in the list of recommended accessories.

We must point out that discharged batteries do not go into the household rubbish!

You are legally obligated to follow the correct procedure for disposing of these batteries. Please feel free to return them to us for disposal, free of charge.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
2,8 (NTSC 2,8x / PAL 3,4x)
Front lens diameter (mm)
42
objective
42mm f:1.0
Sensor resolution (Pixel)
336x256 (FLIR Tau 2)
Image display
Different versions
Image cycle rate (Hz)
9
Battery durability (h)
4
Zoom (digital)
1, 2, 4

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
-
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no

Field of view


True field of view (°)
7,8 x 5,9
Close focus limit (m)
5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
194
Width (mm)
62
Height (mm)
68
Weight (g)
550
Series
Prometheus

Miscellaneous


Battery type
CR123 (2 pieces)

Recommended accessories

Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Varta CR123 lithium battery

$ 8.90*

*All prices include VAT plus shipping costs.

Armasight Thermal imaging camera Prometheus 3x Monocular 336-9

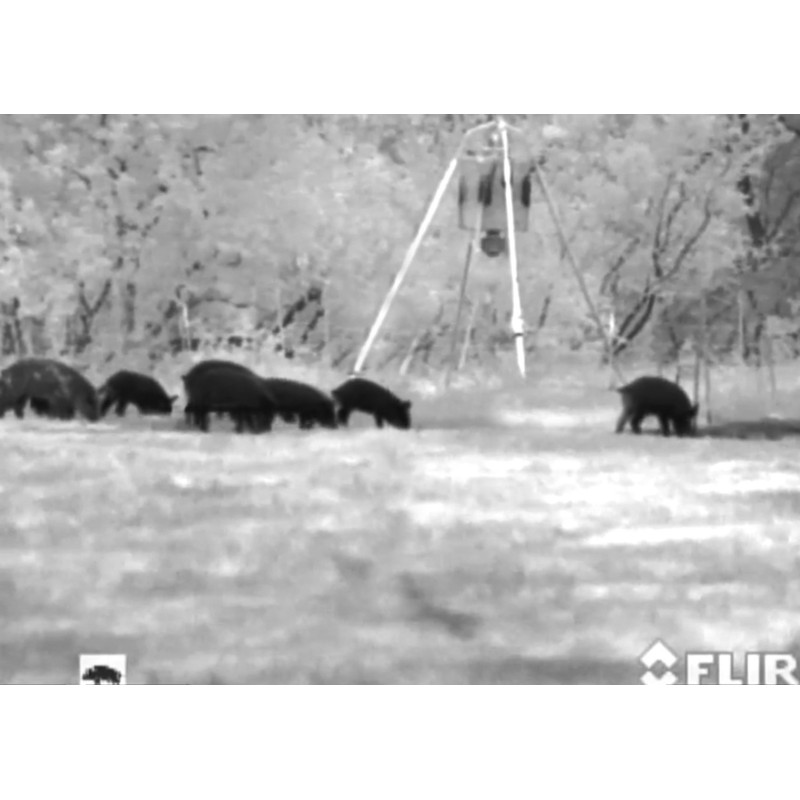

Typical application 1

Armasight Thermal imaging camera Prometheus 3x Monocular 336-9

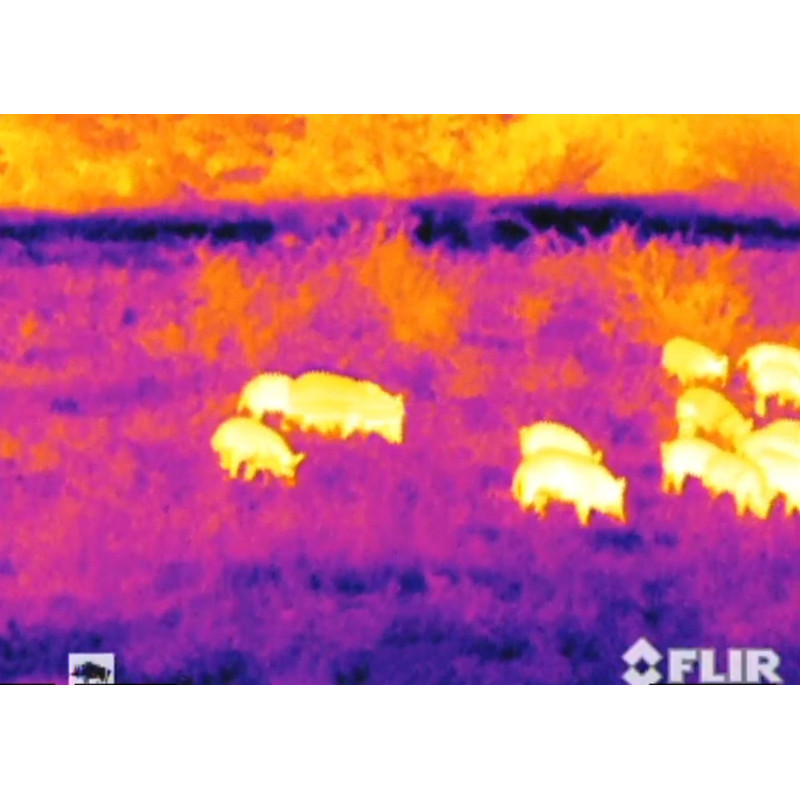

Typical application example 2

Armasight Thermal imaging camera Prometheus 3x Monocular 336-9

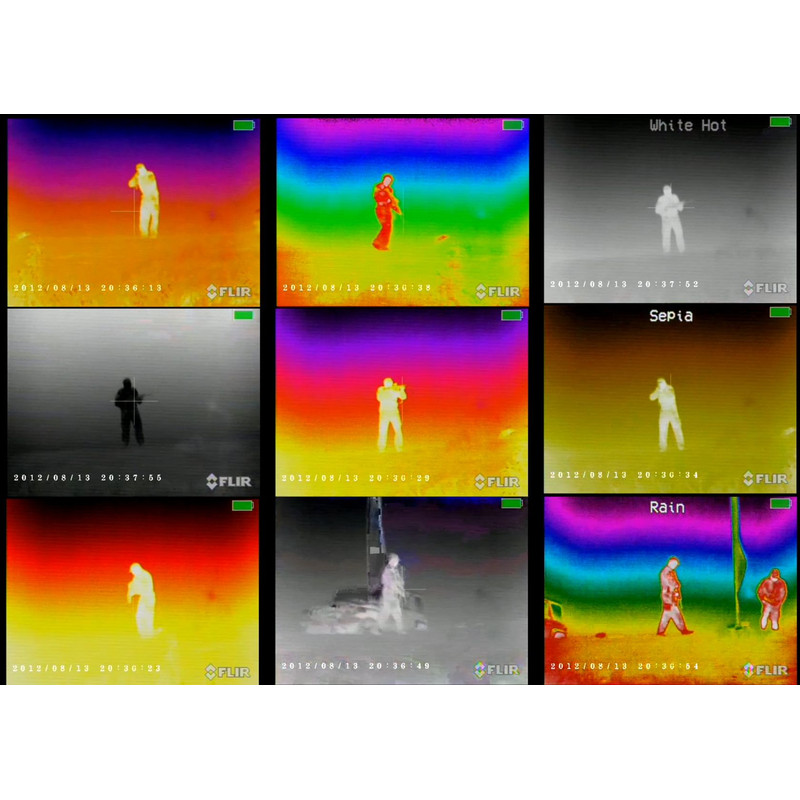

This sample image shows you various illustrations of the selectable colour modes.
