Product no.: 75060

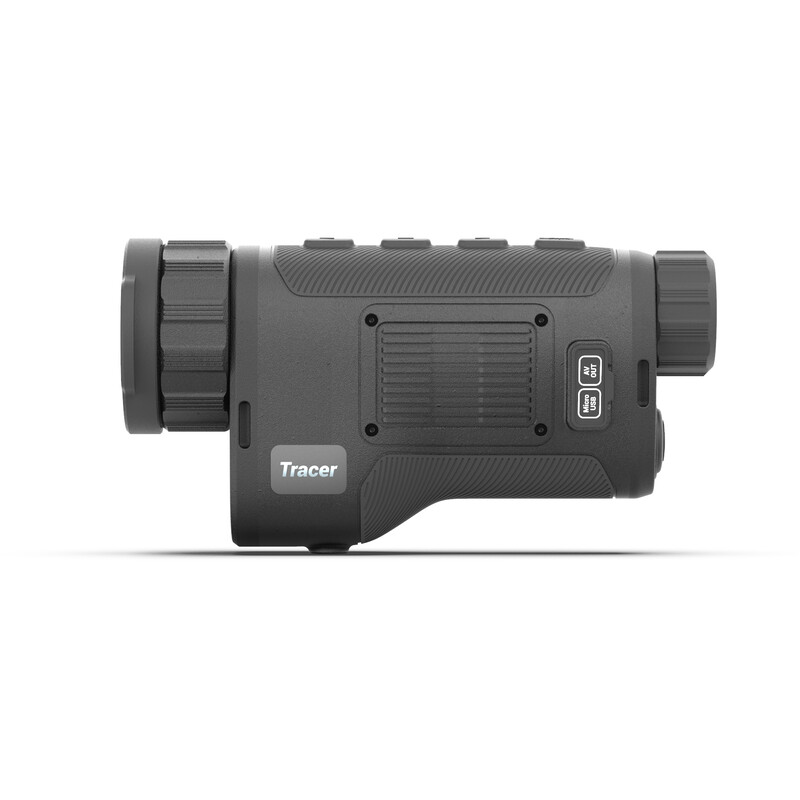

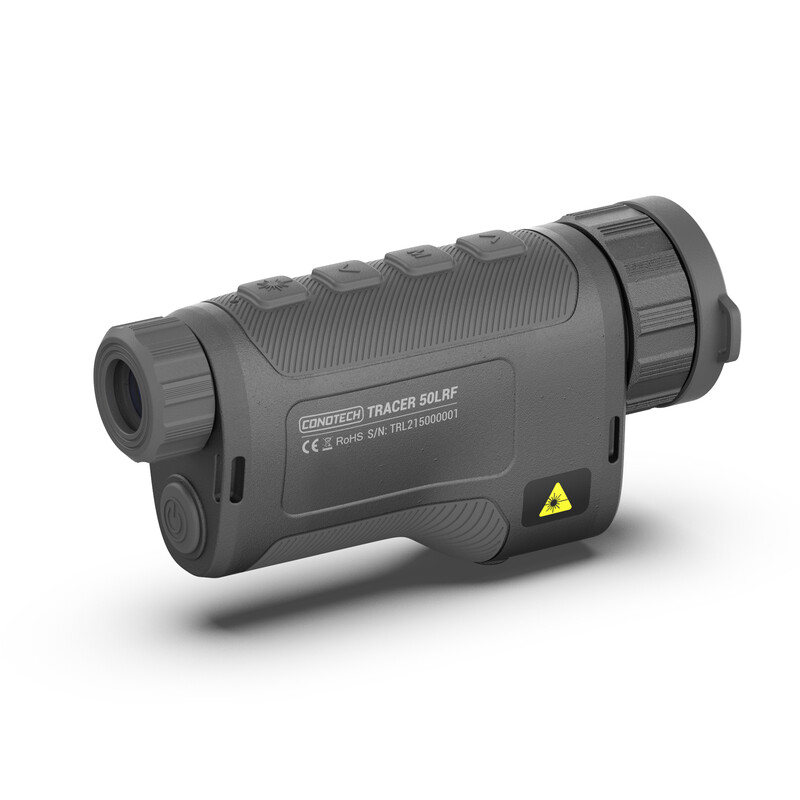

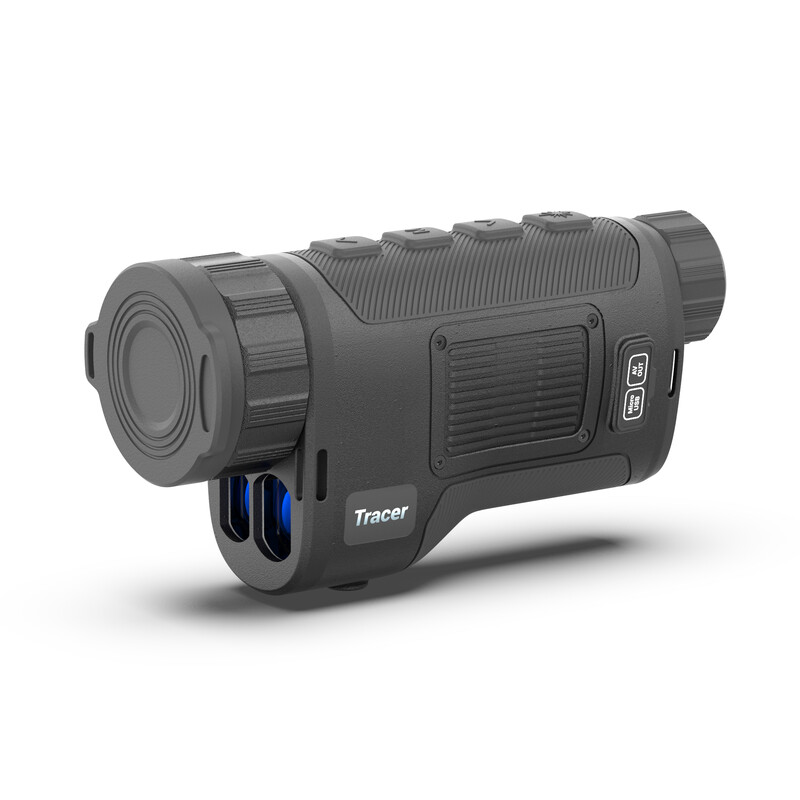

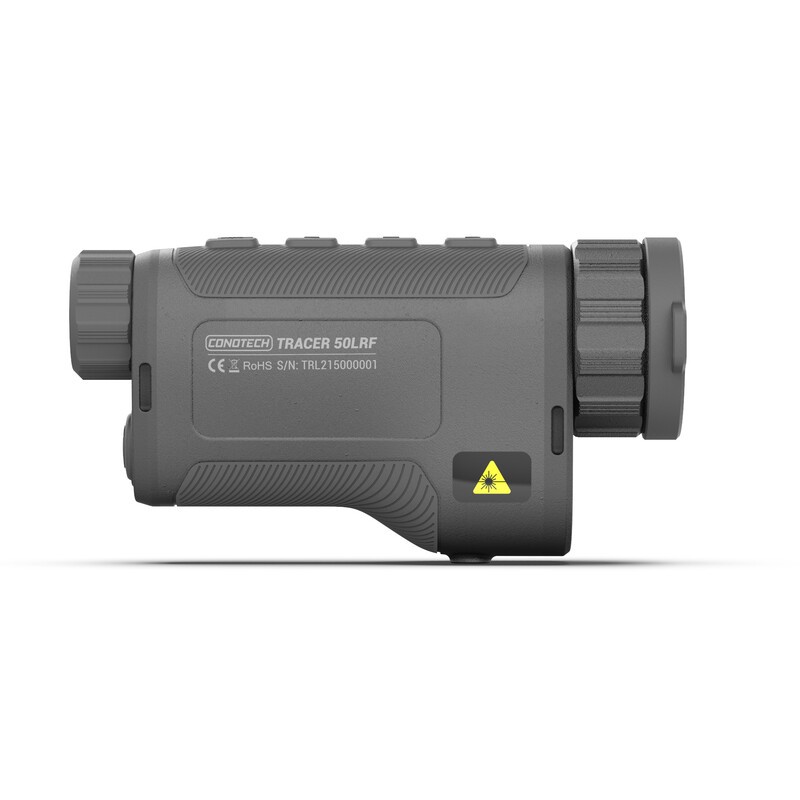

Thermal imaging camera Tracer LRF 50

$ 2,910.00 Sale price:
$ 2,378.44 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 29.03.2024!

Product description

The Range TI 50 LRF offers excellent thermal imaging with its 384x288 17µm <35mK NETD thermal sensor and smooth, high resolution viewing with its frost-resistant 1024x768 HD OLED display and 50Hz frame rate.

Performs in conditions where temperature differences are minimal, such as during rain/snowfall, cold mornings, fog,...

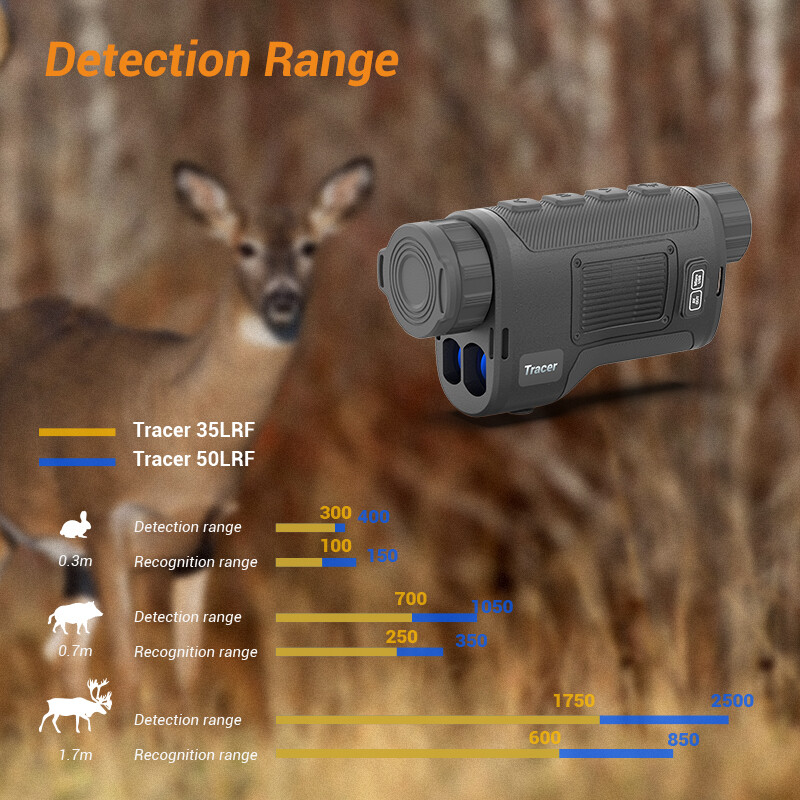

50mm objective lens offers great optical capabilities: 15.56x max. magnification, and a maximum detecting distance of up to 2500m. Fitted with a built-in (eyesafe) laser rangefinder capable of accurately measuring distances up to 1000m (±1m).

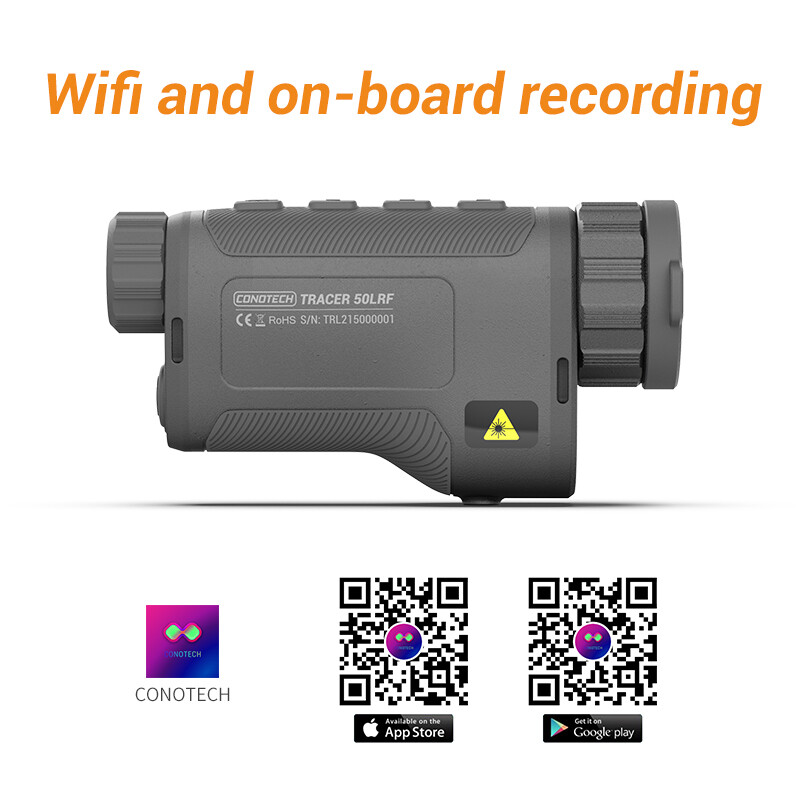

Features photo & video capture with on-board recorder to its 32Gb internal memory and can wireless connection to our App.

Features:

  • Sensitive thermal sensor 12um 384x288
  • Built-In laser rangefinder 5-1000m (±1m) (eye-safe: Class 1 laser)
  • LRF modes: Single time measurement | Scanning |Smooth digital zoom
  • Smooth viewing (50Hz frame rate)
  • Built-In battery pack
  • Long operation time up to 8hours
  • High protection rating (IP67)
  • On-Board photo & video recorder
  • Video output (USB)
  • 32Gb Internal memory
  • Built-In WiFi module
  • Functional App
  • Power saving "Standby" Mode
  • Multiple colour, display & observation modes
  • Fast start-up
  • Image Enhancement Mode (DDE)
  • Ergonomic design
  • Centralised controls
  • Focusable lenses

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
3.9
Front lens diameter (mm)
50
Maximum operating distance (m)
2500
Detection distance (m)
850
objective
F50/1.1
Sensor resolution (Pixel)
384x288
Sensor type
VOx
Pixel size
17
Image display
Different versions
Image cycle rate (Hz)
50
temperature resolution (mK)
< 35
Battery durability (h)
8
Display resolution (Pixel)
1024x768

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
-
Day-night-system
-
Splash-proof
yes
ancillary lenses available
-

Field of view


True field of view (°)
7.4x5.6
Close focus limit (m)
5

Area of application


Object protection & observation
-
Hunting & and nature observation
-
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
Grey (granite grey)
Length (mm)
165
Width (mm)
56
Height (mm)
92
Weight (g)
590
Series
Tracer
