GUIDE TJ LRF ZOOM Series
The TJ LRF Zoom Series features a built-in 20mm/60mm DFOV lens that allows you to adjust the focal length accordingly, whether you are conducting a large-scale search or identifying targets at long distances.
The highly sensitive 12μm infrared detector and Full HD display enable clear night vision. Ambidextrous operation, laser rangefinders, video recording and a battery life of up to 10 hours make it an ideal partner for your night-time adventures.

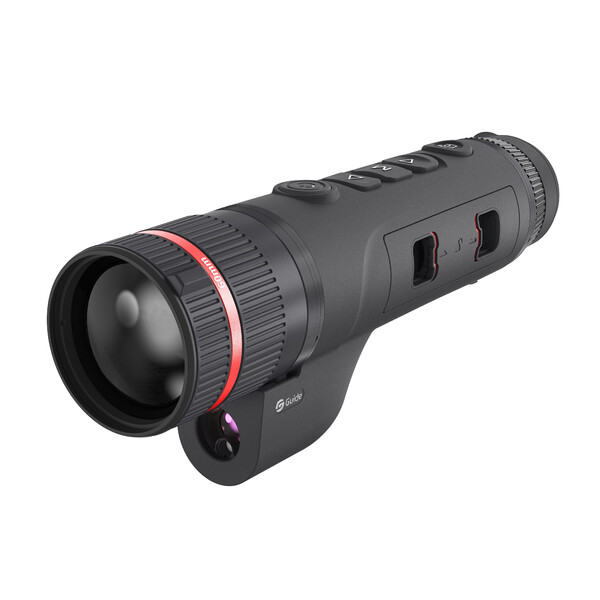

Guide TJ660LZ with rangefinders and zoom
- Thermal imaging camera for observation
- Sensor: 640 x 512
- Pixel pitch: 12μm
- Lens: 20 mm and 60 mm
- Frame rate: 50 Hz
- Spectral range: 8 μm to 14 μm
- Sensitivity (NETD):<20 mK
12μm IR detector, NETD up to 20mK
The use of a highly sensitive IR detector with a NETD value of up to 20 mK allows even the smallest temperature differences to be detected, resulting in sharper and clearer images.

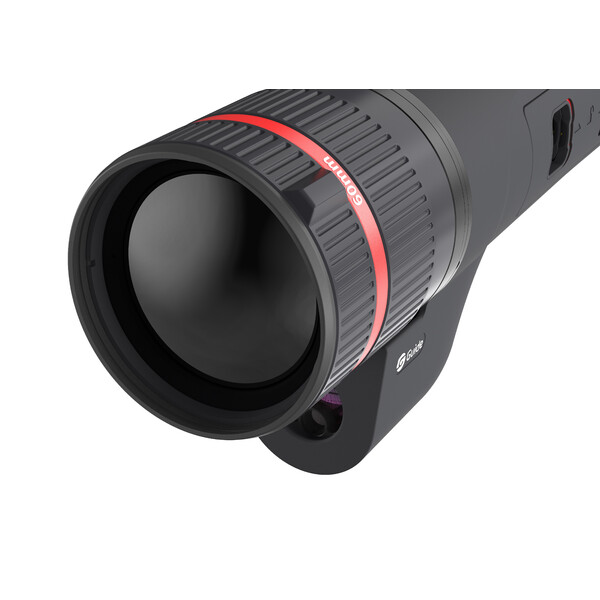

3x optical zoom, detection range up to 3100 m
The TJ LRF Zoom Series features a 20mm~60mm dual-FOV lens that allows for easy focal length changes and fine focus adjustment. It is a perfect combination of wide-area and long-range observation and can detect targets at distances of up to 3100 m.
Easy change of focal lengths
With the TJ LRF Zoom series' well-designed focus ring, users can easily switch the focal length from 20 mm to 60 mm in 1 second and fine-tune the focus to get a perfect image of the targets.
Ultra-large display Optimal visual experiences
To provide a better visual experience and improve the efficiency and comfort of outdoor exploration, the TJ LRF Zoom has upgraded its display to provide a stunning visual effect like a 70-inch home theatre 2.5 metres away.

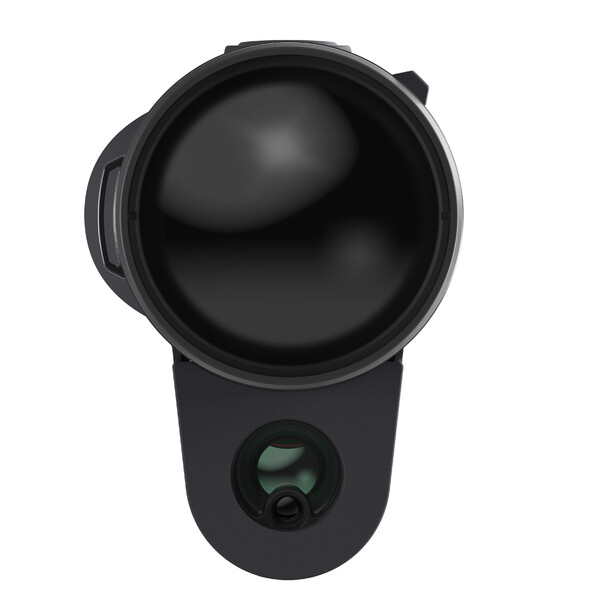

1000m laser rangefinders
The built-in laser rangefinder offers a long detection range of up to 1000 m, improving the ability to determine target distance and long-range perception.
Intelligent sleep mode
The TJ LRF Zoom has developed an intelligent function that automatically switches between sleep mode and wake mode by detecting the posture of the instrument, resulting in lower power consumption and longer battery life.
Scope of delivery
- Charger
- USB-C cable
- 2x batteries
- Hand strap
- Quick start guide
- 5V2A adaptors
