The binoculars in the Guide TN series offer not only enormous added value for today's hunters in terms of imaging effect, observation comfort and a wide range of functions, but also excellent value for money. The binoculars are supported by a laser rangefinder that is designed for a range of up to 3000 metres and works with an accuracy of ±1 metre up to 600 metres, making it comparable to conventional laser rangefinders.
The binoculars feature an HD OLED colour display with an adjustable eye relief of 60-70 mm to make long-term observation of targets as comfortable as possible for the user and reduce eye fatigue.
All buttons on the instrument are ergonomically designed and easy to feel, ensuring intuitive operation in the dark.
The series supports WiFi connectivity for remote control and easy sharing of content such as photos and videos, as well as real-time transmission of the displayed image to a Smartphone. With various built-in sensors, including a GPS receiver, compass and gyroscope, the instrument offers a wide range of functions to support hunters.

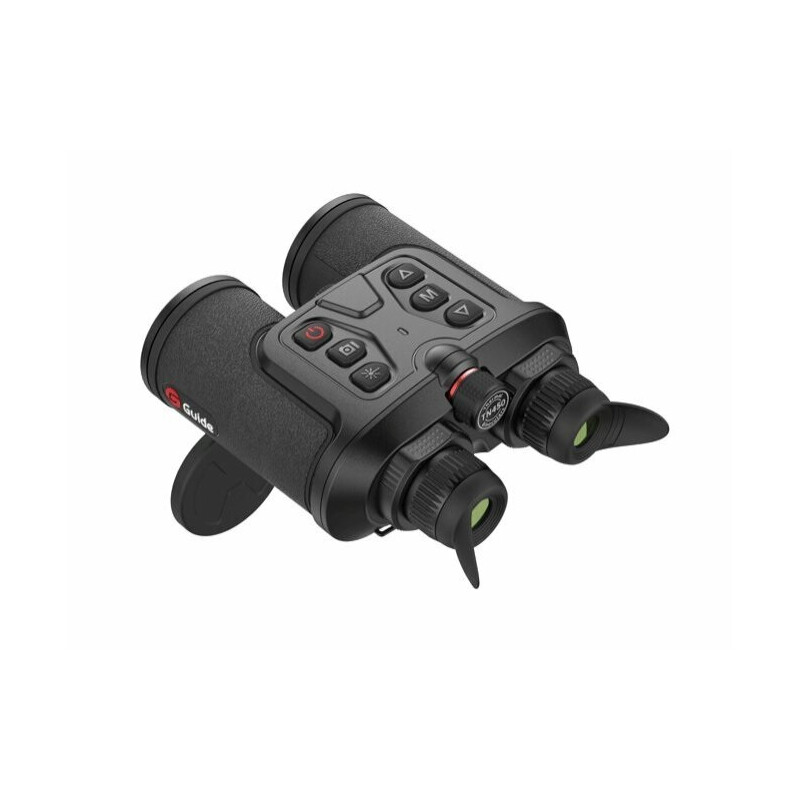

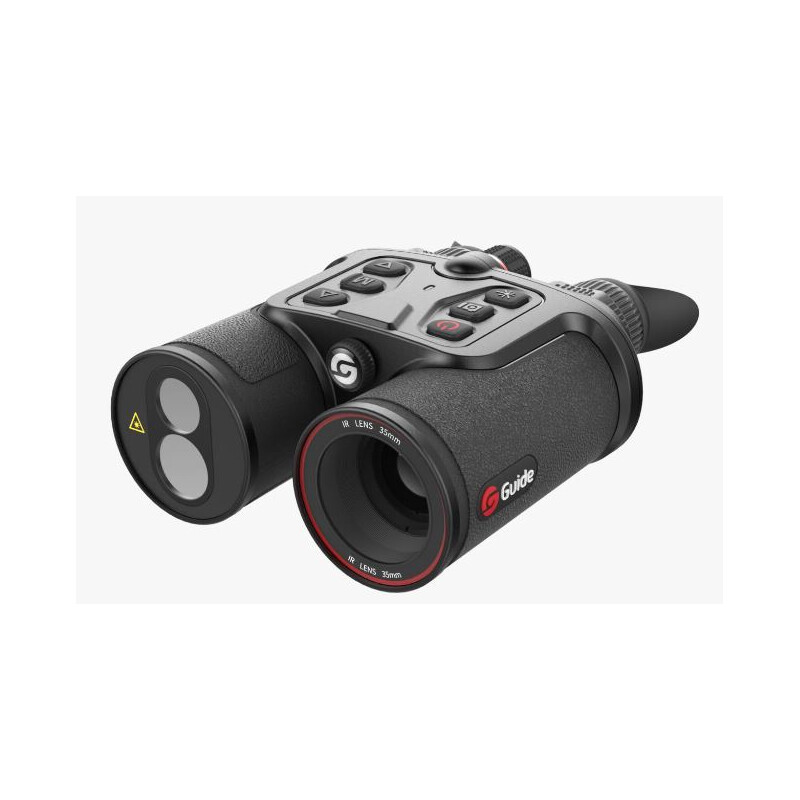

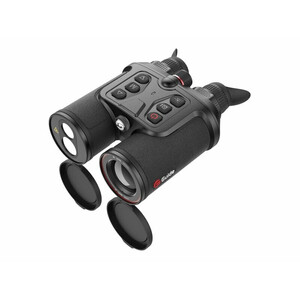

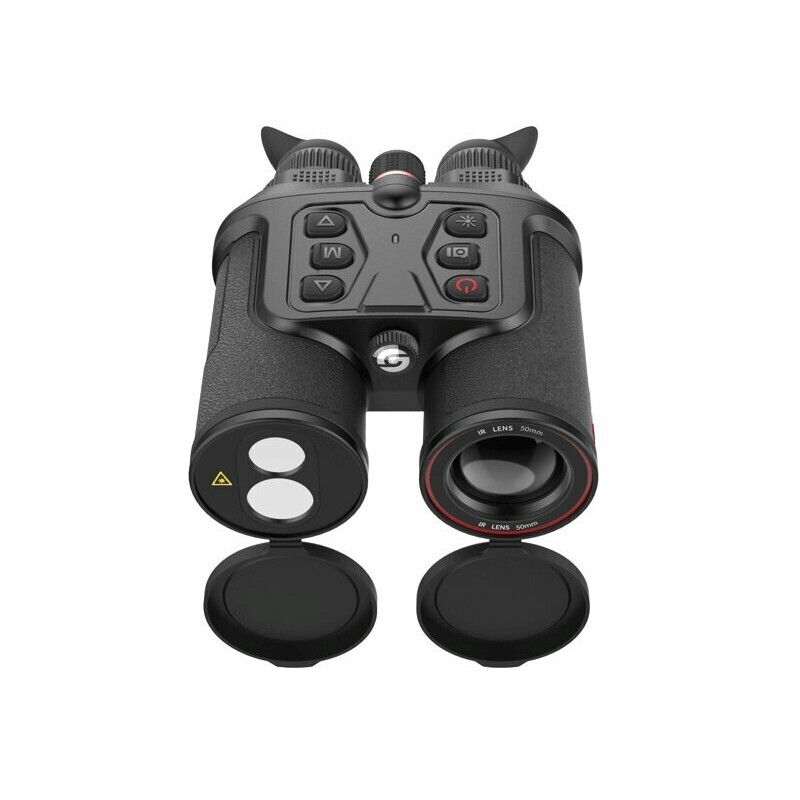

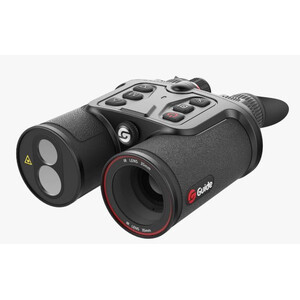

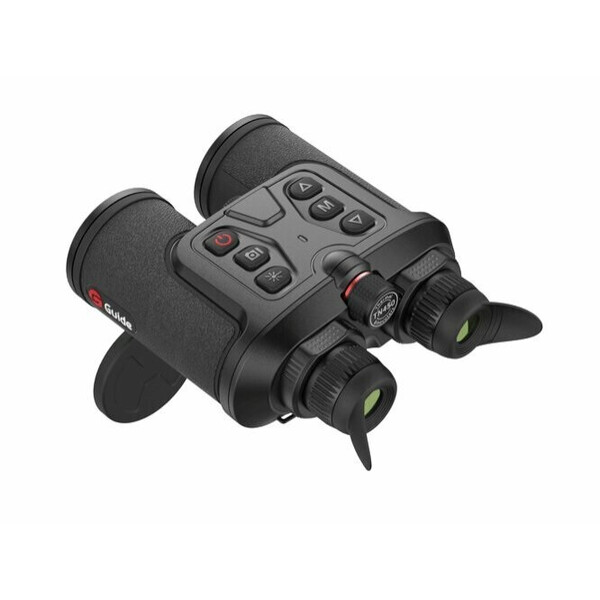

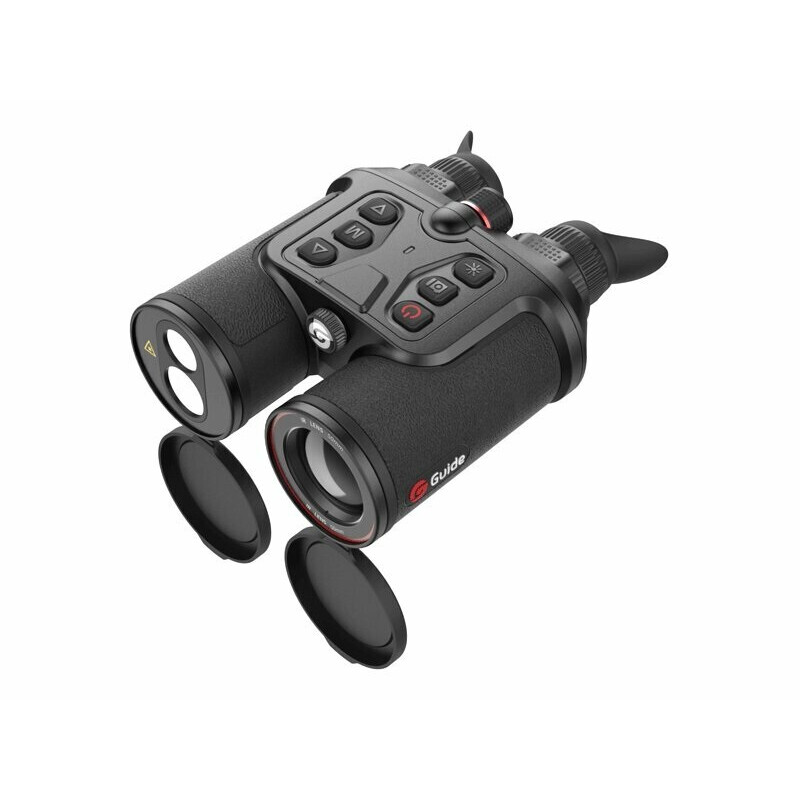

Guide TN450
- Thermal imaging camera as binoculars
- Sensor: 400 x 300
- Pixel pitch: 12μm
- Lens: 50 mm
- Frame rate: 50 Hz
- Spectral range: 8 μm to 14 μm
- Sensitivity (NETD):<30 mK
- Laser rangefinder up to 600m
Ergonomic design Easy observation

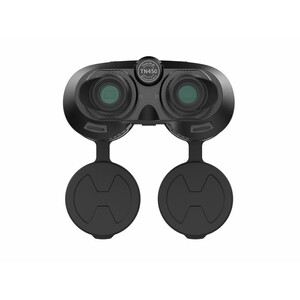

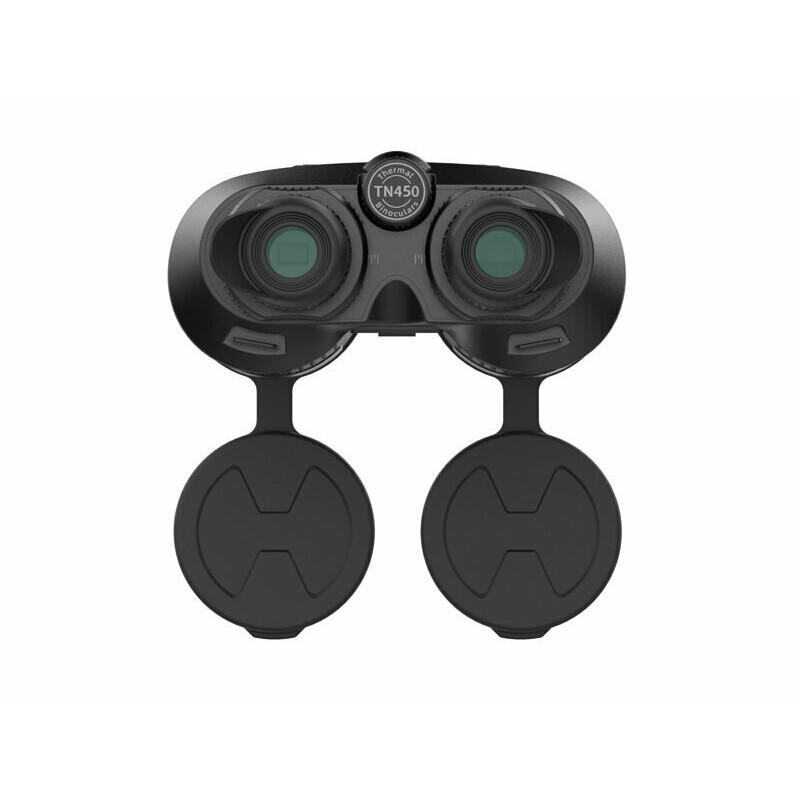

Binocular design greatly reduces fatigue during prolonged observation; adjustable eye relief between 60mm~70mm, catering for different groups of people; ergonomic design, raised buttons can be quickly identified by touch even in complete darkness.
Fast detection, a whole new experience
In the dark, laser detection ensures accurate location with distance information.
High image quality day and night
Up to 640 × 480 VOx uncooled IR resolution and 50Hz frame rate ensure smooth observation of moving targets
Multiple colour palettes to highlight the target
Six colour palettes: white hot, black hot, red hot, green hot, iron red, blue hot.
Photo and video recording
Supports photos and videos to capture wonderful moments at any time. Realise remote control, live image and video transmission via WIFI connection, can share to your social media via APP.
IP66, 1-metre drop test
With IP66 waterproof certification to protect against heavy rain, dust and impact. The working temperature is -30°C~50°C, suitable for all kinds of harsh weather. It has also passed UN38.3 battery certification, RoHS, FCC certification, etc. Guaranteed quality.
Multiple scene modes, clearly highlight the target
Enhance/Highlight/Natural can be quickly switched with one button, and the image can be adaptively adjusted for different scenes. With Enhance/Highlight, image noise can be effectively reduced and the target highlighted.
Full-colour OLED display
1024 x 768 full-colour AMOLED display, high contrast, improved image details, improved viewing comfort.
Well-designed PIP mode, target highlighting
PIP mode, identify the position of the target immediately with PIP mode, even outdoors.
