Product description

Hikmicro LYNX S
Compact size. Easy to transport

LYNX LC06S
Choose the LC06S as your first thermal imaging device. Thanks to its 1.0x base magnification and field of view of 43.8 m at 100 metres, the thermal image vision corresponds to your eye's perception. This makes it the ultimate allrounder, proving its exceptional capabilities in forest environments.

Large OLED display for more intense observation
The high-resolution 0.32-inch 800 x 600 OLED display has lower power consumption, a wider viewing angle and richer colours.

High frame rate, smoother and more detailed images
The LYNX S series features 50 Hz recording. This means that each image is enhanced with a higher dynamic range, effectively reducing eye strain during prolonged outdoor observation.

Convenient brand-new UI design
The new UI design improves the user experience by quickly accessing frequently used functions and not missing a single opportunity to discover your game.

Compact size, easy to carry
Lightweight design weighing only 310 g/0.68 lb. Thanks to the advanced image detector and lens, the detection range of a 1.7 m tall target can be up to 1200 m.

Video and snapshot
The built-in 8GB memory provides storage space for snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB port.

Hotspot for mobile app
The integrated hotspot module turns the Sight app into a second display. Users can use the digital zoom, video recording and other functions on their mobile phones.

Additional benefits

  • Standby mode
  • Stadium rangefinders
  • 4 colour palettes to choose from
  • Up to 8x digital zoom

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
4
Detection distance (m)
250
Sensor type Thermal
VOx
Resolution Sensor Thermal (Pixel)
160x120
Pixel size
17
temperature resolution (mK)
< 35
Image cycle rate (Hz)
50
Display type
OLED
Display resolution (Pixel)
800x600
Image display
Different versions (Black Hot, White Hot, Red Hot, Fusion)
Diopter compensation
-5/+4
Battery durability (h)
10
Lens (thermal)
6,2mm f:1.1
Enlargement (thermal)
1

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes (Stadiometric rangefinders)

Field of view


True field of view (°)
24,7x18,7
Field of view at 100 m (m)
43,8
Close focus limit (m)
1

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
158
Width (mm)
60
Height (mm)
57
Weight (g)
250
Series
Lynx S

Miscellaneous


Battery type
18650

Product safety

Manufacturer: Hangzhou Microimage Software Co., Ltd, Gebäude A1, Nr. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, , Hangzhou, Zhejiang, CN, www.hikmicrotech.com/de/outdoor/
Responsible person: Hoptics GmbH , Lengericher Weg 37, 49584 Fürstenau, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

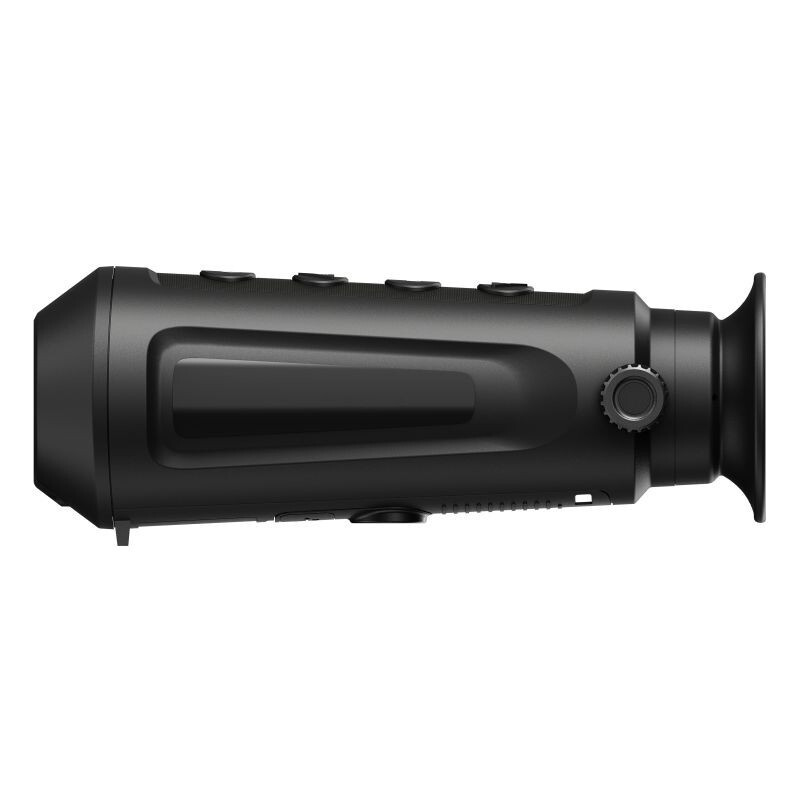

HIKMICRO Thermal imaging camera Lynx LC06S

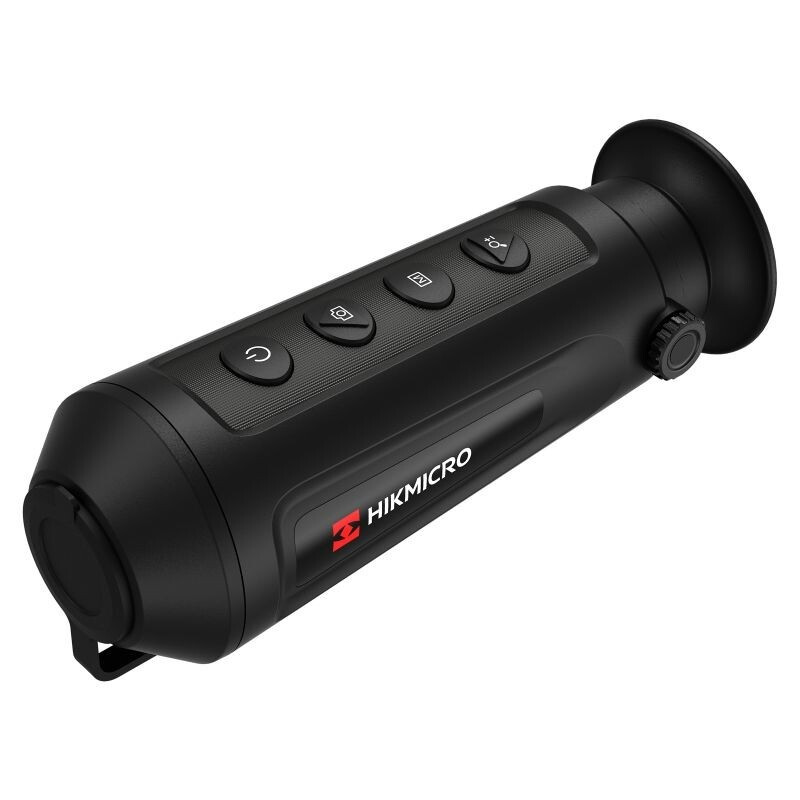

HIKMICRO Thermal imaging camera Lynx LC06S

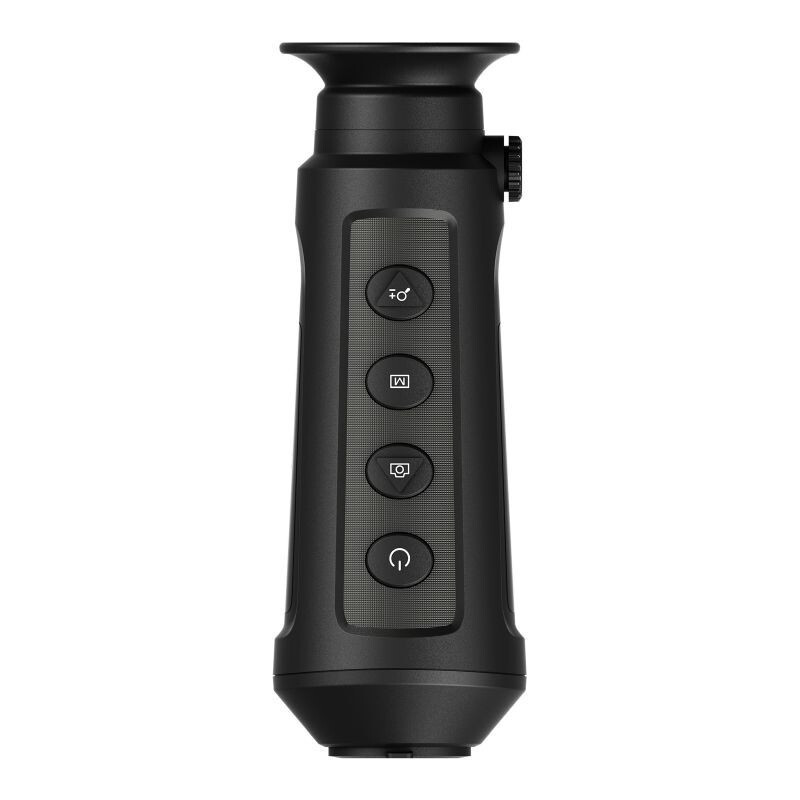

HIKMICRO Thermal imaging camera Lynx LC06S

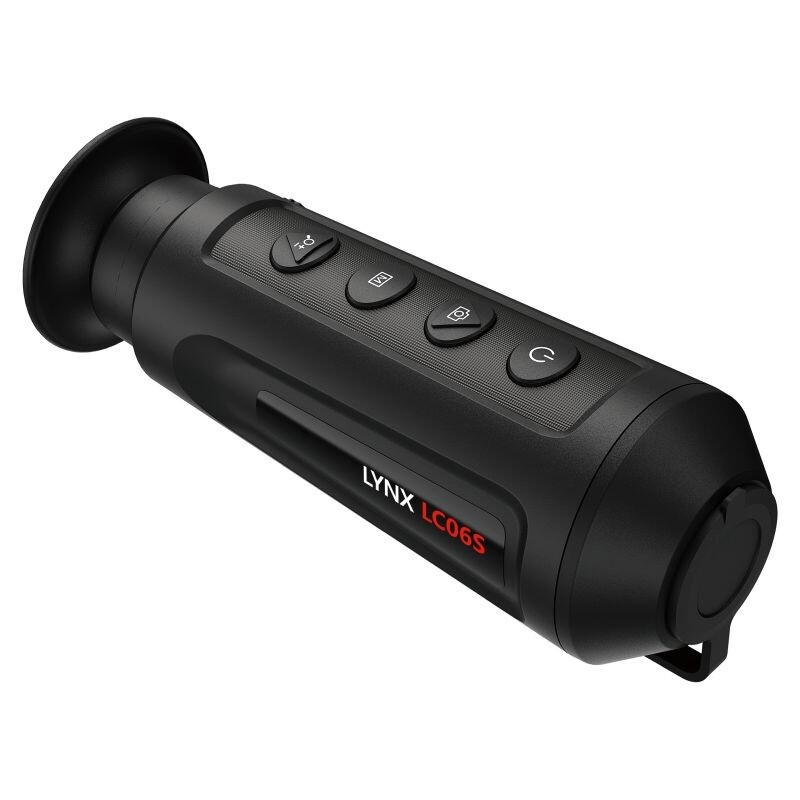

HIKMICRO Thermal imaging camera Lynx LC06S
