Product description

Nocpix LUMI LRF
Small and powerful

The Lumi LRF series makes a strong first impression with its comprehensive features. Even with the integrated LRF, you'll be impressed by its portable size, which is smaller than a mobile phone. Powered by proprietary sensor technology and advanced Reality+ AI image algorithms, it delivers exceptional image quality that stands out in its class, while being incredibly comfortable to carry and use.

Lumi L35R - Key features:

  • Sensor 384x288
  • NETD < 18mK
  • Lens 35mm f:0.9
  • Integrated LRF
  • Electronic image stabilisation
  • R+ image algorithm
  • Ballistic calculation
  • 18650 replaceable battery

A superior sensor sets new standards
The sensor developed in-house with a NETD of <20 or 18 mK ensures stable and outstanding performance and guarantees superior image quality, even under demanding conditions.

The most compact thermal imaging monocular with LRF
Equipped with an integrated 800 m laser rangefinder (LRF), it offers fast response and low latency, adding another dimension to your observations.

Extremely handy and lightweight design
It is ultra-compact and bag-sized, fitting easily into your bag with dimensions of only 147 × 47 × 74 mm. It weighs less than 385 g with the battery and 335 g without the battery, offering excellent portability and comfort.

F0.9 lens
The F0.9 lens is 20% more light-transmissive than a conventional F1.0 lens, ensuring brighter and clearer images.

Reality+ image enhancement algorithms
The latest Reality+ image enhancement algorithms optimise image quality and reduce noise, allowing you to get the most out of the thermal sensor.

Silent controls that won't scare away game.
The silent buttons ensure that no game is startled during operation.

Fatigue-free viewing
The Lumi is equipped with a variety of colour palettes, of which the red and green palettes are designed to reduce eye fatigue and enable comfortable long-term use.

Replaceable 18650 battery
The Lumi is equipped with a replaceable 18650 battery that allows for up to 5 hours of uninterrupted use per charge.

10 mm exit pupil diameter
The eyepiece with a 10 mm exit pupil offers an optimal viewing angle and excellent visibility from all perspectives and in every situation.

Additional outstanding advantages
As a versatile product, the Lumi offers numerous advantages: it is protected to dustproof class IP67, weighs less than 400 g, has photo, video and microphone functions and 32 GB of storage space, thus meeting the highest standards of quality and performance.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Enlargement (thermal)
4
Zoom (digital)
-16
Lens (thermal)
35mm f:0.9
Sensor type Thermal
VOx
Resolution Sensor Thermal (Pixel)
384x288
Pixel size
12
temperature resolution (mK)
< 18
Image cycle rate (Hz)
50
Maximum operating distance (m)
1800
Display type
AMOLED
Display resolution (Pixel)
1024x768
Image display
Different versions (7 different colour modes)
Diopter compensation
-5/+5
Battery durability (h)
4,5

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
1/4
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
Laser rangefinder (800m)

Field of view


True field of view (°)
7,5x5,7
Field of view at 100 m (m)
13

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
147
Width (mm)
47
Height (mm)
74
Weight (g)
375
Series
Lumi LRF

Miscellaneous


Battery type
18650

Product safety

Manufacturer:

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

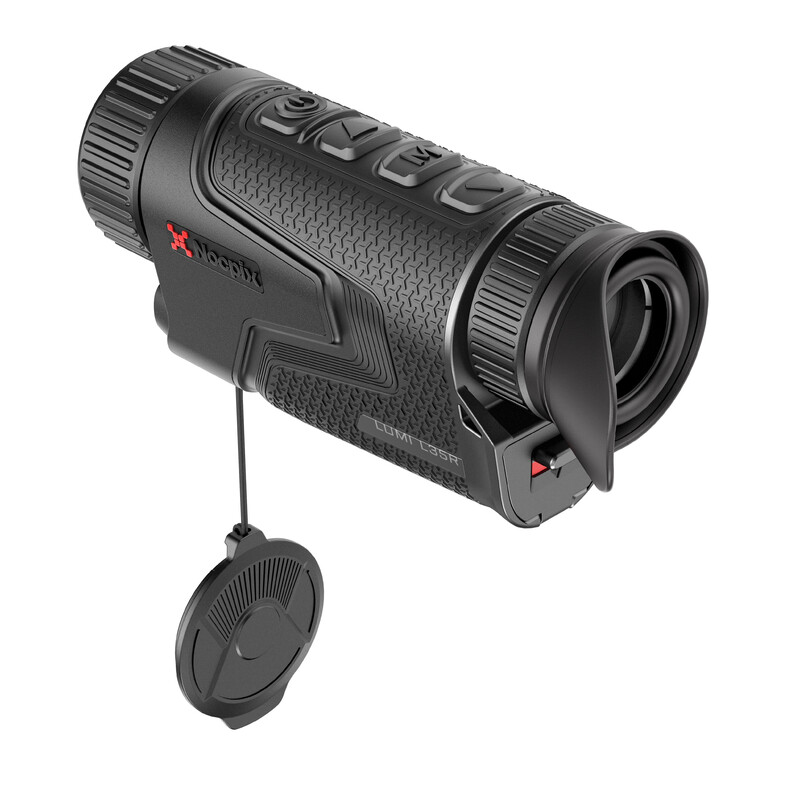

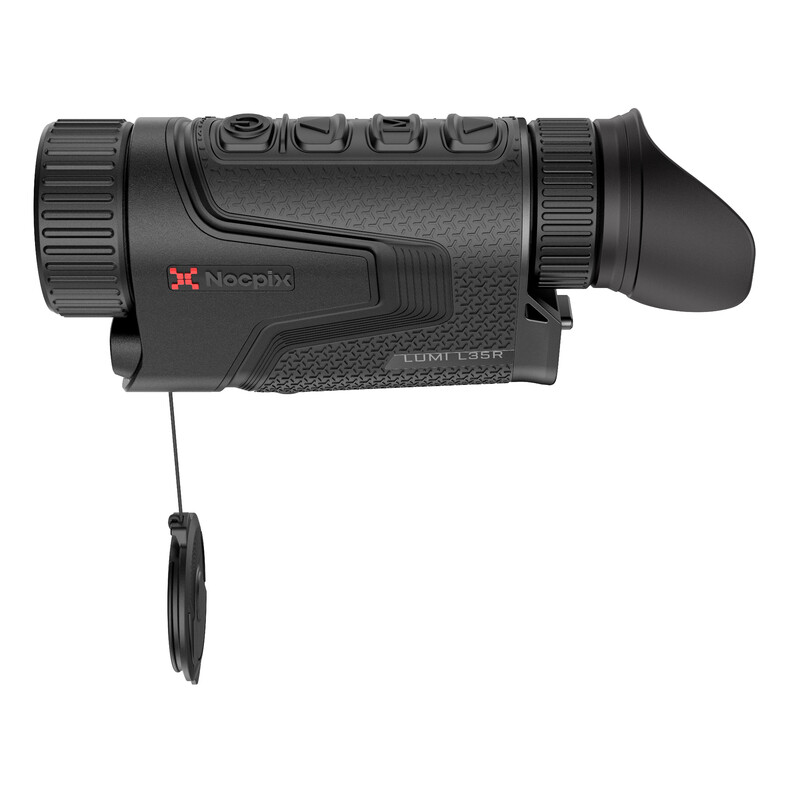

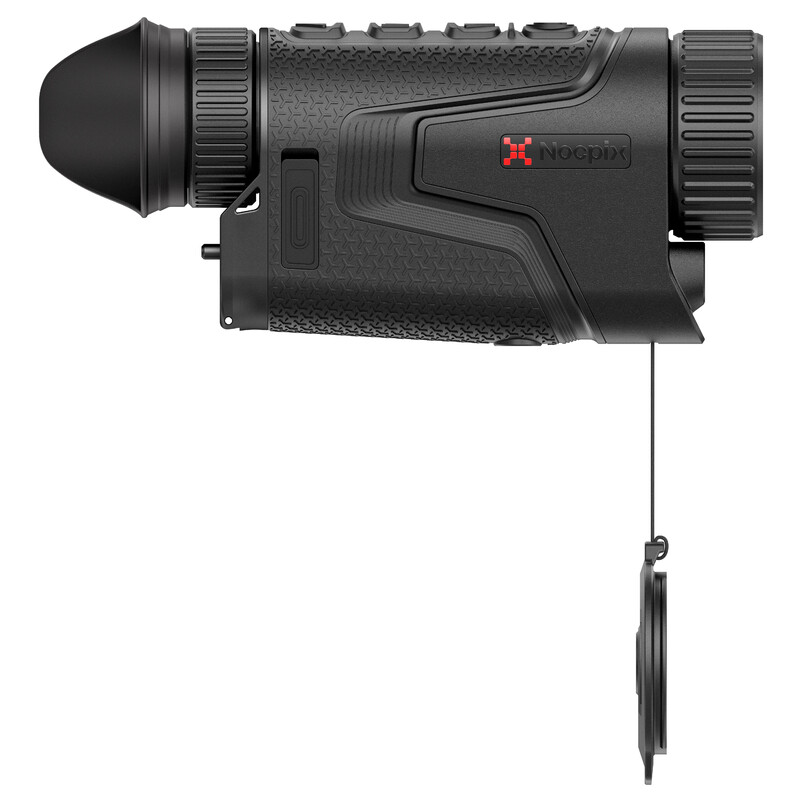

Nocpix Thermal imaging camera Lumi L35R

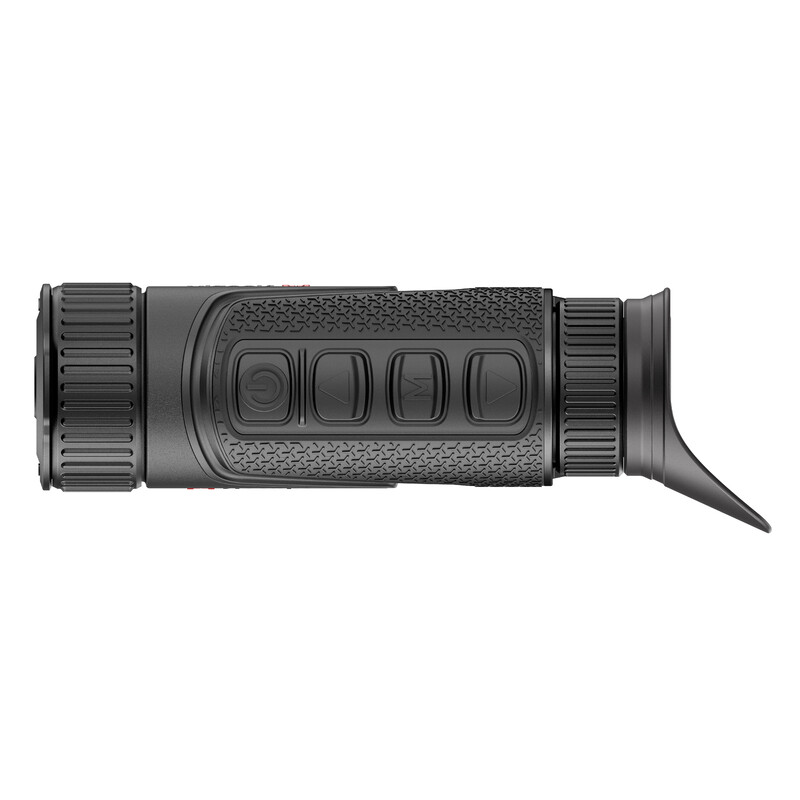

Particularly quiet button operation

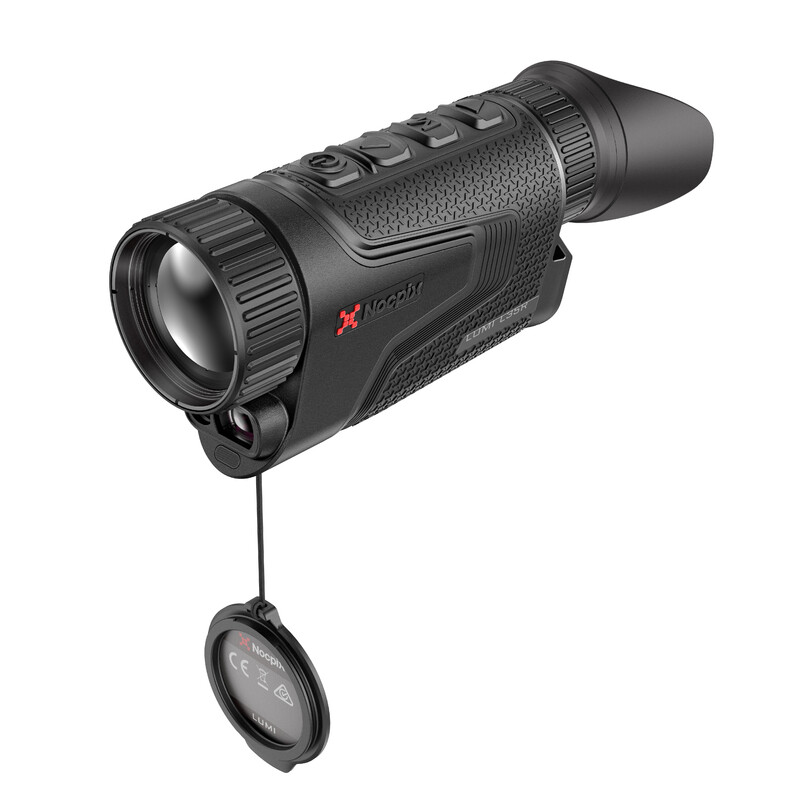

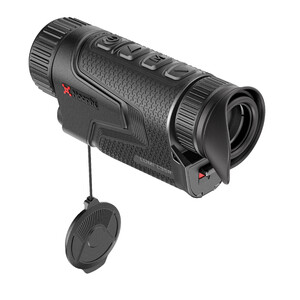

Nocpix Thermal imaging camera Lumi L35R

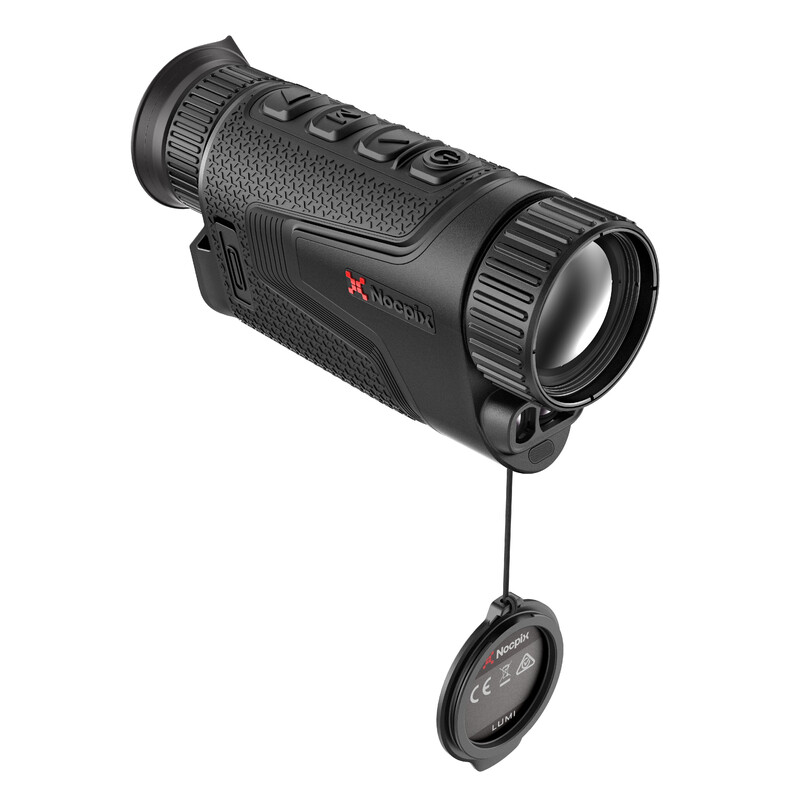

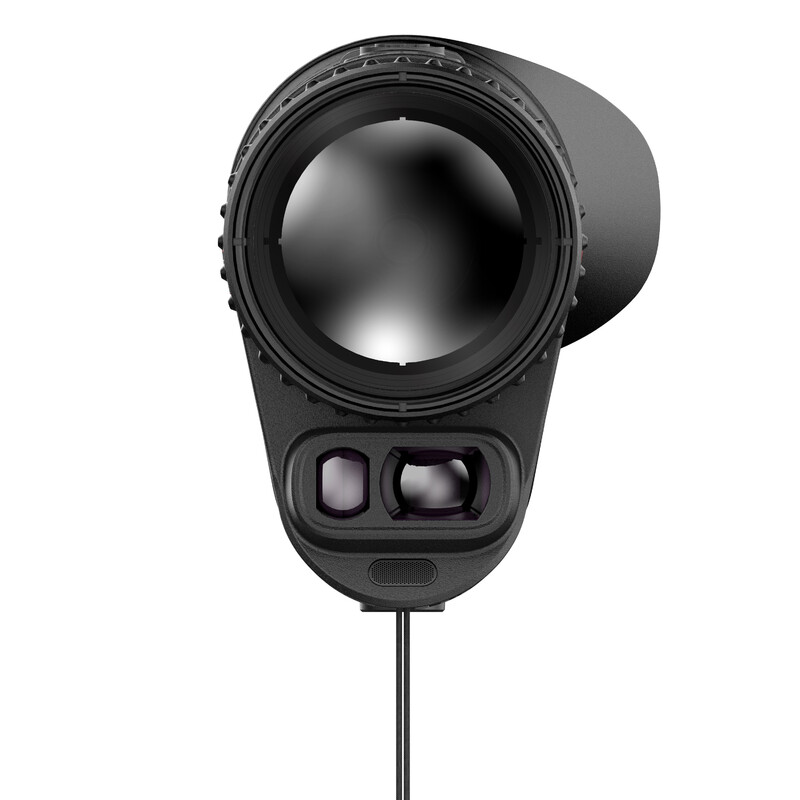

The laser rangefinder is located under the objective lens

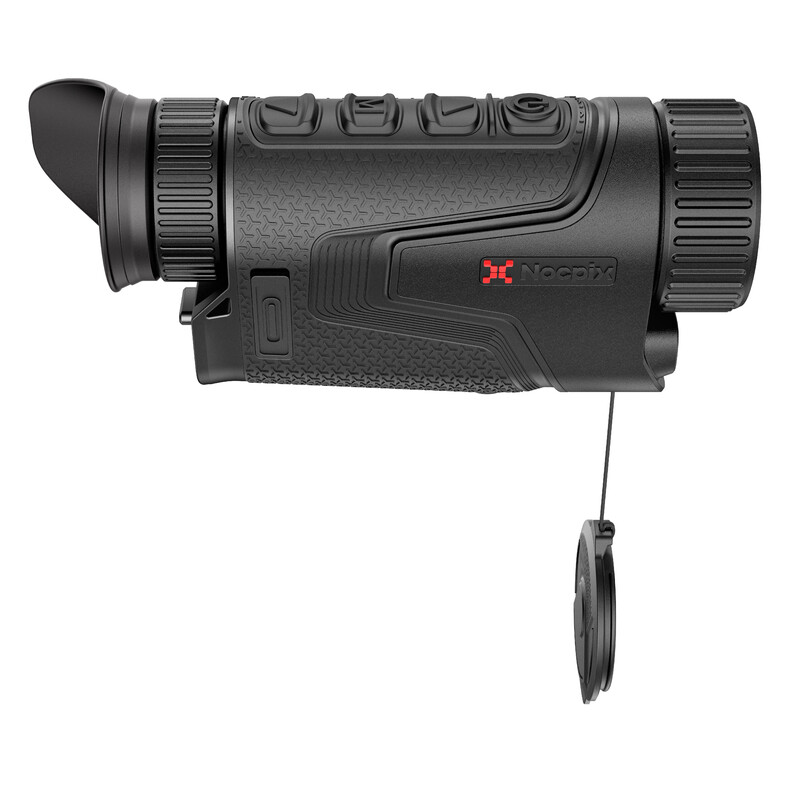

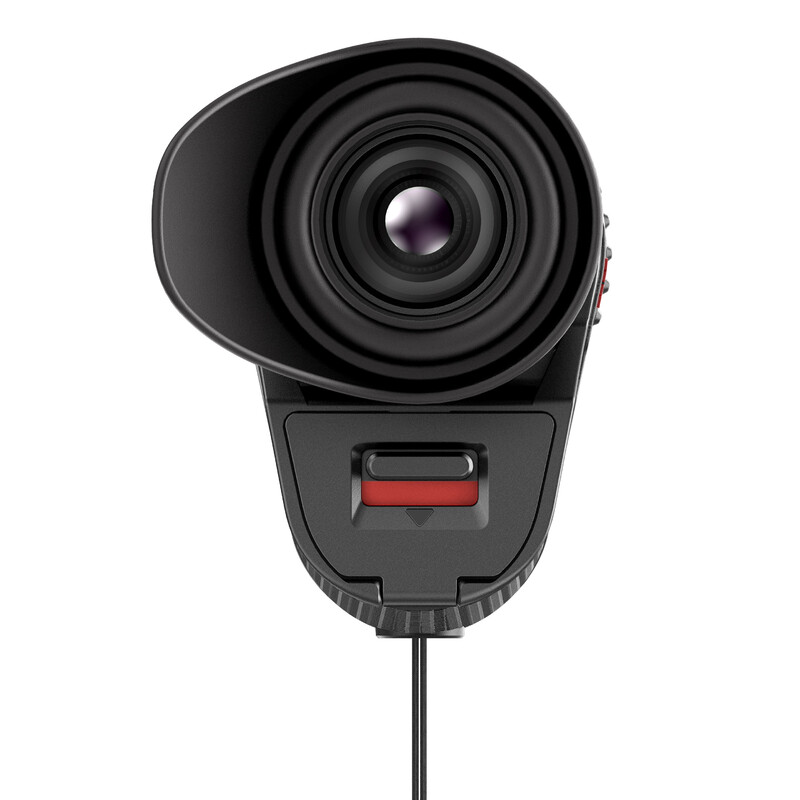

Nocpix Thermal imaging camera Lumi L35R

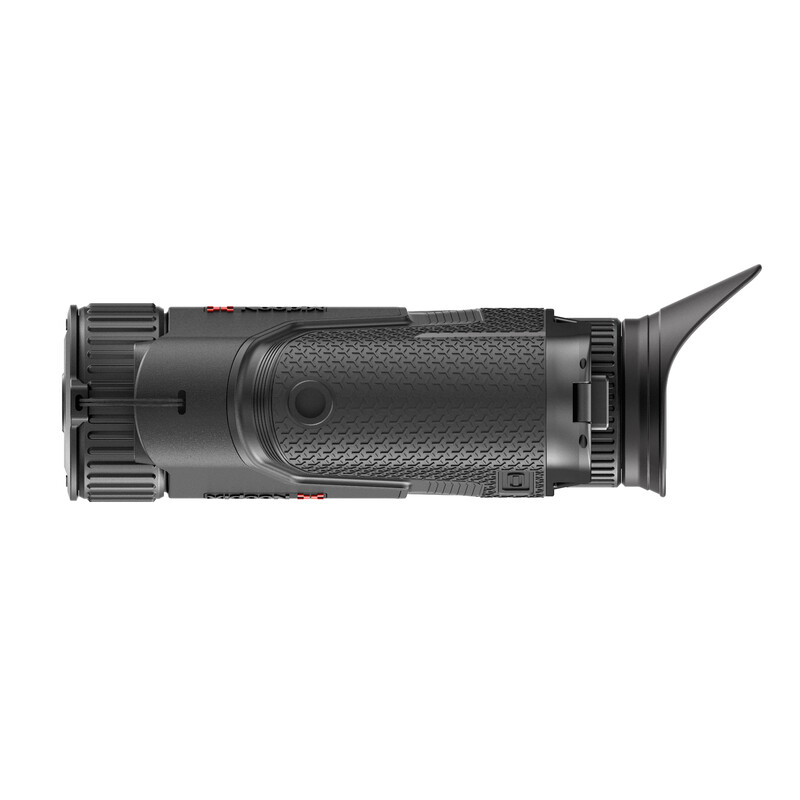

Replaceable battery for long operating time.
