Astrophotography > Cameras > Astronomical Cameras > Moravian > G2 > Moravian Camera G2-8300C Color
Product no.: 50308

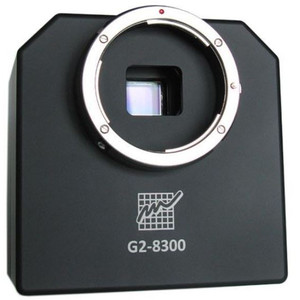

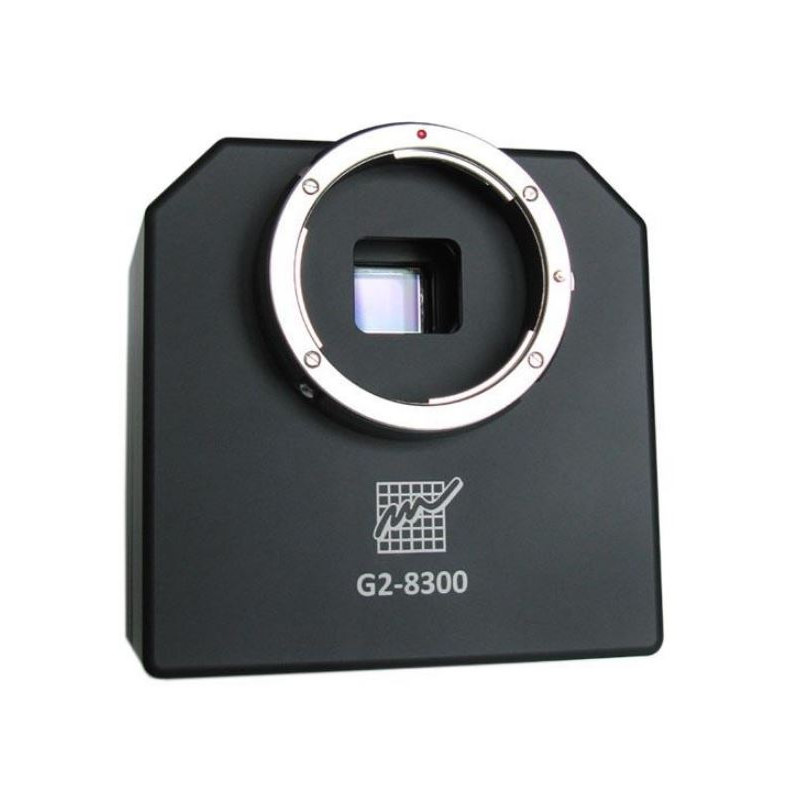

Camera G2-8300C Color

RRP: $ 2,360.00 Our price:
$ 2,230.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

G2-series of small format CCD-cameras uses high sensitive, low noise OnSemi Full-Frame and Interline-Transfer CCD detectors.

While high-speed USB 2.0 interface allows plug-and-play operation and ensures download time within a few seconds, optional Ethernet interface provides camera connection to practically unlimited distance. Advanced analog electronics ensures uniform frames without artifacts and very low read noise. Efficient, regulated two-stage Peltier cooling keeps detectors frozen to minimize dark current. Compact and robust camera head integrates all electronics, mechanical shutter and optional internal filter wheel. Various threaded and bayonet adapters enable attaching of the camera to almost any optical system and numerous accessories like autoguiding cameras, off-axis guider adapters, external filter wheel etc. allow tailoring of the imaging system to almost every application.

All members of the G2 series share the same design, making them powerful research and imaging tools:

  • Lowest possible read noise, limited by CCD detector itself
  • High dynamic range, 16-bits digitization
  • Compact camera head, small and lightweight enough to be attached even to small telescopes
  • Integrated mechanical shutter not to bother with covering the telescope when taking dark frames
  • Optional integrated filter wheel
  • Plug and play installation
  • Rich software support

No matter if your target is reliable scientific data or beautiful images of deep-sky objects, G2-CCD-cameras are able to provide both.

Specifications

Capacity


Sensor type
CCD-chip (Kodak KAF-8300)
Resolution Photograph (Pixel)
3358 x 2536
Megapixel
8,5
Flange focal distance (mm)
16,5
Active cooling
yes
Pixel size
4,5
Connection (to the telescope)
M48
Colour camera
yes
Size of chip (mm)
18 x 13,5
Full Well Capacity
25000
Antiblooming
yes
Reading noise
9
Microlenses
yes
Dark current
0,2
Max. cooling difference below room temperature
45
Interfaces
USB 2.0
Quantal efficiency
54% @500nm
Chip - Diagonal (mm)
22,5

Equipment


Transport cases
yes
Power pack
yes
Filter wheel
no

General


Series
G2
Weight (g)
1050

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
no
Nebulae & galaxies
yes

Recommended accessories

Telescope accessories (2)
Off-Axis-Guider

Moravian Off-Axis-Guider Off Axis Guider CCD-OAG-M48

$ 291.00*
Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography > Camera adaptor (10)

Moravian 2" adapter for G2 and G3 CCD cameras

$ 64.00*
Astrophotography > Other (1)

Moravian Ethernet adapter for G0 to G4 CCD cameras

$ 359.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

Moravian Camera G2-8300C Color

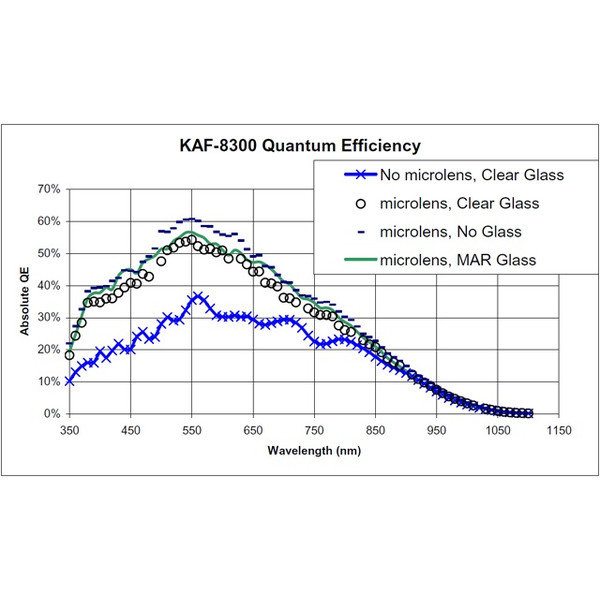

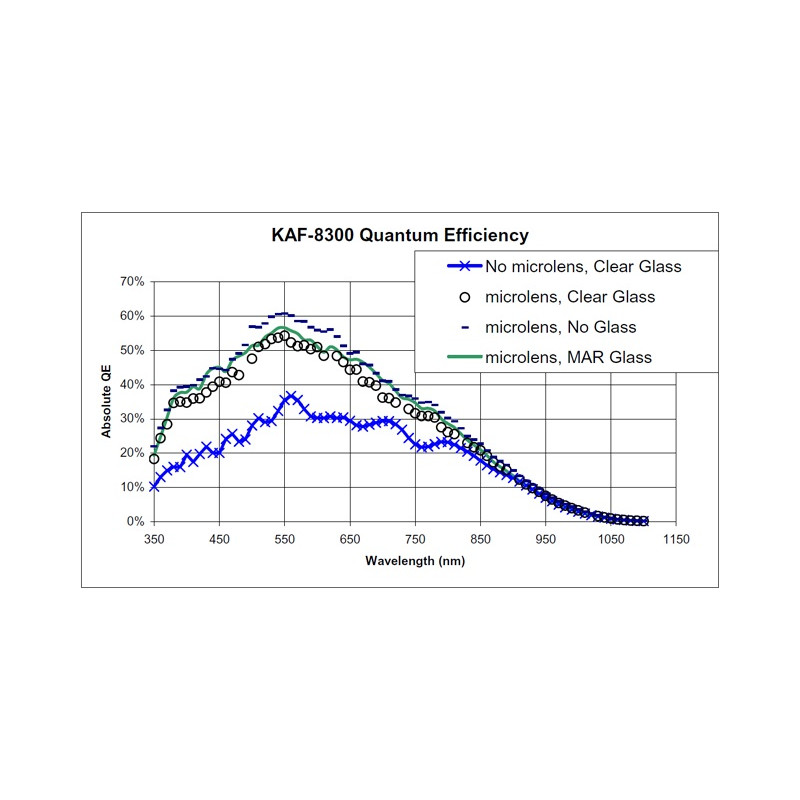

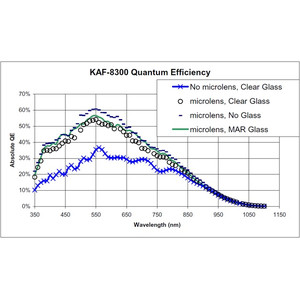

Quantum efficiency
