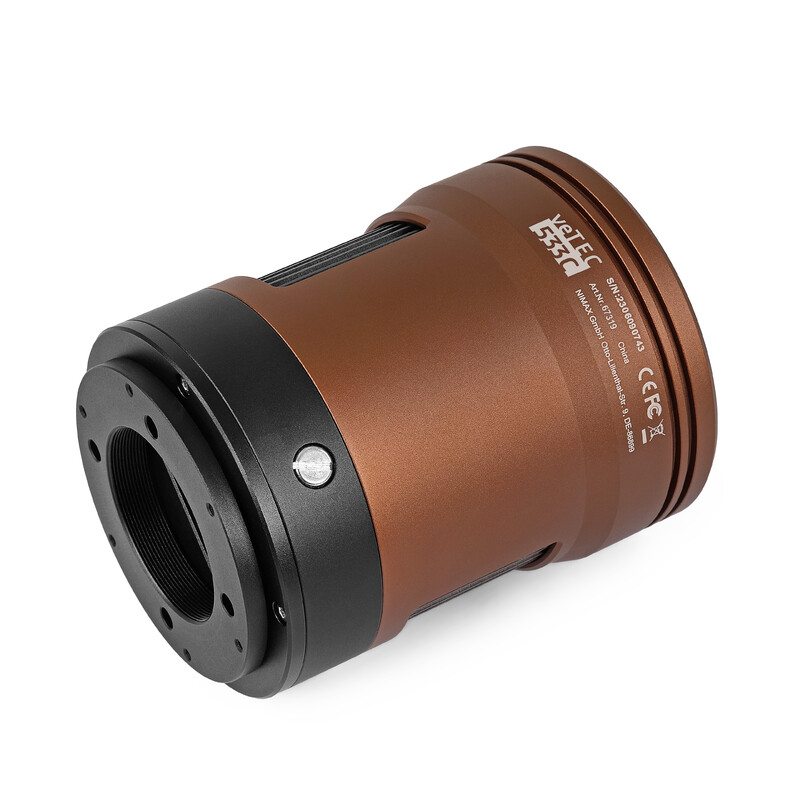

The Omegon Pro veTEC 533 C is the successor to the popular veTEC 16000 camera. The new square Sony IMX533 sensor represents a huge improvement while maintaining the same pixel size (3.8µm):
- better quantum efficiency (~80%)
- lower readout noise (~ 1.3e- @Unity Gain)
- higher full-well capacity (50,000 e-)
- ADC: 14-bit
- Zero-Amp-Glow: No amplifier glow
The result is even less noise and a better dynamic range!

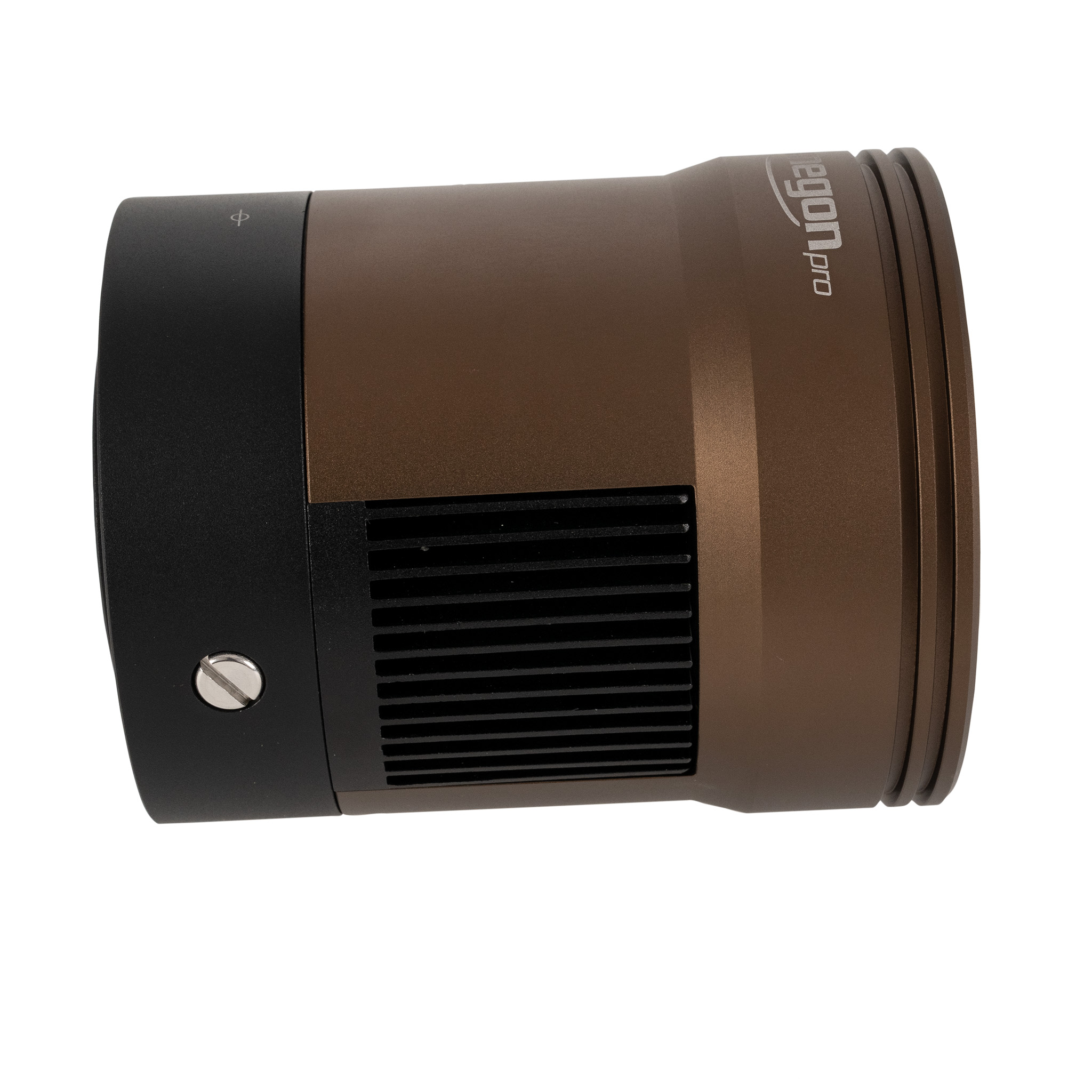

Like the previous model, the camera is equipped with thermoelectric cooling to minimize thermal noise.
Despite its slightly smaller size, the IMX533 sensor is perfectly suited for astrophotography thanks to its square shape.
Professional Deep-Sky Astrophotography: The giant sensor is perfect for wide nebulas, star fields or the lunar surface. Compared to other astrophotography cameras, this one is more akin to the generously sized sensors in DSLR-cameras.
Thermoelectric cooling: The cooling system reduces noise in the image. At 40°C below ambient temperature, the noise caused by dark current is almost completely gone. In addition, the precise control of the sensor's temperature is very helpful for calibrating your astrophotos with dark frames: They all can be made at the correct temperature. The final images are impressively clean.

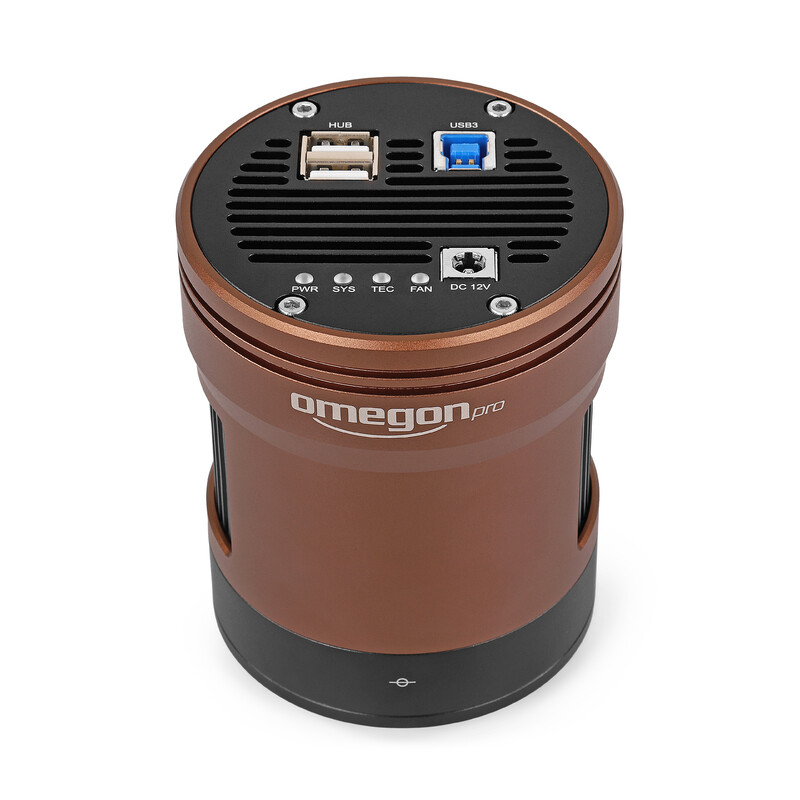

USB-Hub: 2 USB ports at the back of the camera are reducing the cable chaos of your astrophotography setup. Additional devices (for example guiding cameras) can be daisy chained through this hub. A separate cable connection to your pc for every single device is now a thing of the past.

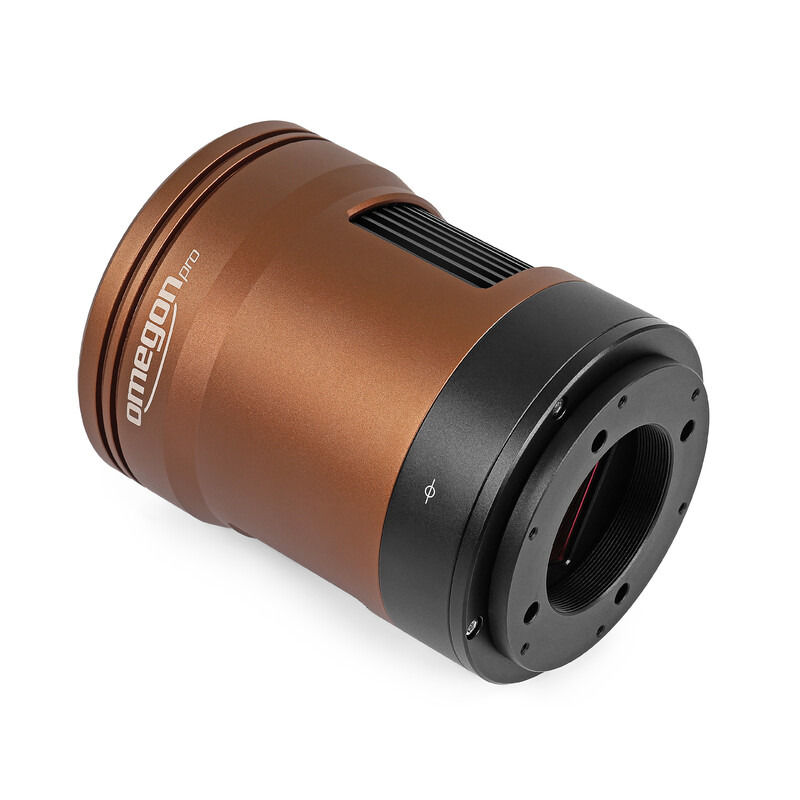

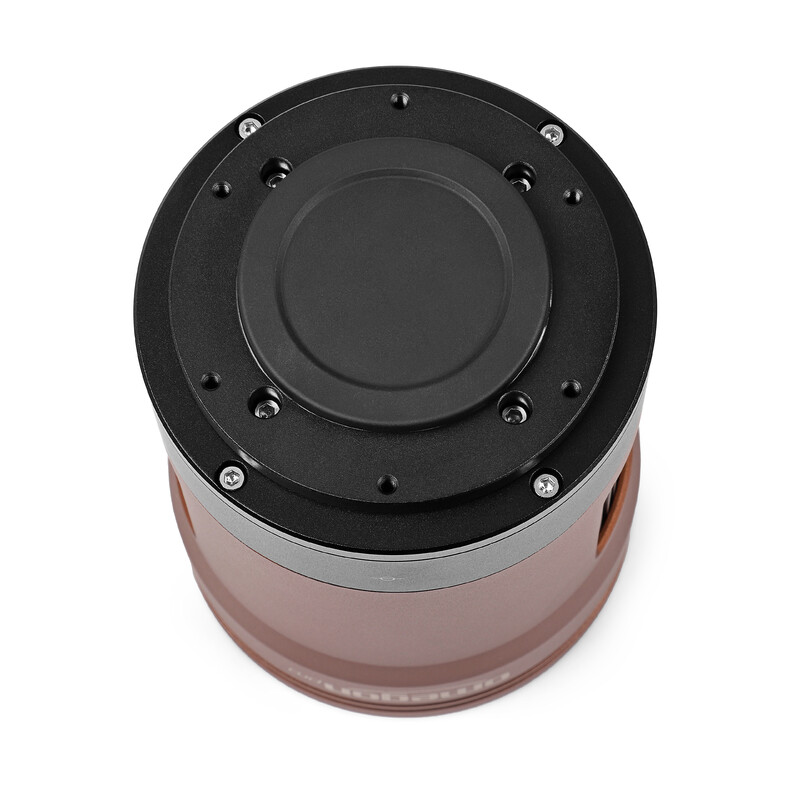

The camera can be adapted to almost any astrophotography setup, thanks to a T2 thread and a short back focus of only 17.5mm. Of course a 2" nosepiece adapter allows you to simply connect the camera like any 2" eyepiece.

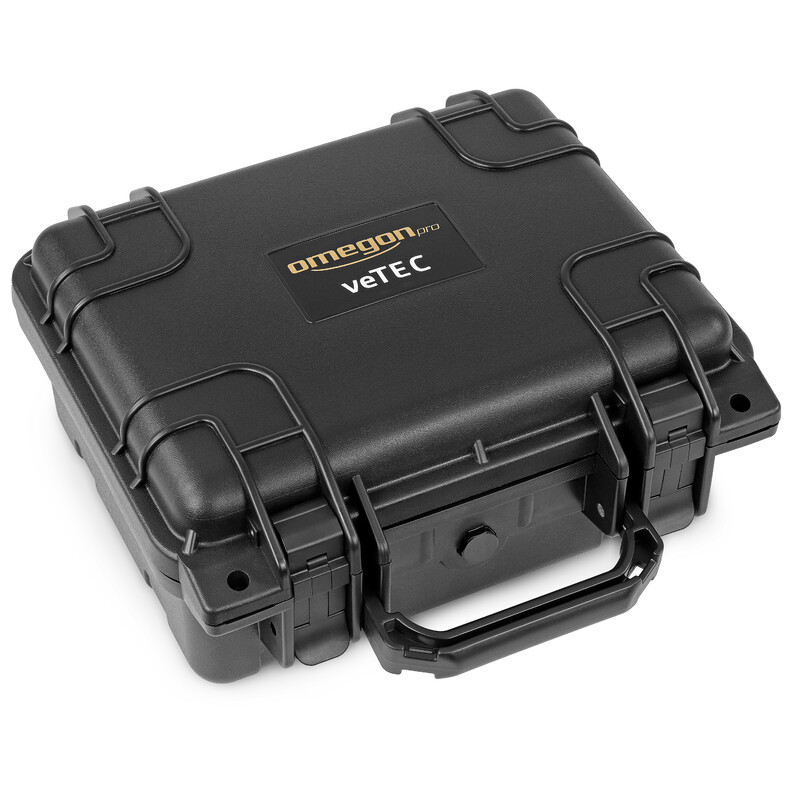

The provided sturdy case with fitting foam inlet gives anyone peace of mind when transporting or storing this valuable camera.
Professional planetary-, lunar- and solar-astrophotography: Capturing the shadows of Jupiter's moons, separations in Saturn's rings, detailed mountain ranges on the Moon or impressive prominences on the surface of the sun - these impressive targets in our solar system can only be photographed properly with a very high framerate: This freezes the so called seeing, turbulences of the atmosphere that usually hide details from view. This 'lucky imaging' technique is now a breeze, thanks to sophisticated electronics and the high bandwidth of the camera's USB3.0. We recommend the Region-Of-Interest feature of the supplied Omegon AstroPhotoCapture software: This optimized the framerate by reading out only the relevant part of the sensor that contains the planet or detail you are interested in.
Transmission: A filter window protects the sensor chamber from dust and humidity. The Omegon Pro colour cameras are equipped with and infrared-blocking filter. Modern CMOS sensors are sensitive to infrared light, so a correct color representation in the final image is only possible by removing these wavelengths before capture. On the other hand, the Omegon Pro mono cameras feature an anti-reflection window, that is transparent to a wide range of wavelengths from the ultraviolet to the infrared. You can add your own filters for unrestricted control over your transmission curve - invaluable for advanced imaging and photometric applications.
Convenient Capture Software: The included software Omegon AstroPhotoCapture allows straightforward and easy-to-learn camera control. The correct camera settings during the capture process are crucial for astrophotography. AstroPhotoCapture gives you full control over every parameter of your camera, without an overburdening interface. Easy to follow tutorials cover the capture process step for step, to make your first astrophotography session successful. The software is compatible with Windows 7, 8 and 10.
Compatibility: The Omegon Pro cameras are compatible with a wide range of available astrophotography programs through the common interfaces ASCOM and INDI. Native compatibility is also being added to a growing number of programs, like PHD2 and N.I.N.A.

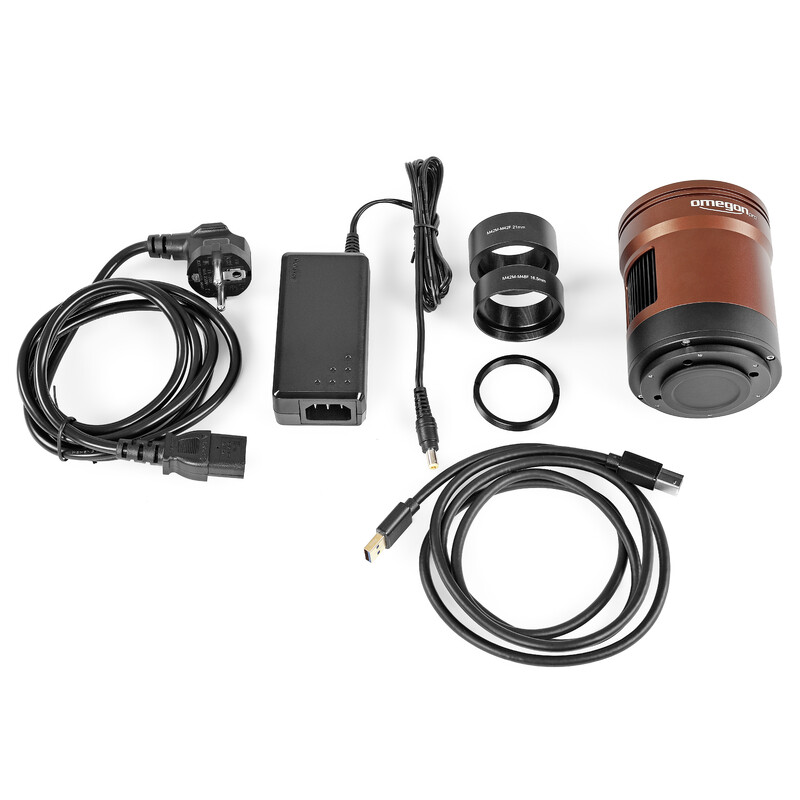

Scope of delivery:
- T2 to 2" adapter
- USB 3.0 Cable
- 12V 3A Power Supply (EU-Plug)
- Sturdy carrying case
- Desiccant plug

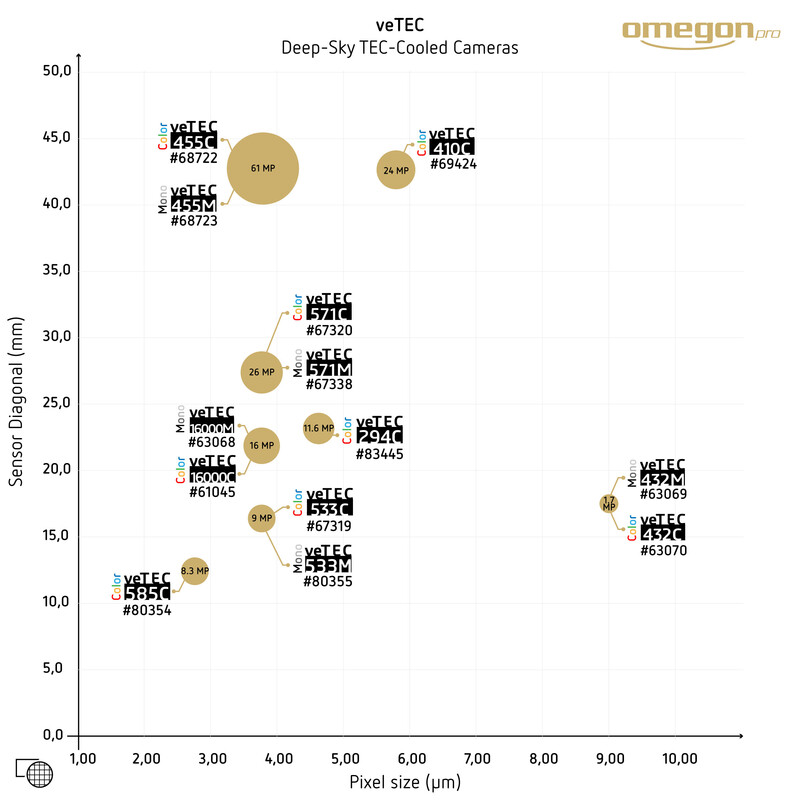

Comparison of the available sensors
