Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 1600 > ZWO Camera ASI 1600 MC Color
Product no.: 50237

Camera ASI 1600 MC Color

RRP: $ 940.00 Our price:
$ 920.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

This colour camera is suitable for lunar and planetary exposures, but also for deep sky photography. This is ensured by the use of fast USB 3.0 and a low noise CMOS sensor.
The 21.9mm sensor diagonal and small 3.8ìm pixel size, means the camera has both high resolution and a wide field of view.

The camera comes equipped with an AR clear glass filter and is hence also transparent in the infrared spectrum. A corresponding cutting filter is required if the infrared range is to be blocked.

The camera and accessories permit many adaptation options - 1.25", 2" or T2 (M42x0.75). The distance between the T2 connection thread and camera sensor is 17.5 millimetres.

Supported resolutions and frame rates (fps = frames per second):

12 bit ADC

  • 4656×3520 14.7fps
  • 3840×2160 23.1fps
  • 1920×1680 32.9 fps
  • 1280×960 47.1 fps
  • 640×480 80.4 fps
  • 320×240 124.4 fps


10Bit ADC

  • 4656×3520 23fps
  • 3840×2160 36.2fps
  • 1920×1680 57.7fps
  • 1280×960 73.6 fps
  • 640×480 125.7fps
  • 320×240 192.4 fps

In addition to the camera and the adapters, a USB cable, an ST4 auto-guider cable and a CD with drivers for PC, Mac, Linux are also included.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Software and drivers are available for free download on the manufacturer's website: software drivers

Specifications

Capacity


Sensor type
CMOS Chip (Panasonic MN34230)
Megapixel
16
Resolution Photograph (Pixel)
4656x3520
Pixel size
3,8
Interfaces
USB 3.0
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
1,25" & T2
Colour camera
yes
Operating temperature
-5 - 45
Max. exposure time (min)
30
Min. exposure time
32 µs
Images per second
23 (at full resolution)
Full Well Capacity
20.000
Flange focal distance (mm)
6,5
Reading noise
1,2
Cable length (m)
2
Size of chip (mm)
17,7 x 13,4
Supported operating systems
Windows, Mac, Linux
Chip - Diagonal (mm)
22,2

Equipment


Filter wheel
no

General


Weight (g)
140
Series
ASI 1600
Diameter (mm)
62
Height (mm)
41

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters > Nebulae filters (3)
Filters

Astronomik Filters 1.25" CLS CCD filter

$ 108.00*
Filters > Other (1)
Filters

ZWO Filters Filter IR-Pass 1,25"

$ 38.90*
Astrophotography (3)

ZWO ASI Lens 2.8mm - 12mm

$ 48.90*
Astronomy (4)
Blocking Filters

Astronomik 1.25" IR blocking filter

$ 65.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 1600 MC Color

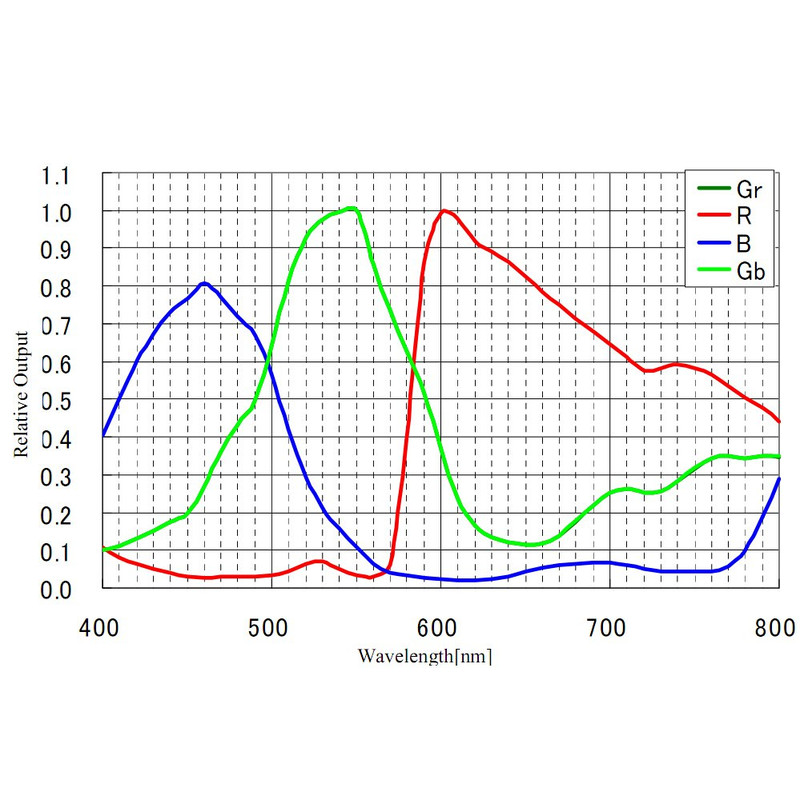

Quantum efficiency

ZWO Camera ASI 1600 MC Color

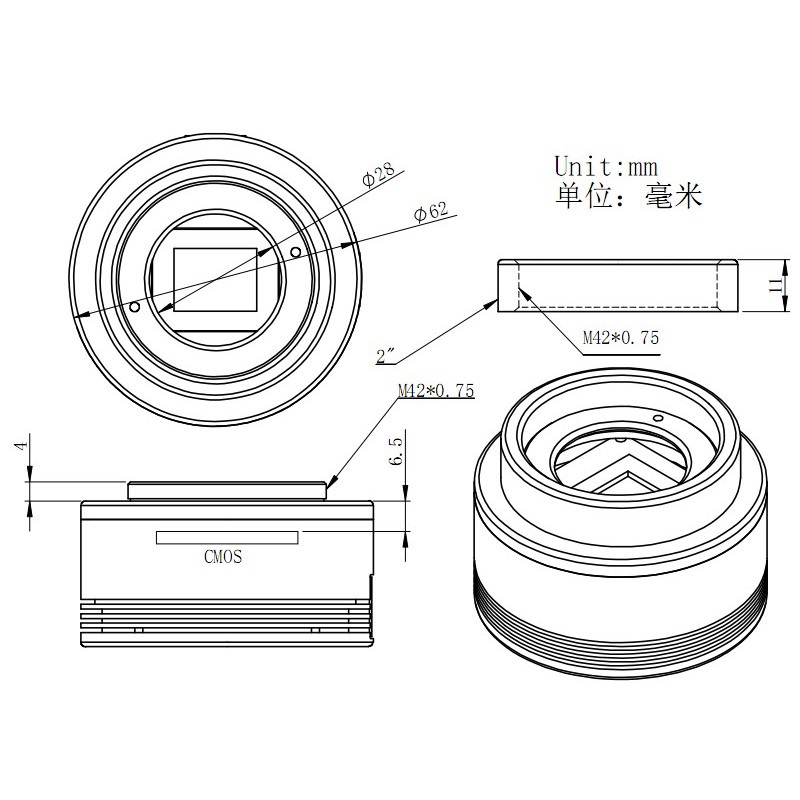

Dimensions
