Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 1600 > ZWO Camera ASI 1600 MM Pro Mono
Product no.: 56064

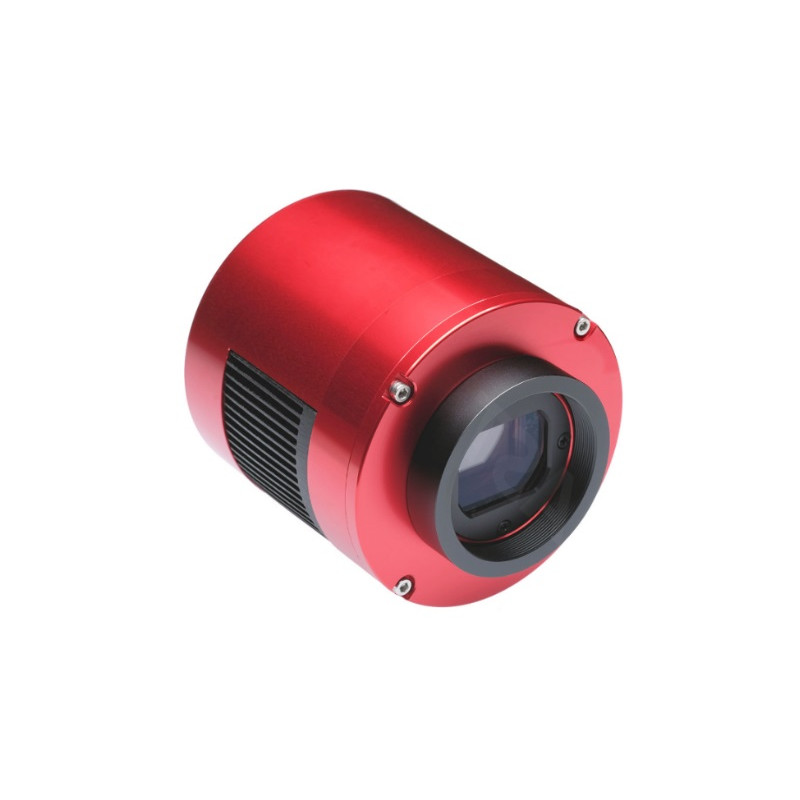

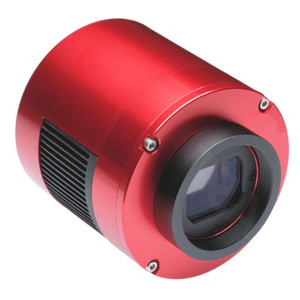

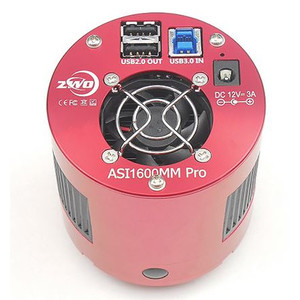

Camera ASI 1600 MM Pro Mono

RRP: $ 1,920.00 Our price:
$ 1,710.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Cooled black and white camera for demanding astrophotographers!

A modern Panasonic CMOS sensor is used, which convinces with its very high sensitivity and very low noise at the same time.

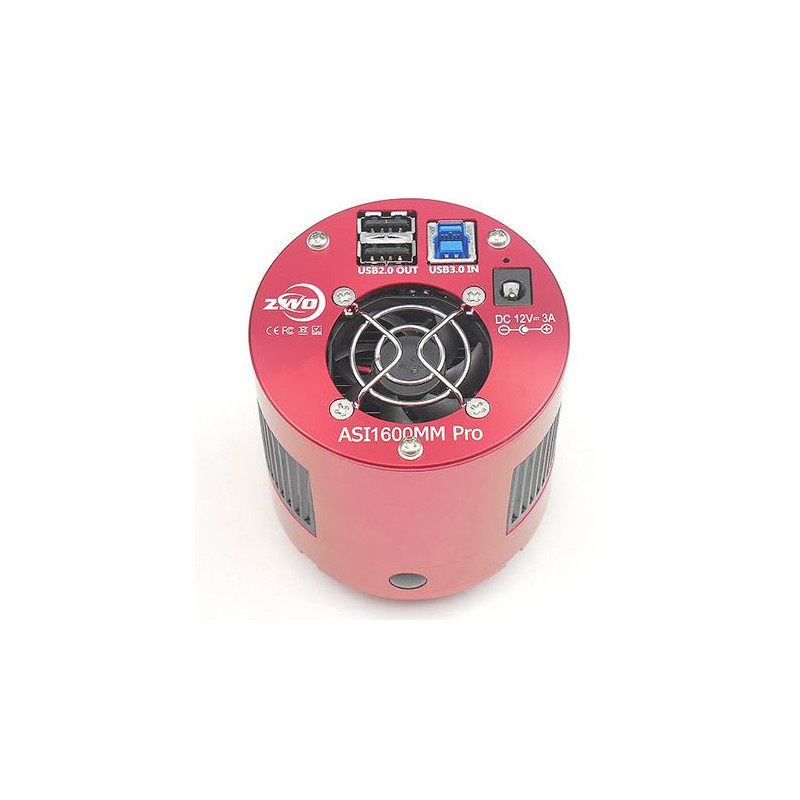

  • USB 3.0 for a fast download - can also be operated with USB 2.0
  • DDR memory buffer 256 MB for stable data transfer with USB2.0 - prevents amplifier glowing.
  • Powerful Peltier cooling up to 45 ° C under ambient conditions
  • Distance T2 connection thread (internal thread) to the camera sensor: 17.5 mm
  • High sensitivity - QE over 60% - ideal astronomy camera for faint objects

Application areas of the camera:

  • DeepSky images (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are visible after only a few seconds. The camera can be cooled to up to 45°C under ambient conditions. As a result, the already low noise is further reduced. By raising the GAIN (Comparable to the ISO setting for digital SLR cameras), you can reduce the exposure time to less than 30 seconds. Effects due to inaccuracies of the tracking are thus switched off.
  • Lunar and planetary images: Extremely short exposure times due to high sensitivity. Due to the high resolution of the sensor many details can be reproduced even with a shorter telescope focal length. Video astronomy is also possible.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras: ASI1600 Pro camera includes one 256MB DDR3 memory buffer to help data transfer more stable and no amp-glow issue which is caused by the slow speed data transfer during reading out under USB2.0 Port.

The sensor of the camera is protected by an AR clear glass filter. This grants a full passage also in infrared. If the IR light needs to be blocked, an IR cut filter is needed.

Supported resolutions and frame rates (fps = frames per second):

12Bit ADC

  • 4656×3520 14.7fps
  • 3840×2160 23.1fps
  • 1920×1680 32.9fps
  • 1280×960 47.1fps
  • 640×480 80.4fps
  • 320×240 124.4fps

10Bit ADC

  • 4656×3520 23fps
  • 3840×2160 36.2fps
  • 1920×1680 57.7fps
  • 1280×960 73.6fps
  • 640×480 125.7fps
  • 320×240 192.4fps

Cooled ZWO ASI cameras need a 12V power supply, If you don’t have one, please check the recommended accessories for a suitable power adapter.

Specifications

Capacity


Sensor type
CMOS Chip (Panasonic MN34230)
Megapixel
16
Resolution Photograph (Pixel)
4656 x 3520
Pixel size
3,8
Interfaces
USB 3.0 & USB 2.0
Bit depth (Bit)
12
Active cooling
yes
Connection (to the telescope)
1,25" & T2
Colour camera
no
Operating temperature
(-5) - (+45)
Max. exposure time (min)
30
Min. exposure time
32 µs
Images per second
23 (at full resolution)
Full Well Capacity
20.000
Flange focal distance (mm)
6,5

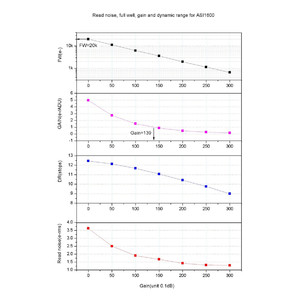

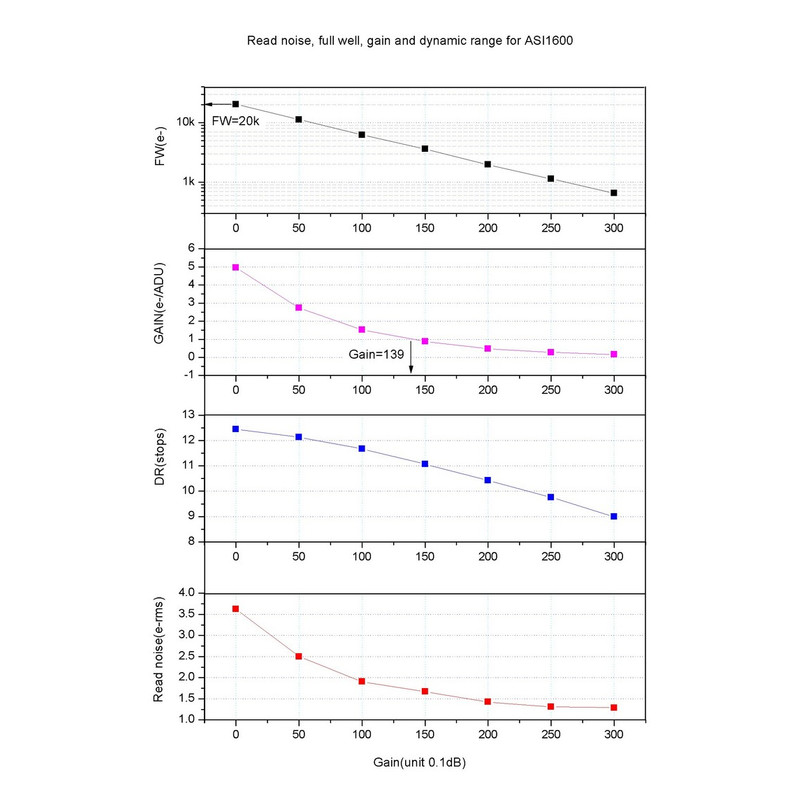

Reading noise
1,2
Cable length (m)
2
Supported operating systems
Windows, Mac, Linux
Quantal efficiency
60
Size of chip (mm)
17,7 x 13,4
Max. cooling difference below room temperature
45
Amperage (A)
2
Input voltage
12
Chip - Diagonal (mm)
22,2
buffer memory (Megabyte)
256
Internal memory
DDR3 RAM

Special features


Infrared filters
no (Clear glass filter)

Equipment


Filter wheel
no
Carry case
yes

General


Weight (g)
410
Series
ASI 1600
Diameter (mm)
78
Height (mm)
86

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Telescope accessories (2)
Power pack

ZWO External power supply, 12V 5A

$ 53.00*
Filters > Nebulae filters (3)
Filters

Astronomik Filters 1.25" CLS CCD filter

$ 107.00*
Filters > Other (6)
Filters

ZWO Filters Filter IR-Pass 1,25"

$ 37.90*
Astrophotography > Camera adaptor (3)

ZWO Nikon lens adapter for ASI cameras

$ 90.00*
Astrophotography > Other (4)

ZWO ASI Lens 2.8mm - 12mm

$ 48.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 201.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 1600 MM Pro Mono

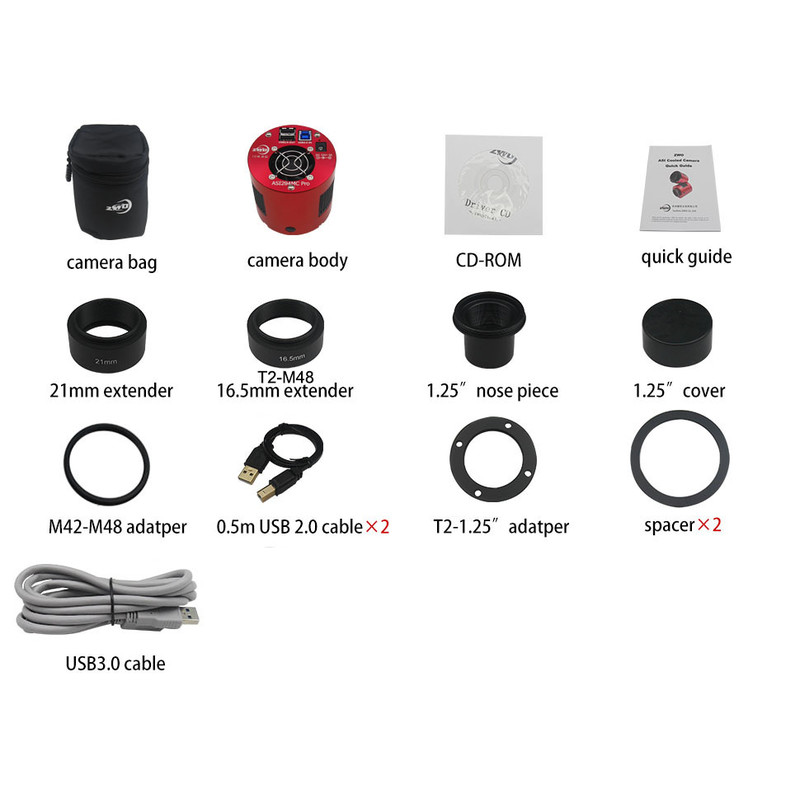

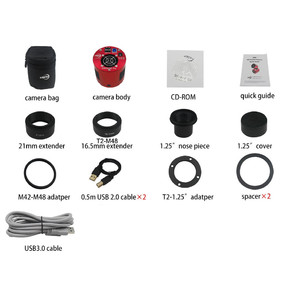

Includes
ZWO Camera ASI 1600 MM Pro Mono

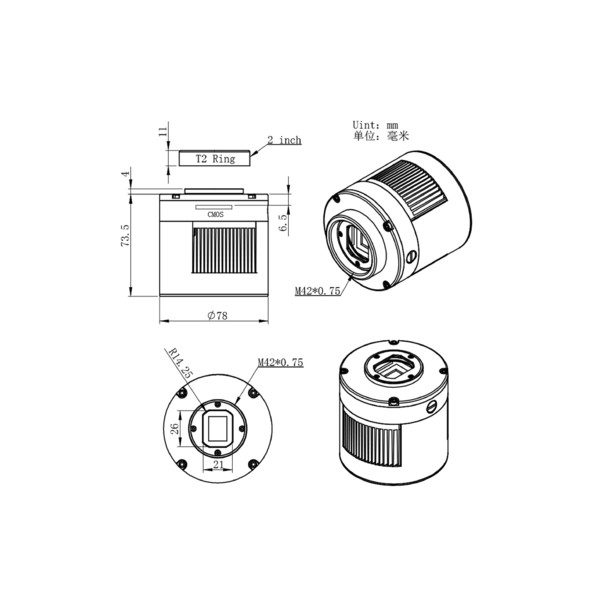

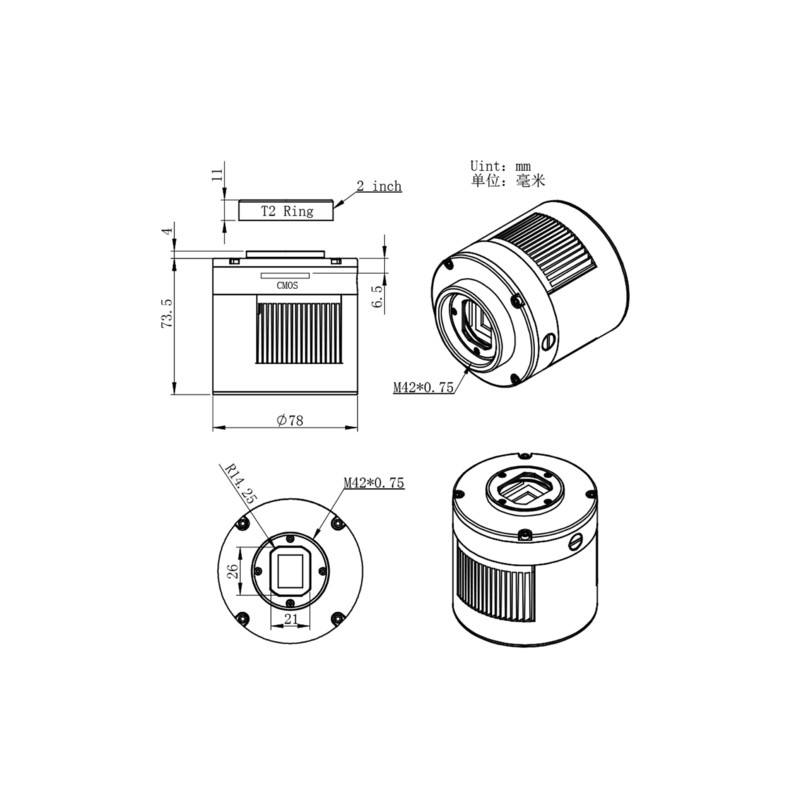

Dimensions
