Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 183 > ZWO Camera ASI 183 MC Pro Color
Product no.: 56538

Camera ASI 183 MC Pro Color

RRP: $ 1,290.00 Our price:
$ 1,250.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 30.03.2024!

Product description

ASI183 has much potential, and each feature means a new posibility! This camera is suitable for a wide range of astronomical application.

The ASI 183 camera series is the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Astrophotography Performance

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The ASI183 cameras have a very large full well capacity (15000e) for such small pixel size, 1.6e read noise @ 30DB, and 12 stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Sony’s back-illuminated Exmor R technology is giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%. Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. The ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA. The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

Possible framerates:

10Bit ADC

  • 5496×3672 19fps
  • 3840×2160 41.04fps
  • 1920×1080 80.10fps
  • 1280×720 117.30fps

12bit ADC

  • 5496×3672 19fps
  • 3840×2160 36.12fps
  • 1920×1080 70.48fps
  • 1280×720 103.23fps

ZWO ASI Pro Features:

The ASI Pro cameras include a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

ZWO ASI Pro cameras have an improved casing. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable. Even when used in higher humidity environments, The camera will still work fine without dew problems.

ZWO ASI Pro cameras also contain a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient Temperature). This reduces sensor noise considerably and allowes you to take breathtaking astrophotos.

Cooled ZWO ASI cameras need a 12V power supply, If you don’t have one, please check the recommended accessories for a suitable power adapter.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX183)
Size of chip (mm)
13,2 x 8,8
Megapixel
20,18
Pixel size
2,4
Resolution Photograph (Pixel)
5496 x 3672
Bit depth (Bit)
12
Active cooling
yes
Interfaces
USB 3.0 & USB 2.0
Connection (to the telescope)
1,25" & 2" & T2
Colour camera
yes
Operating temperature
-5 - 45
Max. cooling difference below room temperature
45
Max. exposure time (min)
33,3
Min. exposure time
32µ
Images per second
19 (at full resolution)
Reading noise
1,6
Full Well Capacity
15.000
Flange focal distance (mm)
6,5
Power supply
12
Chip - Diagonal (mm)
15,9
buffer memory (Megabyte)
256
Internal memory
DDR3 RAM

Equipment


Filter wheel
no

General


Weight (g)
410
Series
ASI 183
Diameter (mm)
78
Length (mm)
85

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Telescope accessories (1)
Power pack

ZWO External power supply, 12V 5A

$ 53.00*
Filters (1)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography > Controls & Shutter Release (3)

ZWO ASIAIR PLUS (32GB) Astrophotography-Computer

$ 464.00*
Astrophotography > Other (3)

Artesky Adapter Canon to CMOS with Filter Drawer

$ 183.00*
Media (1)

Springer Inside PixInsight

$ 26.90*
Astronomy (2)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 183 MC Pro Color
Overview
ZWO Camera ASI 183 MC Pro Color

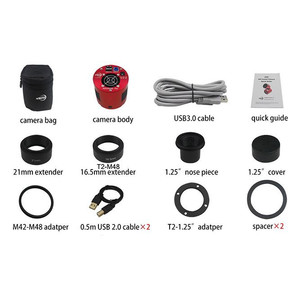

Includes
