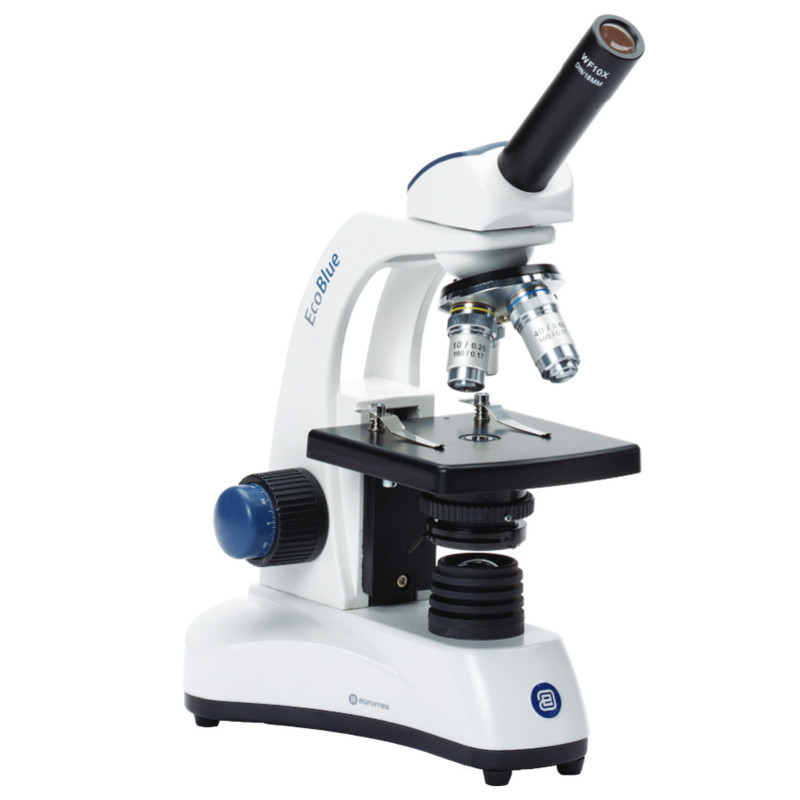

Euromex Microscope EC.1151, mono, 40x, 100x, 400x, 1000x

Product no.: 49774
Manufacturer: Euromex

$ 389.00

incl. VAT
plus shipping costs

too expensive?

ready for shipping in 3-5 weeks + lead time
Product description
Specifications
Customer reviews
Recommended accessories
Downloads

Product description:

EcoBlue

Specifications:

Eyepiece: Secured DIN WF 10x/18 mm with pointer

Head: Monocular 45° inclined tube and binocular 30° inclined tubes. The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels

Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer

Objectives: All models are standard equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. The 20x/40, S60x/0.85 and S100x/1.25 objectives are also available. All optical parts are antifungus treated and are anti-reflection coated

Stage: Plain 123 x 119 mm stage with 2 object clamps except for the EC.1x5x models which are equipped with an integrated mechanical X-Y stage. Polarization model s with a 360° rotatable 129 mm round stage and 2 object clamps

Condenser: In height adjustable Abbe condenser

Focusing adjustment: axial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply. The models with an integrated mechanical stage are equipped with internal batteries. Polarization models come standard with halogen illumination, LED polarization versions are available on request

Software: ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms

EC.1151

Spezification:

Tube: monocular, 45° inclined

Objectives: achromatic 4x/0.13, 10x/0.25, 40x/0.65 spring, 100x/1.25 spring, antifungus treated, Antireflection

Stage: x-,y- stage

Condenser: Abbe

Illumination: LED 1W ajustable

Power supply: Internal batteries with batterie recharger
