Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Kern > MET > Kern Microscope OKM 173, MET, POL, trino, Inf, planachro, 50x-400x, Incident light, HAL, 30W
Product no.: 66418

Microscope OKM 173, MET, POL, trino, Inf, planachro, 50x-400x, Incident light, HAL, 30W

$ 3,120.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

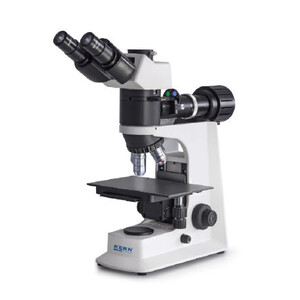

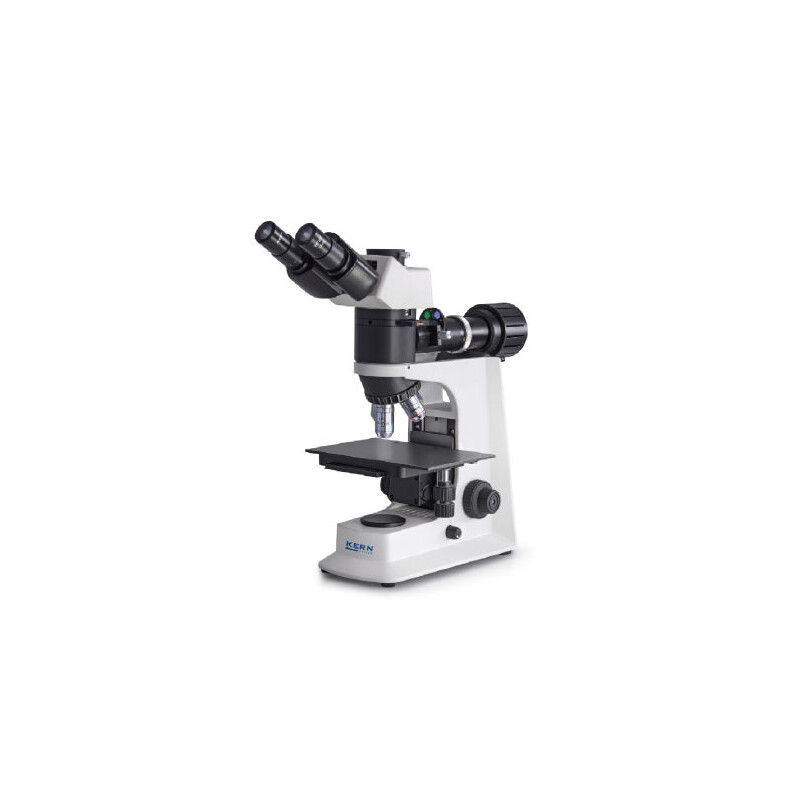

  • The KERN OKM-1 is an excellent metallurgical reflected light microscope, e.g. for surface quality inspection of raw materials and finished products in industry.
  • The powerful and continuously dimmable 30W halogen incident light illumination (Philips) ensures excellent and high-contrast images
  • The illumination unit with an integrated 5-position filter wheel for blue, green, yellow, grey and blank allows quick changing of colour filters for different contrast views

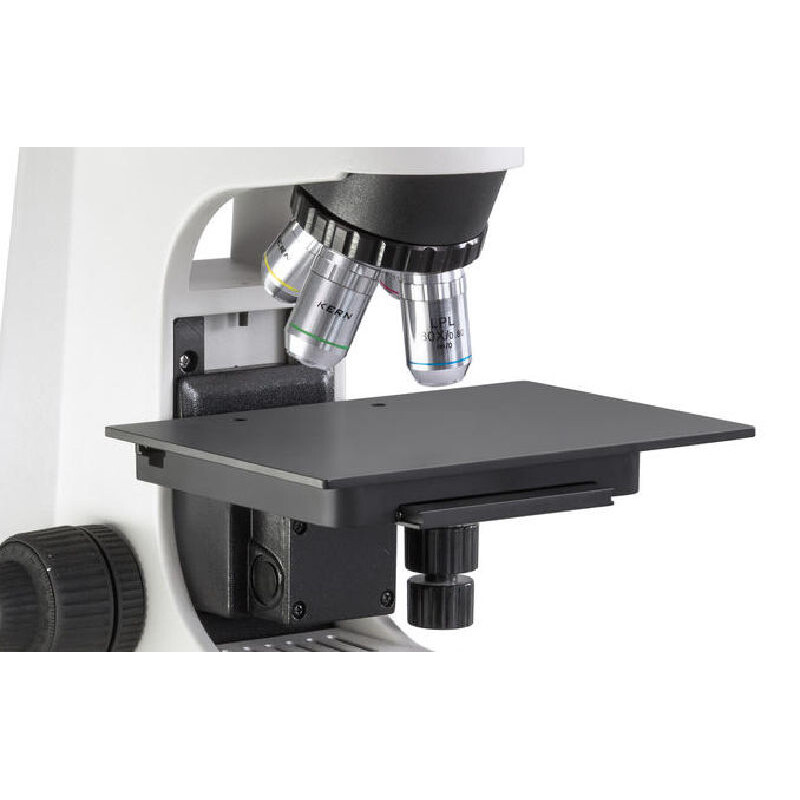

  • A large mechanical microscope stage for reflected light applications is configured as standard. The coarse and fine adjustment on both sides ensures optimum adjustment and focusing of your sample
  • A simple polarisation unit (analyser and polariser) is included in the scope of delivery
  • A large selection of different eyepieces and lenses is also available
  • A dust cover, eyepiece cups and a multilingual instruction manual are included in the scope of delivery
  • A C-mount adaptor is required to connect a camera to the trinocular version

Field of application

  • Metallurgy, materials testing, quality assurance

Applications/samples

  • Opaque and thick specimens, workpieces (surfaces, fracture edges, coatings)

Technical

  • Infinity optics
  • 4-position objective turret
  • Siedentopf 30° inclined, 360° rotatable
  • Diopter adjustment on one side
  • Overall dimensions W×D×H 440×200×460 mm
  • Net weight approx. 7.488 kg

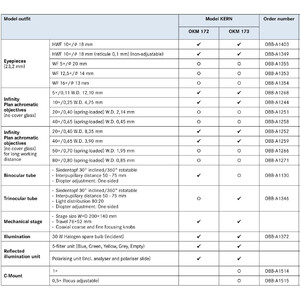

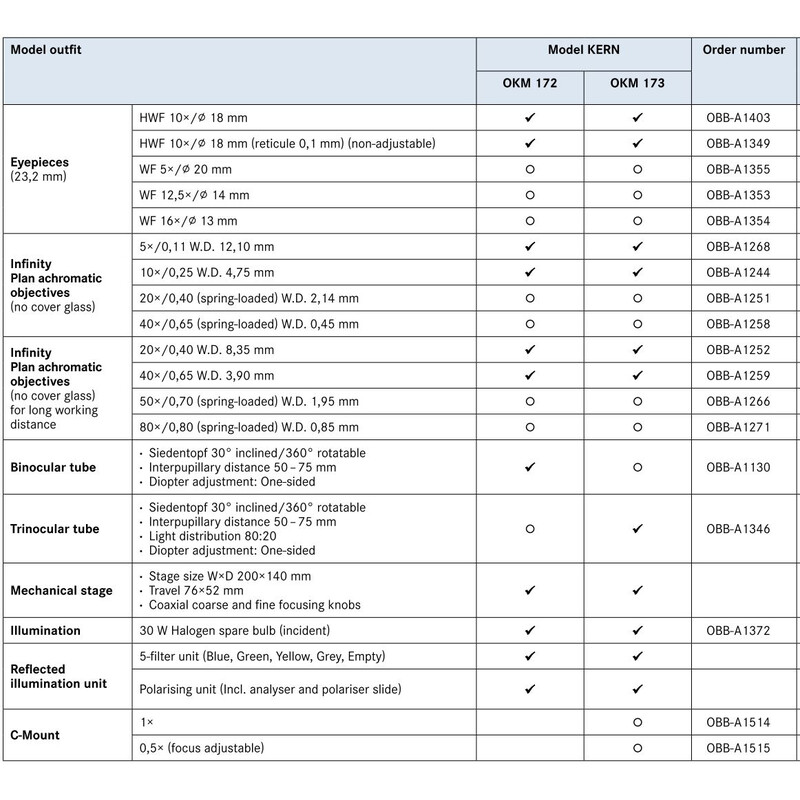

Specifications

Optics


Eyepiece
10x/18 (Widefield)
Optical system
infinity
Lens type
Plan, achromatic
Objective 1
5×/0,11 W.D. 12,10 mm
Objective 2
10×/0,25 W.D. 4,75 mm
Objective 3
20×/0,40 W.D. 8,35 mm
Objective 4
40×/0,65 W.D. 3,90 mm
Magnification
50-400
Lamp type
Halogen (30W)
Power supply
EU-

Capacity


Incident light
30W
brightfield
yes
Polarization
yes (Polarisation equipment consisting of analyser and polariser.)
Brightness control
yes

Mechanics


Type of build
Trinocular
Viewing posture (°)
30 (30° angled eyepiece, 360° rotatable)
Focusing
Coarse and fine movement
Specimen stage
-

Special features


Filter holder
yes
Rechargeable battery operation
-
Dust cover bag
yes

General


Weight (g)
7488
Width (mm)
440
Length (mm)
200
Height (mm)
460
Series
MET

Suitable for


Advanced
yes
Pros
yes

Field of application


Education
-
Hobby
yes
Medicine
-
Industry
yes

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
